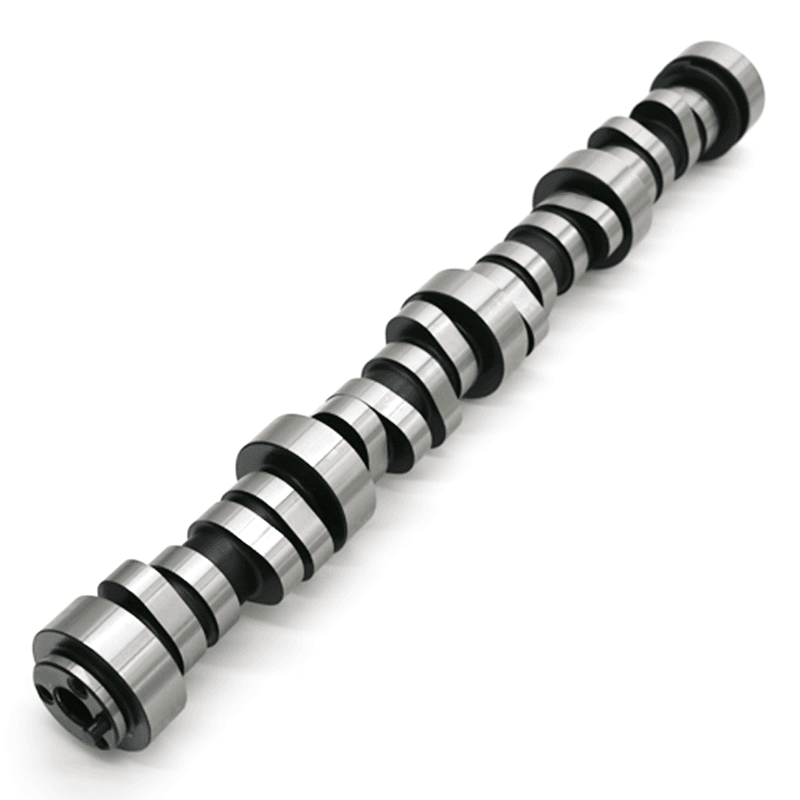

Texas Speed Stage 3 LS3 N/A Camshaft

The Stage 3 camshaft is a great mid-duration camshaft for power applications from 3000 RPM+. This camshaft is an excellent choice for customers wanting more power than our 231/246 yet still wanting to retain nice streetability. Automatic-equipped vehicles will require a minimum stall speed torque converter of 3,200 RPM. We recommend this camshaft for LS3 or LS2 engines using L92/LS3 rectangle port cylinder heads!

Note: Valve Springs Required Use TSP or PAC .660 Dual Valve Springs.

Camshaft Specs
Camshaft Use: Street/Strip
Engine Combination: Naturally Aspirated
Camshaft Duration: 231/246
Valve Lift with Factory Rocker Arm Ratio: 0.640 int./0.615 exh.
Lobe Separation (degrees): 111
Intake Centerline: 109
Camshaft Gear Attachment: 3-bolt
Engines best suited for: 6.0, 6.2 (Equipped with Rectangular Port Heads)
Desired Compression ratio for cam: 10.5:1+
Recommended Springs Required: TSP/PAC Dual .660 Valve Springs
Aftermarket Stall Converter Required: Yes, 3200+
Upgraded Rear Gear Required: No
Operating RPM Range: 2000-6900

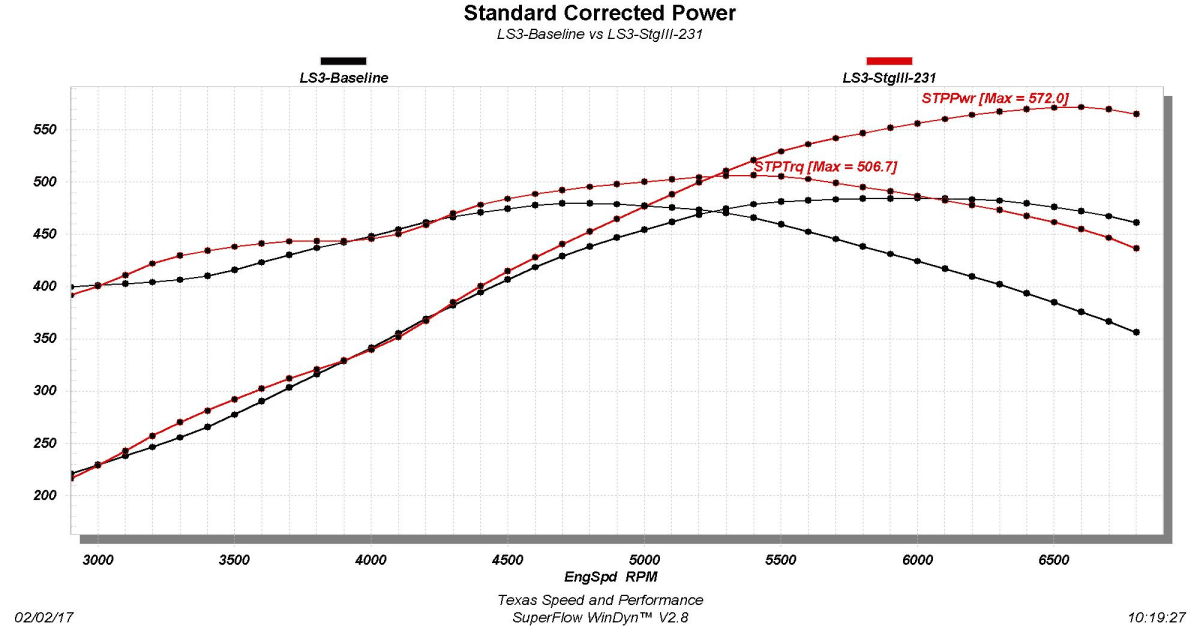

Power Increase: Gains of 88 Horsepower and 28 Ft. Pounds of Torque!
Drivability: Great Street-able cam and can be daily driven once properly tuned!

Notice: This camshaft is only offered in a 3-bolt design, so if you have a single-bolt factory camshaft you will need to purchase the three-bolt conversion kit that will supply the correct 4x upper timing gear to supply the correct camshaft position signal, as well as the ARP camshaft bolt kit that will supply the three required bolts.  We also offer the conversion kit with a complete, upgraded timing set for those wanting to replace the entire set.
