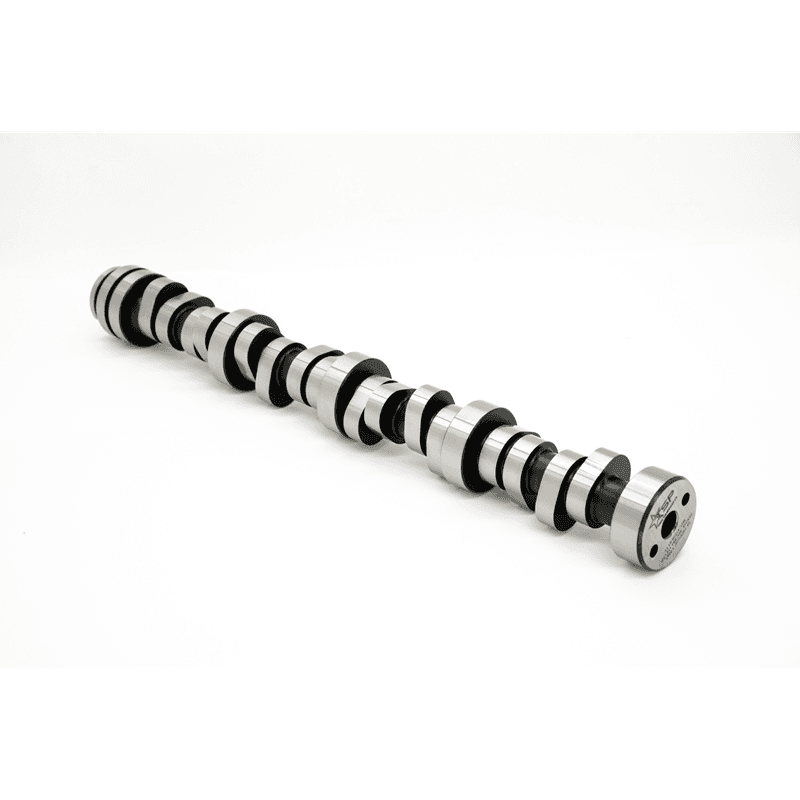

Camshaft Specs
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Engine Combination: Naturally Aspirated
Camshaft Duration: 233/243
Valve Lift with Factory Rocker Arm Ratio: 0.641 int./0.641 exh.
Lobe Separation (degrees): 113
Intake Centerline: 109
Power Increase: Gained 96 HP and 37 ft-lb of torque at the crank during N/A testing.
Operating RPM Range: 1000-6200 MAX RPM.
Drivability: Exceptional performance for street/strip turbo applications (tune required).
Valve Springs: PAC 1282X springs are recommended.
Stall Converter: A 2600+ stall converter is required.
Rear Gear: For swap vehicles, gear selection will vary depending on the application.
