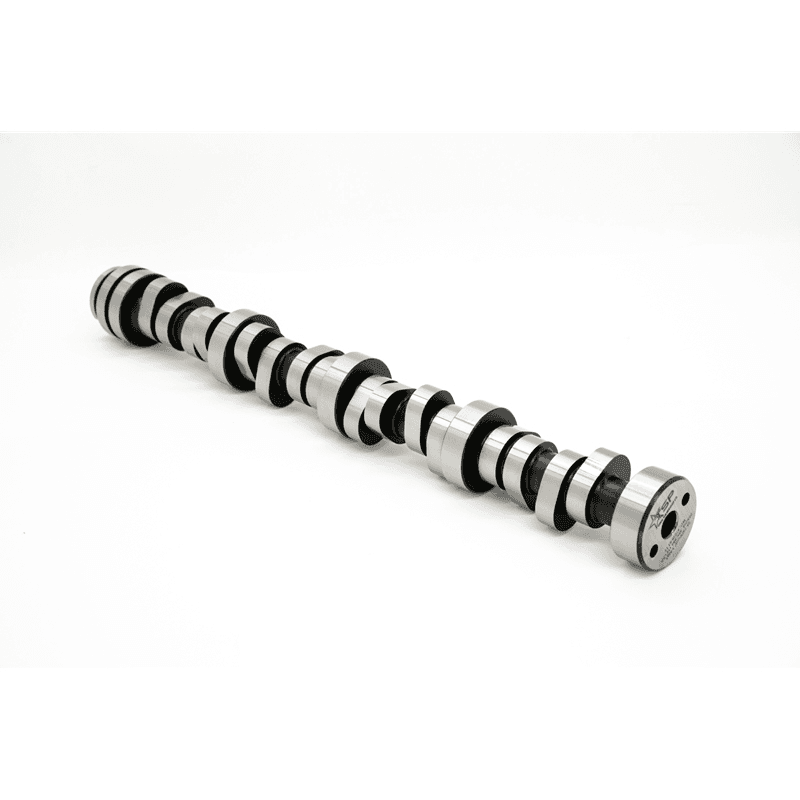

Camshaft Specs
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Engine Combination: Naturally Aspirated
Camshaft Duration: 223/223
Valve Lift with Factory Rocker Arm Ratio: 0.641 int./0.641 exh.
Lobe Separation (degrees): 115
Intake Centerline: 111
Power Increase: Gained 77 HP and 37 ft-lb of torque at the crank under N/A testing.
Operating RPM Range: 1000-6200 RPM (max).
Drivability: Excellent for daily driving or road race applications with a tune.
Valve Springs: PAC 1282X springs are recommended.
Stall Converter: No aftermarket stall converter required; works with stock.
Rear Gear: For swap vehicles, gear selection will vary depending on the application.
