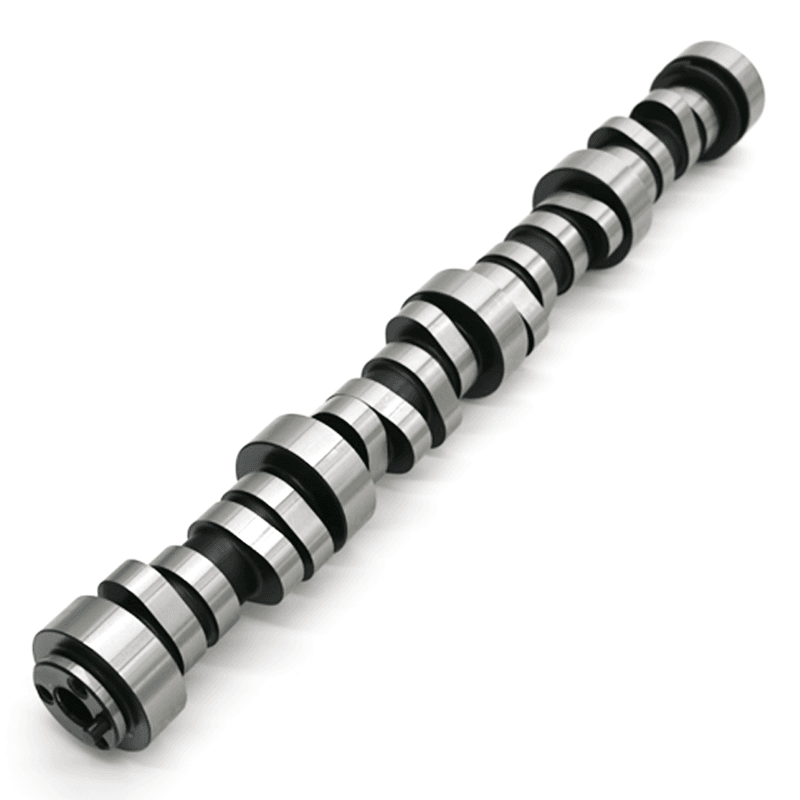

Texas Speed 224/228 LS Camshaft

The 224/228 camshafts use lobes that are designed to be both beehive & double valve spring friendly. The 224/228 camshaft is a popular option for those wanting more exhaust duration in combination with the 224-intake lobe. This camshaft is very popular for guys running very streetable boost engines. It has awesome drivability while making a solid 40+ rear wheel horsepower gains in N/A applications & even more in boost applications!

Note: Valve Springs Required, TSP .660 Dual Valve Springs

Camshaft Specs
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Engine Combination: Naturally Aspirated
Camshaft Duration: 224/228
Valve Lift with Factory Rocker Arm Ratio: 0.600 int./0.600 exh.
Lobe Separation (degrees): 112
Camshaft Gear Attachment: 3-bolt
Aftermarket Stall Converter Required: Yes, 2600+
Upgraded Rear Gear Required: No
Operating RPM Range: 1500-6600
Estimated Power Increase: 45-55+ HP
Drivability: Great driveability, has great stock like manners with good lope at idle and makes great power! Custom Tuning required.
