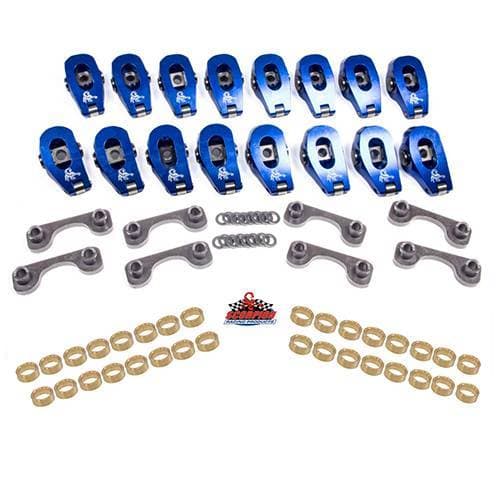

Scorpion 1.7 L92, LS3, LS9, LQ9 Race Series Rocker Arms , For TrickFlow and AFR Heads, 8mm with Bushings - Pedestal Mount
Sting the competition with the full-body design of Scorpion Race Series roller rocker arms. They're precision-crafted via high-tech manufacturing methods, then fully CNC-machined. These rockers offer more clearance for retainers and springs, and can easily handle .950 in. lift and 950 lbs. of open spring pressure. The surfaces are micro-polished and anodized for looks, protection, and maximum durability.
Specs:
Rocker Arm Mounting Style: Pedestal Mount
Self-Aligning: No
Rocker Arm Ratio: 1.7
Stud Size: 8mm
Maximum Spring Diameter (in.): 1.400 in.
Rocker Arm Style: Full roller
Shims Included: No
Rocker Arm Material: Aluminum
Rocker Arm Body Style: Standard
Rocker Arm Fasteners Included: Yes
Rocker Arm Nut Style: Polylock
Slot Style: Standard
Slot Width (in.): 0.634 in.
Rocker Arm Finish: Blue anodized
Quantity: Sold as a set of 16.
Additional features include:
* Aerospace-grade 7000 Series aluminum for maximum strength and durability
* Needle bearing fulcrum and roller tip
* Precision-ground needle bearings
* Centerless ground trunnion, ground pin, and roller
* Burr-free trunnion through hole
* Directed oiling
* Large machined seat and thick-walled adjusting nut (polylock)
* Pedestals machined from solid steel
* Black oxide coated steel parts
* 1.600 in. fulcrum width
* Clear 1.625 in. O.D. valve springs
