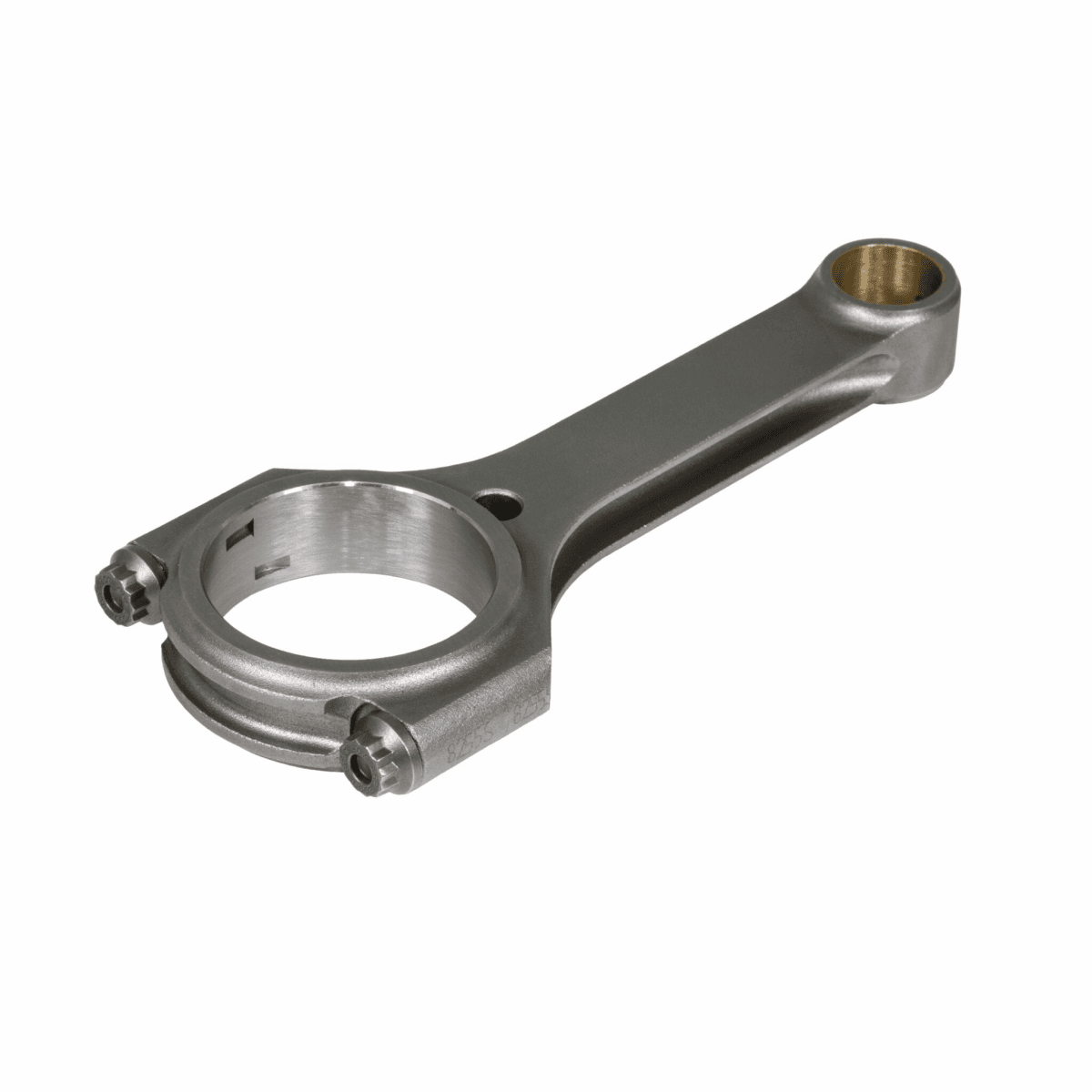

Scat Ultra HP Pro Sport 4340 Forged H-Beam Connecting Rods for Gen 1 SBC, LS & LT Engines - 6.125 Length | 2.100 Rod Journal
Ultra HP Pro Sport 4340 Forged H-Beam Connecting Rods from SCAT Crankshafts are perfect for sport compact applications. The double rib cap design of the Chevy Ultra HP Pro Sport 4340 Stroker H-Beam Connecting Rods adds strength and bearing support. The extra material on beam makes these Stroker H-Beam Con Rods perfect for higher horsepower, supercharged and nitrous applications. They also have a special hollow doweled cap for accurate cap-to-rod beam alignment.
Note: These Ultra HP Pro Sport rods are the best lightest strong version of scat's rods and feature hollow doweled caps for accurate cap-to-rod beam alignment.
Features:
Dimensions: 4 × 10 × 12 in
Rod Type: Pro Sport
Style: H-Beam
Material: Forged 4340 Steel
Finish: Polish/Shot-peen
Wrist Pin: Floating
Stroke Clearance: No
Bolt Brand: ARP
Bolt Size: 7/16"
Bolt Cap: Cap Screw
Bolt Head: 12-Point
Bolt Material: ARP L19
Cylinders: 8
Rod Length: 6.125
Rod Journal: 2.100
Wrist Pin Size: 0.927
Big End Width: 0.940
Additional Features:
Formula 1-inspired lightening hole
Cut for cam clearance on longer stroke
Double rib cap design for added strength and bearing support
Polished and shot peened beams to eliminate stress risers
Comes with 7/16” ARP L19 cap screw bolts
