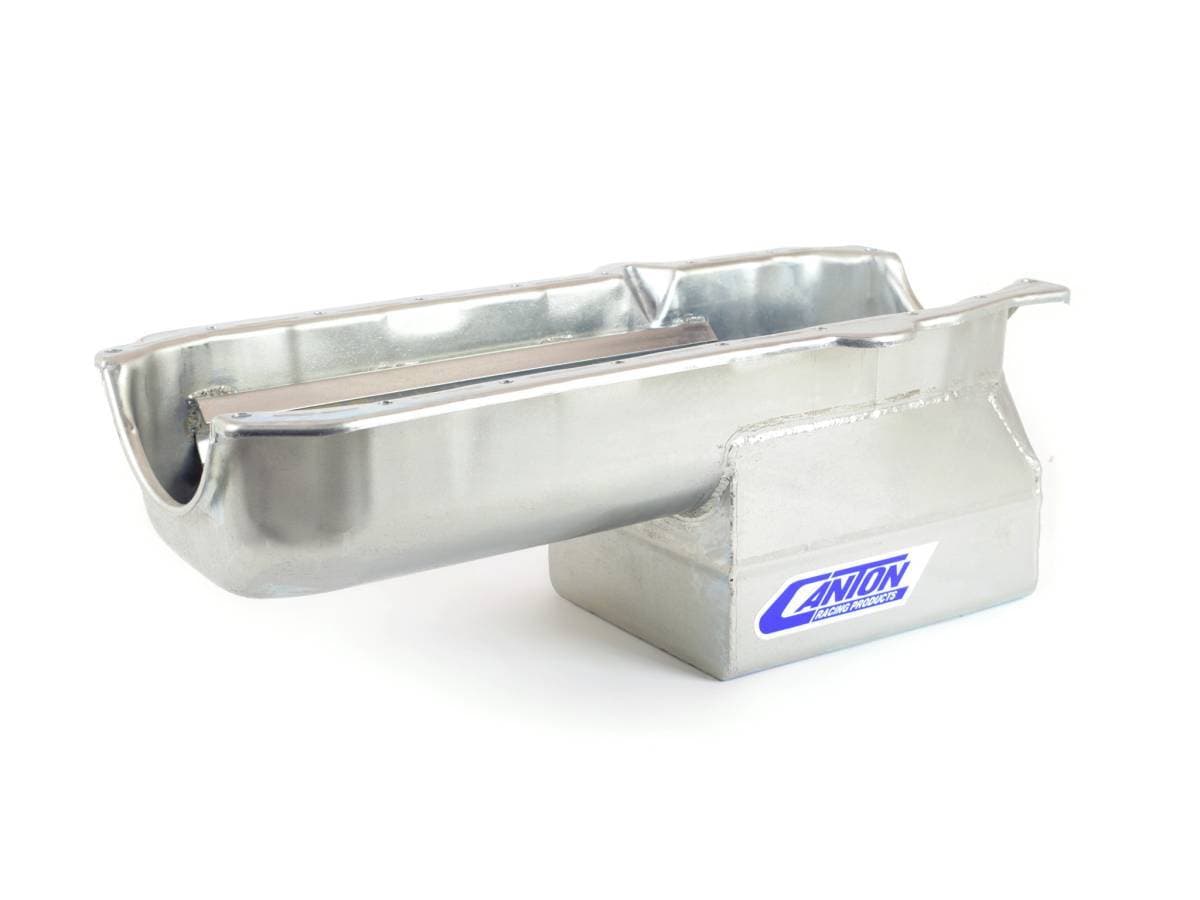

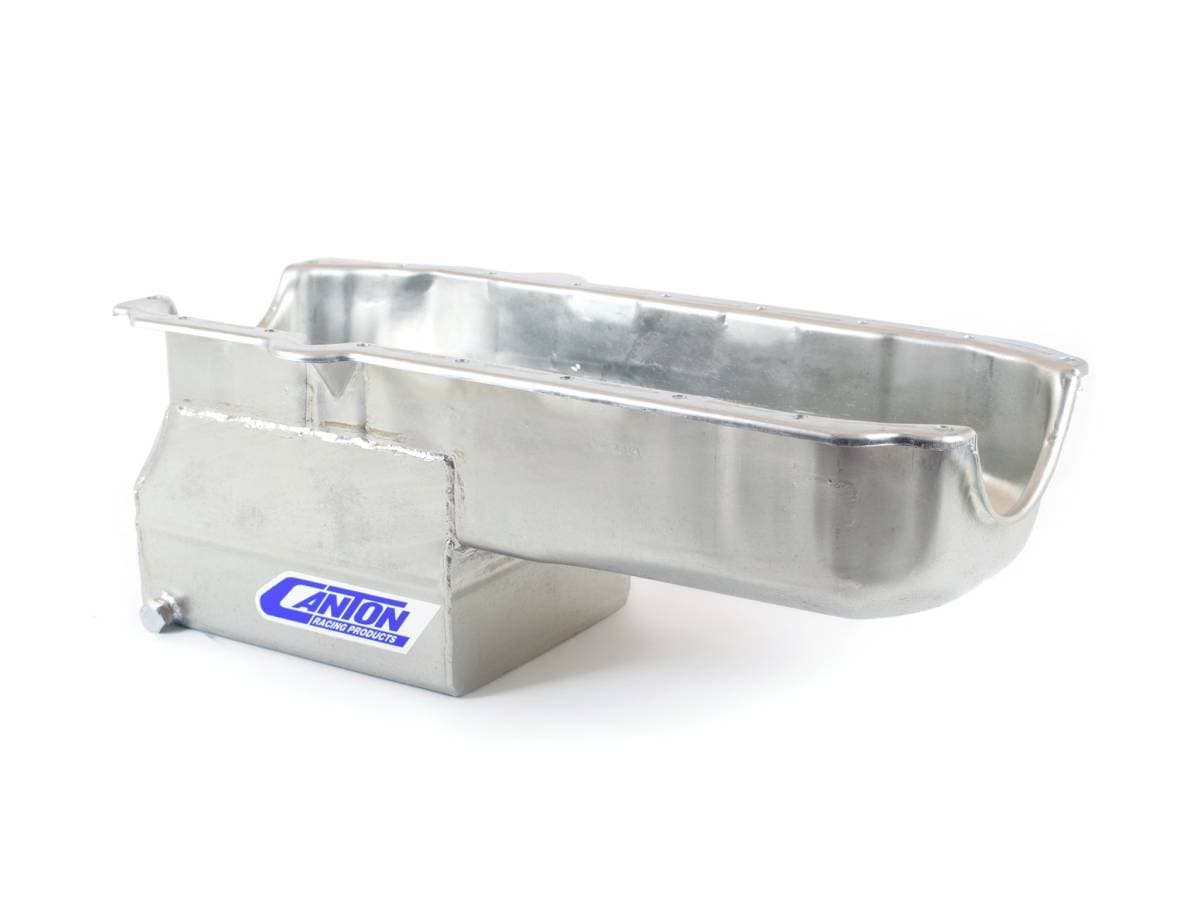

SBC 1980-1985 With Right Side Dipstick Drag Race Canton Race Oil Pan - Silver

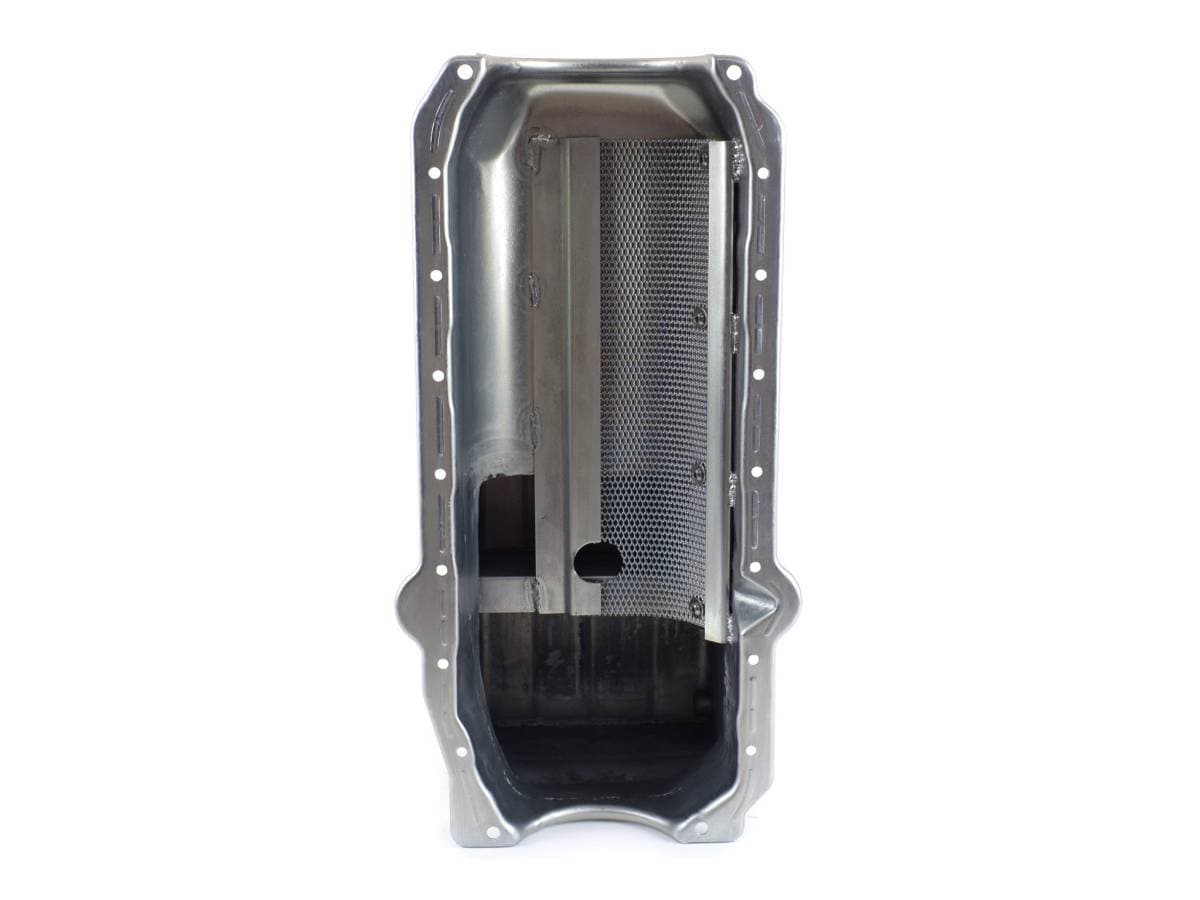

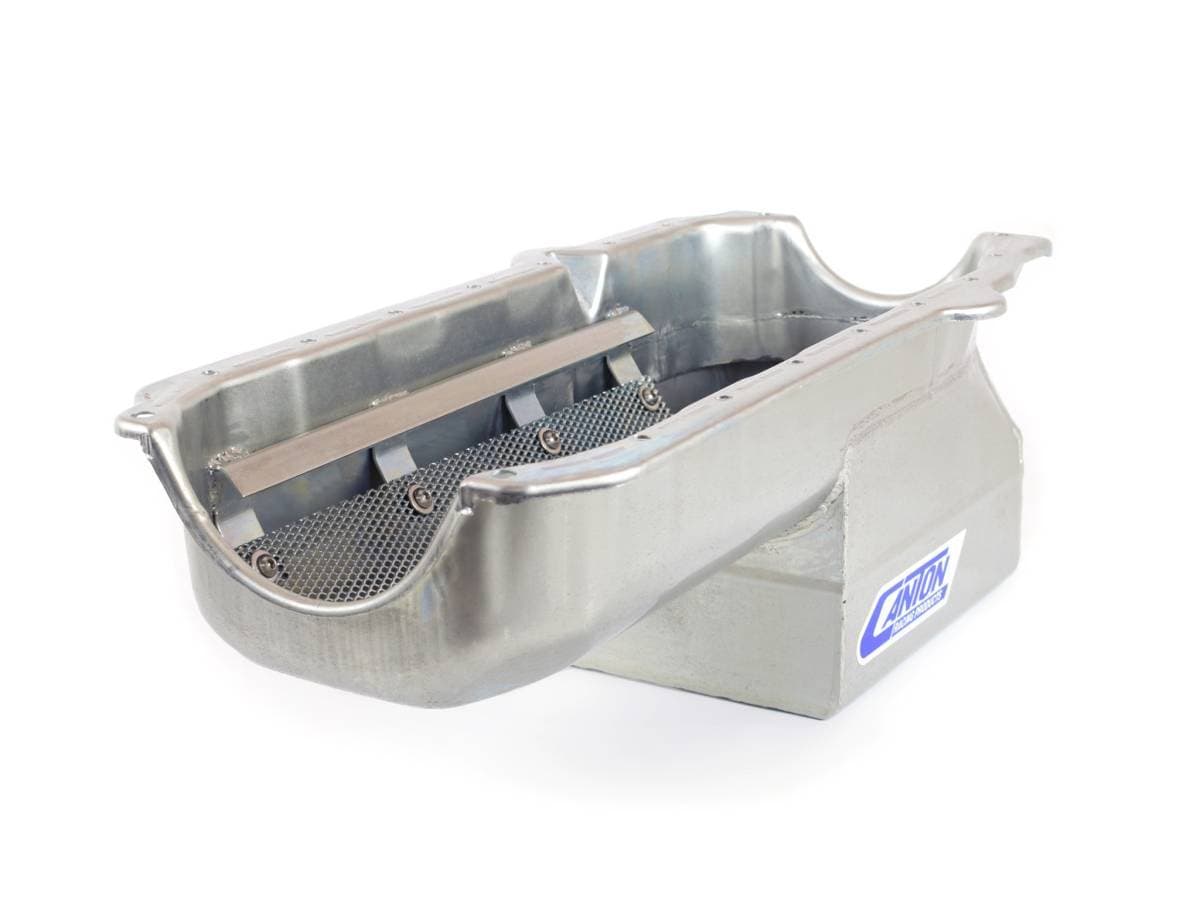

This bracket drag race oil pan is for SBC 1980 to 1985 blocks with right side dipstick and is designed to fit most stock chassis. It has an 8" deep by 9-1/2" long sump and a 6 qt. system capacity. The pan features a crank scraper and windage tray combination designed to maximize power, a trap door baffle for oil control, and a magnetic drain plug. Clears a 3.875 stroke with a steel rod.



Note This pan requires one of Canton's pickups

FEATURES: This bracket drag race oil pan is for SBC 1980 to 1985 blocks with right side dipstick and is designed to fit most stock chassis.

STYLE: Clears a 3.875 stroke with a steel rod.

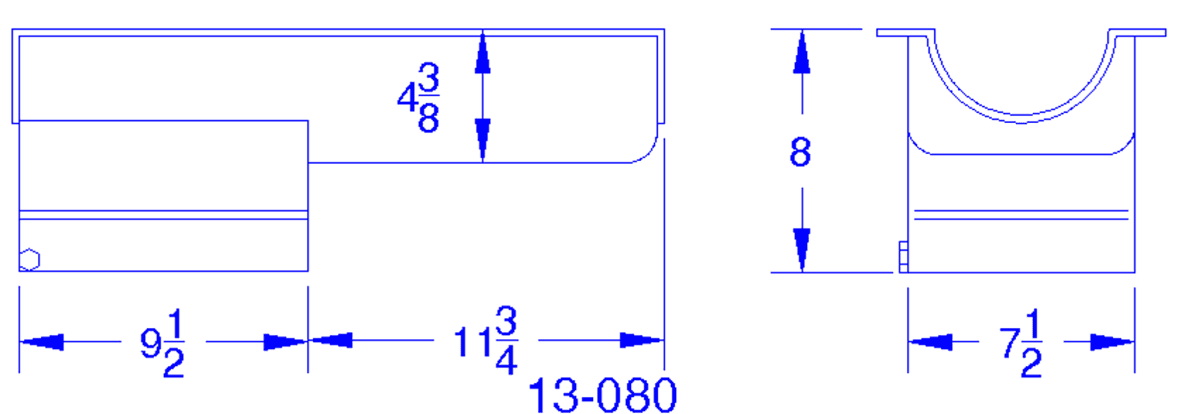

SIZE: It has an 8" deep by 9-1/2" long sump and a 6 qt. system capacity.

OIL PAN PART #: 13-080M Canton Drag Race Chevy SBC 1980-1985 Blocks Oil Pan.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 20-050 for SB Standard Vol. Pumps M55 & M55A.
PART #: 20-055 for SB Standard Vol. Pumps w/ 3/4" tube M155.
PART #: 20-080 for SB High Vol. Pumps M55HV.
PART #: 20-082 for SB.H.V. Melling 10555 Pumps.
PART #: 20-085 for SB High Vol. Pumps w/ 3/4" tube M155HV.

GASKETS:
PART #: 88-100 – SBC Pre ’85 Oil Pan Gasket
