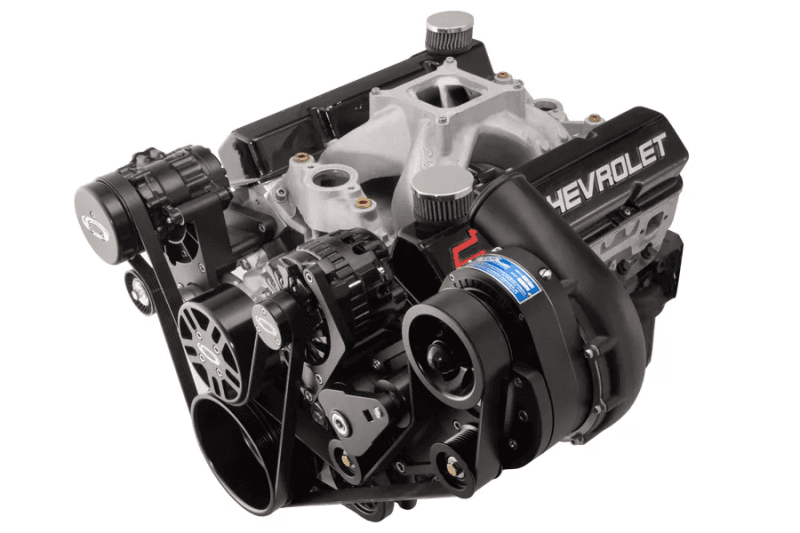

The ProCharger Accessory Drive Kit offers the sleek design style you expect from our brand, and a unique supercharger bracket design that offers you the convenience of adding the supercharger kit when you are ready. Specifically designed for Chevy Small block engines, this kit includes everything you’ll need to fit the accessories you want. The design features our popular 8-rib or 10-rib pulleys that increase grip, reduce stretching and prevent belt slippage when compared to the traditional six rib designs.
Kit will fit any SBC block, This system comes with Crank pulley, Alternator bracket, ProCharger supercharger bracket, ProCharger D-1X Headunit, Power steering bracket & A/C Bracket
Uses factory balancer or aftermarket factory replacement balancer

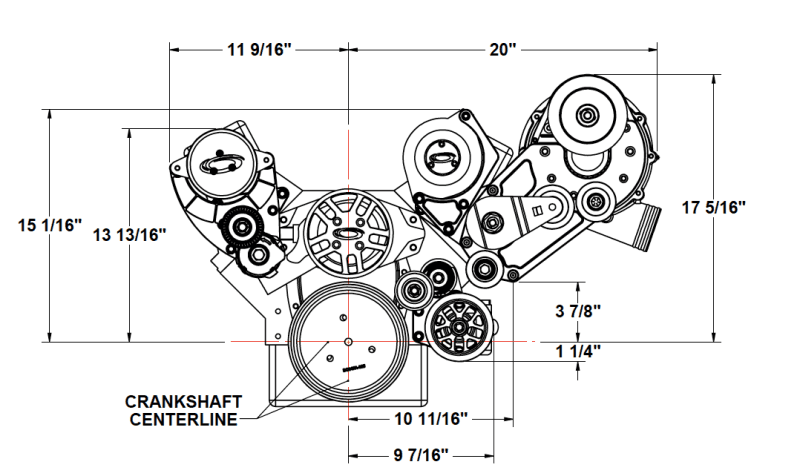

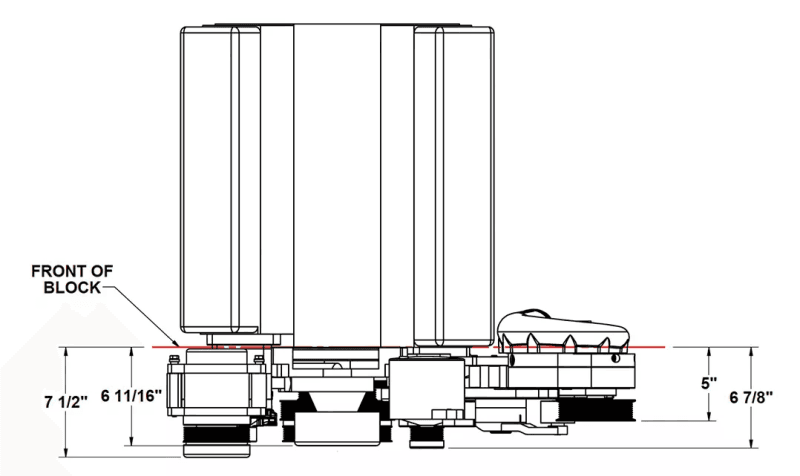

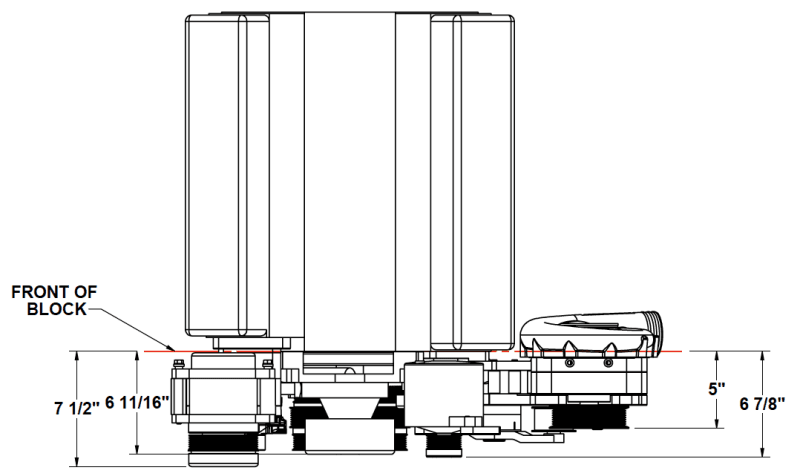

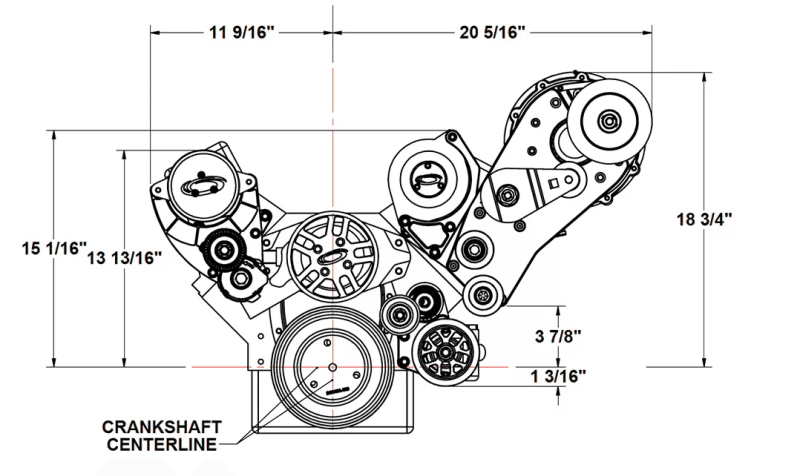

Note: Standard low mount supercharger bracket has a lower profile and is tucked in closer to the engine. Ideal for typical installations. High mount supercharger bracket For people who may have aftermarket suspension components or frame clearance issues that would otherwise interfere with the standard mount.
*Does not include water pump*. Pictures are for reference headunit and accessories would come satin, optional black or polish finishes are available see product options.
ProCharger Kit Includes:
Water pump pulley, and belt
Crank Pulley and belt
Alternator bracket, pulley, and belt
Power Steering bracket, pulley, and belt
A/C Pulley and belt
ProCharger Supercharger Bracket 8 rib, Tensioner & Belt
D1X Supercharger Head Unit capable of 1075 horsepower
ProFlow (700 HP)
Additional Notes:
Accessory Pulleys included
Can be ordered without A/C
Can be ordered without power steering
Compatible Accessories:
Power steering Pump: GM Type 2 Tuff Stuff #6175AL
Alternator: #CS130 (6/14 center bolt spacing)
A/C Compressor: Sanden, 6 Rib #SD-7B10
Water Pump, SBC: Edelbrock or similar #8815, 84-91 Corvette Reverse Rotation
Application Notes:
Optional ProCharger Head Units available: P-1SC, P-1X, D-1SC, D-1X, F-1A, F-1A-94, F-1X, F-2 (F-1X & F2 headunits require the 10 rib upgrade kit)
