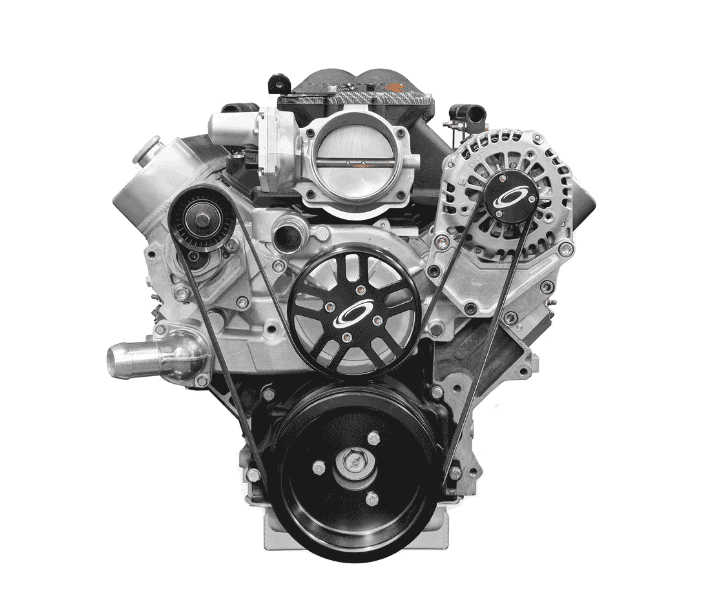

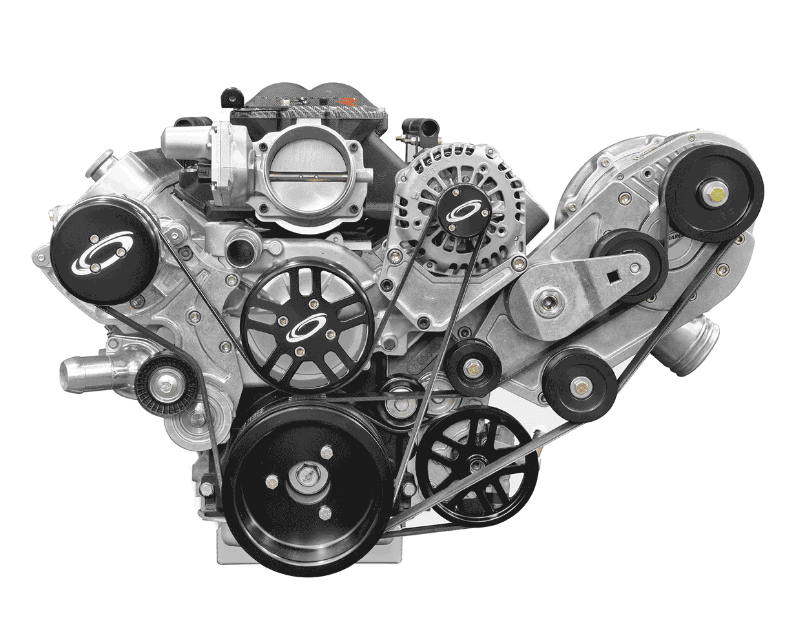

ProCharger Chevy LS Serpentine Front End Accessory Drive Kit

The ProCharger Accessory Drive Kit offers the sleek design style you expect from our brand, and a unique supercharger bracket design that offers you the convenience of adding the supercharger kit when you are ready. Specifically designed for Chevy LS engines, this kit includes everything you’ll need to fit the accessories you want. The design features our popular 8-rib or 10-rib pulleys that increase grip, reduce stretching and prevent belt slippage when compared to the traditional six rib designs.

Kit will fit any LS block, This system comes with Alternator bracket, Water pump, Crank Pulley and has the option of adding ProCharger supercharger & bracket, Power steering bracket & A/C Bracket

Requires Balancer
8 Rib – ATI #917345
10 Rib – ATI # 917347X
8 Rib - Innovator West #843
10 Rib Innovator West #844

*For LS FEAD Dimension Information See Below!

ProCharger Base Kit Includes:
Water pump pulley, and belt
Crank Pulley and belt

Or You Can Upgrade To Include The Following:
Alternator bracket, pulley, and belt
ProCharger Supercharger Bracket 8 rib, Tensioner & Belt
Power Steering bracket, pulley, and belt
A/C Pulley and belt

Balancer Required:
8 Rib – ATI #917345
10 Rib – ATI # 917347X
8 Rib - Innovator West #843
10 Rib Innovator West #844

Picture Dimension Information - For Bracket Options See The Product Options Button!

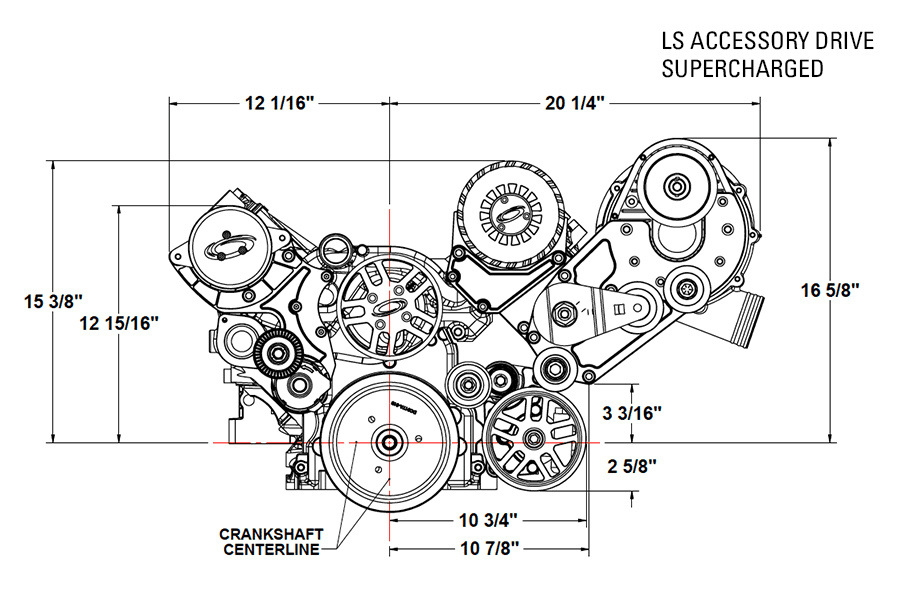

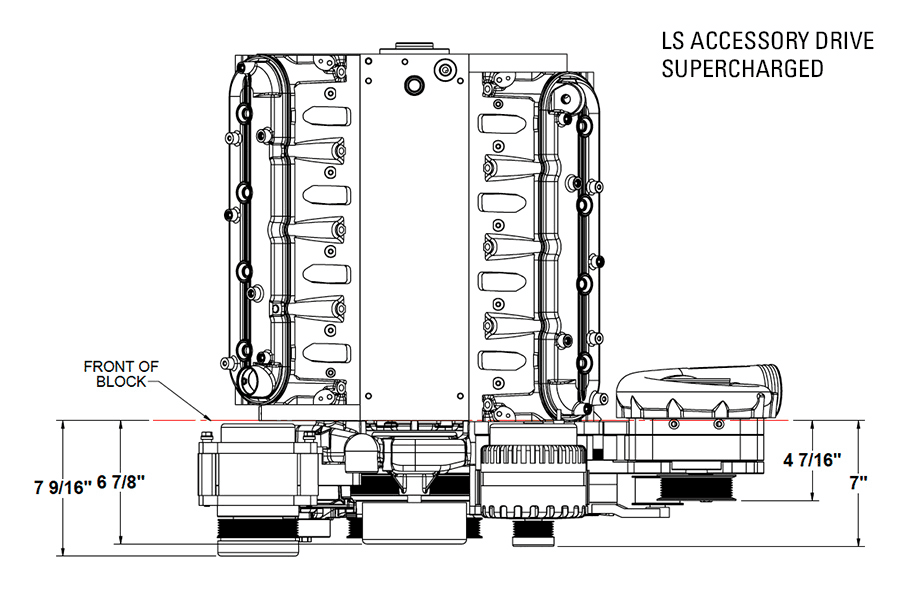

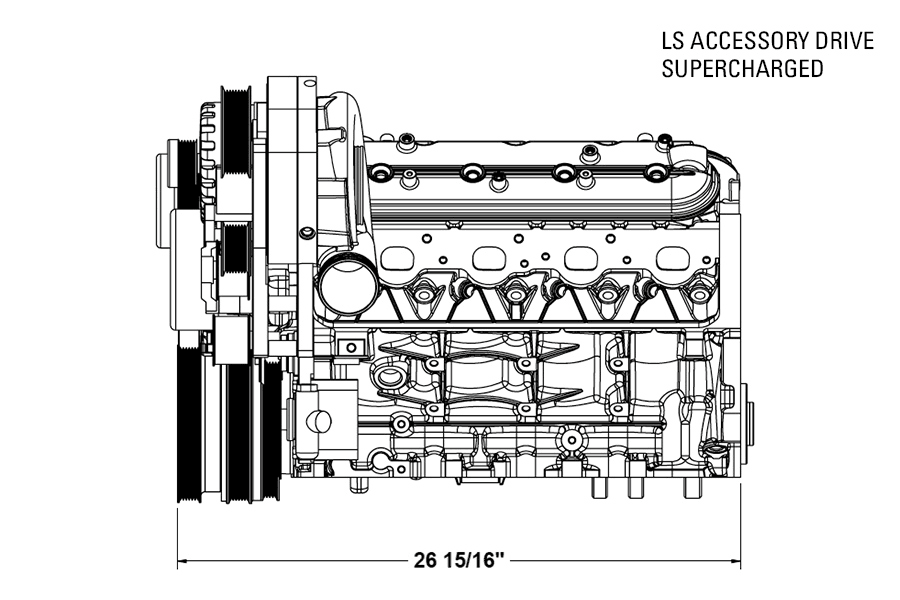

Pictures 5-7 are showing the LS accessory drive with the optional low mount supercharger bracket

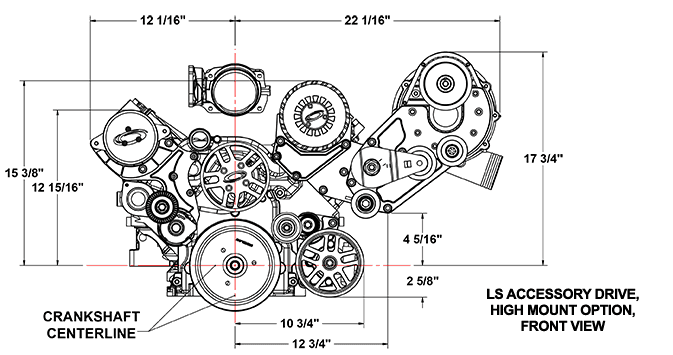

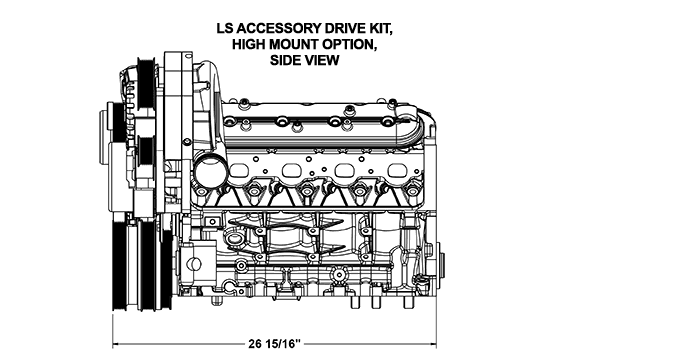

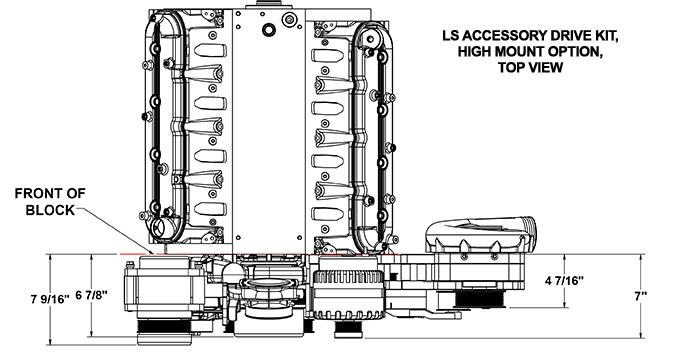

Pictures 8-10 are showing the LS accessory drive with the optional high mount supercharger bracket

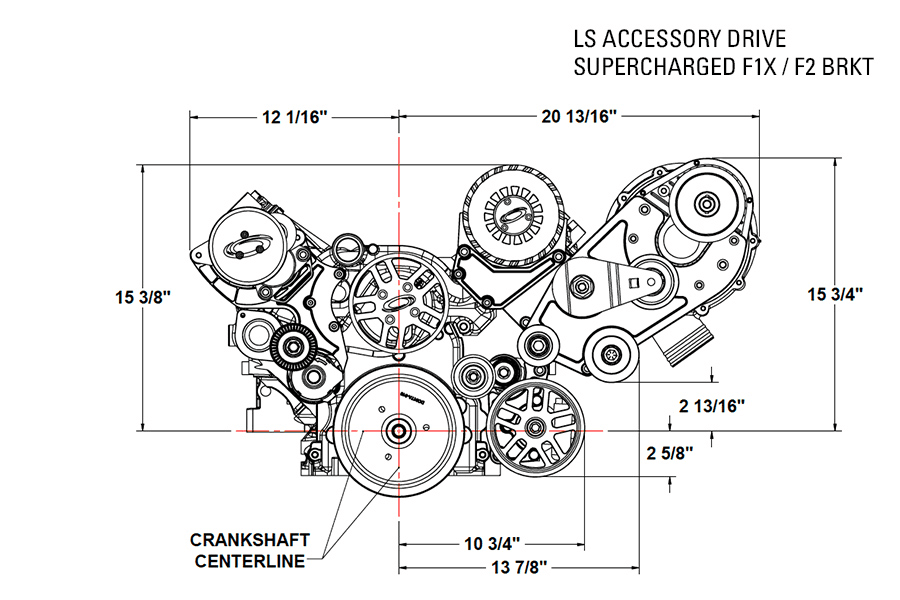

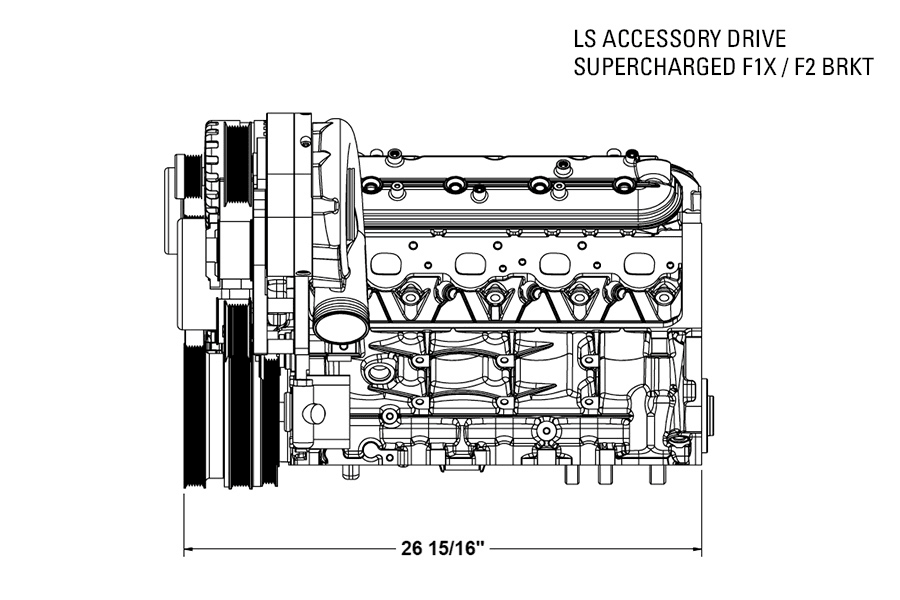

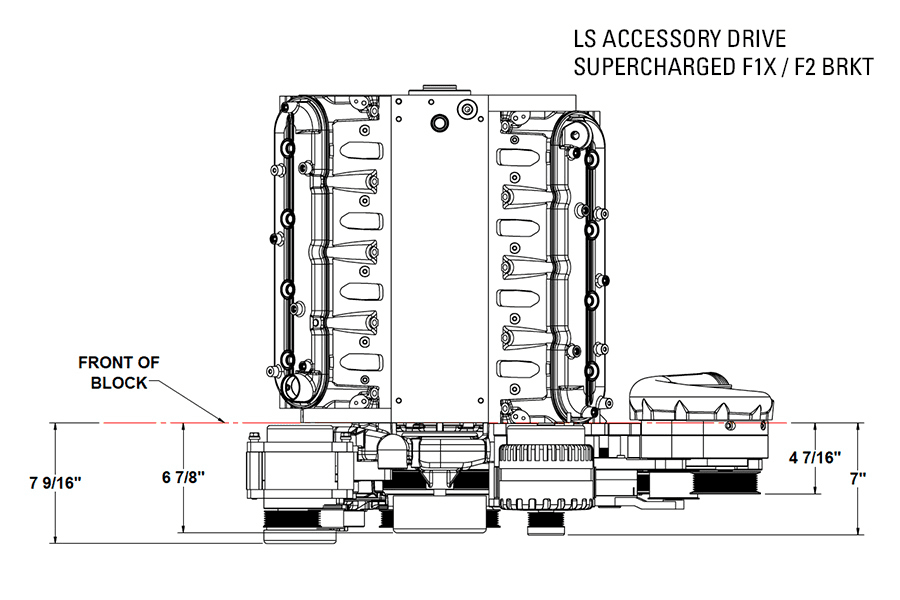

Pictures 11-13 are showing the LS accessory drive with the optional 10 rib F-1X/F2 supercharger bracket

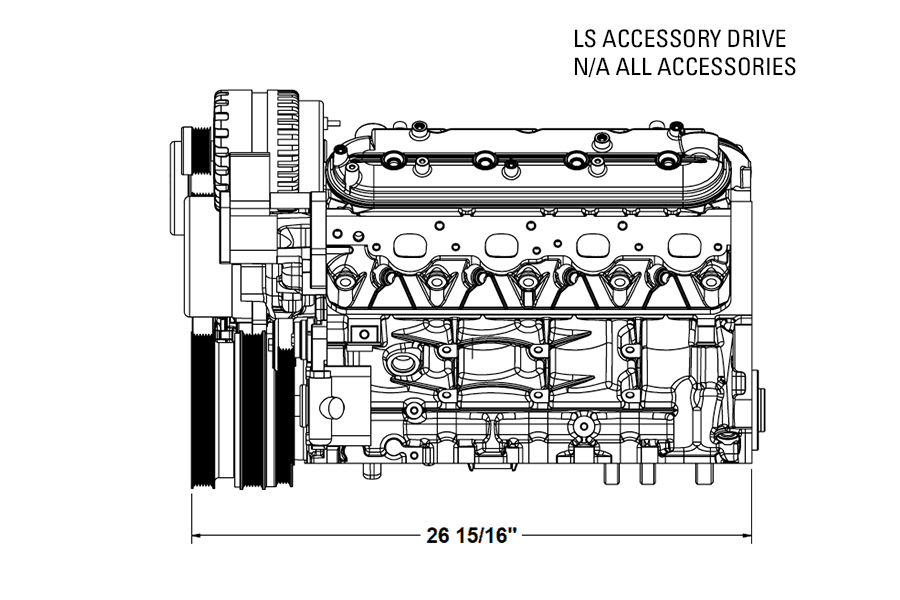

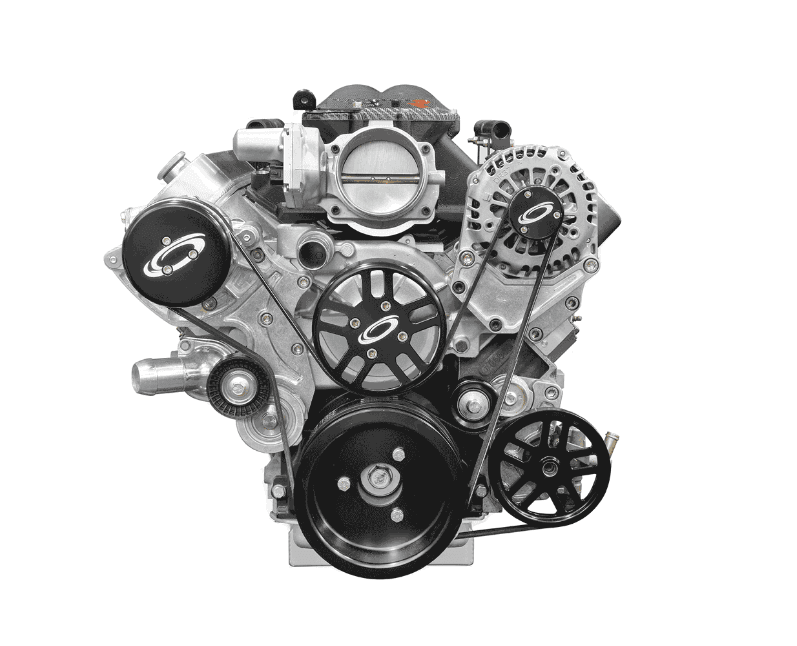

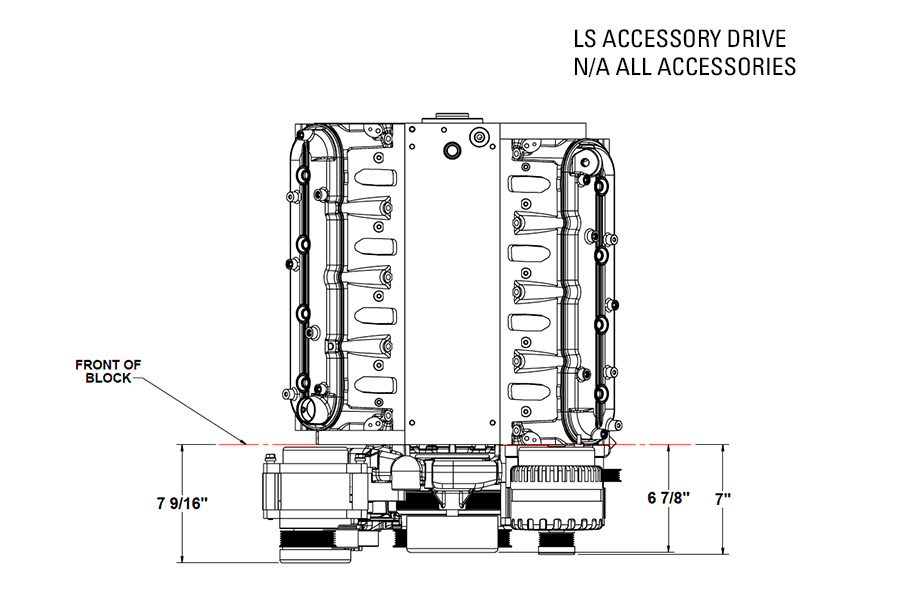

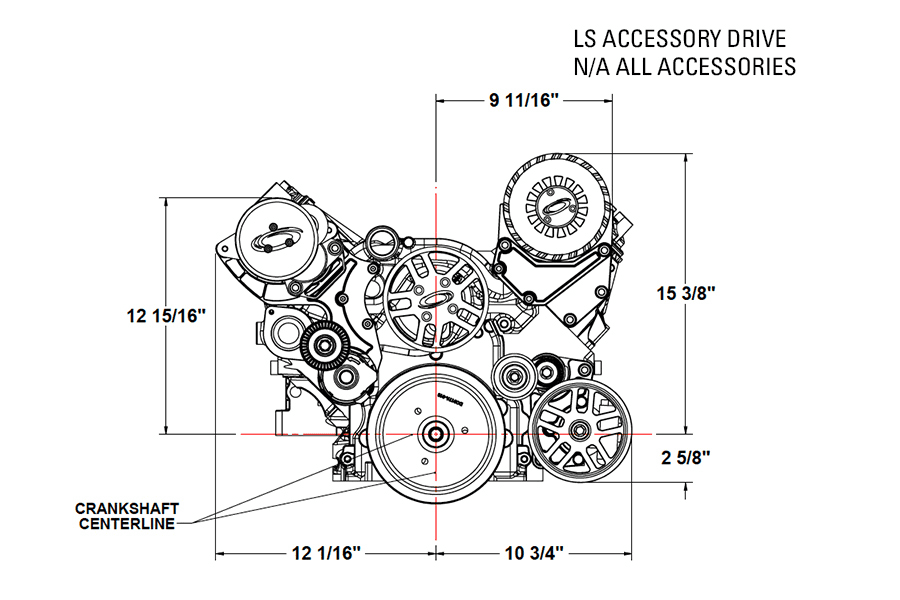

Pictures 14-16 are showing the LS accessory drive as a naturally aspirated system with all accessories (PS/AC)

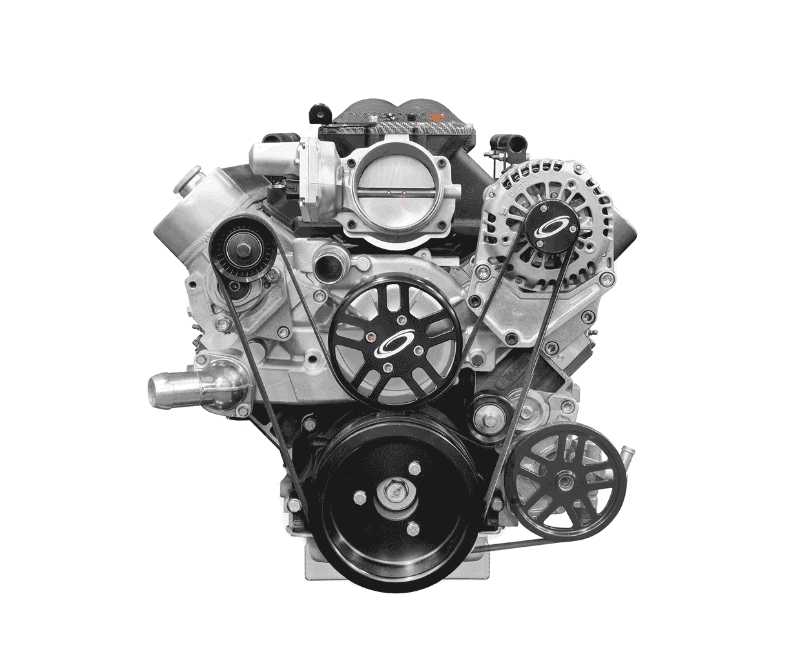

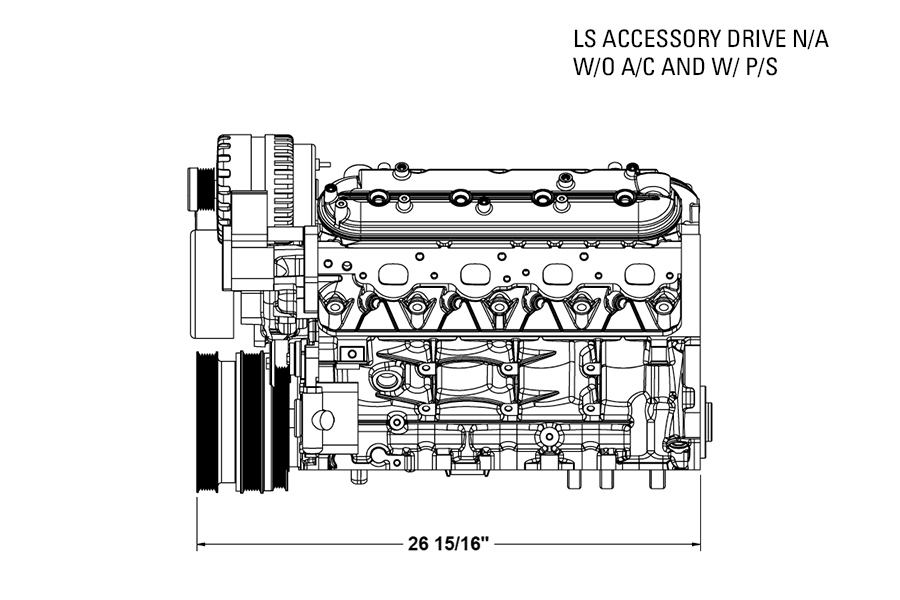

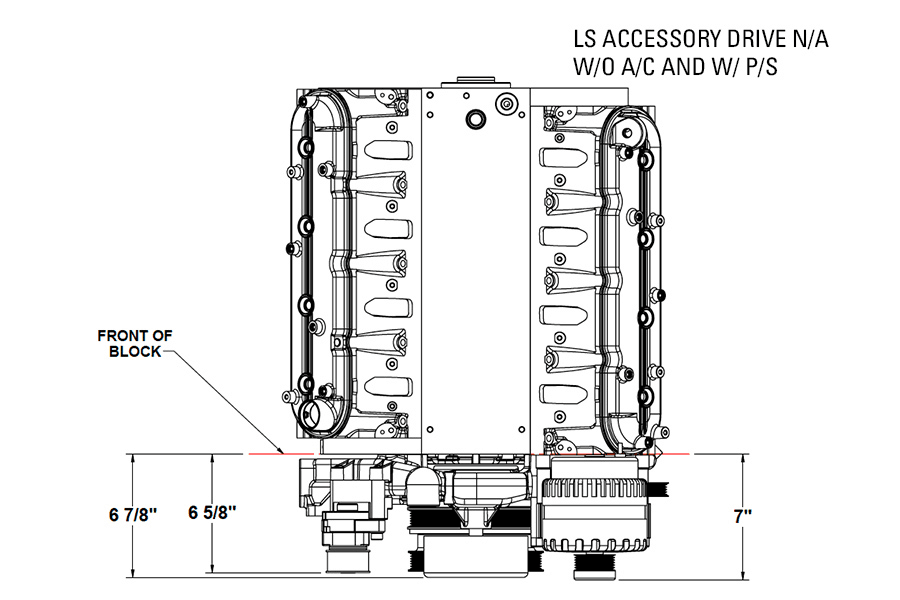

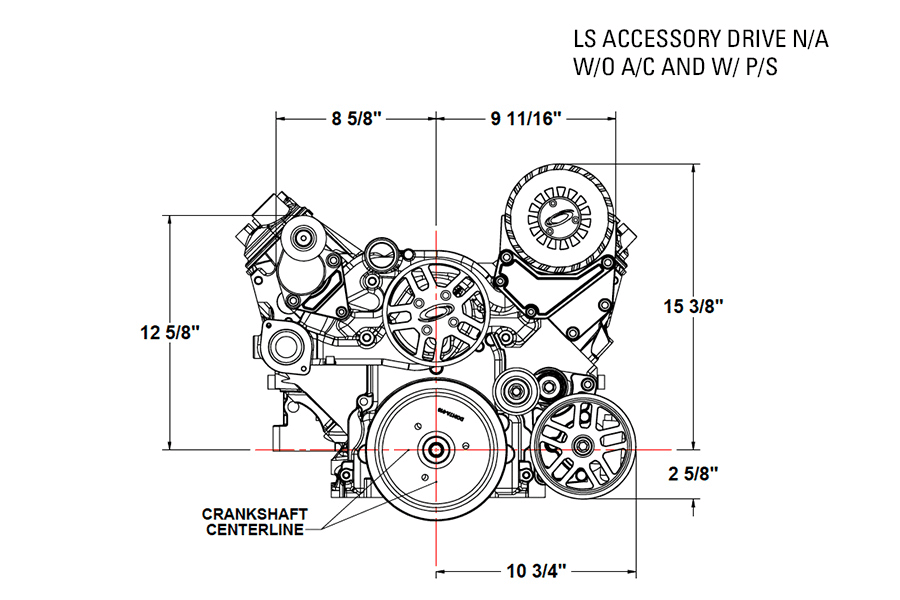

Pictures 17-19 are showing the LS accessory drive as a naturally aspirated system with Power Steering & Without AC

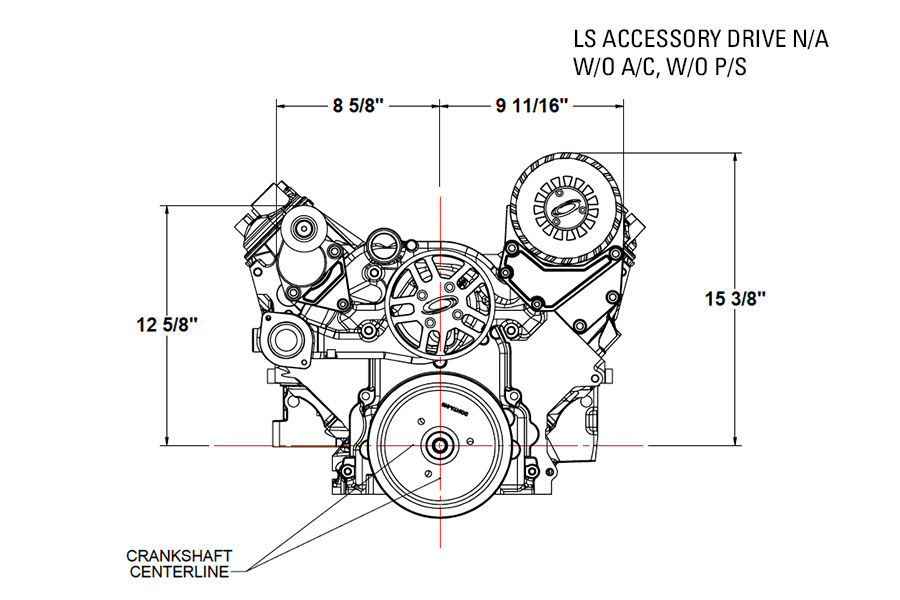

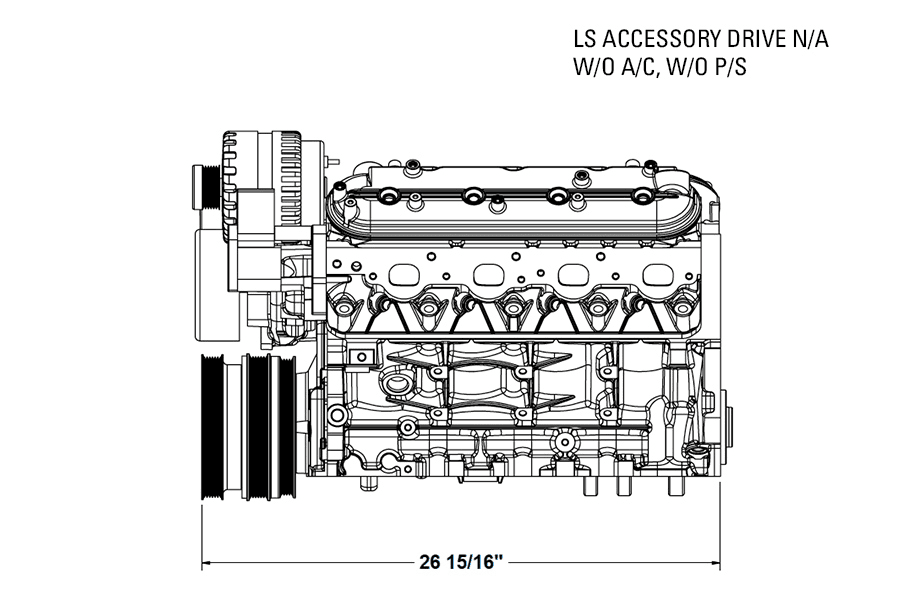

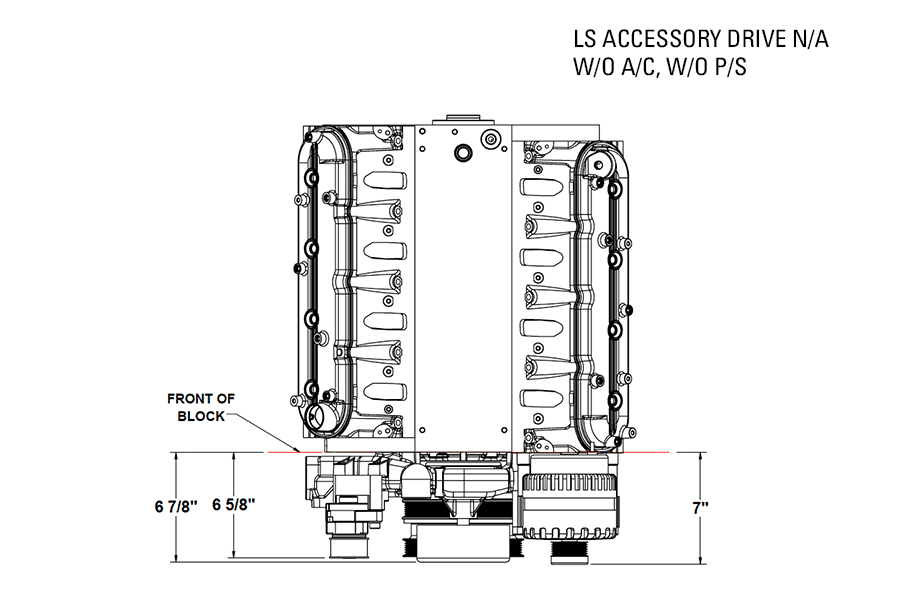

Pictures 20-22 are showing the LS accessory drive as a naturally aspirated system without Power Steering & Without AC

Accessories Needed:
A/C Compressor: SD-7B10 Sanden A/C Compressor - 6 Rib
Alternator: GM #20881337 2007-2013 or equivalent
Power Steering: GM Type 2 Power Steering Pump Tuff Stuff 6175AL or equivalence, remote reservoir required for supercharged applications
Water pump supplied

Additional Notes:
Pinning crank pulley is recommended
Accessory Pulleys included
Can be ordered without A/C
Can be ordered without power steering
Designed for standard deck height wet sump, aluminum & iron block LS engines (Except LS7 & VVT Models)
Minor modification required for iron block engines with power steering

Application Notes:
Optional ProCharger Head Units available: P-1SC-1, P-1X, D-1SC, D-1X, F-1A, F-1A-94, F-1X, F-2 (F-1X & F-2 headunits require the 10 rib upgrade kit)
