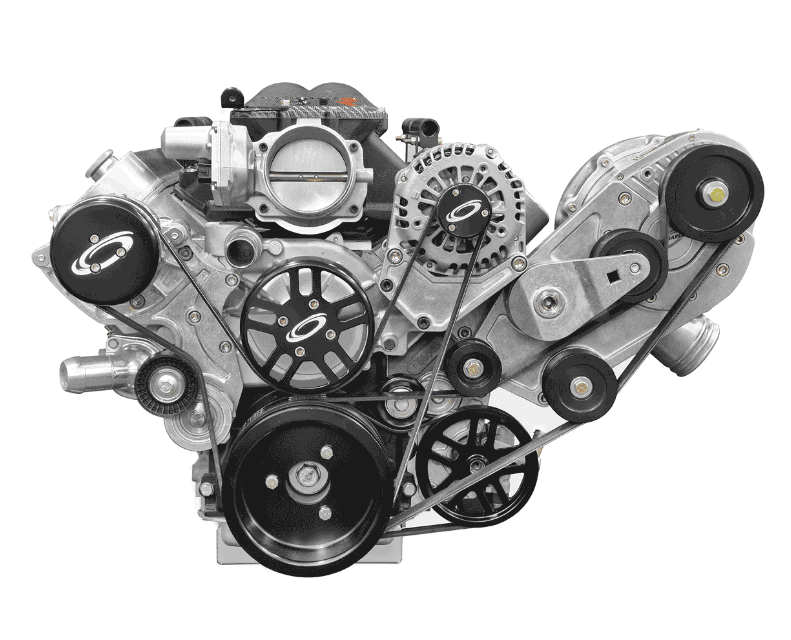

ProCharger Chevy LS Serpentine Accessory Drive Kit With F-1X SuperCharger Head Unit - 10 Rib

The ProCharger Accessory Drive Kit offers the sleek design style you expect from ProCharger, and a unique supercharger bracket design that offers you the convenience of adding the supercharger kit when you are ready. Specifically designed for Chevy LS engines, this kit includes everything you’ll need to fit the accessories you want. The design features our popular 10-rib pulleys that increase grip, reduce stretching and prevent belt slippage when compared to the traditional six rib designs.

This kit will fit any LS block Kit will fit any LS block, This system comes with ProCharger supercharger bracket, Alternator bracket, ProCharger supercharger, Power steering bracket & A/C Bracket

Requires Balancer
10 Rib – ATI # 917347X
10 Rib Innovator West #844

*For LS FEAD Dimension Information See Below!

ProCharger Kit Includes:
Water pump pulley, and belt
Crank Pulley and belt
Alternator bracket, pulley, and belt
Power Steering bracket, pulley, and belt
A/C Pulley and belt
ProCharger Supercharger Bracket 10 rib, Tensioner & Belt
F-1X Supercharger Head Unit capable of 1400 horsepower
Race Valve (701-1200 HP)

Balancer Required:
10 Rib – ATI # 917347X
10 Rib Innovator West #844

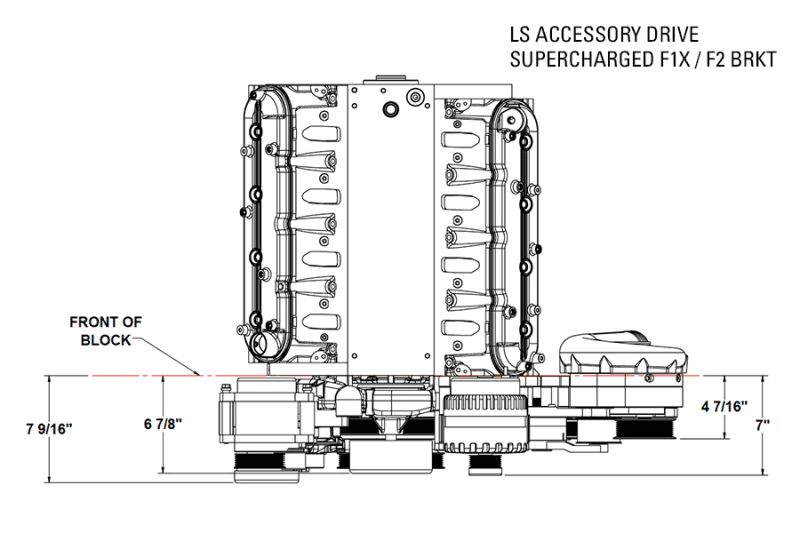

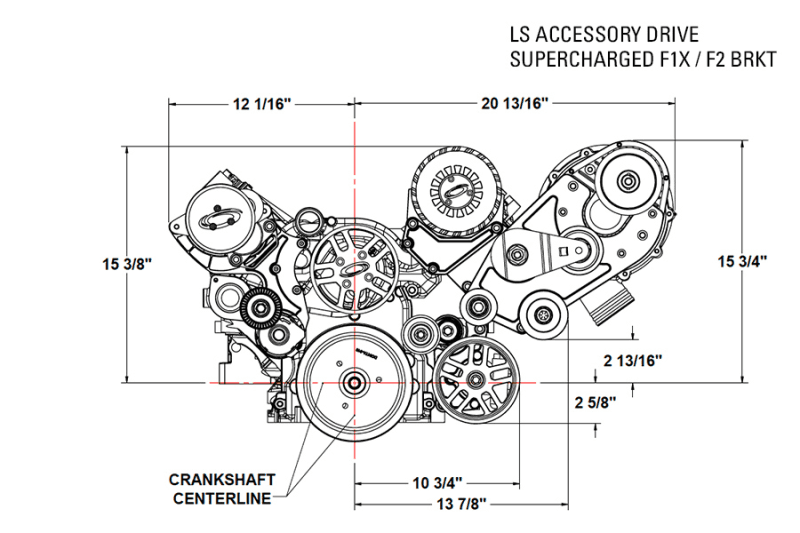

Picture Dimension Information - For Bracket Options See The Product Options Button!

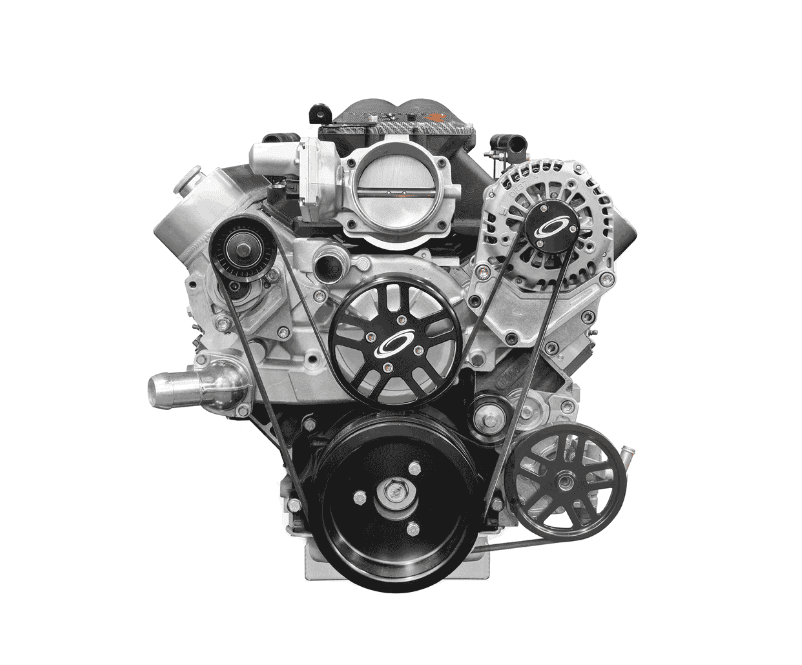

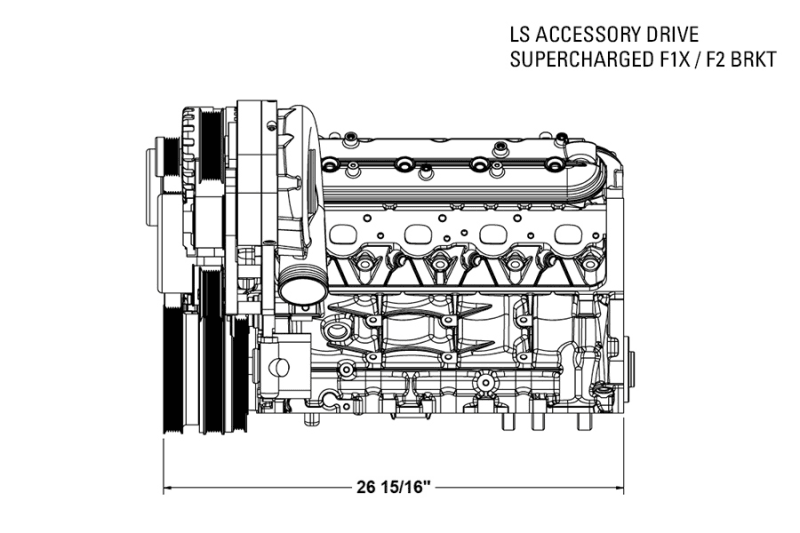

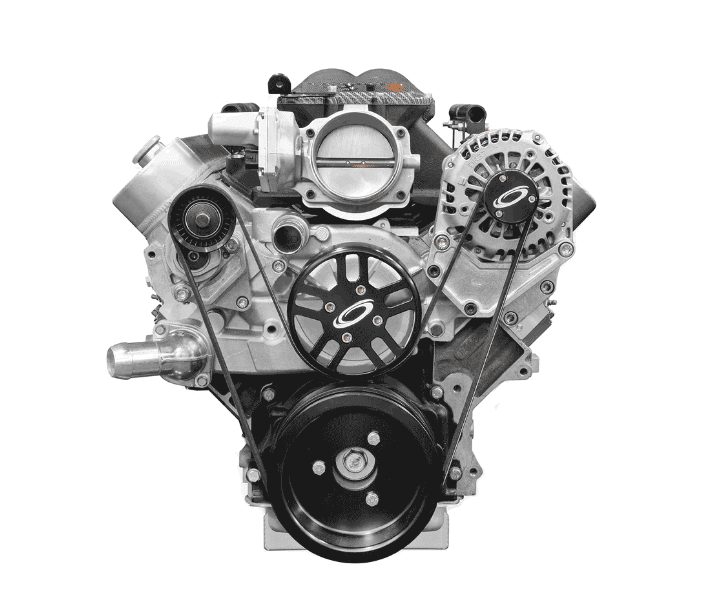

Pictures 5-7 are showing the LS accessory drive with the 10 rib F-1X/F2 supercharger bracket

Accessories Needed:
A/C Compressor: SD-7B10 Sanden A/C Compressor - 6 Rib
Alternator: GM #20881337 2007-2013 or equivalent
Power Steering: GM Type 2 Power Steering Pump Tuff Stuff 6175AL or equivalence, remote reservoir required for supercharged applications

Additional Notes:
Pinning crank pulley is recommended
Accessory Pulleys included
Can be ordered without A/C
Can be ordered without power steering
Designed for standard deck height wet sump, aluminum & iron block LS engines (Except LS7 & VVT Models)
Minor modification required for iron block engines with power steering
