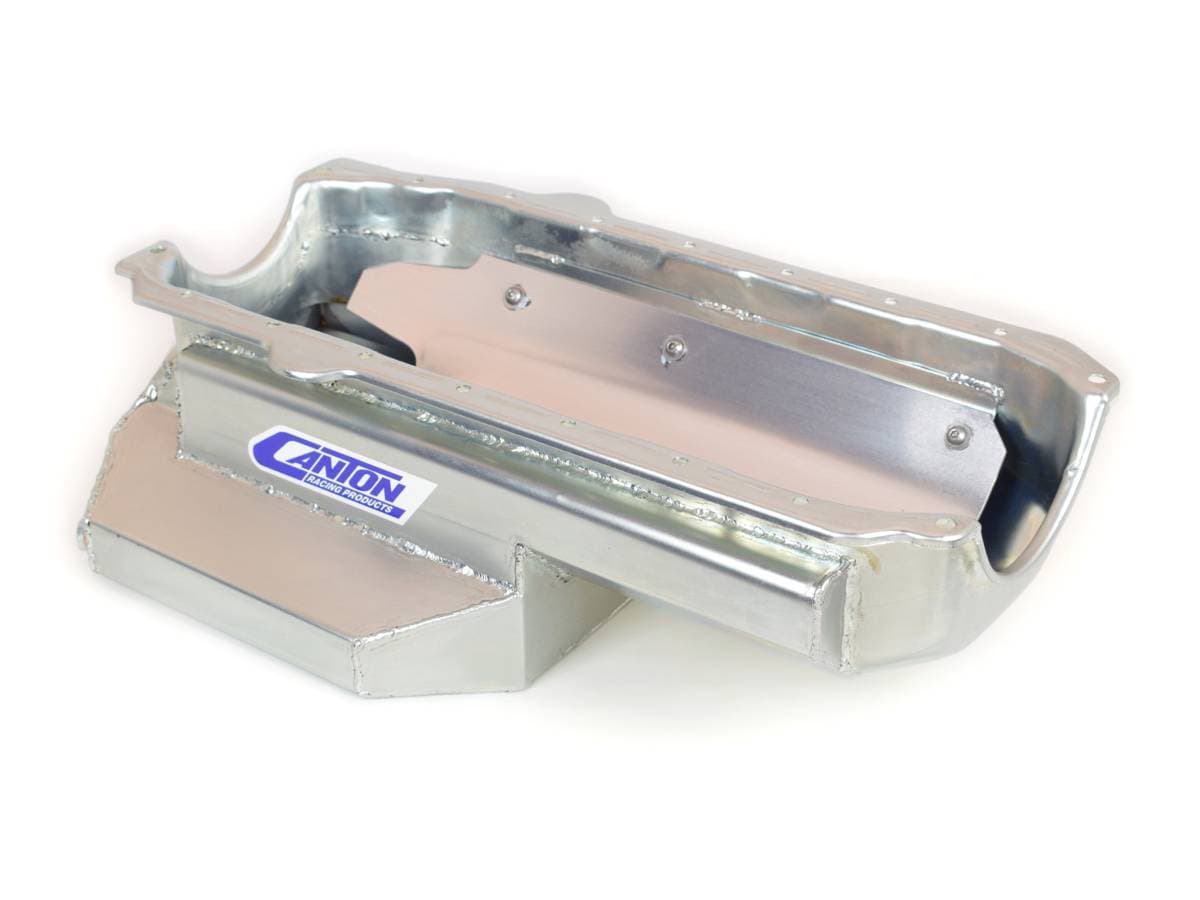

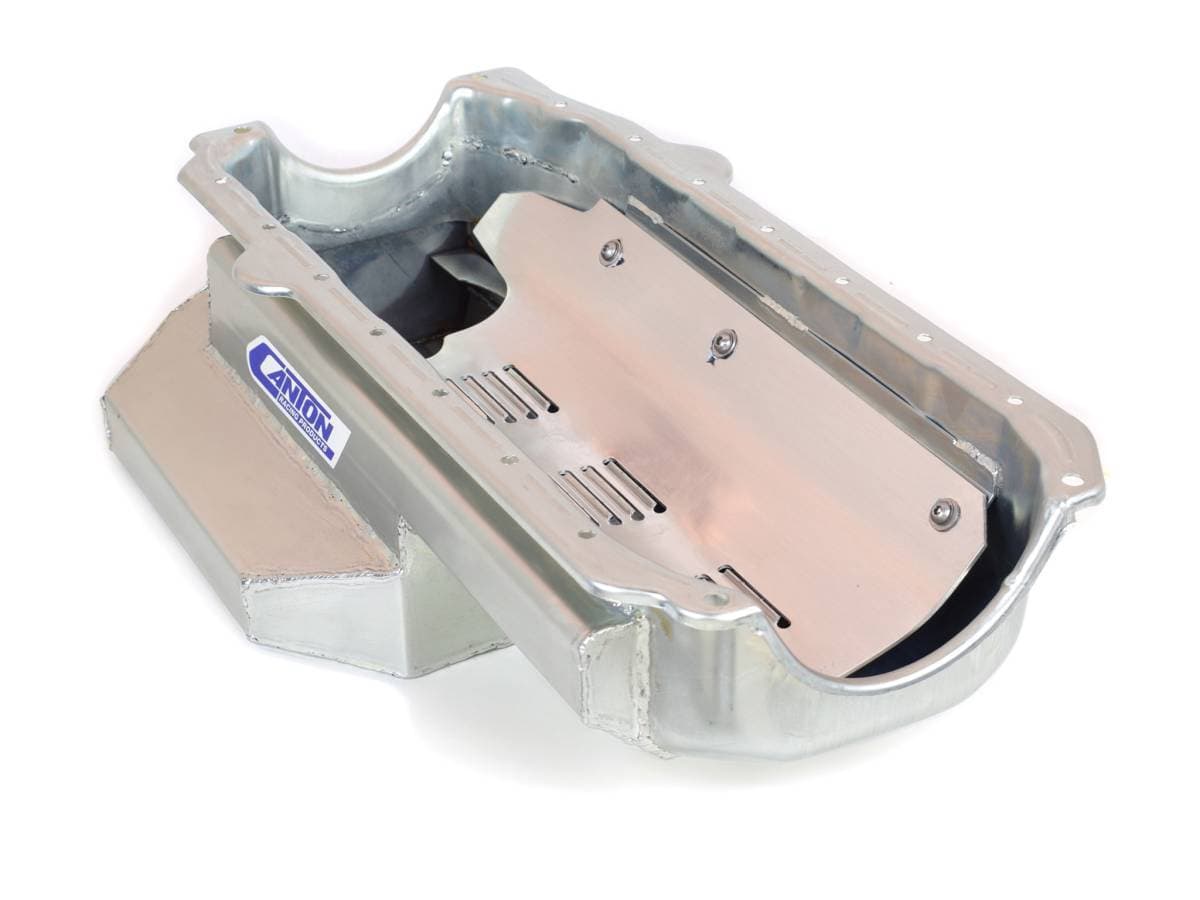

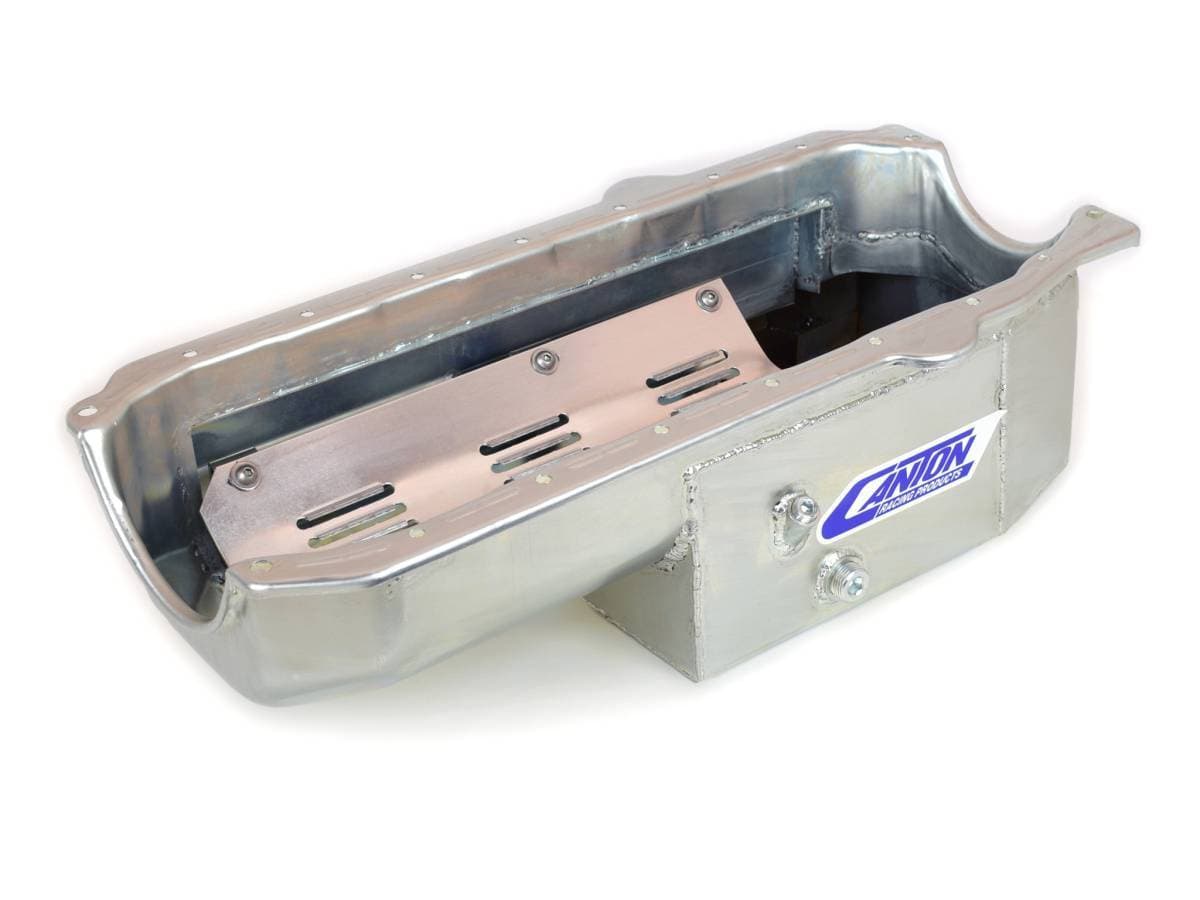

Pre-1986 SBC Circle Track 6.5" Deep Power Canton Race Oil Pan

This circle track oil pan is for use on pre-1985 blocks SBC motors. It's shallow 6.5 depth and L-sump design make it ideal for many applications. The sump features a six trap door baffle, oil recovery pouch, built in louvered windage tray.

Note: Requires Canton Racing oil pickup and an offset aftermarket starter with a 153 or 168 tooth flywheel

Features: Pre-1986 Small Block Chevys, The pan is designed for circle track shallow L-sump designs ideal for asphalt/dirt late models
Style: Designed for Pre-1986, this pan is 6.5" deep so it fits well in a variety of chassis where low ground clearance is an issue.

Size: 6.5" Deep with an 6.5 quart system capacity.

Oil Pan Part #: 11-200 for Pre-1986 Small Block Chevy Engines.

Oil Pan Features:
Designed to fit most chassis and header combinations and to provide extra ground clearance

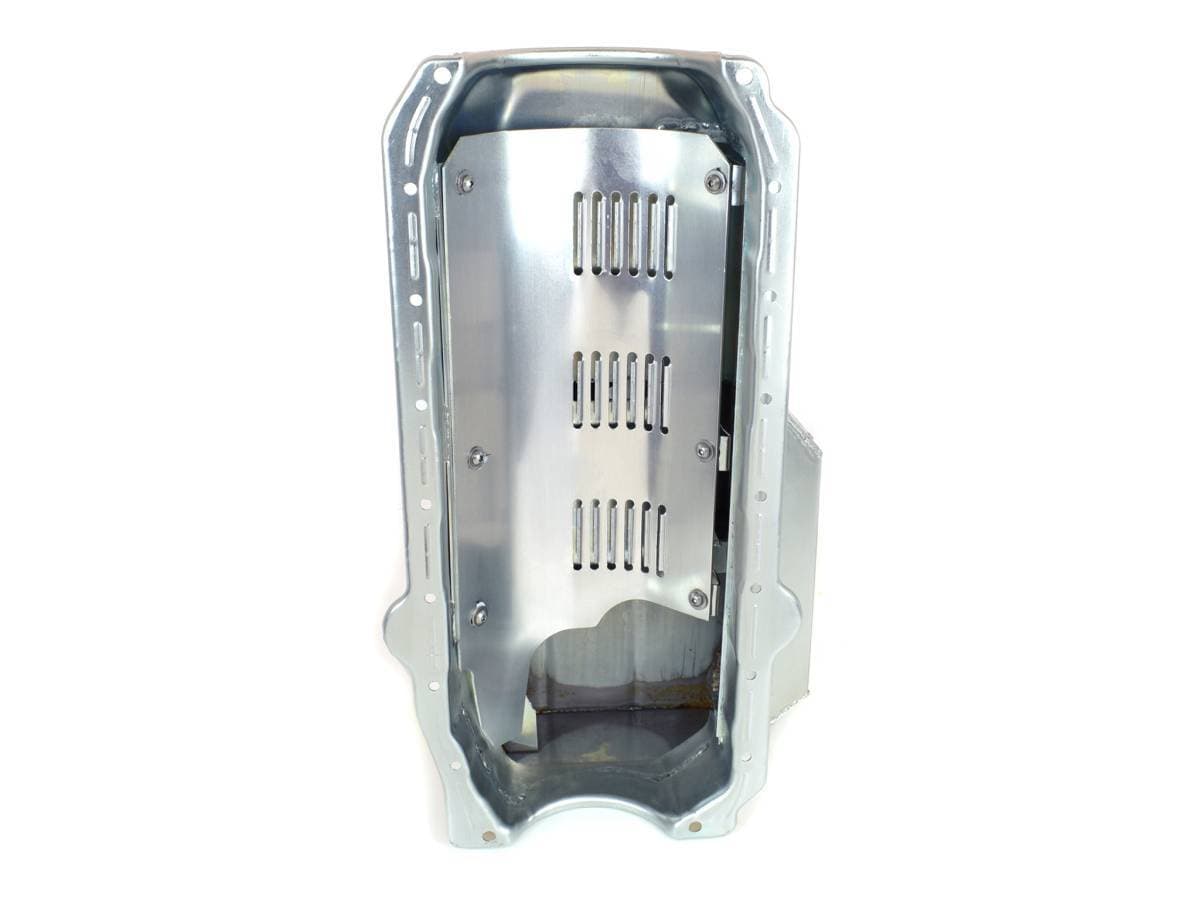

Features six trap door baffles, oil recovery pouch, bolt in slosh baffle, built in louvered windage tray, 1/2" temperature bung and provision for Canton Racing pan mounted dipstick

Recommended Accessories:

Oil Pump Pickups:
PART #: 20-036 - Pickup for Small Block Standard Volume Pump M55 & M55A
PART #: 20-031 - Pickup for Small Block High Volume Pump M55HV
PART #: 20-032 - Pickup for Small Block Standard Volume M155 Pump with 3/4" Inlet

Gaskets:
PART #: 88-100T – SBC 86'+ Oil Pan Gasket

Universal Dip Sticks:
PART #: 20-850 - Universal Dipstick Kit 1/4” N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
