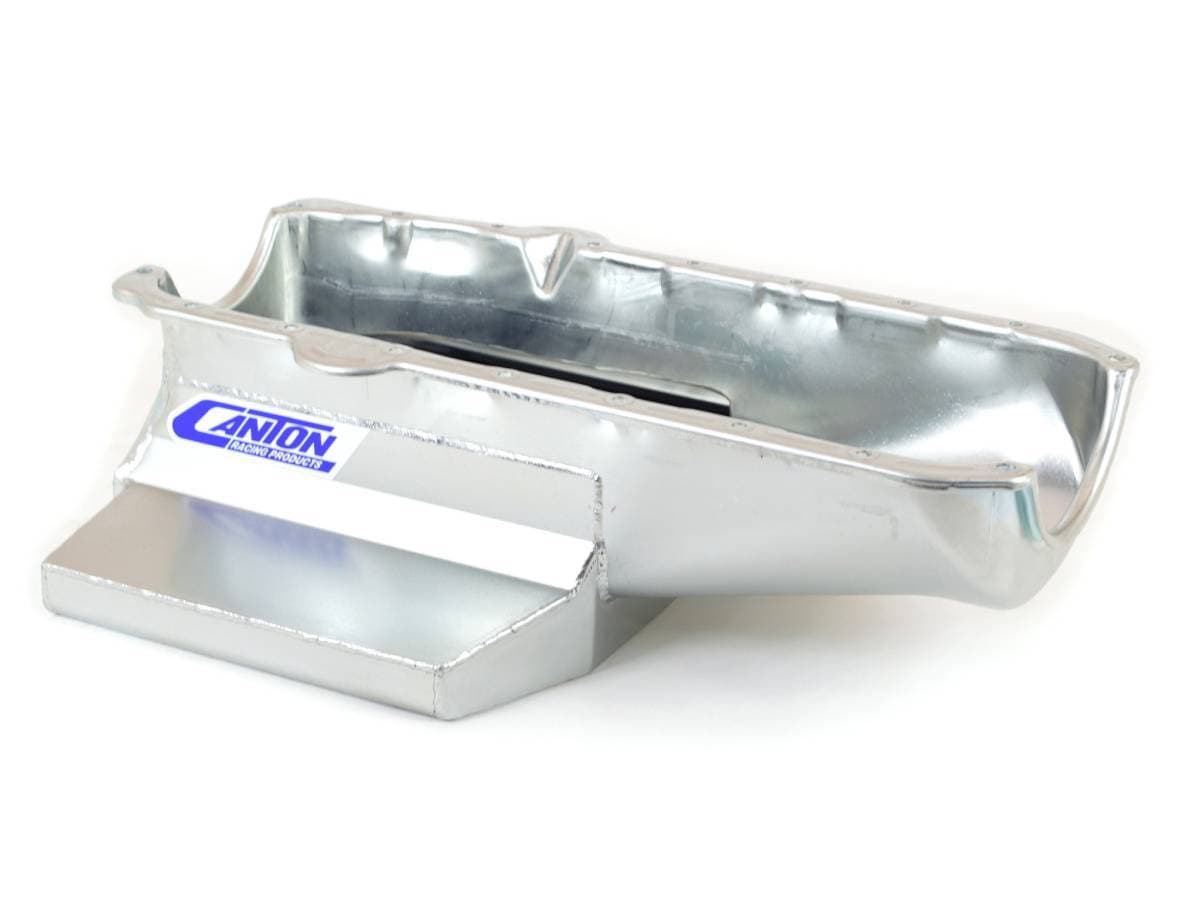

Pre-1980 Small Block Chevy Shallow Circle Track 12" Long Sump Canton Race Oil Pan

This Competition wet sump is for pre-'80 Small Block Chevys with left side dipstick. It is designed for applications where the engine is set extra low in the chassis. Fits front steer chassis with both aftermarket and Camaro front ends. The pan has a 6-1/2" deep, 15" wide, 12" long sump, and a 7 quart system capacity.

Note: Requires Canton Pickup Part # 20-031 or 20-032 Canton Pickup*

Features: Pre-'80 Small Block Chevys with left side dipstick, 3.75 Stroke

Style: Designed for Pre-'80, this pan is 7" deep so it fits well in a variety of chassis where low ground clearance is an issue.

Size: 6-1/2" deep, 15" wide, 12" long sump, and a 7 quart system capacity.

Oil Pan Part #: 11-102 for Pre-'80 Small Block Chevy Engines.

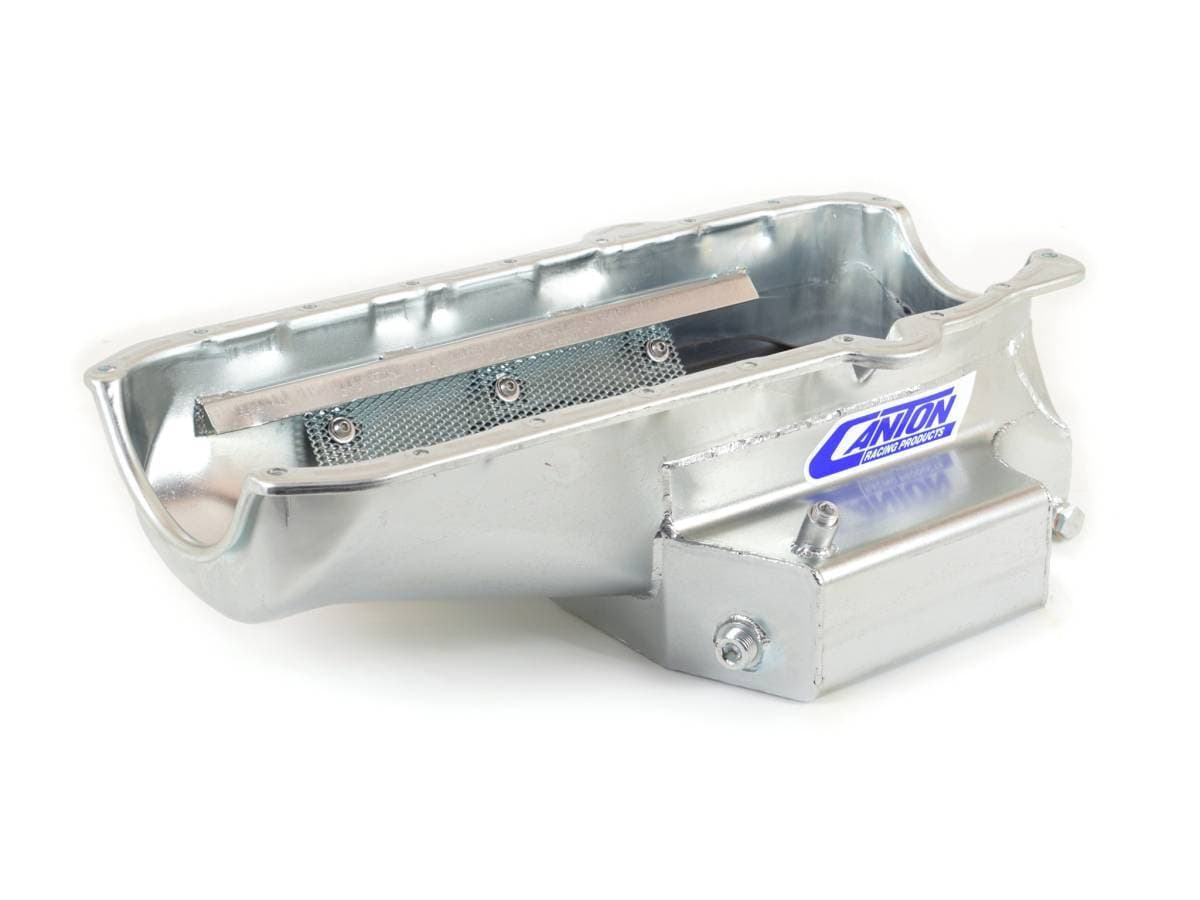

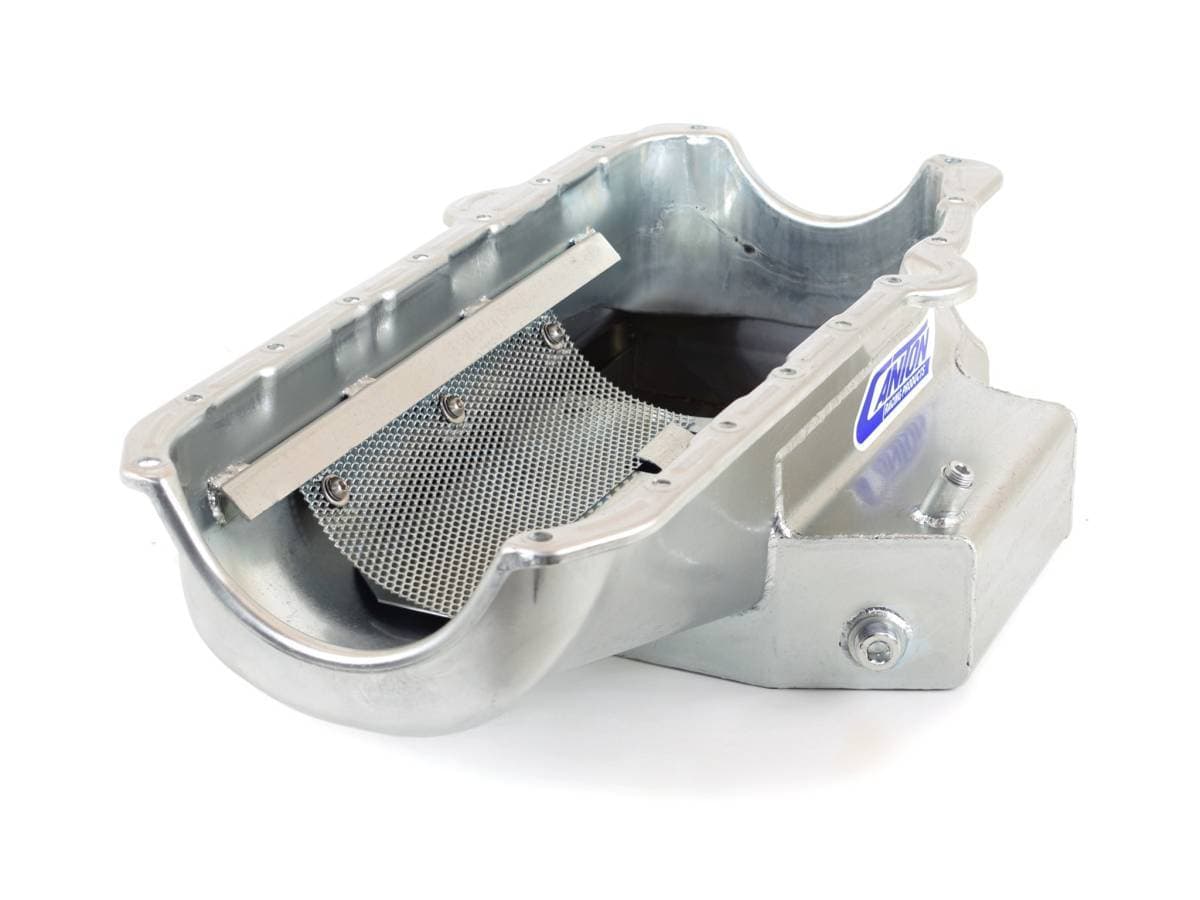

Oil Pan Features:
7 qt System Capacity
3.75" Stroke Clearance

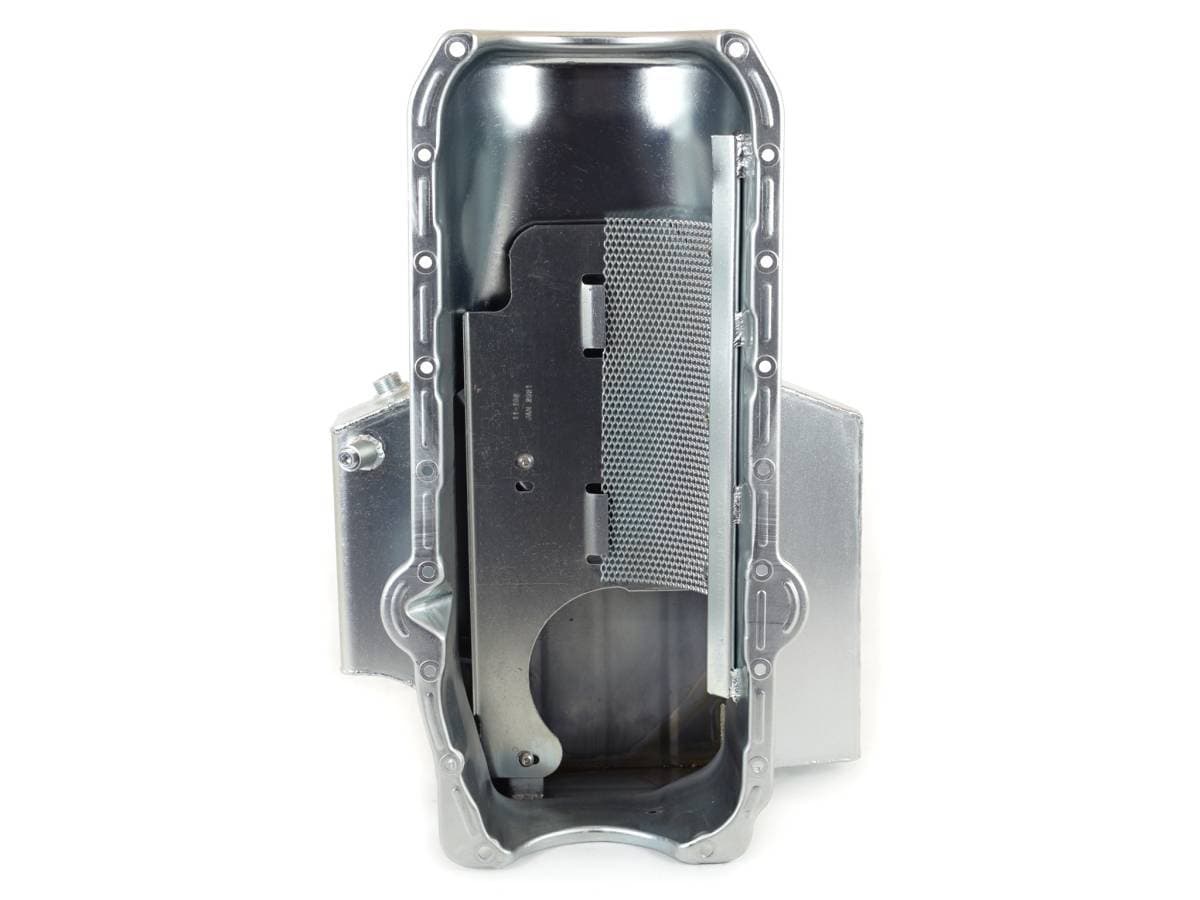

Six Trap Door Baffles & Three Runners
Crank Scraper
Bolt in Slosh Baffle
Built in Windage Tray
1/2" NPT Temperature Bung
Provison for our Pan Mounted Dipstick
Magnetic Drain Plug

Recommended Accessories:

Oil Pump Pickups:
PART #: 20-031 - Pickup for Small Block High Volume Pumps M55HV
PART #: 20-032 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube

Gaskets:
PART #: 88-100 - SBC Pre '85 Oil Pan Gasket

Universal Dip Sticks:
PART #: 20-850 - Universal Dipstick Kit 1/4” N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
