Features: Pre-'80 Small Block Chevys with left side dipstick, 3.75 Stroke

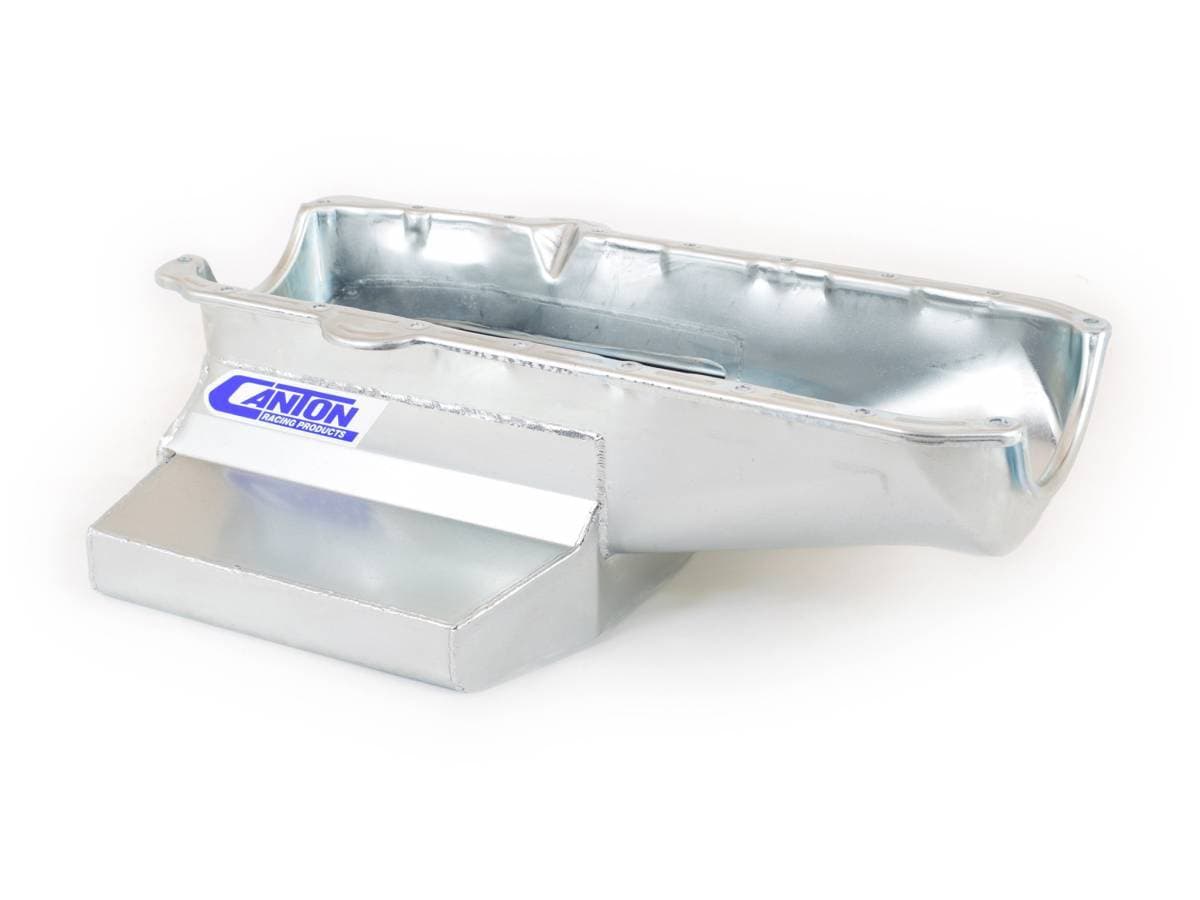

Style: Designed for Pre-'80, this pan is 7" deep so it fits well in a variety of chassis where low ground clearance is an issue.

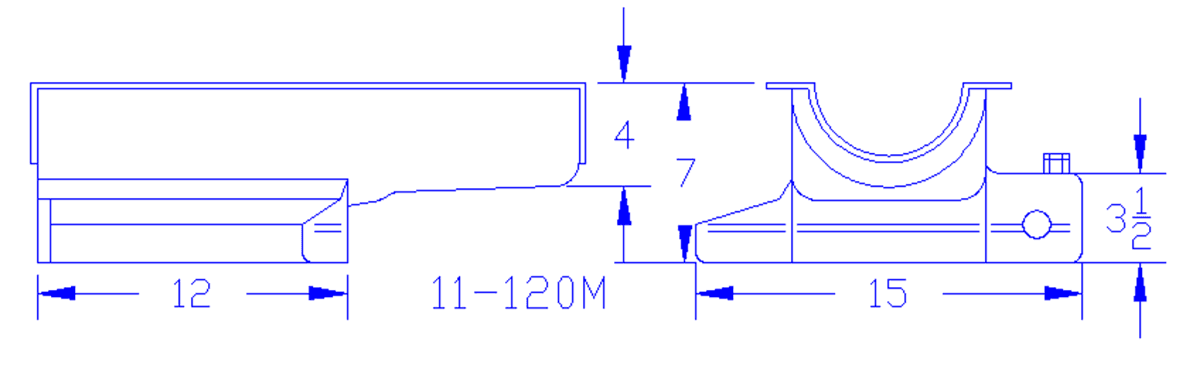

Size: 7" deep, 15" wide, 12" long sump, and an 8 quart system capacity.
Oil Pan Part #: 11-120 for Pre-'80 Small Block Chevy Engines.
Oil Pan Features:
8 qt System Capacity
3.75" Stroke Clearance

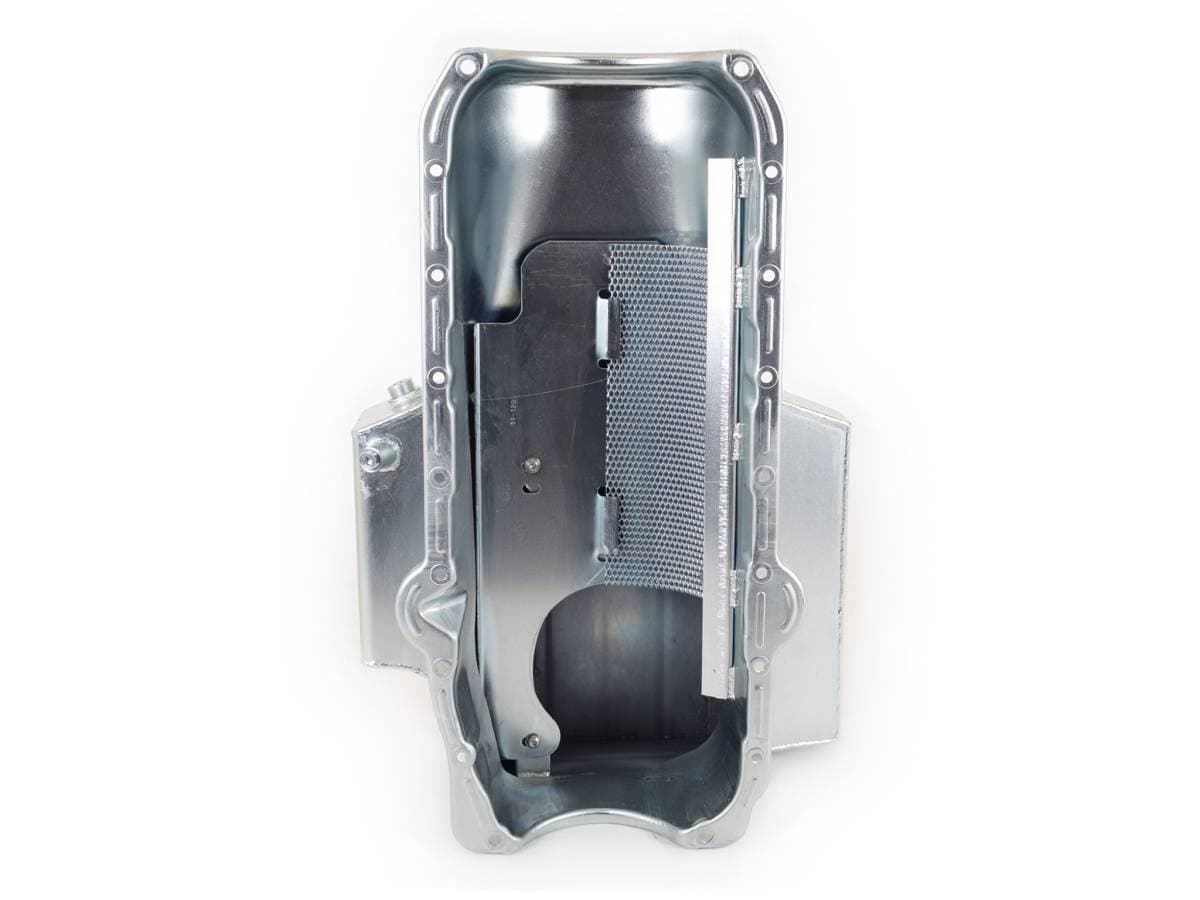

Six Trap Door Baffles & Three Runners
Crank Scraper
Bolt in Slosh Baffle
Built in Windage Tray
1/2” NPT Temperature Bung
Provision for our Pan Mounted Dipstick
Magnetic Drain Plug
Recommended Accessories:
Oil Pump Pickups:
PART #: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
PART #: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
PART #: 20-070 - Pickup for Small Block High Volume Pumps M55HV
PART #: 20-072 - Pickup for Small block High Volume M155HV Pump w/ 3/4" Tube
PART #: 20-077 - Press In Pickup for M10552 & M10555 Pump
PART #: 20-071 - Flange Mount Pickup for M10552 & M10555 Pump
PART #: 20-100 - Pickup for Big Block 5 bolt pumps M77 & M77HV
Gaskets:
PART #: 88-100 Gasket Oil Pan For Small Block Chevy Pre 1985
Universal Dip Sticks:
PART #: 20-850 - Universal Dipstick Kit 1/4” N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
