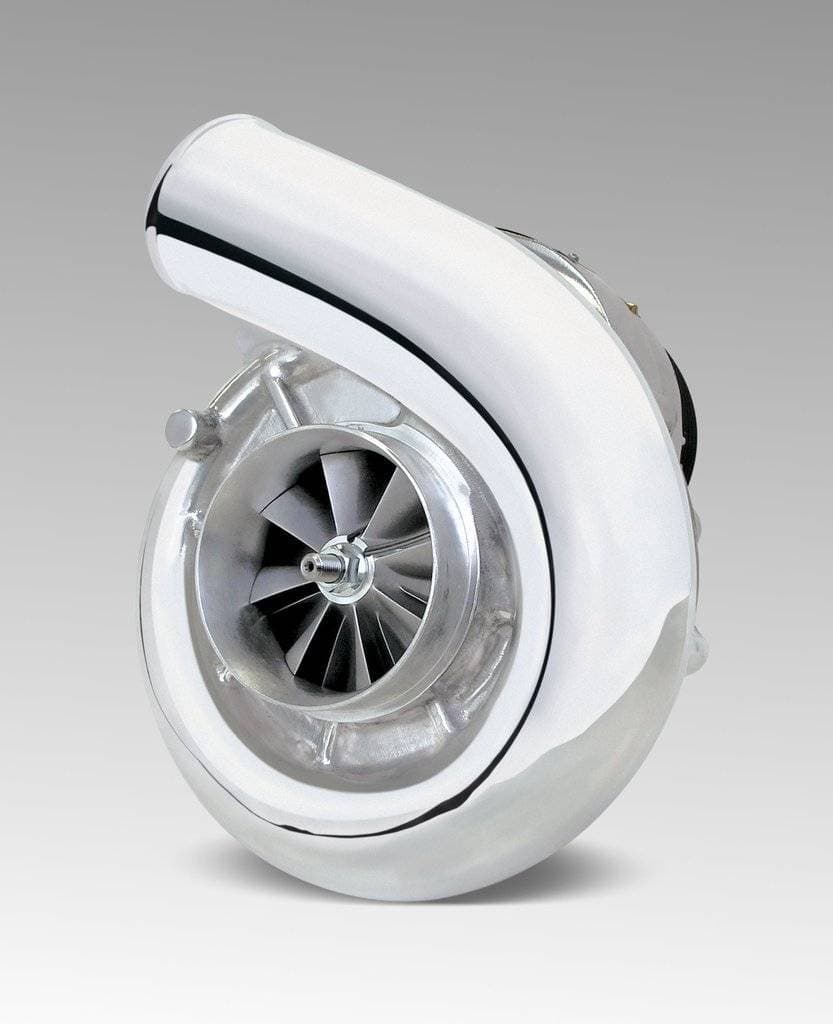

Paxton NOVI 1500 Supercharger Head Unit Only

The Paxton NOVI 1500 model, with its highly advanced computer designed gears feature an optimized helical profile which allows for quieter operation while providing superior performance. These units feature a 3.6:1 internal step-up ratio and are direct bolt-on replacements for some other NOVI units, including the 1200, 1220, 2200, and SL versions of the same units. The supercharger uses the quieter helical cut gears (3.61:1 ratio). The NOVI 1500 Supercharger is capable of up to 950HP on modified vehicles. Superior 75% peak efficiency is ideal for latest generation of improved breathing, high-power street and strip engines.



1016128 NOVI-1500, Straight Discharge, Satin

1016128-P NOVI-1500, Straight Discharge, Polished

1016125 NOVI-1500, Curved Discharge, Satin

1016125-P NOVI-1500, Curved Discharge, Polished

1016134 NOVI-1500, Reverse Rotation w/ Ears, Straight Discharge, Satin

1016134-P NOVI-1500, Reverse Rotation w/ Ears, Straight Discharge, Polished

There are many options available for Paxton supercharger kits. If you have any questions please email sales@TREperformance.com or call 760-586-5617.

Performance Specs
Internal Step-Up Ratio: 3.61:1
Max Speed: 55,000 RPM (limited to 52,000 on 1500SL Models)
Max Boost: 26 PSI
Max Flow: 1,400 CFM
Max Power: 950 HP
Peak Efficiency: 75%
Performance specs apply to units equipped with heavy duty gearcase.

Dimensions
Discharge OD: 2.75"
Inlet OD: 3.75"
Discharge ID: 2.38"
Inducer Diameter: 3.51"

The supercharger of choice for street/strip vehicles with modified engines
-Helical cut gear
-Available with straight or curved discharge and clockwise or counterclockwise rotation
-Part numbers below do not include drive pulley
-8.75" Wide, 9.44" Tall, 5.52" Deep (not including input shaft)

TREperformance is an Authorized Priority Dealer of Vortech/Paxton superchargers.
12 Month warranty direct from Paxton
Custom made and shipped direct from Paxton in 3-5 business days!

1016125 NOVI-1500, Curved Discharge, Satin
1016125-P NOVI-1500, Curved Discharge, Polished
1016128 NOVI-1500, Straight Discharge, Satin
1016128-P NOVI-1500, Straight Discharge, Polished
1016134 NOVI-1500, Reverse Rotation w/ Ears, Straight Discharge, Satin
1016134-P NOVI-1500, Reverse Rotation w/ Ears, Straight Discharge, Polished
