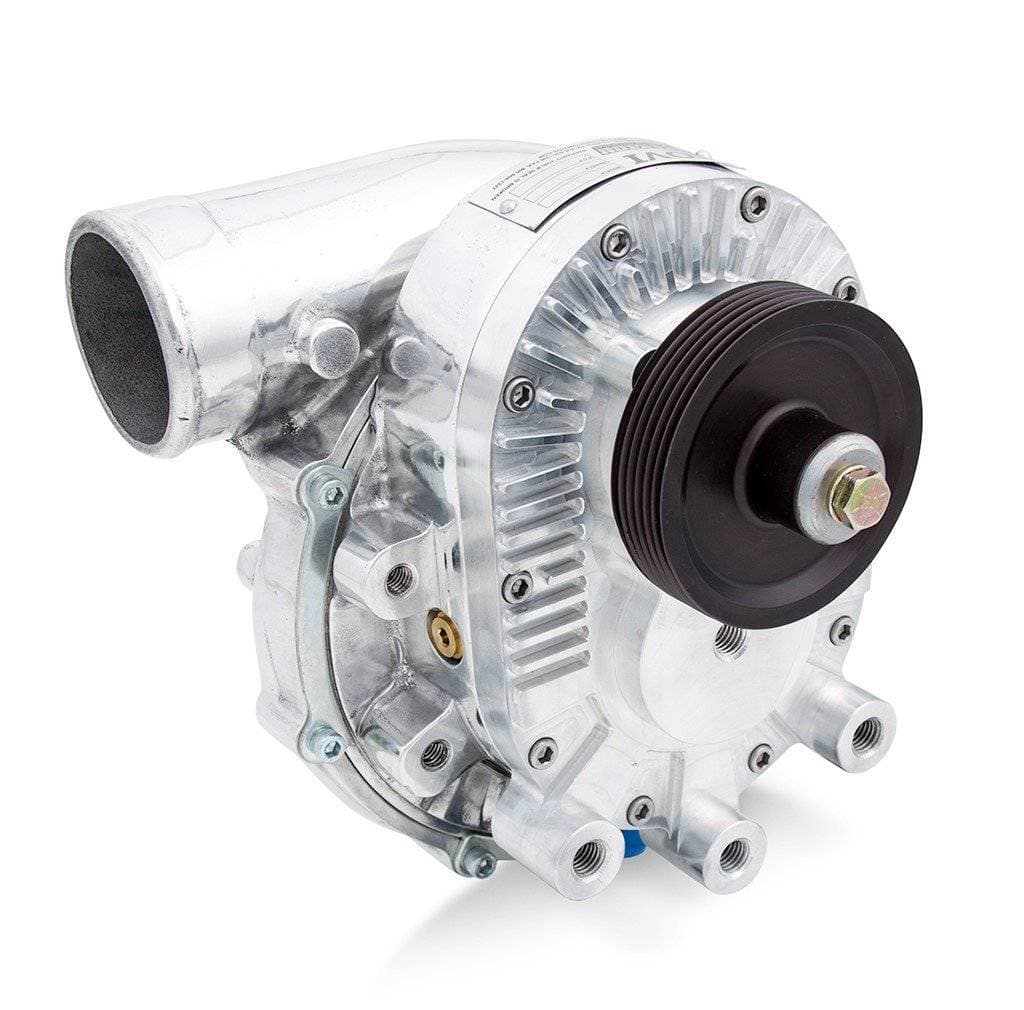

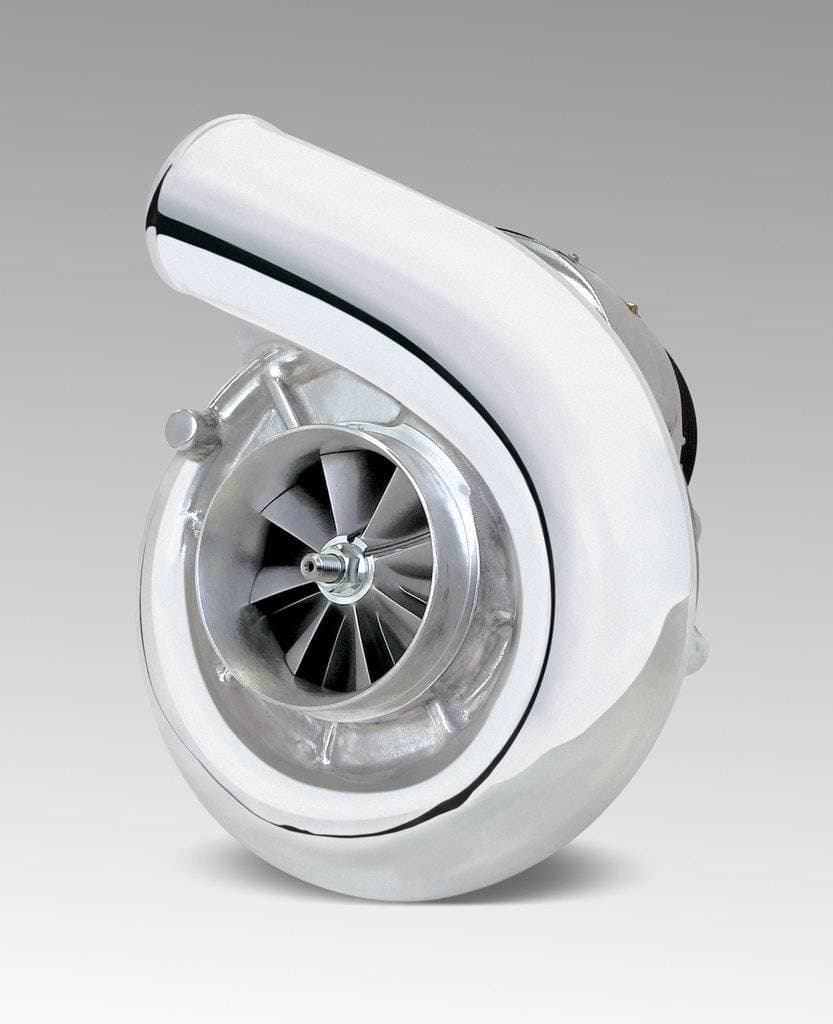

Paxton NOVI 1220 Supercharger Head Unit Only - Satin

This is a Paxton NOVI Supercharger Head Unit only. These can be used on vehicles that can support 26 psi of boost and is capable of producing 775 horsepower!


Equivalent to the Vortech V-2 SCi-Trim model, the NOVI 1220 with its highly advanced computer designed gears feature an optimized helical profile which allows for quieter operation while providing superior performance. All NOVI 1220 units feature a 3.6:1 internal step-up ratio and are direct bolt-on replacements for Vortech V-1, V-2, or V-3 units. The supercharger uses the quieter helical cut gears (3.61:1 ratio). The NOVI 1220 Supercharger is capable of up to 725HP on modified vehicles. Superior 75% peak efficiency. Ideal for latest generation of improved breathing, high-power street and strip engines.

Dimensions
Discharge OD: 2.75"
Inlet OD: 3.5"
Discharge ID: 2.38"
Inducer Diameter: 3.1"

Helical cut gear profile with SQ technology
Near silent operation
Available with straight or curved discharge
Part numbers below do not include drive pulley

8.75" Wide, 9.44" Tall, 5.52" Deep (not including input shaft)

Paxton Dealer information
Not any shop can become an Authorized Paxton Installing Dealer; you need to be knowledgable in both naturally aspirated and boosted high performance vehicles, and have the staff to support customers with both in store and phone support. Paxton is very strict about who they allow as dealers. Most online only or mail order companies are unable to qualify as dealers, but you are welcome to stop by our shop to talk about your application or view our supercharger kits. TREperformance has been building high performance vehicles for over 15 years, everything from simple engine upgrades to 1,000 horsepower drag cars. We have been selling superchargers and building blown motors for over a decade, so you know the dealer you are buying from has the knowledge to get you the right kit for your application.
