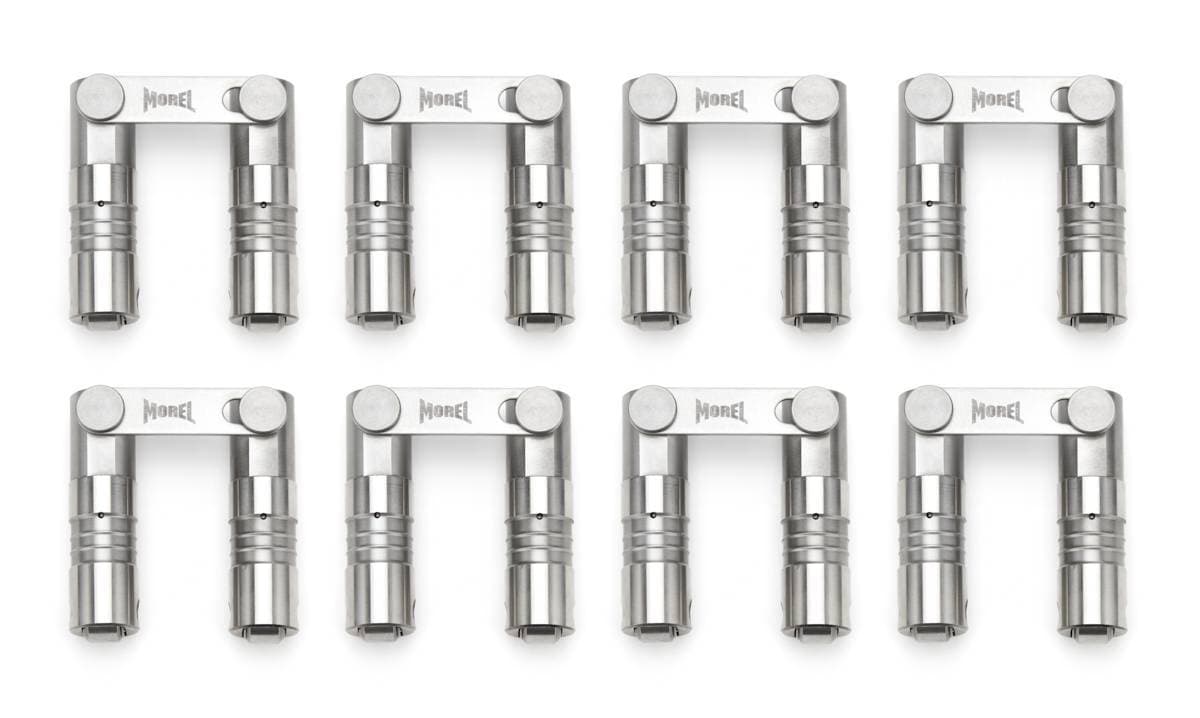

Morel 5325 Hydraulic Roller Link Bar Lifters for Big block ford and FE Engines
The Morel 5325 Street Performance Hydraulic Roller Lifters are made from a cold formed body and have 6,500 RPM capability with .120" plunger travel. Recommended Spring Pressures are 100-180 lbs Seat Pressure and 280-380 lbs Open Pressure.
Link bar lifter set for retro-fit roller camshafts into early SBC engines or OE Roller block and Gen 2 LT based engines looking to upgrade from the factory lifter retaining dog bones and spring. The lifter diameter is .842" for drop-in fitment.
Specs:
Bearing Type: Hydraulic Roller
Notes: Retro Fit Vertical Tie Bar
Wheel Diameter: 0.700
Body Diameter: 0.875

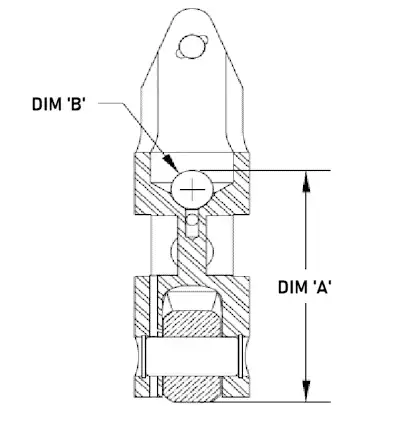

Picture Diameters:
Diameter "A": 2.685"
Diameter "B": .312 OD"
