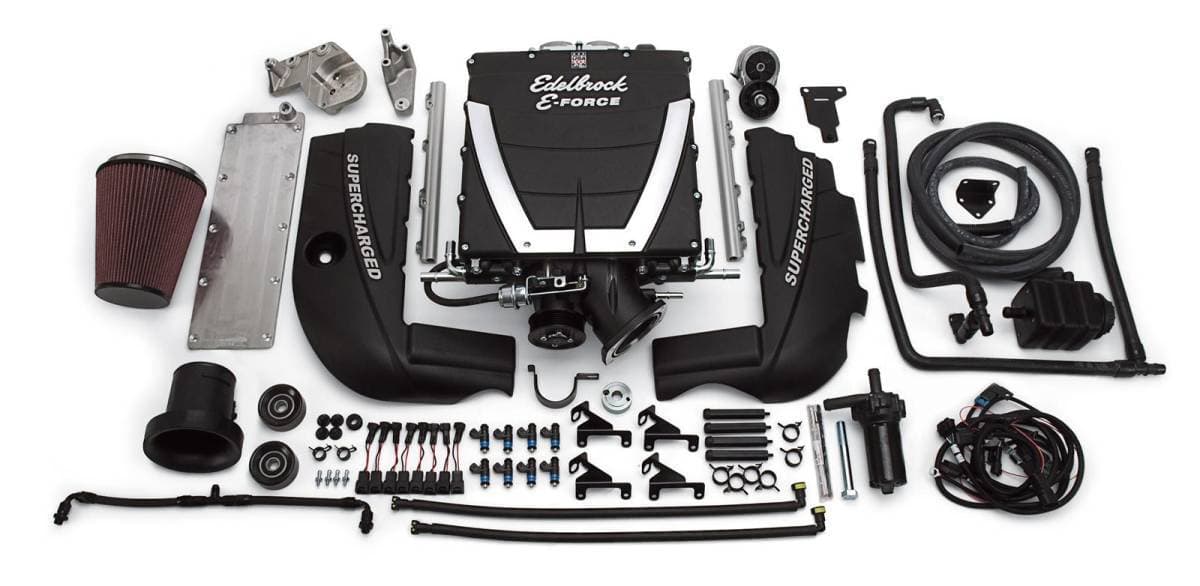

Edelbrock Air-to-Water Intercooled Supercharger System with an Eaton 2300 TVS twin screw blower which will can get you up to 600+ flywheel horsepower! This is the tuner kit that will require a custom tune done locally after you install the kit, and does not include a programmer.
The Edelbrock Pro Tuner Supercharger Kit W/O Tuner #15400 is an upgrade intended for LS2 swaps with with Chevy Cathedral Port Corvette engines. & Corvette belt drive engine swaps into street rods and muscle cars. The Edelbrock system is designed to provide instant and reliable horsepower with low boost for minimum stress on the engine. Its compact design fits under the stock hood on most applications and complements the clean look of any engine compartment. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft., look no further than an Edelbrock E-Force universal supercharger system—exactly what you need for your engine swap project.
Notes: Features Corvette belt offset, will require Corvette accessory drive. A universal heat exchanger and custom tuning is also required. (not eligible for supplemental warranty)
There are many options available for Edelbrock kits. If you have any questions please email sales@TREperformance.com or call 760-586-5617.
Details:
Horsepower: 600+HP Capable, depending on tuning
Eaton TVS 2300 supercharger head unit
Highly effective air-to-water intercooling
Fuel Pump Supplied: Not Supplied
Fuel Injectors Supplied: Yes
Computer/Ignition Mods.: None Supplied
Multi-Port Fuel Rails Included: Yes
Intercooler Included: No
Wiring Harness Included: Yes
Belt Tensioner Included: Yes
Features:
Supercharger manifold assembly
Cast aluminum tensioner/idler bracket
Cast aluminum engine valley tray
Heavy-duty automatic belt tensioner
Dual, high-capacity, bar and plate, intercoolers
High-flow 95mm mass airflow sensor housing
Extruded aluminum fuel rails with -6 AN lines
Custom-molded intercooler hoses with quick-connect fittings
Electric intercooler water pump
Intercooler recovery tank
Steel idler pulleys with heavy-duty, high-speed bearings
High-flow conical air filter
Edelbrock aluminum engine covers
Plug and play, electrical harness, installation hardware
3.5 in. supercharger pulley
TREperformance is an Authorized Priority Dealer of Edelbrock Superchargers.
