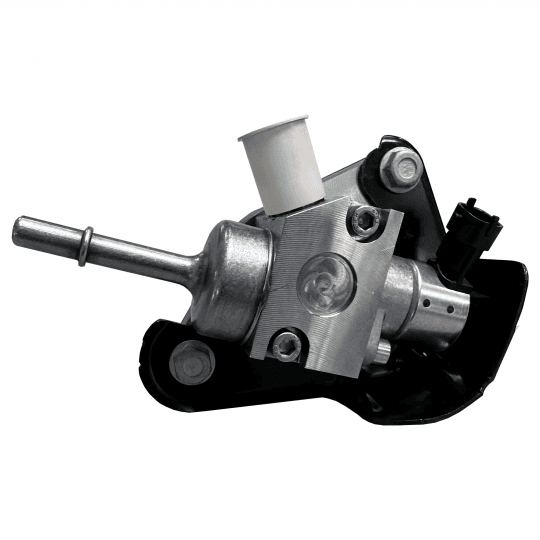

Lingenfelter Big Bore Direct Injection High Volume Fuel Pump for GM Gen V LT V6/V8 - 1400HP+ Capable

Mechanical fuel pump flow has been one of the primary limiting factors for the aftermarket when trying to increase the power output of the GM direct injection V8 engines. The Lingenfelter Big Bore direct injection fuel pump for GM Gen V V8 applications provides an increase in fuel flow capacity over the stock LT1/L86 and LT4 fuel pumps, expanding the range of performance of these engines. At 12.0 mm in bore size, the Lingenfelter Big Bore pump flows over 30% more than the stock L86 & LT1 pump and nearly 10% more than the LT4 pump.

Tested to provide over 1400 horsepower (0.52 BSFC) of fuel flow for a turbocharged LT4 engine on gasoline.

This is the upgraded version 2 pump.

Features:
Precision machined and assembled fuel pump assembly using brand new production LT1 fuel pump cores
12.0 mm bore
DLC coated bore and piston
Compatible with production LT1 and LT4 fuel pump lobes and with aftermarket higher lift fuel pump lobes
Note - some aftermarket higher lift fuel pump camshaft lobe designs may require a lash cap to compensate for the smaller camshaft base circle.
Note - some aftermarket higher lift fuel pump camshaft lobe designs may require a higher load spring on the pump to maintain fuel pump lifter control a revised spring on the pump
100% hot tested pump assemblies to confirm performance and functionality
Individually serial numbered
Maximum recommended operating pressure of 15 MPa or 2175 PSI
Requires consistent low side fuel pressure of 68 PSI or greater

Applications:
High horsepower GM Gen V V8 and V6 direct injection engines including LT4, LT1, L86, L83 and LV3 E85 conversions of GM Gen V V8 and V6 engines
2014-2019 C7 Corvette LT1
2015-2019 C7 Z06 Corvette LT4
2016-2021 Camaro SS LT1
2016-2019 CTS-V LT4
2017-2021 ZL1 LT4
2014-2018 Silverado and Sierra with 4.3L LV3, 5.3L L83 and 6.2L L86 engines
2015-2018 Suburban, Tahoe, Yukon and Escalade with 5.3L L83 and 6.2L L86 engines

Benefits:
Increased fuel flow allows higher power levels without having to resort to auxiliary fuel systems.
Stock appearing.
E85 compatible.
Should be combined with higher lift fuel pump lobes for even greater flow rate increases.

Stock LT1 fuel pump lobe size 5.70 MM
Stock LT4 fuel pump lobe size 6.00 MM
Lingenfelter GT35 L210287515 fuel pump lobe 7.85 MM
Lingenfelter GT35 L210200215 fuel pump lobe 6.5 MM
