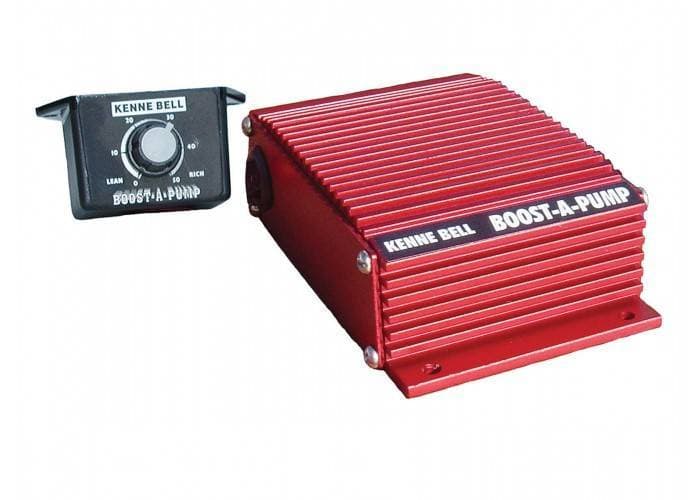

Kenne Bell Single Plug & Play Boost-A-Pump 40 Amp / 17.5V 2015-2024 Mustang V8 V6 KB89082P-17.5V

This is the Single Plug N Play Kenne Bell BOOST-A-PUMP that works for 2015-2024 Mustang V8 or V6 with a supercharger or turbocharger. The new and improved time tested Kenne Bell BOOST-A-PUMP powers some of the worlds most powerful production street and competition vehicles. Kenne Bell supercharger kits all use the BOOST-A-PUMP to reliably produce those big HP numbers - on pump gas! It activates only at full throttle or boost, so it doesnt bloat or overload the fuel system at idle or cruise where full time pumps and extra fuel are not required. So, the fuel isn't heated (gasoline begins to boil at 95). No cool can is necessary, and it's much easier to install (cut one wire) and more reliable than twin fuel pumps. While dyno and street testing, our On Board Data Logger told us that fuel flow was less at night when the lights, stereo etc. were on. The voltage to the pump was varying between 12 and 13.5 volts and fuel was being reduced up to 15%. Further testing in our Fuel Flow Lab indicated that by elevating the voltage to the pump we could safely increase fuel capacity by as much as 50%.

Note: This will only boost a single fuel pump. For those looking to boost dual fuel pump setups must use a universal dual bap kit see PN: KB89063

*Notice, 2024 model years are not unlocked for tuning using a bap.

BOOST-A-PUMP® FEATURES
Easily Installed. Plug N Play
Fused circuit protection (40 amps).
Ideal for Nitrous applications.
Attractive anodized red aluminum.
1000HP with OEM in tank production pumps.
Available for single or dual pump (others must use 2 modules)
Easily installed. Uses stock feed wire & fuel lines.
No expensive fuel lines, regulator and pump upgrades.
Proven reliability and concept. Tens of thousands sold since 1995.
Does not affect pump life. Actually increases life of returnless pumps.
Exclusive built in regulator stabilizes voltage regardless of battery voltage (down to 11V).
Increases fuel pump flow up to 75% on ANY electric pump(s). 100% for “Competition” 21V.
Compensates for reduced voltage/pump delivery from voltage drops by lights and accessories.
Activated by boost switch (supercharged, turbocharged) or vacuum switch (naturally aspirated).
Used on all Kenne Bell Supercharger Kits (street & competition) and some of the “World’s Most Powerful Production Vehicles.”
OK with 12V or 16V battery.
Works with any pump (turbine or gerator).
OK to mount under hood. All top quality hi-temp components.
Full or part time operation (See Fuel Pump Tech).?
Easily upgraded from 17.5V – 21V with a “step up” plug.
No computers, software, CD’s, complex programs, extra circuits, ramping up or down or re-tuning is necessary.

17.5 STREET VS. 21V COMPETITION
The 21V Competition Kit uses a BAS (Boost Activation Switch Kit) or VAS (Vacuum Activated Switch) as 21V should not be run full time on any pump or the Ford FPDM.

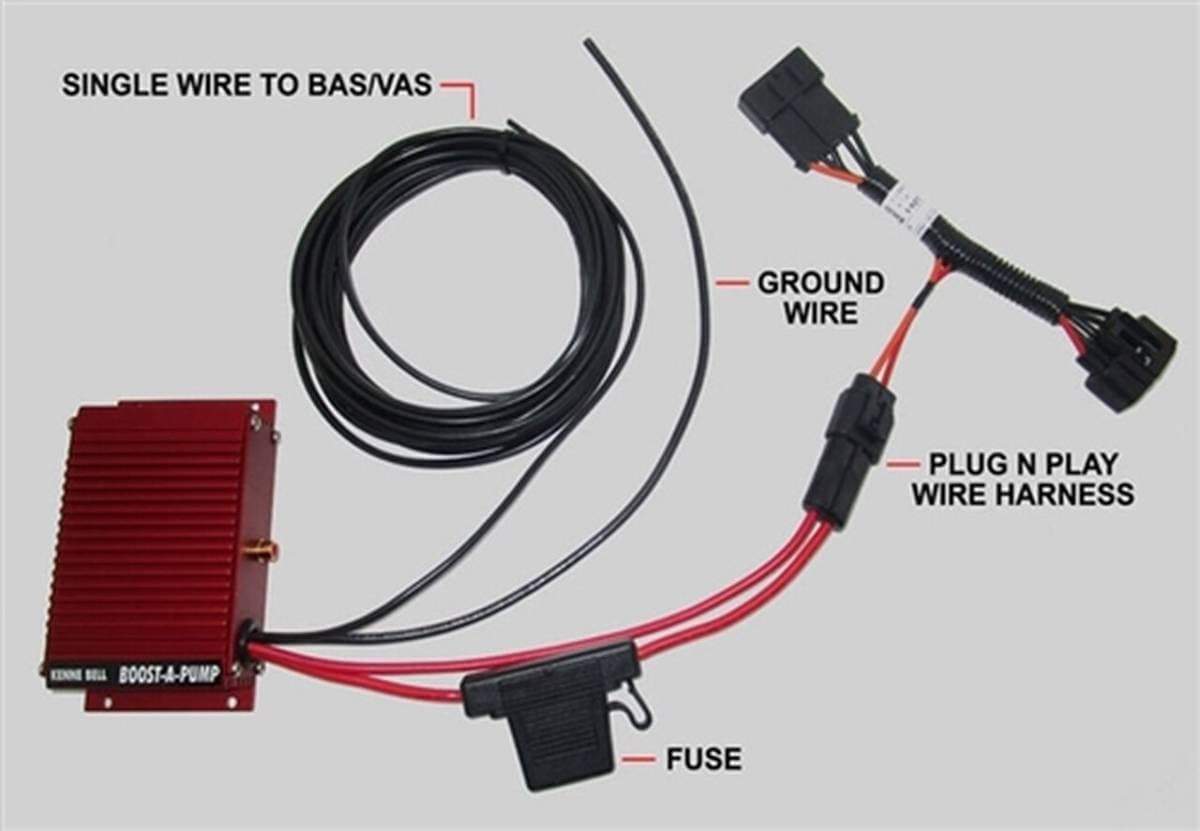

SPLICE OR PLUG N PLAY
Our most popular BOOST-A-PUMP® has always been the “Universal Splice” Kit. It’s a snap to install. Splice just one wire and ground the other. Works on any 12V pump with 12 or 16V battery. We also offer a Plug N Play Wiring Harness version for those who prefer not to splice a wire.
