There are many options available for Kenne Bell Supercharger kits. If you have any questions please email sales@TREperformance.com or call 760-586-5617.
DETAILS:
Horsepower gain: +151 RWHP & +135 FT LBS Torque

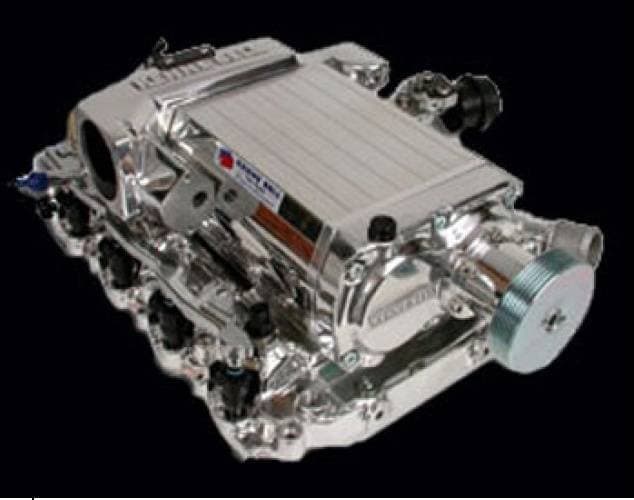

Big Bore 2.1L billet twin screw supercharger head unit, Black Powdercoated finish, 9 psi on 91 octane
Bar and Plate Intercooler
Bigger and more is better. 20% larger Kenne Bell Hi Density Intercooler concept uses 30% more cooling rows and fins for increased cooling efficiency
Intercooler Pump
Stock Throttle Body
Billet Bypass Valve Assembly
Fuel Pressure Regulator & Fuel Return Line
Belt Drive System: Stock 6 rib
Fuel Pump Booster Supplied: BOOST-A-PUMP
Fuel Injectors Supplied: 36 lb Fuel Injectors Supplied
Computer/Ignition Mods.: Included
System is 100% complete with OEM quality and appearance
No Internal Modifications Required

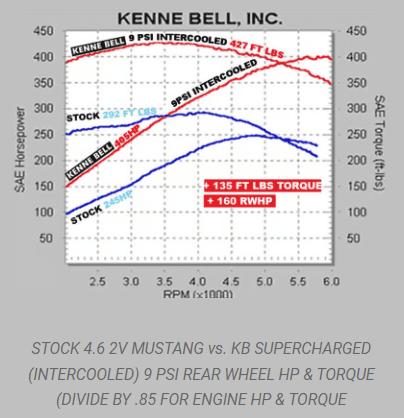

*Dyno Charts were tested using the Kenne Bell Cool Air Kit, 90mm Meter, 75mm Throttle Body “Big Tube” system along with this supercharger system
1996-1998 4.6L RWHP Gains:
+151hp (77%) @ 9 PSI - Standard System (50 State Legal)
*Note: 1996-1998 requires PI or Aftermarket heads to use any KB Kit.
FEATURED DETAILS:
• Billet bypass valve.
• Best Engineered Kit.
• Fat flat torque curve.
• 9-14 psi boost range.
• Fits under stock hood.
• 4 minute pulley changes.
• Lower gears not necessary.
• New BIG BORE rotor profiles.
• 8 new 36lb injectors included.
• Cooler air charge temperature.
• Available in satin finish or polished.
• 86% efficient bar and plate intercooler.
• Looks factory. Mounts on top of engine.
• Low loss/hi flow Garrett heat exchanger.
• Upgradeable from non intercooled to intercooled.
• Easily installed. Kit replaces upper intake manifold.
• 750HP rated supercharger. New design rotor profiles.
• Intercooled (9 psi) standard kit.
• Whisper quiet. No embarrassing and annoying gear noise.
• Billet aluminum supercharger (others use cast aluminum).
• Does not depend on engine rpm to generate more boost.
• Manifolds and supercharger all pre-assembled and tested.
• No boost lag as with centrifugal superchargers and turbos.
• Direct bolt on replacement. Connects to stock inlet system.
• Big increase in HP & torque - EVERYWHERE - not just at peak rpm.
• Kenne Bell "Mono" Chip, new gaskets and 160° thermostat included.
• No boost drop off at high rpm. Approx. 1 psi higher at 6000 vs. 2000.
• INSTANT FULL BOOST / HORSEPOWER & TORQUE at ANY rpm - 2000 up.
• Internally lubricated. No tapping holes in oil pan. Doesn't use engine oil.
• 6, 7, 8, 9, 10, 11, 12, 13 and 14 psi psi pullies available for any application.
• 60°-80° cooler air charge temperature and requires 10-16 less HP to drive than Roots style*.
• Optional Kenne Bell 90mm Mass Air Meter, 70 and 75mm Throttle Body/"Big Tube" Kit and Cool Air Kit
TREperformance is an Authorized Installing Dealer of Kenne Bell Superchargers.
12 Month warranty direct from KB
Custom made and shipped direct from KB in 2-4 weeks
Kenne Bell Dealer information
Kenne Bell is very strict about who they allow as dealers. Dealers must have experience with high performance forced induction applications and provide excellent customer service and application advice. Most online only or mail order companies are unable to qualify as dealers, but you are welcome to stop by our shop to talk about your application or view our supercharger kits.
