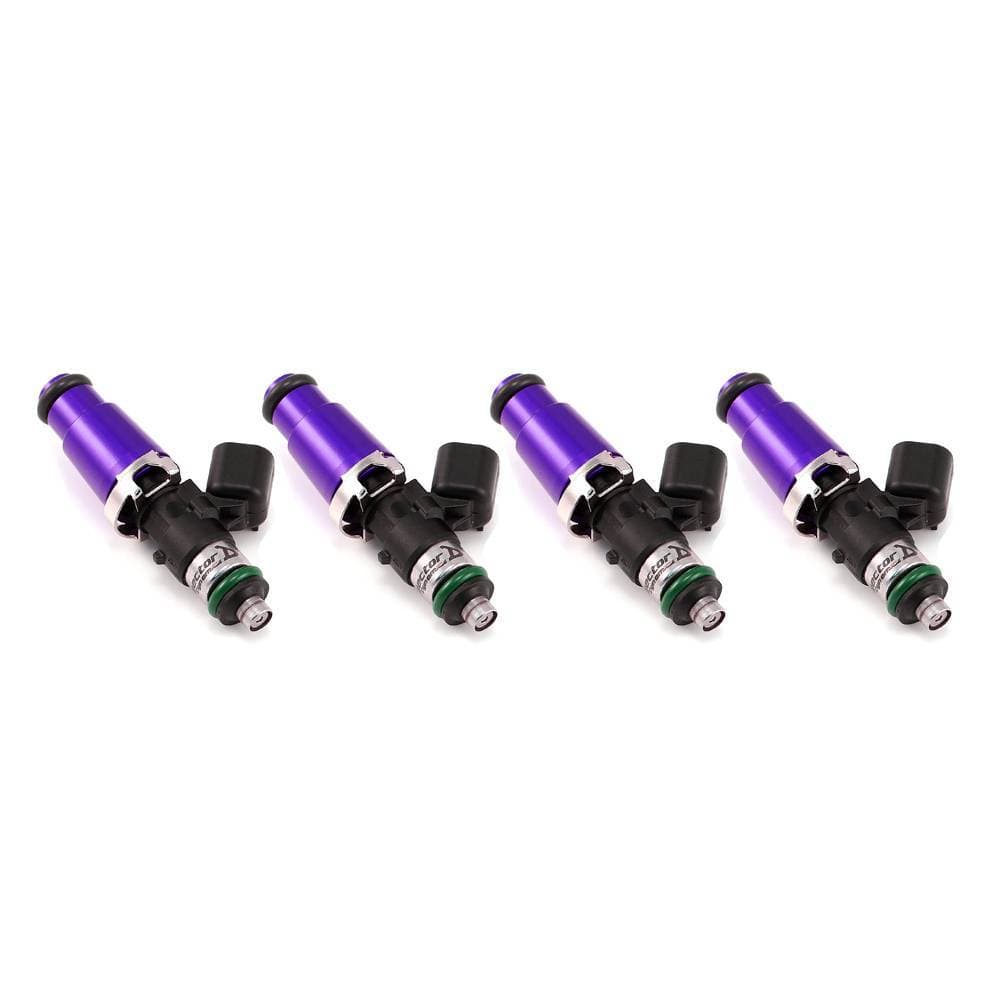

Included: 4 Injector Dynamics ID1750 fuel injectors. The photo is an example of a similar set.
The ID1750 is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1750 was designed to fill the gap between the ID1300 and the ID2000, and like the ID1300, it features corrosion resistant internals making it compatible with all known automotive fuels.
A unique magnetic circuit, resulting from a lengthy development program, makes the ID1750 immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1750 excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.
These Injector Dynamics fuel injectors will fit many applications, including, but not limited to:
1988-2002 Nissan 240SX S13 / S14 / S15 / SR20DET
Specifications
Nominal Flow Rate – 1750cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 7 Bar (101.5 psi)
Fuel Compatibility – Compatible With All Known Fuels
Electrical Connector – US-Denso *Top-feed only, adaptor top, 14mm lower o-ring*
Injector Body Design: Metal and composite plastic
O-Rings Included: Yes, on the injectors

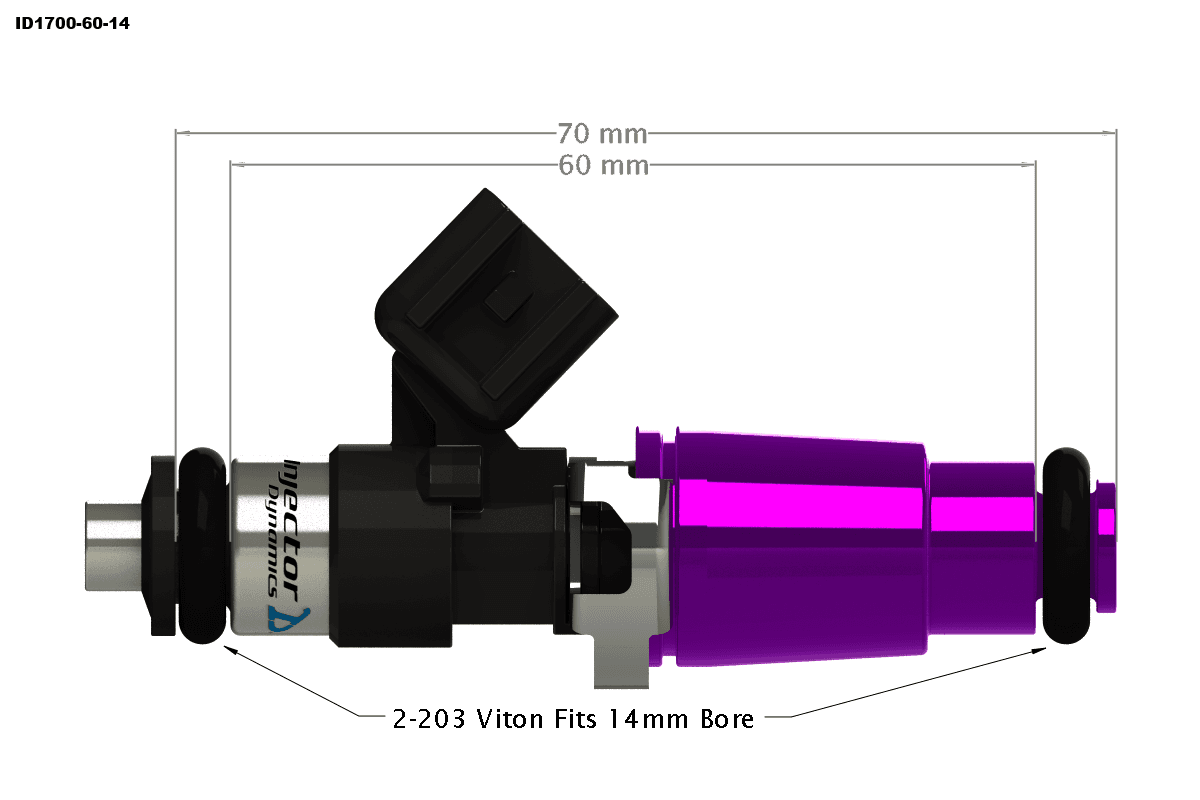

Length of injector from o-ring to o-ring: 60mm
Diameter of top o-ring / fuel rail bore: 14mm
Diameter or style lower o-ring or cushion: 14mm
Slope and Offset vs. Pressure data and tuning data for Motec M1 are available upon request.
