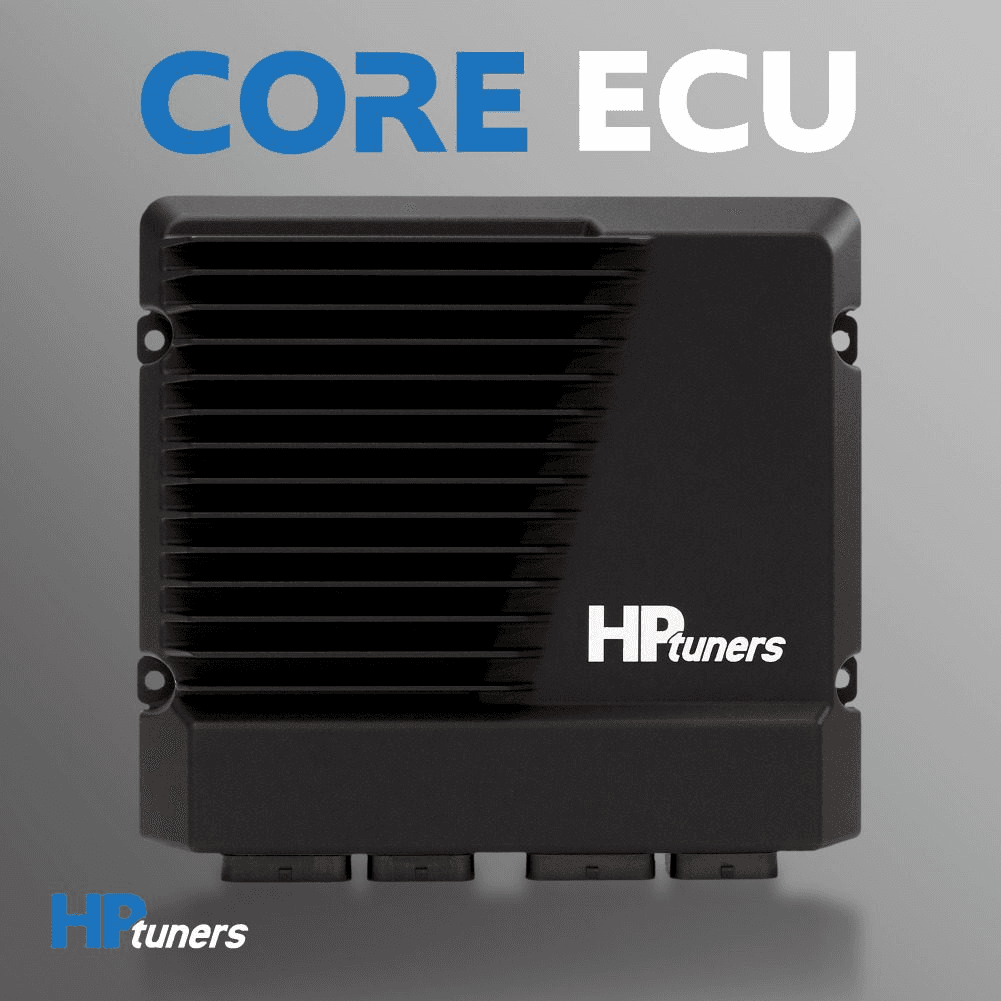

Core ECU Features:
Supports up to 16 injectors and 8 coil packs
Sequential fuel injection support
Optional flex fuel integration
Dual throttle body capability
Built-in dual wideband controller for accurate air-fuel ratio monitoring
Real-time tuning support with new VCM Live Software
Data logging up to 150 channels at 1 kHz
Advanced boost, nitrous, and launch control
CAN bus support for seamless communication with external devices
Motorsports-grade performance
Customizable Time Graphs
Characteristics List
Decimal Adjuster
Templated Basic and Advanced Layouts
Fully Customizable Layouts
Standalone Data Logging Up To 1000hz With Start/Top Triggers
(2) Customizable CAN Configurators
Engine Protection Like Hard/Soft Limiter Cut Mode, Boost Limits, Etc.
Ethernet Communications
Preconfigured Wizards for Injectors, Intakes, Throttle Bodies, Etc.
Enable/Disable Live Tuning
Countless Editable Parameters
Open Multiple Tables at Once
Table Vertical and Horizontal Specific Smoothing
Table Interpolating
Export Feature to View/Modify File via Microsoft Excel (.CSV)
+ Many More Features To Come! EX. Oil pressure limits, Fuel Pressure Limits, Built-In Trigger Scope Capabilities
Current Engine Support:
Gen 3 LS Engines (Drive-by-Cable)
Gen 4 LS Engines (Drive-by-Wire)
More engine support coming soon!
Current Transmission Support:
GM 4L60E and 4L80E
CORE ECU is intended for use in exempt vehicles such as pre-emissions motor vehicles and documented competition vehicles that are exclusively for track use and not driven on public roads. HP Tuners does not condone the misuse of its products. All users are required to register their CORE ECU and identify the vehicle application before installation and use. Misuse of the CORE ECU will void the warranty.
TREperformance is an Authorized Priority Dealer of HP Tuners.
