Specifications:
Construction: Cast
EGR Port: No
Engine: GM LS3
Finish: Natural
Flange Style: EFI
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI

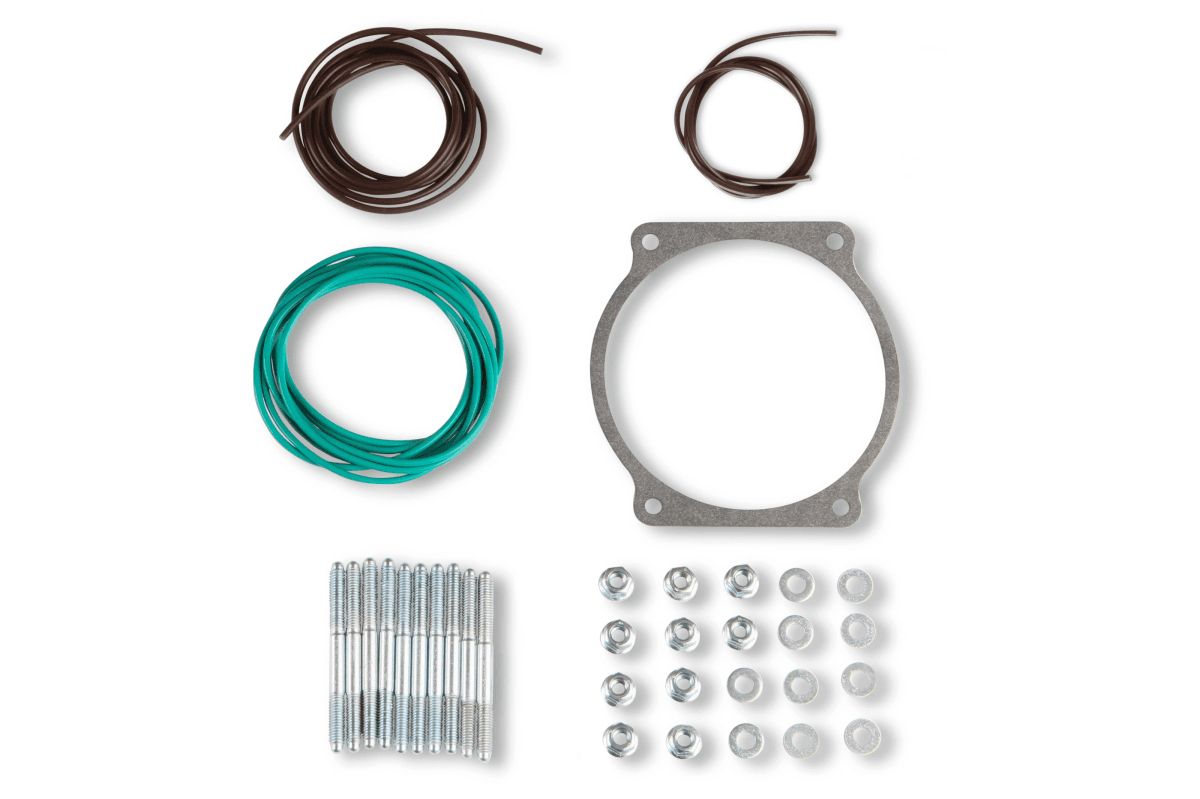

Gasket Or Seal Included: Yes
Injector Quantity: 8 Injectors
Intake Port Gasket(s) Included: No
Material: Aluminum
Nitrous Bung(s) Included: No
Recommended Use: Supercharger or Turbo
Removable Runners: No
RPM Power Band: 3500-8000 RPM
Plane Type: Single Plane
Throttle Body Bore Diameter: 105 MM
Throttle Body Included: No
Warranty Manufacturer's: Limited 90 Day Warranty
Part Number: 300-680
Features:
Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads•
Engineered for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application.
Low height to fit under a stock or mildly modified hood in the configuration

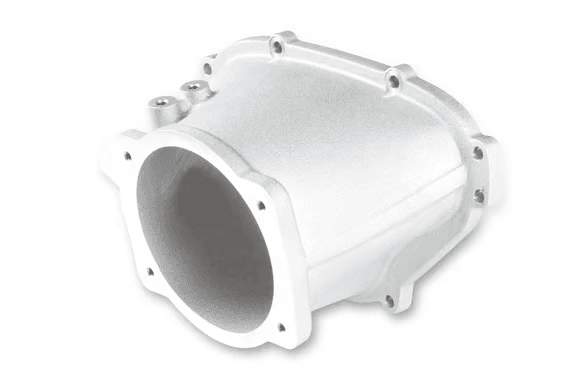

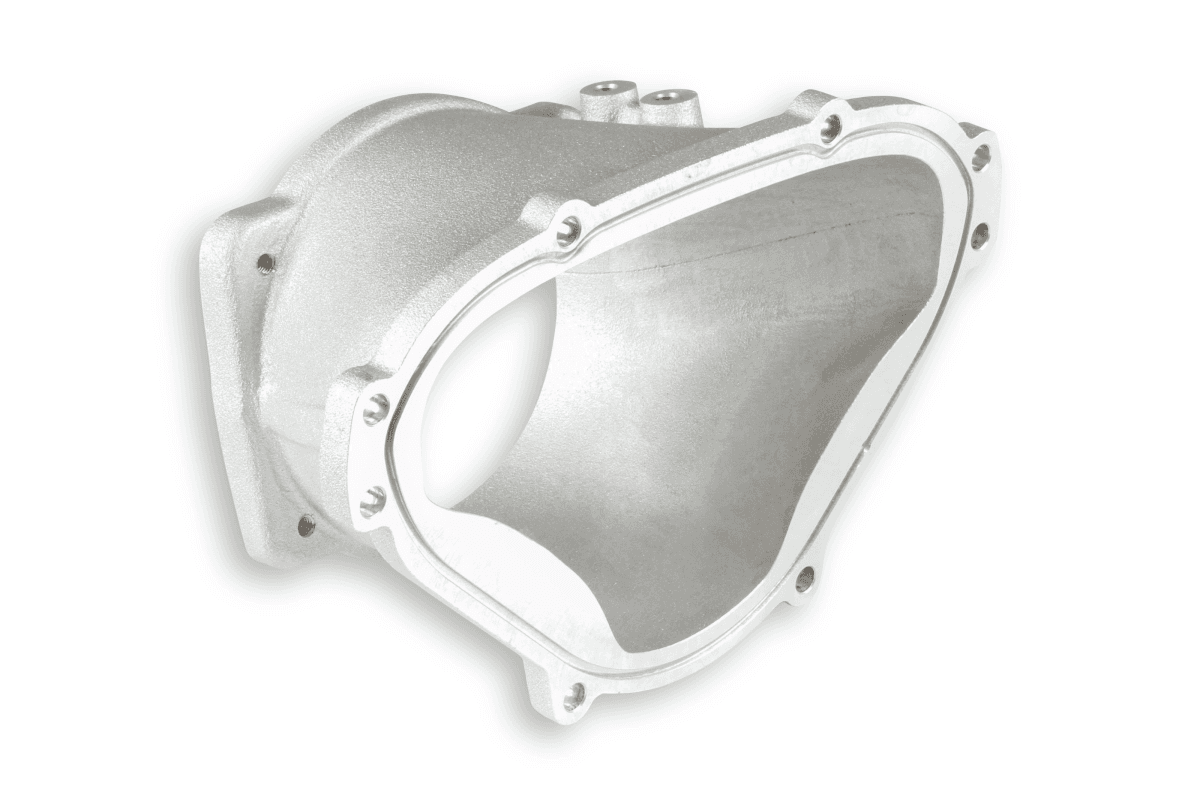

Front entry plenum flange allows design & fabrication of special throttle body adapters or inlet ducts for custom installations
Clears C6 Corvette cowls and hoods without modification
Available with single or dual injector provisions and a burst panel flange.

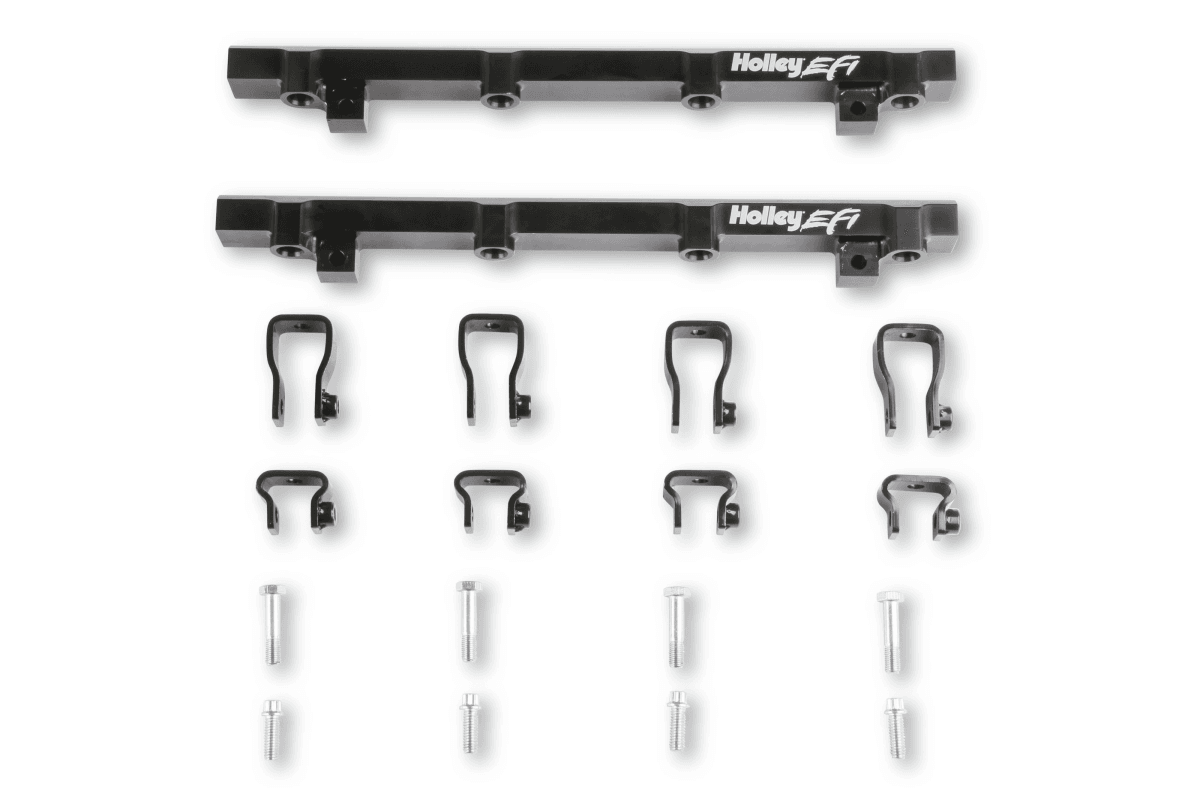

High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN)
Billet options for the top and throttle body adapters are available seperately.
