Specifications:
Construction: Cast
EGR Port: No
Engine: GM LS1/LS2/LS6
Finish: Black
Flange Style: EFI
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI

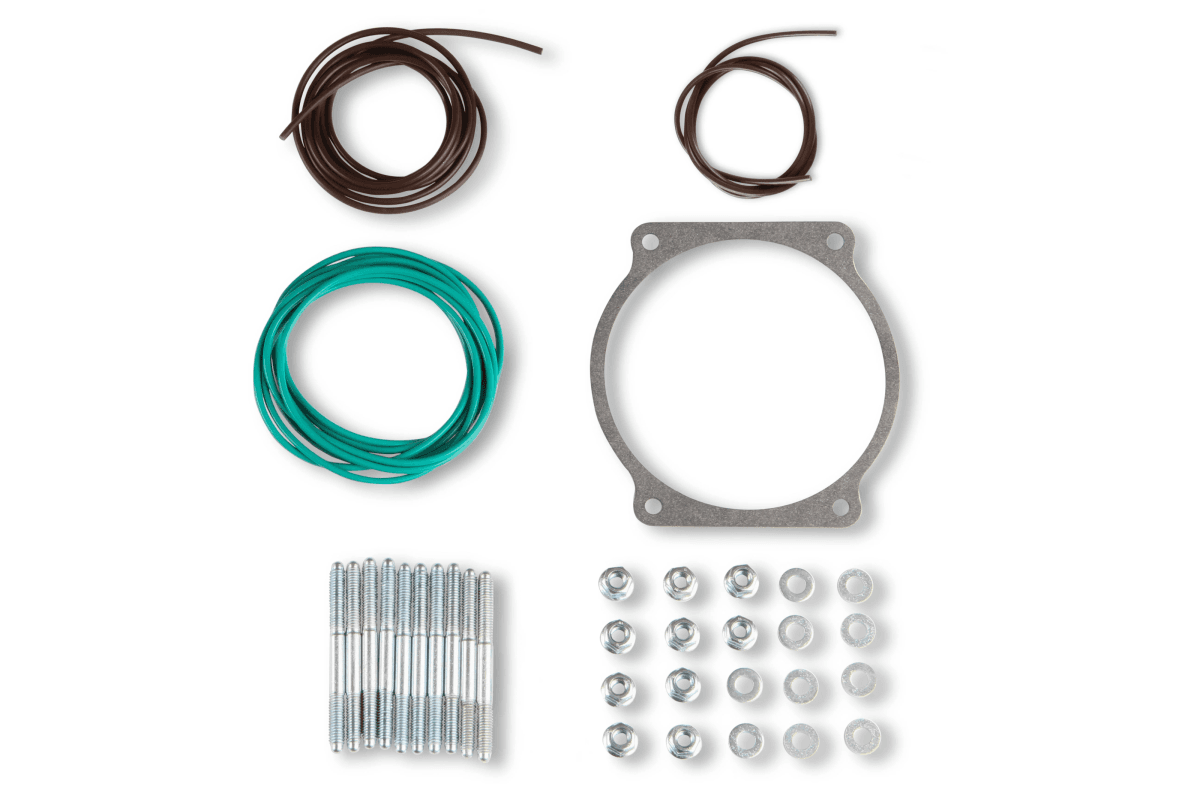

Gasket Or Seal Included: Yes
Injector Quantity: 8 Injectors
Intake Port Gasket(s) Included: No
Material: Aluminum
Nitrous Bung(s) Included: No
Recommended Use: Supercharger or Turbo
Removable Runners: No
RPM Power Band: 3500-8000 RPM
Plane Type: Single Plane
Throttle Body Bore Diameter: 105 MM
Throttle Body Included: No
Warranty Manufacturer's: Limited 90 Day Warranty
Part Number: 300-621BK
Features:
Designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads
Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application.
With forced-induction and the short runner length the engine rpm at which peak power occurs is more likely to be coupled to the supercharger or turbocharger being used
Modular design allowing the use of front-feed plenum entry
Intake design facilitates custom inlet duct and throttle body placement
Low height to fit under a stock or mildly modified hood in the front configuration

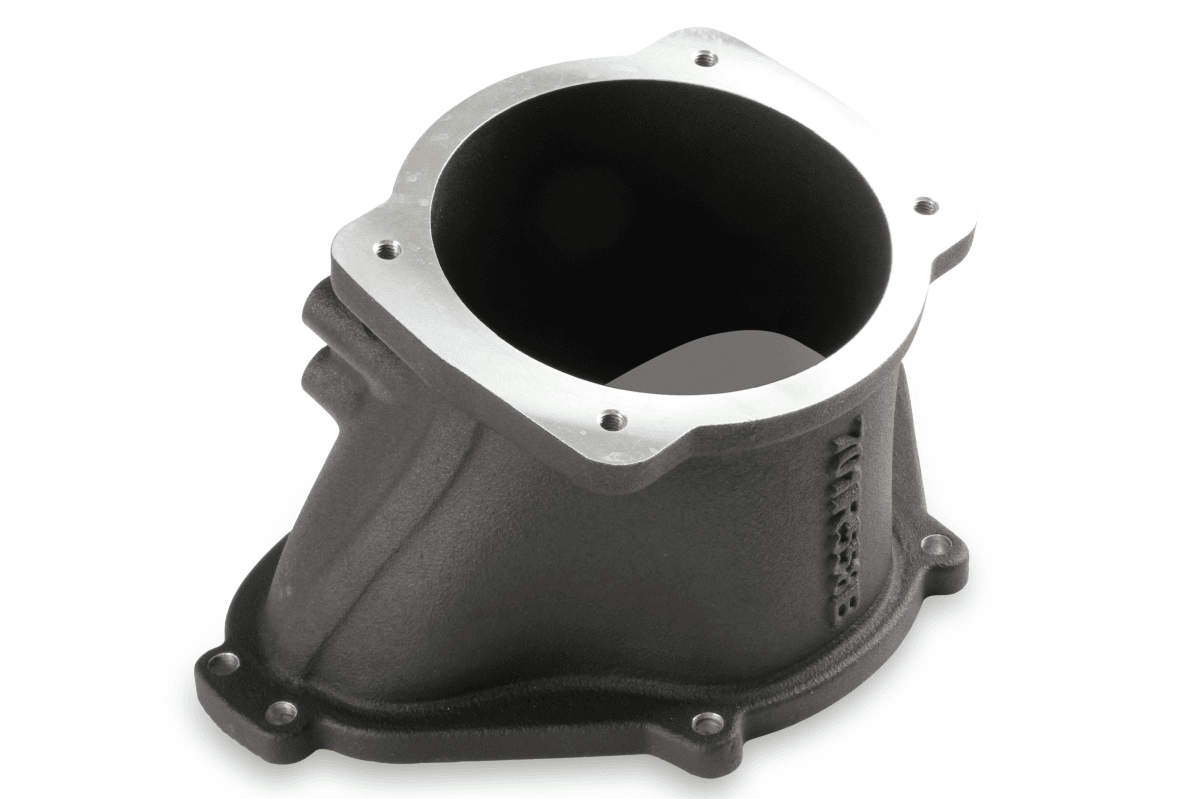

Front entry plenum flange allows design & fabrication of special throttle body adapters or inlet ducts for custom installations
Clears 4th Gen Camaro and C5 Corvette cowls and hoods without modification

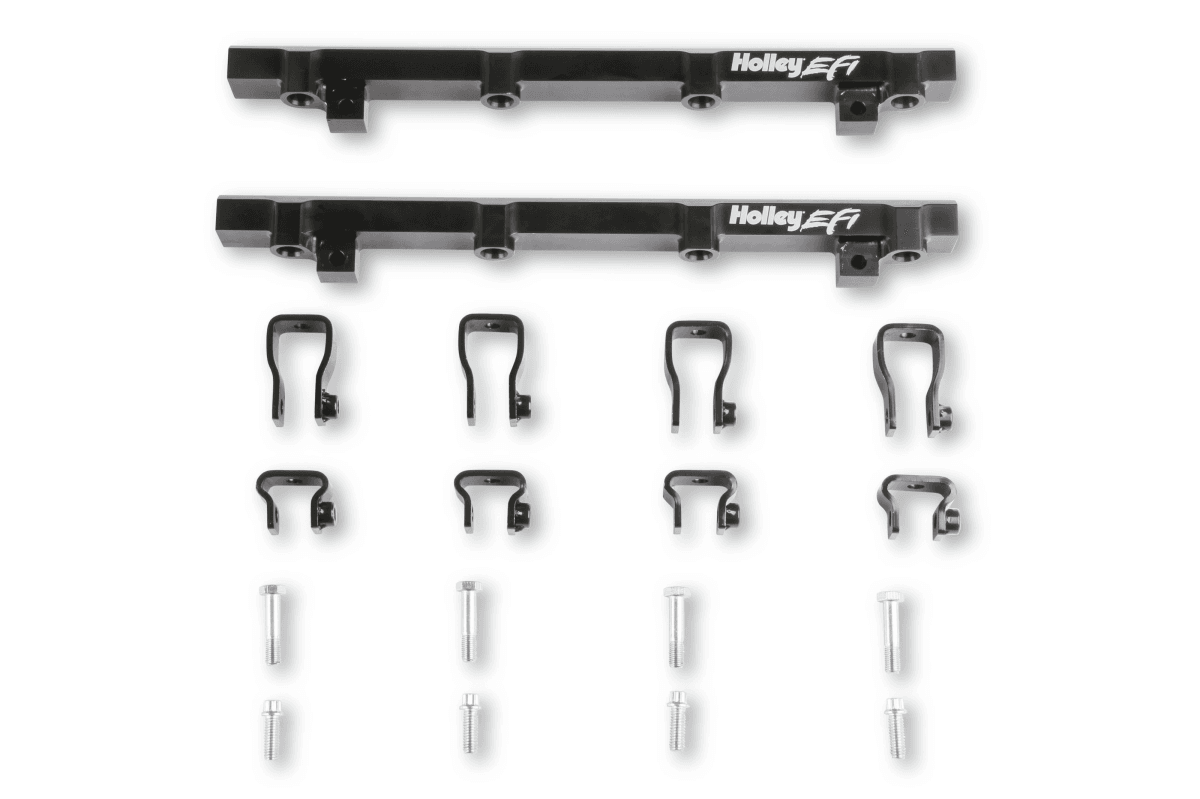

High volume fuel rails and mounting hardware included with ¾”-16 o-ring ports (8 AN)
No burst panel, solid cast
