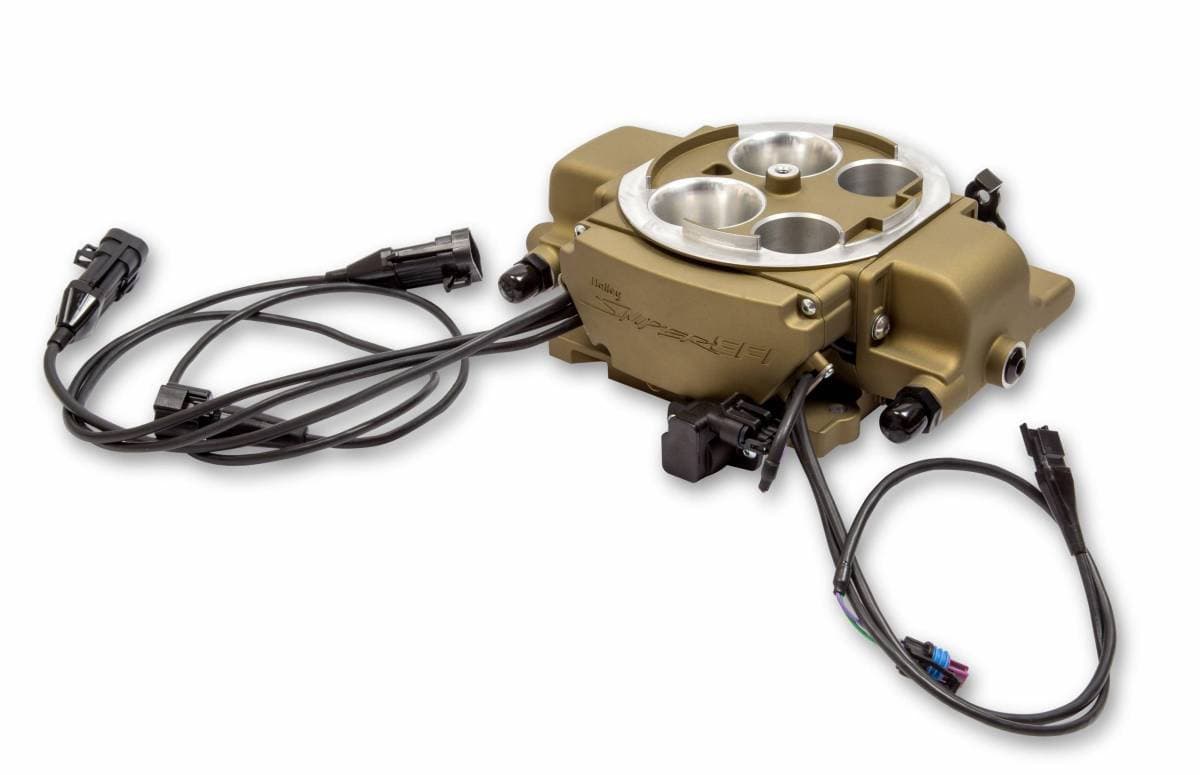

This Holley Sniper EFI injection system includes the Rochester Quadrajet™ (Q-Jet) 4-Barrel Fuel Injection Conversion & Self-Tuning System with Handheld EFI Controller
Upgrade to Sniper EFI and get the tactical accuracy of EFI
today!
Features:
Designed to deliver the signature Rochester Roar at Wide Open Throttle!
Throttle body mounted ECU – no extra boxes to mount
Supports up to 500hp with Four 100 Lb/Hr Injectors!
Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)
Integrated ignition timing control
Transmission provisions on throttle lever for TH350/TH400 and 200R4/700R4
Fits most stock Rochester Quadrajet™ (Q-Jet) air cleaners
Brake Booster adapter included, if required

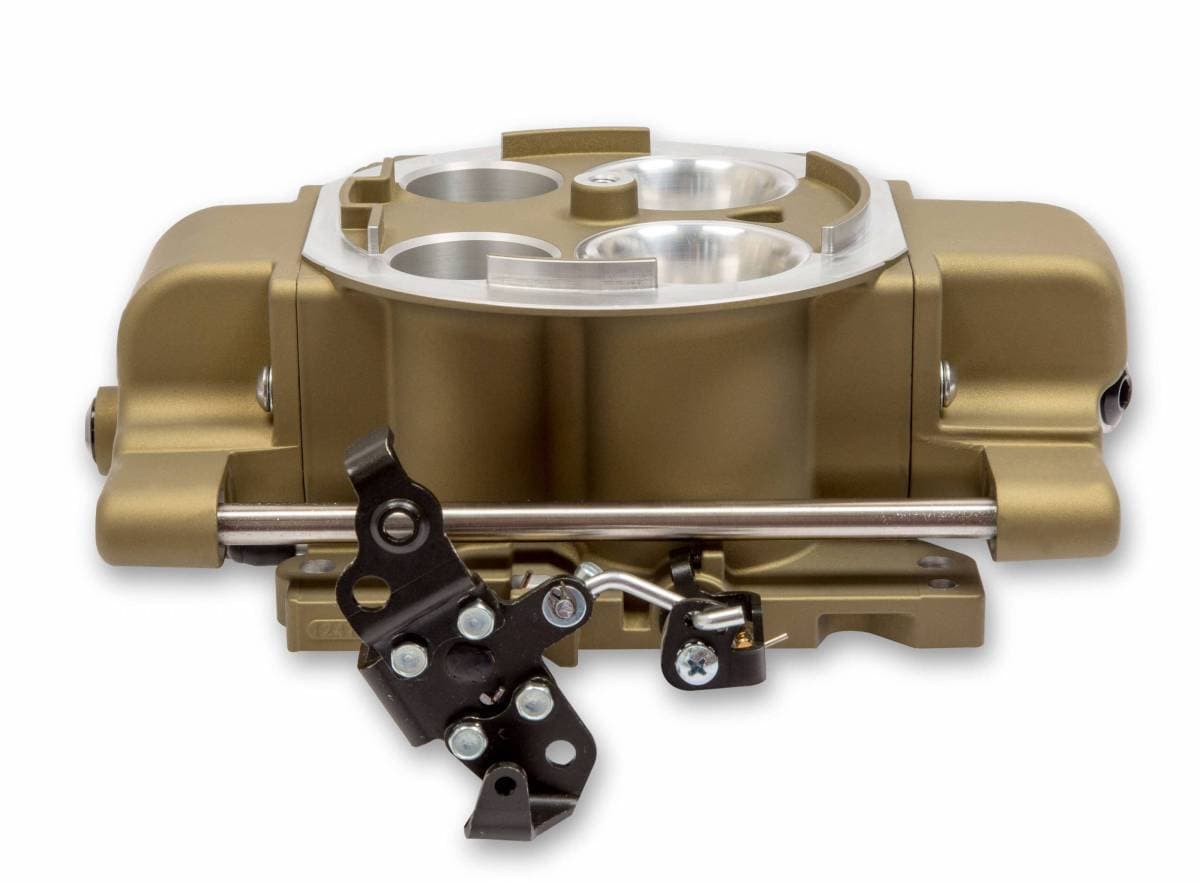

Universal Throttle and transmission kickdown bracket included

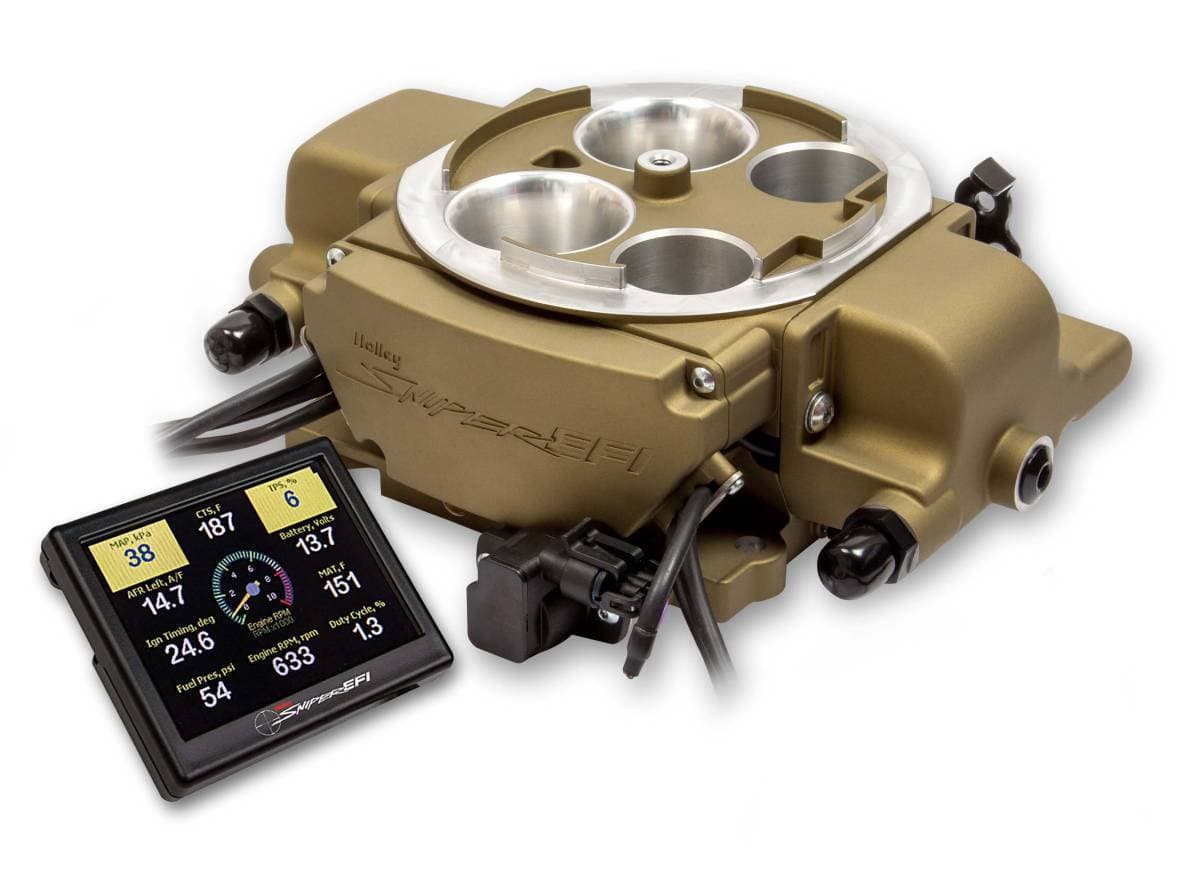

High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays.
Simple Calibration Wizard (Answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!

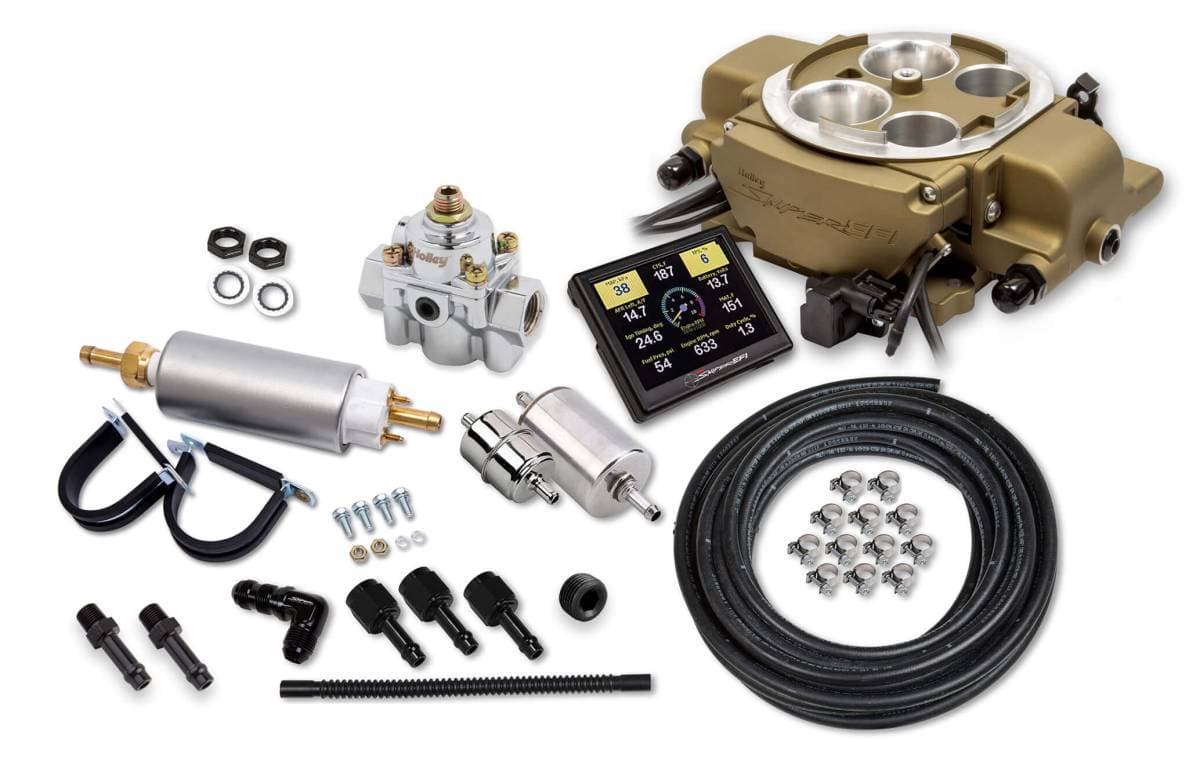

Complete fuel system includes – external fuel pressure regulator preset to 58.5psi, 20ft of 3/8” Vapor Guard Fuel Hose, Fuel Pump, Filters, necessary hardware and bulkhead fitting to return fuel into the tank!
Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides realtime Fuel Map Learn!
OEM Style Throttle Position Senser (TPS)/ and Idle Air Control (IAC) for years of dependable service.
Included clamp-on oxygen sensor kit ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
Patent Pending
| Brand | Holley Sniper EFI |
|---|---|
| CFM | 715 |
| Coast Guard Approved | Yes |
| Emission Code | 3 |
| Finish | Classic Gold |
| Flange Style | Spreadbore |
| Fuel Pressure | 58.5 PSI |
| Height | 3.28" |
| Injector Size | 100 lb/hr @ 58.5 PSI |
| Inlet / Outlet Size | 9/16-18 Female O-Ring (AN 6) |
| MAP Sensor | 2Bar |
| Max Horsepower Rating | 500 Naturally Aspirated |
| Product Type | Sniper 4BBL TBI Kits |
| Throttle Bore | 1.375 Primary / 2.00 Secondary |
| Transmission | 700R4/200R4 |
| Part Number | 550-869K |
Emissions
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
This part is legal for use on Uncontrolled (Non-Emissions Controlled) Vehicles or Racing Vehicles.
1965 and older U.S. manufactured California Certified vehicles
1967 and older U.S. manufactured Federally Certified vehicles
1967 and older Foreign manufactured vehicle
Racing Vehicles are vehicles that are used exclusively for racing or other forms of competition that are not registered and that may never be used on the street.
