supports 175 horsepower, and will keep your budget intact. They put an end to carburetor cold start issues, hesitations, vapor lock, and flooding. E-85 not recommended.
Upgrade to Sniper EFI and get the tactical accuracy of EFI
today!

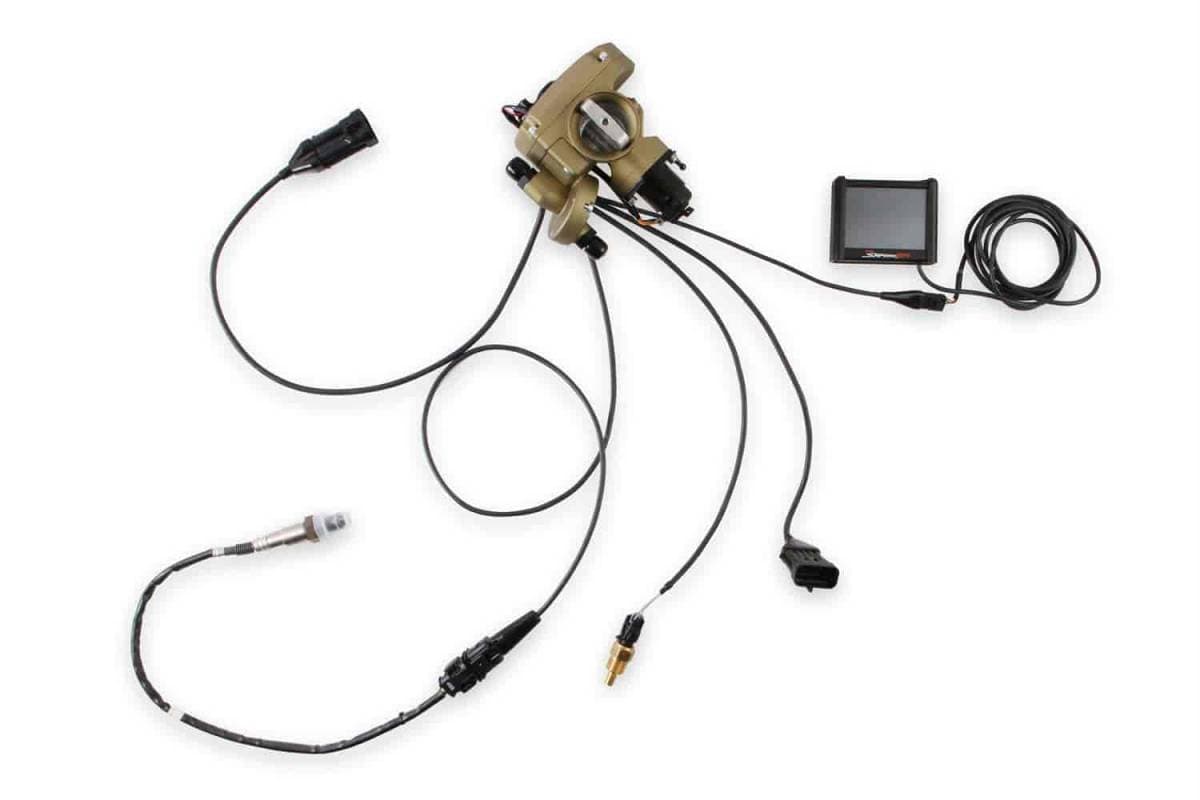

What's In The Box:
Bosch Wide Band Oxygen Sensor
Clamp-on Oxygen Sensor Bung
Coolant Temperature Sensor

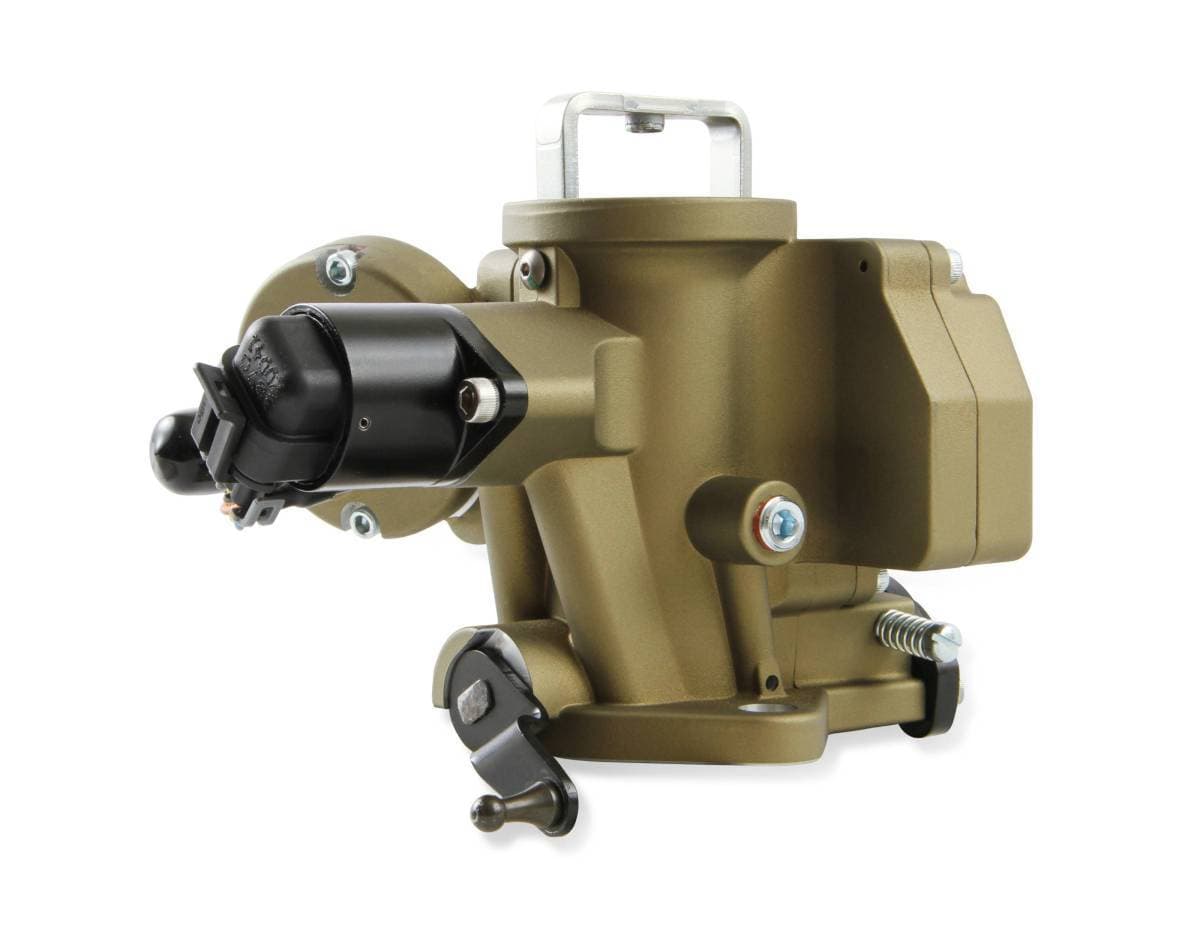

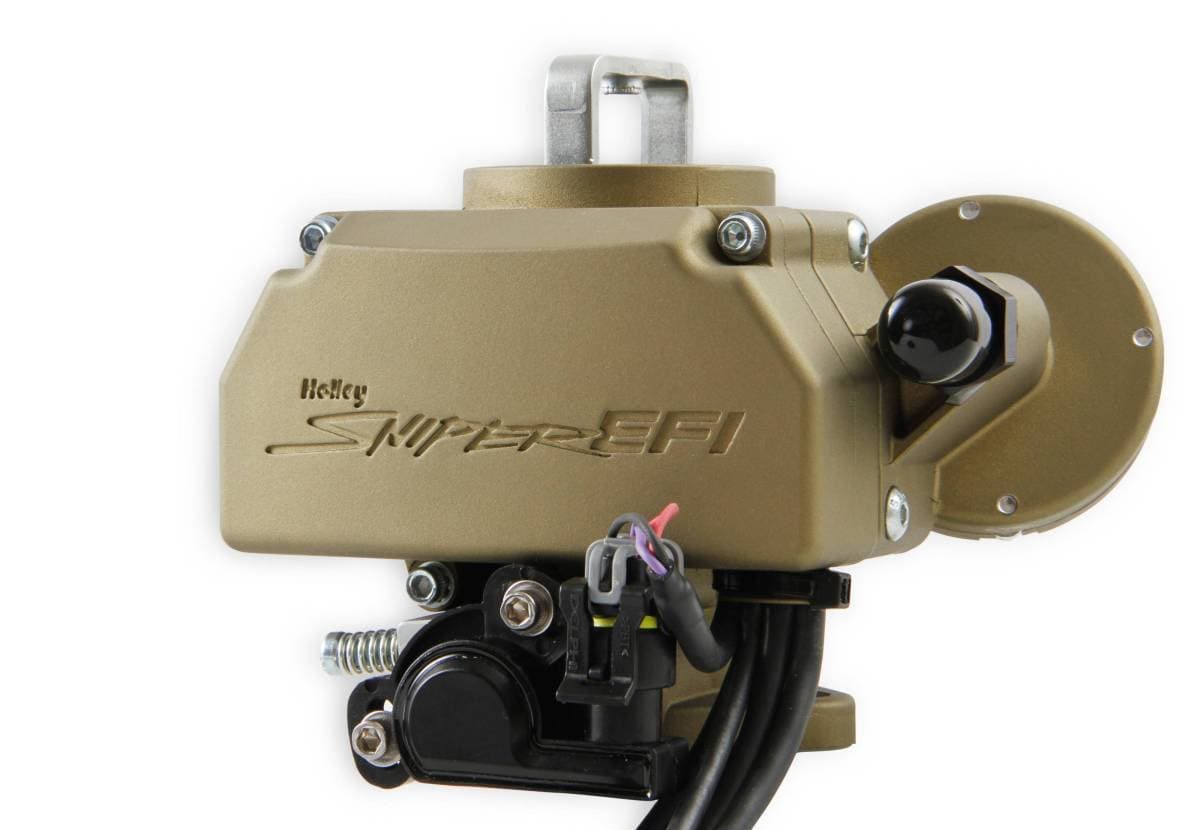

Sniper EFI Throttle Body Assembly

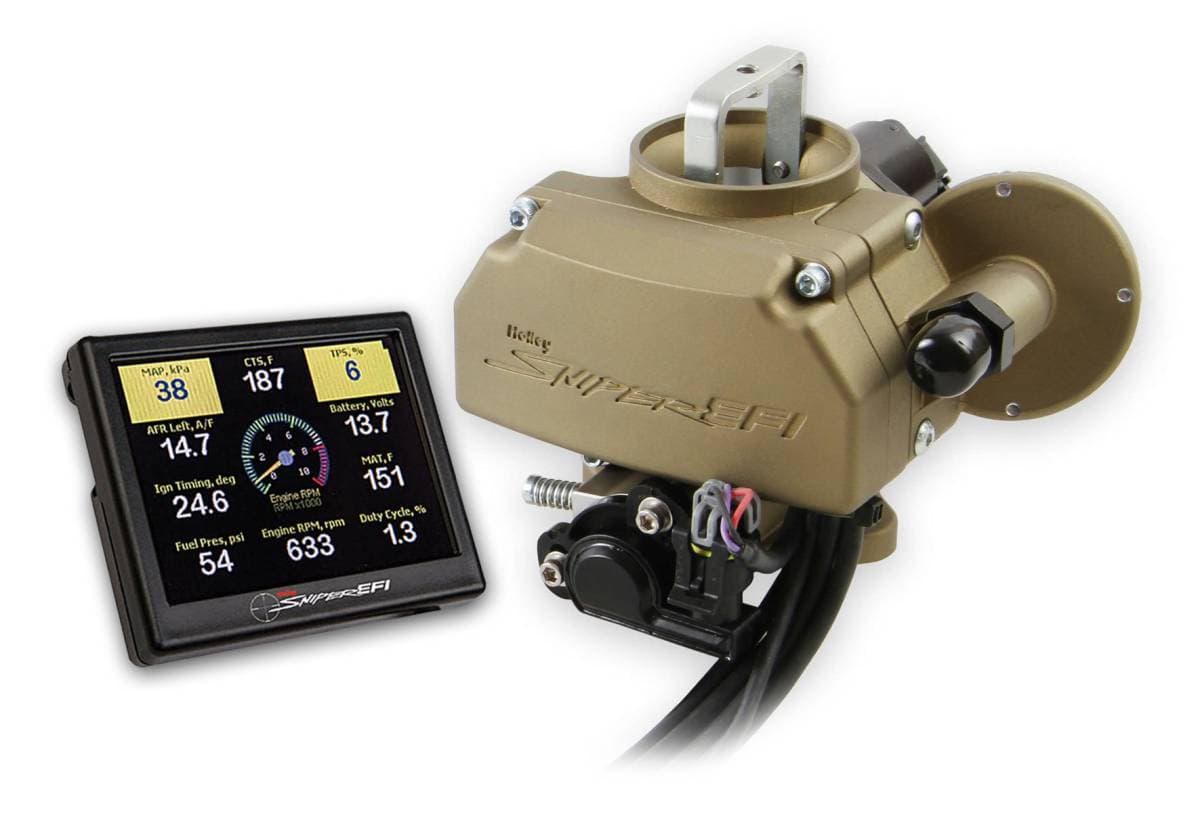

3.5” Touch Screen Controller

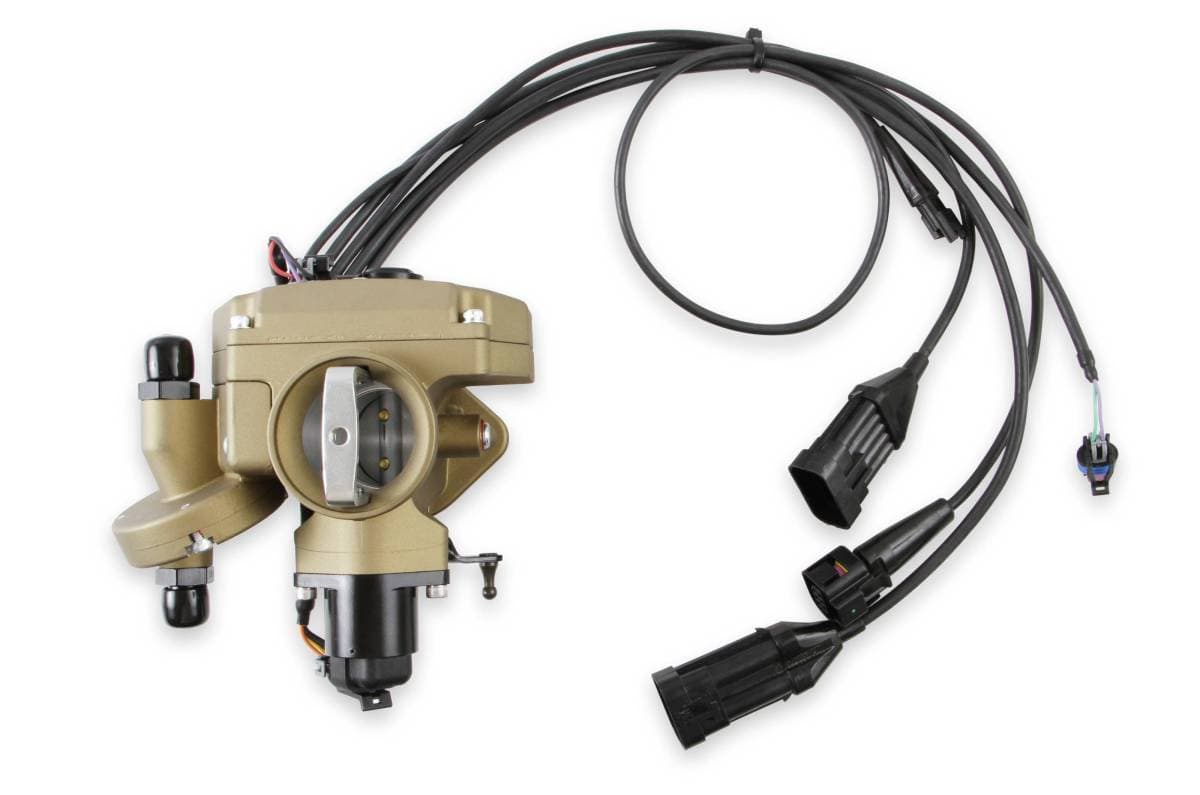

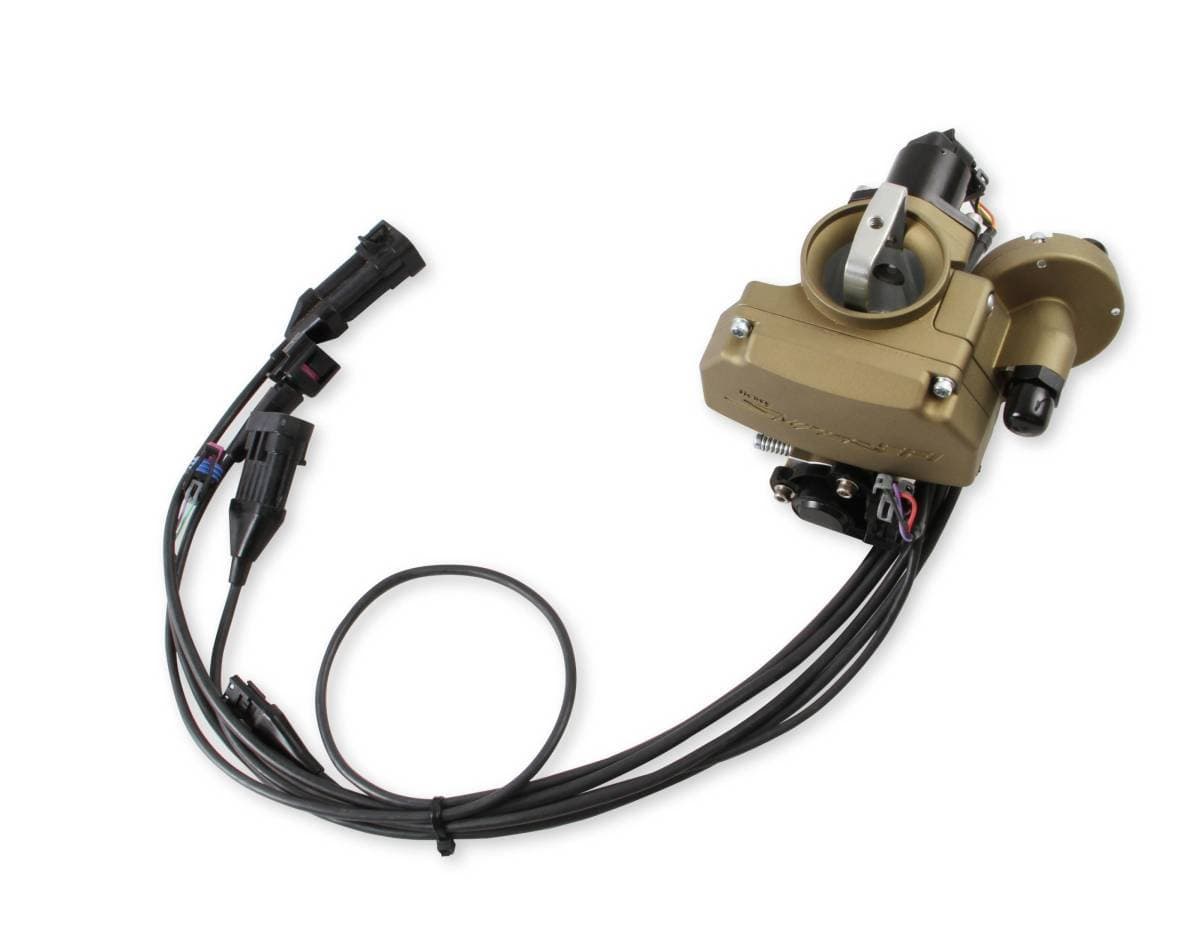

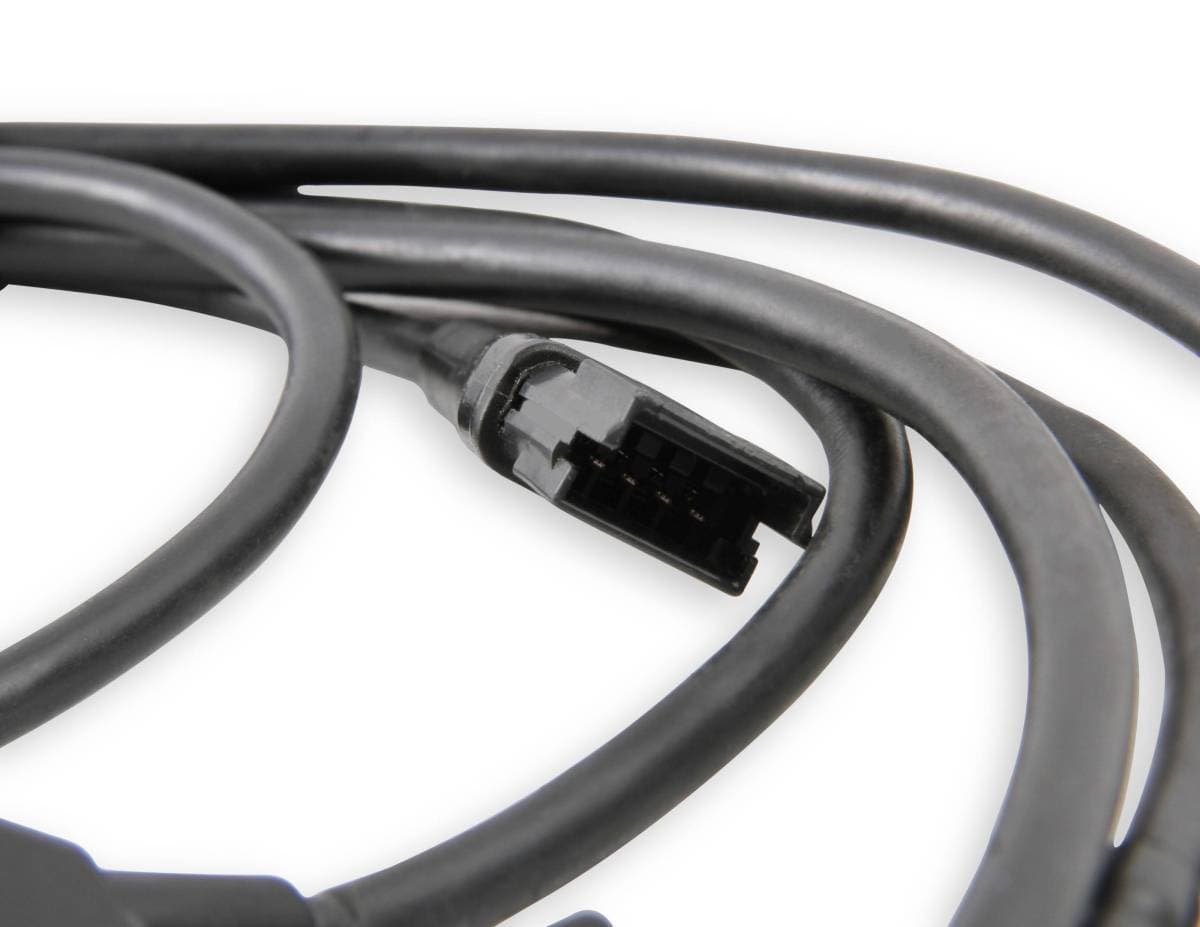

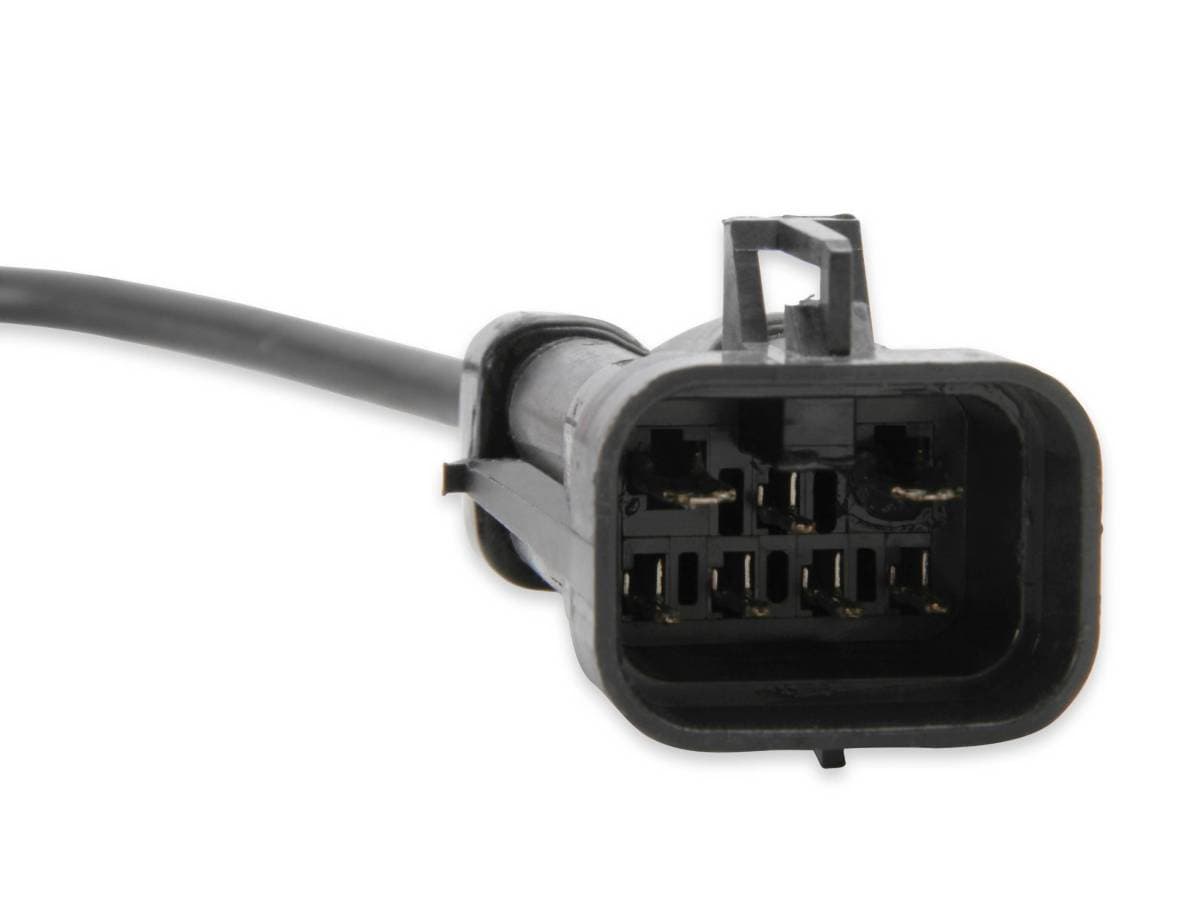

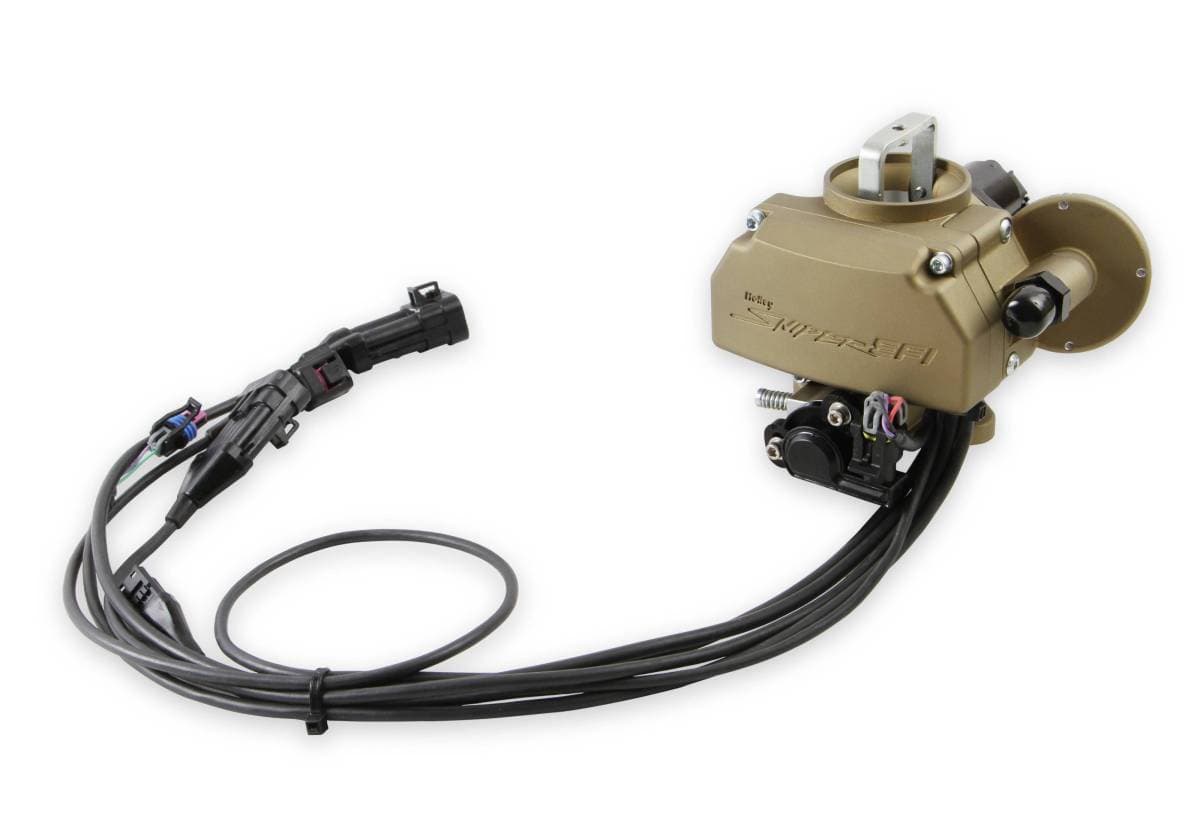

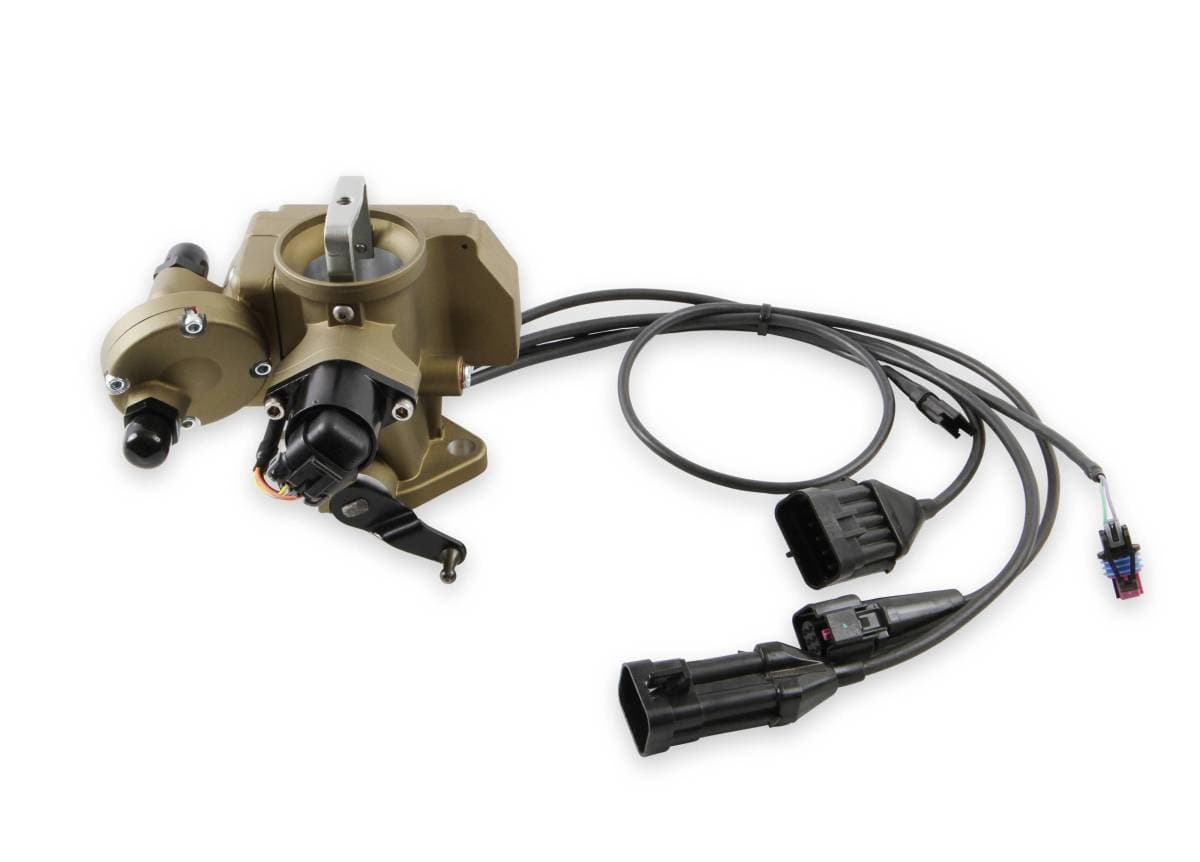

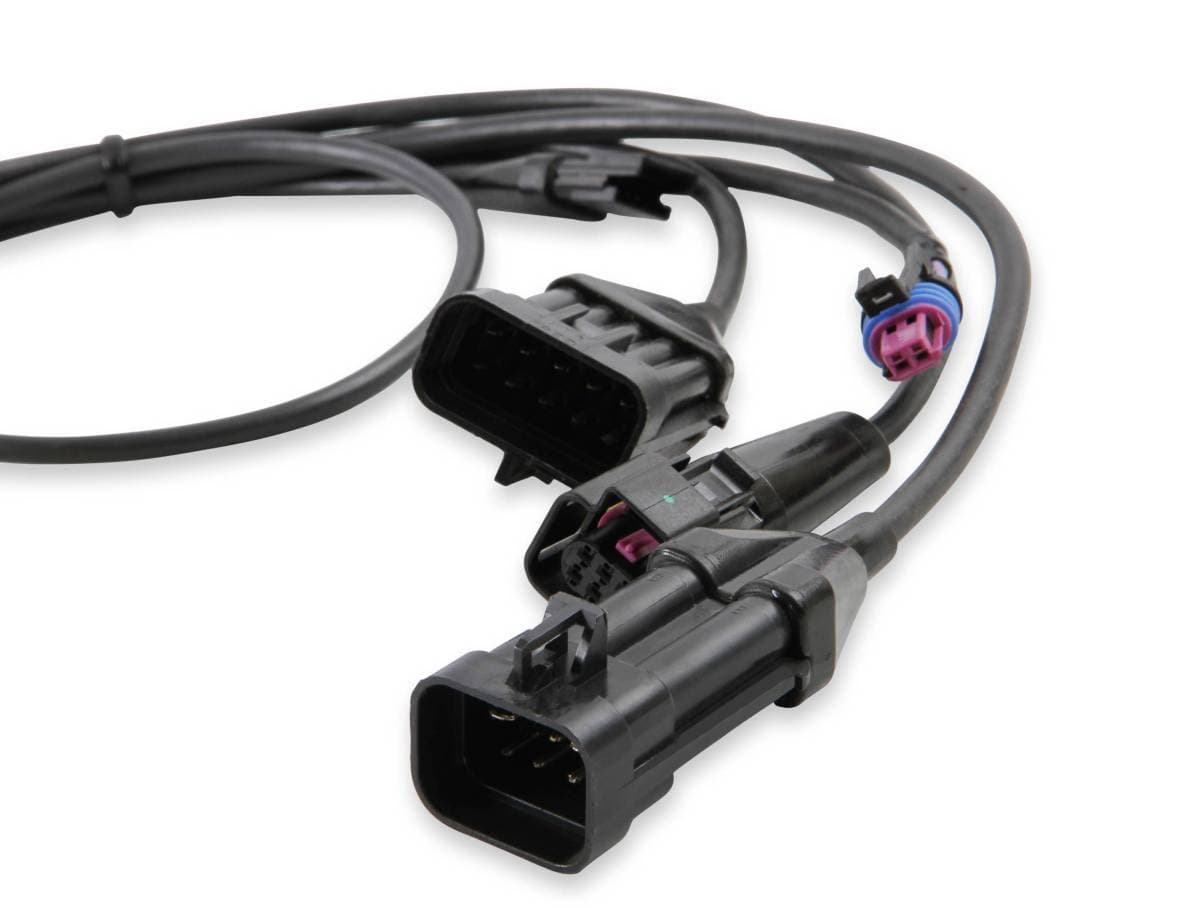

Output Harness & Main Harness and Ignition Adapter
Features:
Supports up to 175 HP with One 100lb/hr Injector

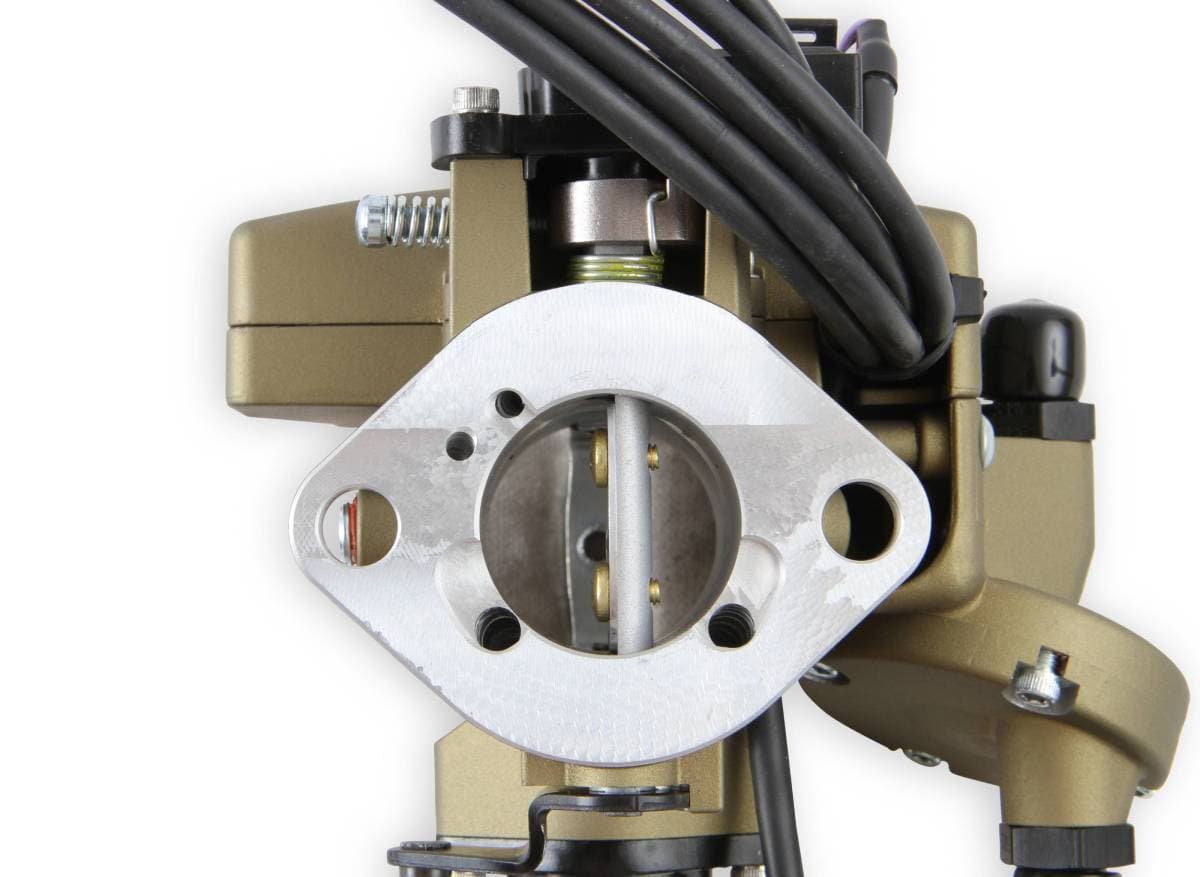

Bolt-On Sniper EFI throttle body replacement for Autolite 1100 Carburetors

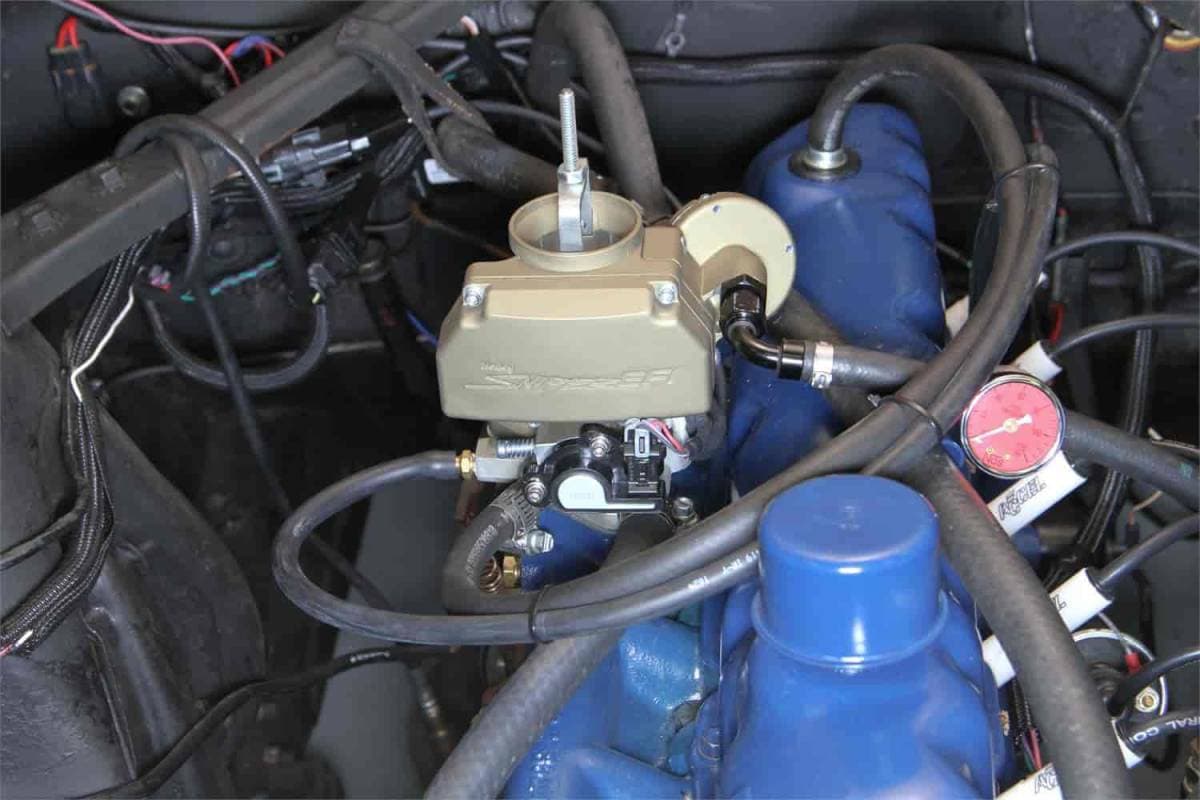

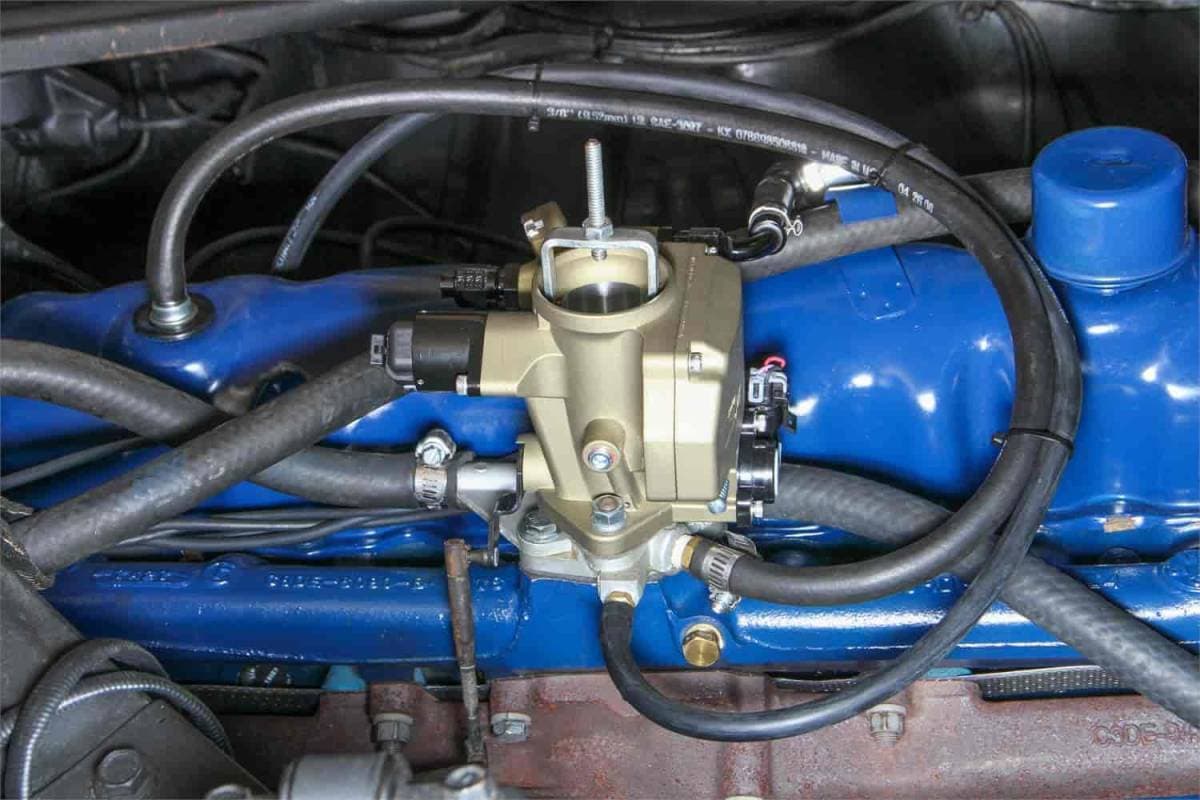

Designed with a mounting flange to fit the intake manifolds that originally had Autolite 1100 carburetors installed. Applications include 1963 – 1967 Inline 6 Cylinder Ford engines, from 144ci to 300ci.
Such engines were commonly found in Mustang, Falcon, Fairlane, and various Ford trucks.
Throttle body mounted ECU – no extra boxes to mount
Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)
Internal fuel pressure regulator eliminates the hassle of plumbing an external fuel pressure regulator (Preset to 58.5 PSI)
Integrated ignition timing control
High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides realtime Fuel Map Learn!

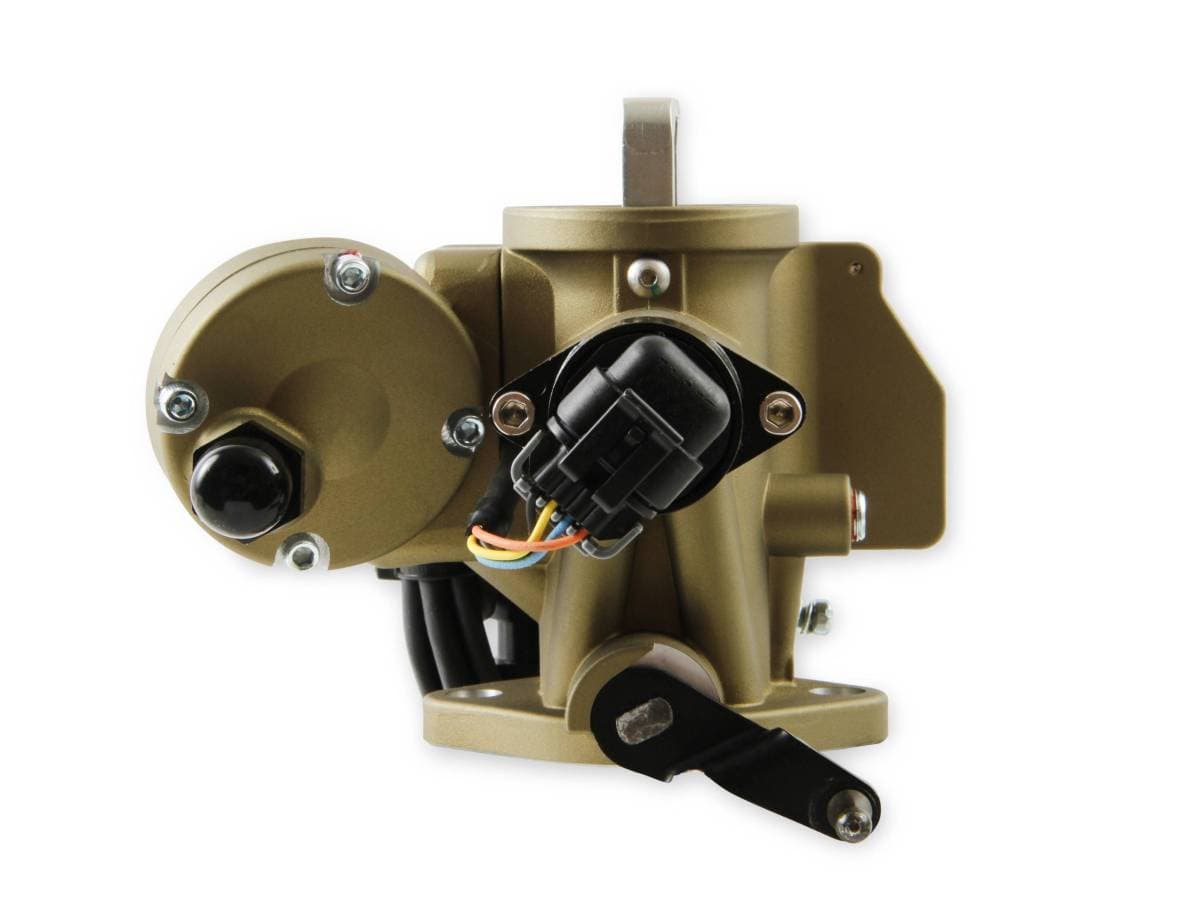

OEM Style TPS/IAC and Fuel Pressure regulator, for years of dependable service
Included clamp-on oxygen sensor kit for 2" exhaust ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
Specs:
Brand: Holley Sniper EFI
Finish: Classic Gold
Flange Style: 1100 One Barrel
Horsepower Rating: (HP) 175
Injector Size: 100 lb/hr @ 58.5 PSI
Product Type: Sniper EFI Autolite 1100

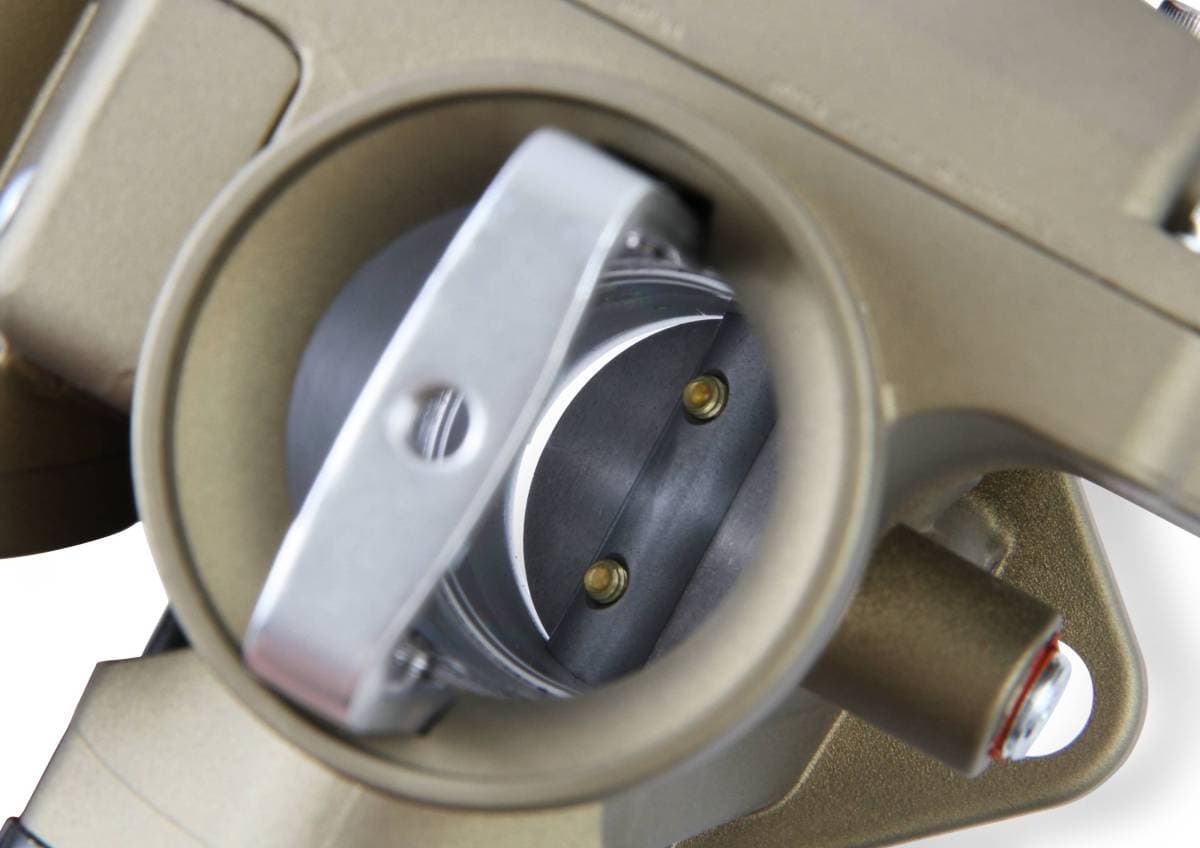

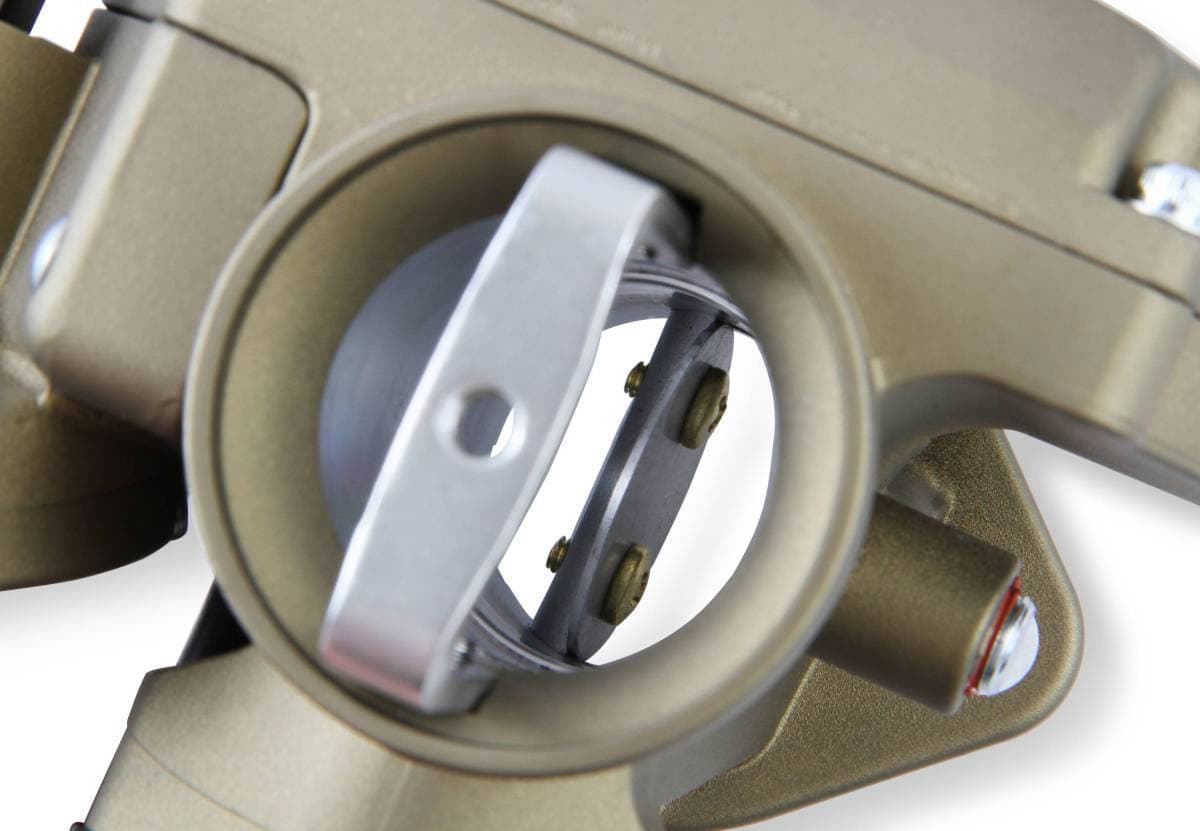

Throttle Bore: 1.4375
Part Number: 550-552
Emissions
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
This part is legal for use on Uncontrolled (Non-Emissions Controlled) Vehicles or Racing Vehicles.
1965 and older U.S. manufactured California Certified vehicles
1967 and older U.S. manufactured Federally Certified vehicles
1967 and older Foreign manufactured vehicle
Racing Vehicles are vehicles that are used exclusively for racing or other forms of competition that are not registered and that may never be used on the street.
