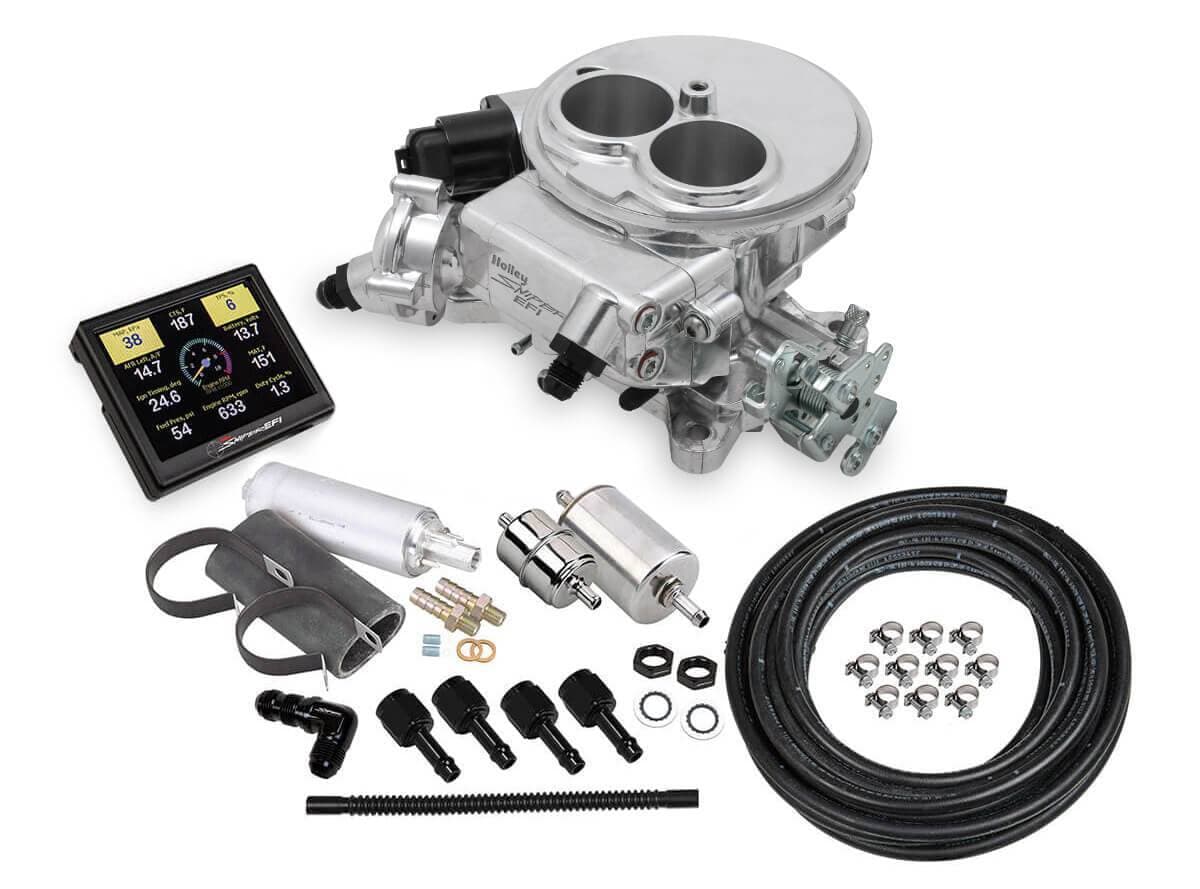

Holley Sniper EFI self-tuning fuel injection systems from Holley deliver all the benefits—and none of the hassles. These full-featured throttle bodies are easy to install, can support a lot of horsepower, and will keep your budget intact. They put an end to carburetor cold start issues, hesitations, vapor lock, and flooding. Each of these Holley Sniper EFI systems hit the performance mark with a mounted ECU and an integrated fuel pressure regulator. They're self-learning (no laptop is needed for set up) and they include a small color touchscreen to help you set up and tweak. Holley also provides you with a choice of finishes—satin black or polished aluminum. Make your conversion simple, while getting maximum bang for your buck, with a Holley Sniper EFI self-tuning fuel injection system from Holley.
Upgrade to Sniper EFI and get the tactical accuracy of EFI
today!
Features:
Bolt on 2300 Flange Carburetor Replacement
Supports up to 350HP with Two 100lb/hr Injectors
Equipped with C4 / C6 Ford transmission kickdown lever as well as TH350, 400 and 700R4 provisions
Accepts many common 5 1/8” OEM or aftermarket air cleaner assemblies
Throttle body mounted ECU – no extra boxes to mount
Integrated ignition timing control
Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)
Internal fuel pressure regulator eliminates the hassle of plumbing an external fuel pressure regulator (Preset to 58.5 PSI)
High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides realtime Fuel Map Learn!
OEM Style TPS/IAC and Fuel Pressure regulator, for years of dependable service.
Included clamp-on oxygen sensor kit for 2.25" exhaust ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
Sniper EFI Software free to download which allows for realtime tuning

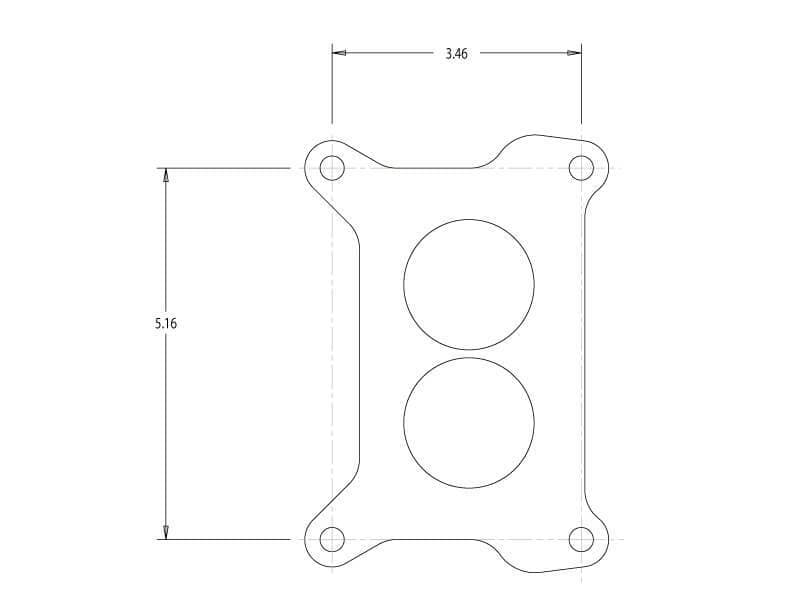

Printable throttle body flange template included
Patent Pending
| Brand | Holley Sniper EFI |
|---|---|
| CFM | 580 |
| Emission Code | 3 |
| Finish | Shiny |
| Flange Style | 2300 |
| Fuel Pressure | 58.5 PSI |
| Height | 3.28" |
| Injector Size | 100 lb/hr @ 58.5 PSI |
| Inlet / Outlet Size | 9/16-18 Female O-Ring (AN 6) |
| MAP Sensor | 2Bar |
| Max Horsepower Rating | 350 Naturally Aspirated |
| Product Type | Sniper 2BBL EFI Kits |
| Throttle Bore | 1.6875 (1 11/16ths) |
| Transmission | 700R4/200R4 |
| Ford C4/C6 | |
| TH350 | |
| Part Number | 550-849K |
Emissions
This part is legal for use on Uncontrolled (Non-Emissions Controlled) Vehicles or Racing Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
1965 and older U.S. manufactured California Certified vehicles
1967 and older U.S. manufactured Federally Certified vehicles
1967 and older Foreign manufactured vehicle
Racing Vehicles are vehicles that are used exclusively for racing or other forms of competition that are not registered and that may never be used on the street.
