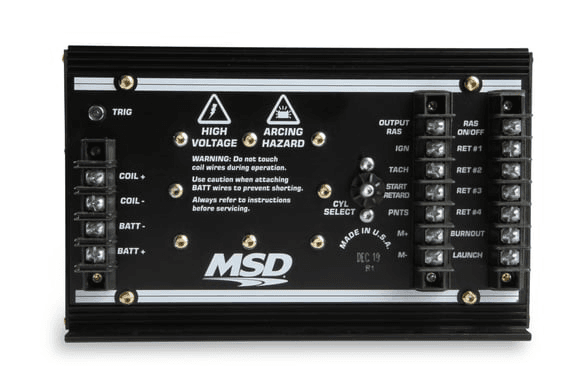

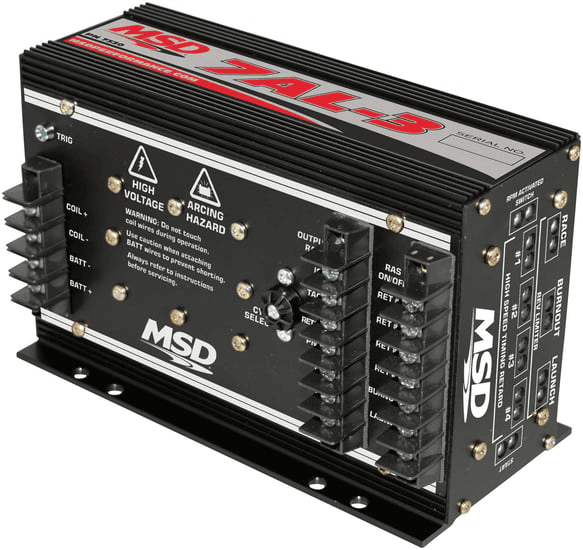

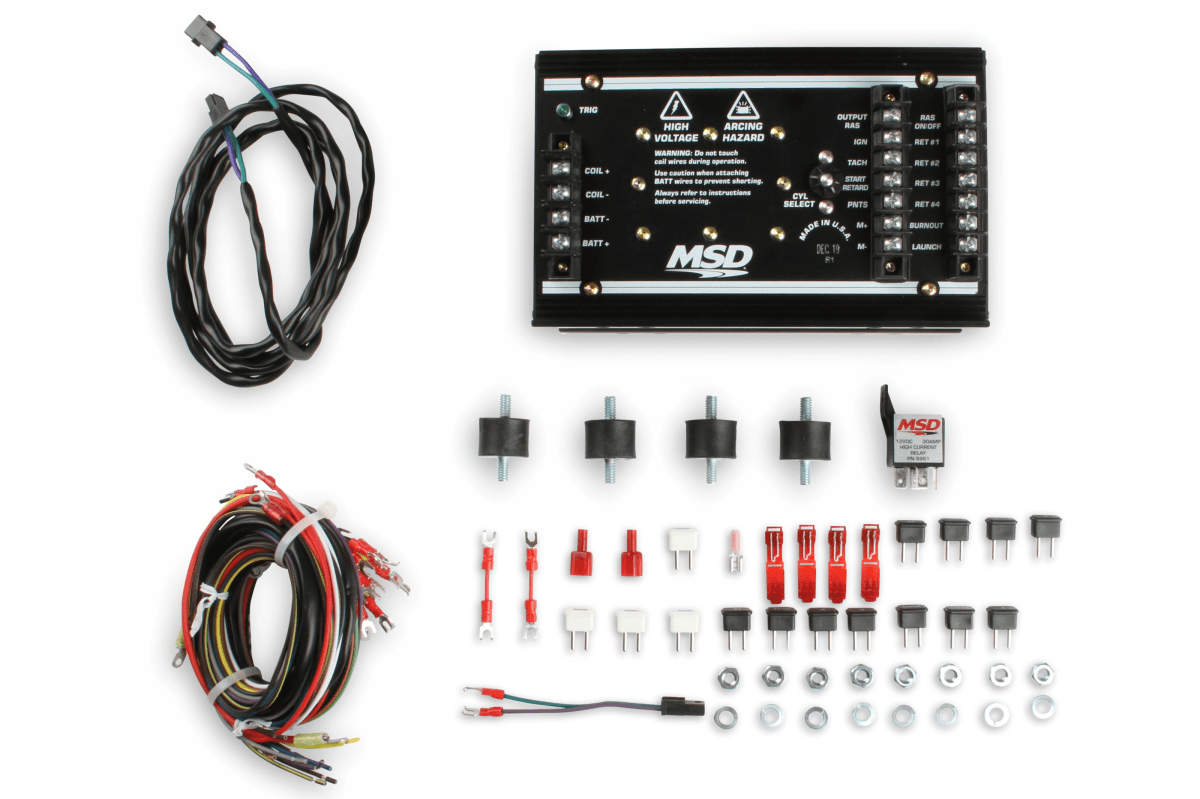

For racers that want adjustments at their fingertips, the 7AL-3 is the right choice. The 7AL-3 packs high voltage with four step retards, three rev limits and an rpm switch.

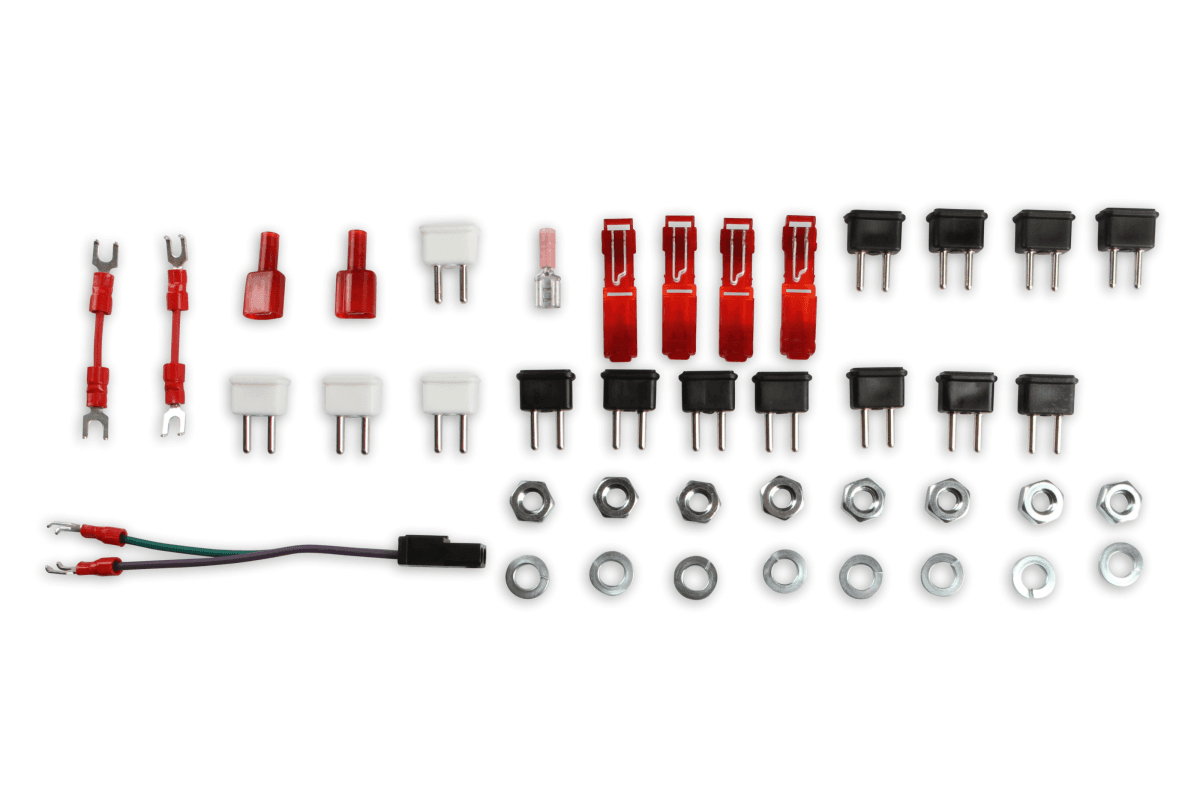

All of the features are adjusted using plug-in modules including the 3-Step Rev Control and Multi-Step Retard. The Rev Control gives you the ability to set one rev limit for the burnout, another for the staging rpm limit and a third for use top end engine protection in the event of driveline failure. For nitrous fans, there are four separate stages that can be activated independently yet add up together. Plus there's an RPM Activated Switch for precise control over a circuit. Something new is that the start retard is now adjustable with plug-in modules giving you better control over the amount of retard pulled out during cranking. The unit is supplied with a variety of rpm and timing modules. It is has a foot print that fits into the red 7AL-3's mount.
Specs:
Current Draw: 6 Amps Per 6,000 RPM; 12 Amps at 12,000 RPM
Primary Voltage: 570 Volts
RPM Range: 14,000 RPM with 14.4 Volts
Secondary Voltage: 50,000 Volts
Spark duration: 20 Deg Crankshaft Rotation
Spark Energy: 160 mJ/spark
Voltage Required: 12-18 Volts, Negative Ground
Warranty: Limited 1 Year Warranty
Features:
3-Step Rev Limiter
4-Stage Multi-Step Retard

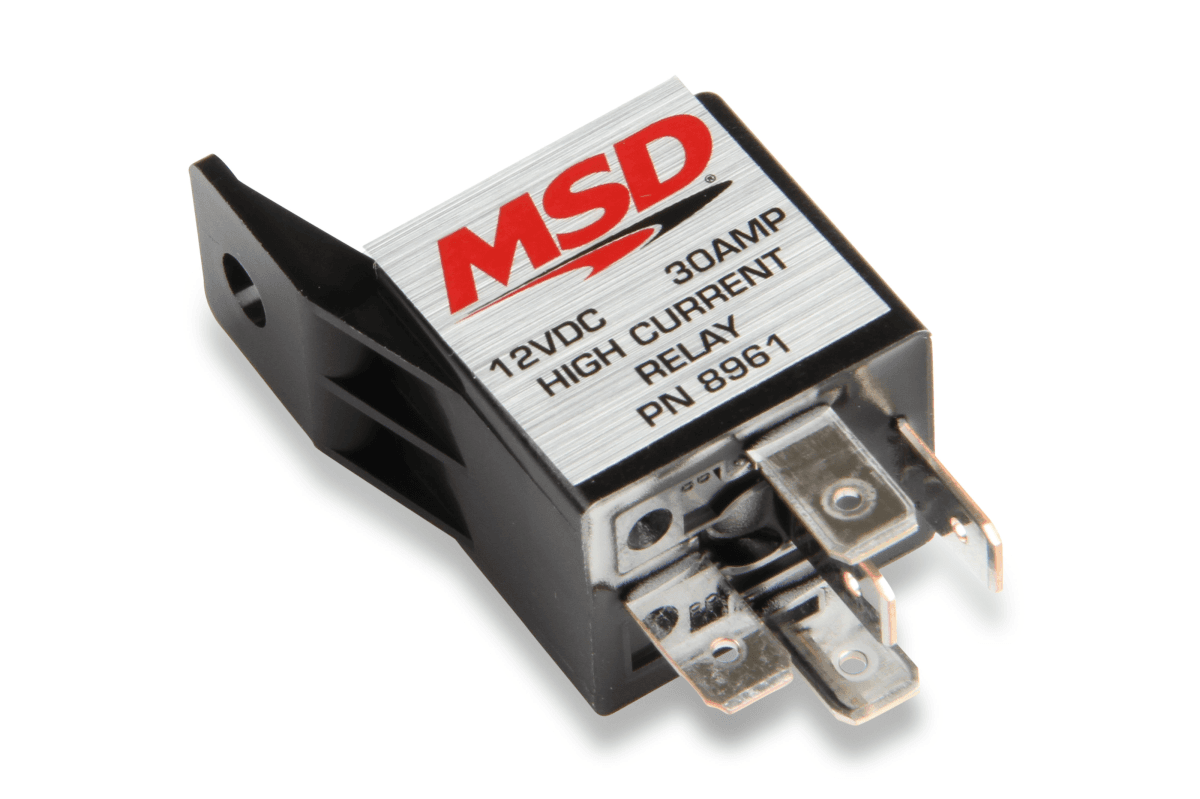

RPM Activated Switch
Adjustable Start Retard
Cylinder Select 4, 6, 8 Cyl
Diagnostic Trigger LED
Emissions
This part is legal for sale or use on Racing Use Only Vehicles
The following vehicles are considered Racing Use Only Vehicles:
Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street.
