You'll recognize the 7AL-2 Plus Ignition Control, as its predecessor is the most popular ignition control used in drag racing. The "Plus" model updates the original 7AL-2 with improved internal components plus our engineers added a 2-Step Rev Control and a useful diagnostic LED. Racers will be happy to see that the updated components up the voltage output and spark energy! Over 40% more spark energy in fact!

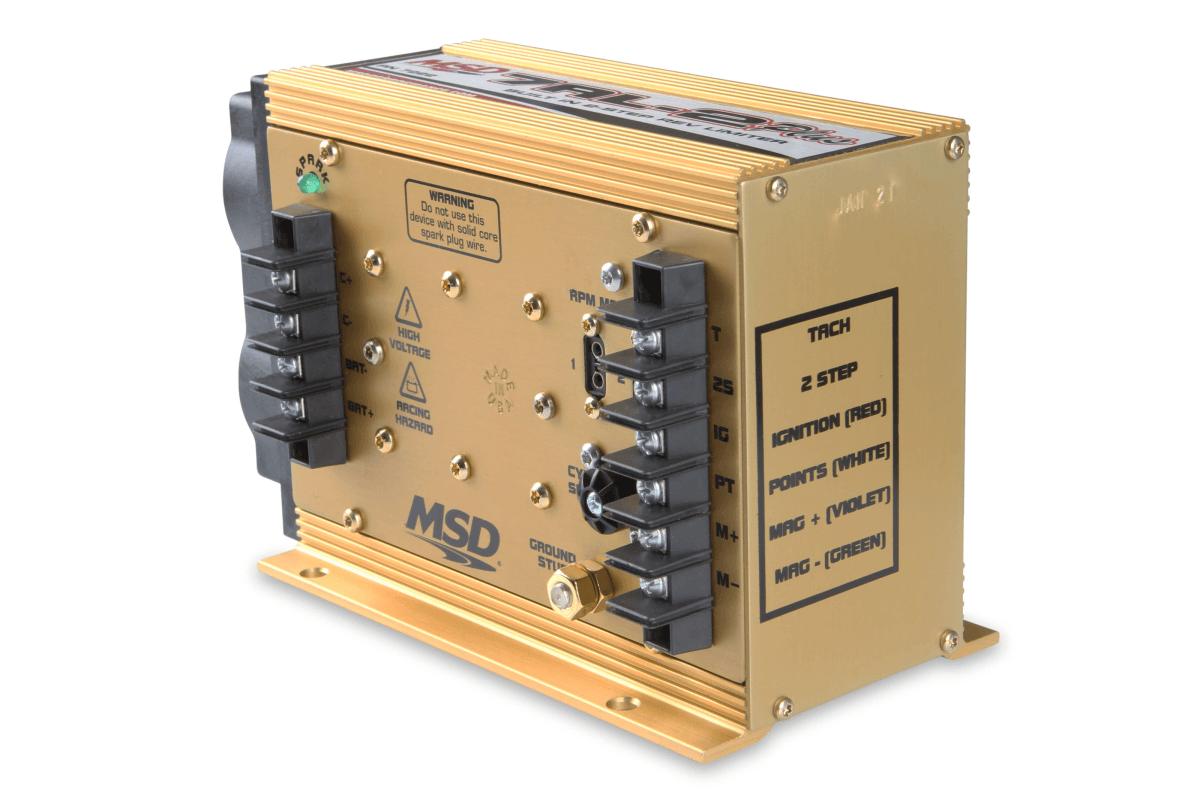

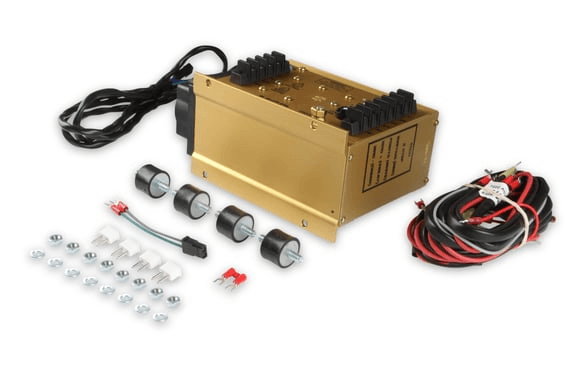

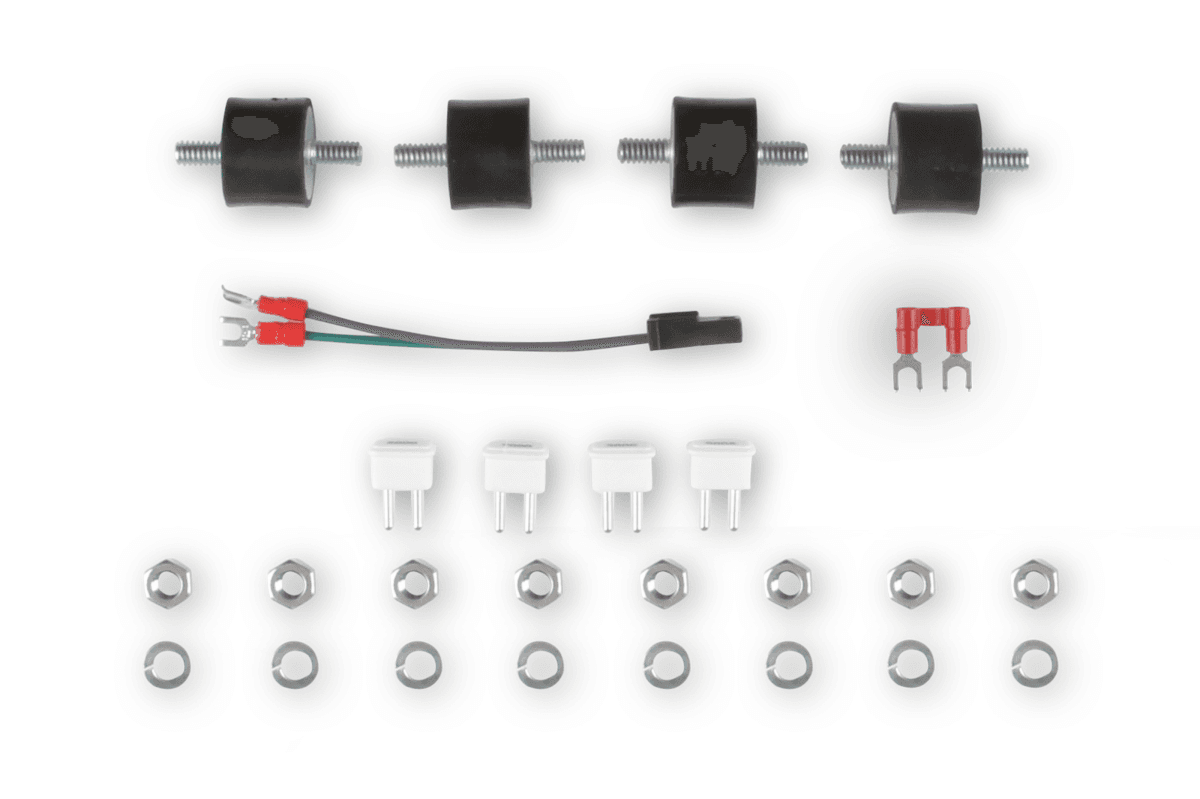

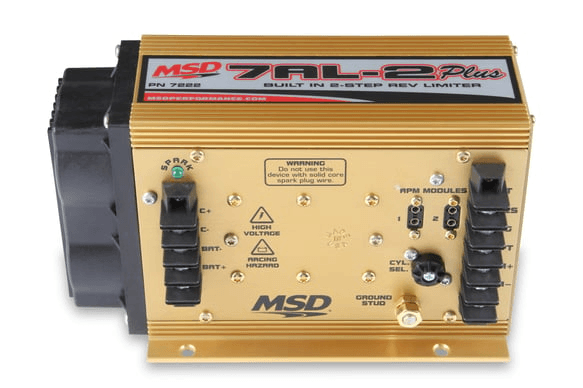

Visually, you'll notice the two terminal strips that allow for easier wiring in your race car. The LED over the power connections will come in handy for troubleshooting as it flashes only when the coil fires. That way you know that the coil, the trigger source and ignition are all functioning properly. The mounting pattern is the same as the 7AL-2 and is supplied with vibration mounts and a few rpm modules.
Specs:
Current Draw: 6 Amps Per 6,000 RPM; 12 Amps at 12,000 RPM
Features: Rev Limiter
Primary Voltage: 570 Volts
RPM Range: 14,000 RPM with 14.4 Volts
Secondary Voltage: 47,000 Volts
Spark Energy: 160 mJ/spark
Voltage Required: 12-18 Volts, Negative Ground
Warranty: Limited 1 Year Warranty
Features:
Built-in 2-Step rev control
Operates on 4, 6 or 8-cylinder engines
Diagnostic Troubleshooting LED
Terminal strips for convenient hookup
Supplied with 3000, 7000, 8000, 9000 RPM Chips
Emissions
This part is legal for sale or use on Racing Use Only Vehicles
The following vehicles are considered Racing Use Only Vehicles:
Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street.
