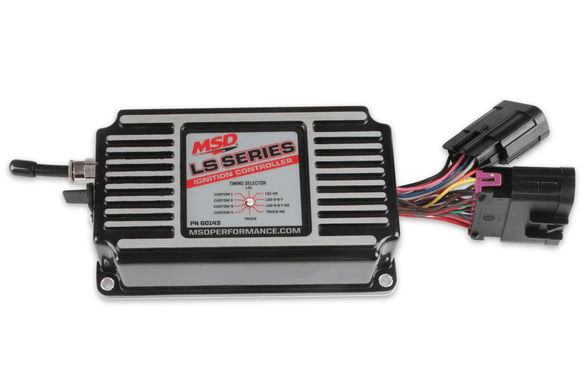

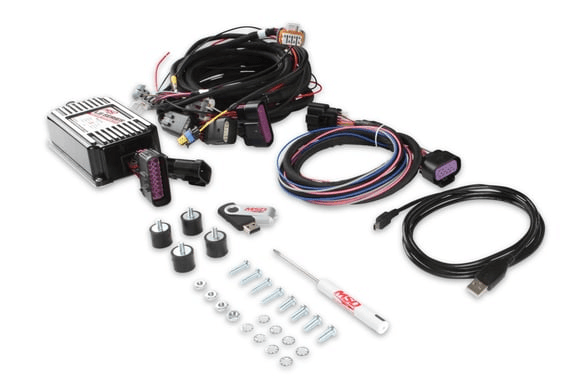

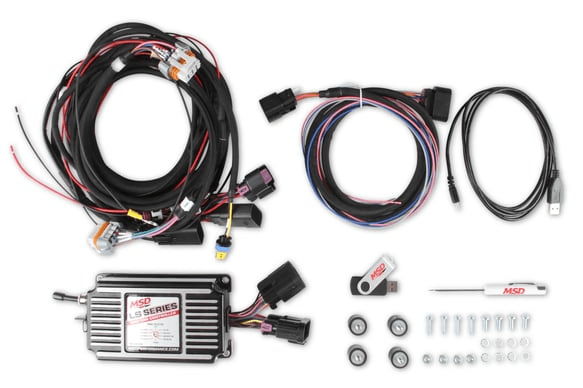

As the popularity of GM LS engines continues to grow, so does the demand for a powerful, reliable, and easily adaptable ignition system. MSD has answered this demand with an updated and improved version of the popular 6LS box. Whether using a stock crate engine or building a custom powerhouse, the MSD LS Ignition provides the control you need to achieve the performance you want. Dial in the perfect tune for your LS using the easily adjustable preset timing curves or hook up to your computer and program a custom setup with our user-friendly MSD View software. New features of the LS Ignition include; high-speed data acquisition, an optional coolant temperature sensor input, idle timing control, as well as individual cylinder timing. These features are in addition to the existing programmable step retard, launch retard, and RPM rev limiters from its predecessor.
Specs:
Engine: GM Small Block Gen III/IV (LS Based)
Warranty: Limited 1 Year Warranty
Part Number: 6014
Features:
Fits most LS Engines
No PC required for basic functionality
Six preprogrammed timing tables for easy set-up
Rotary selector switch allows timing changes on the fly
Nitrous and boost compatible
High speed data acquisition
Fully Sealed direct plugin connectors
Programmable step retard
Launch and max rev limiters
Optional coolant temperature sensor input
Launch retard
Idle timing control
Individual cylinder timing
Compatible with all MSD, Accel and GM LS coils
Notes:
Can be installed on both 24x and 58x crank trigger engine
Use on carbureted or fuel injected engines
Does not control fuel
PN 6014 will replace PN 6010 and PN 6012
Optional coolant temperature sensor GM PN 12608814
Emissions
This part is legal for use on Uncontrolled (Non-Emissions Controlled) Vehicles or Racing Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
1965 and older U.S. manufactured California Certified vehicles
1967 and older U.S. manufactured Federally Certified vehicles
1967 and older Foreign manufactured vehicle
Racing Vehicles are vehicles that are used exclusively for racing or other forms of competition that are not registered and that may never be used on the street.
