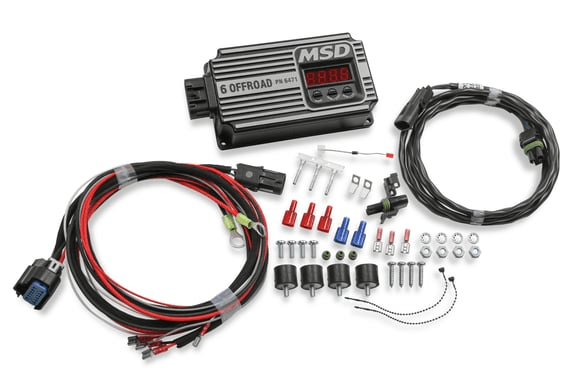

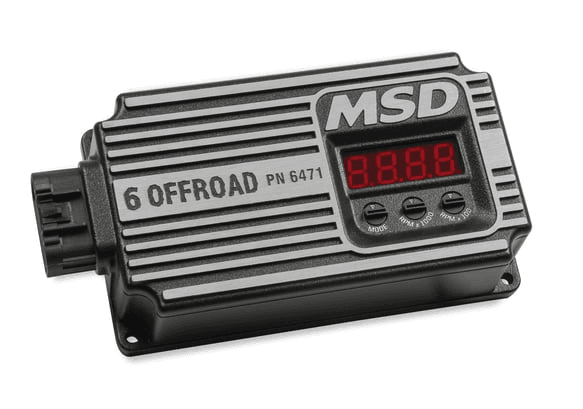

Holley MSD Digital 6 Offroad Ignition

If you're crawling rocks, high speed desert racing, or playing in any kind of harsh terrain in your offroad rig, the MSD 6 Offorad ignition is a must. Its fully potted design provides the ruggedness and reliability needed to get your 4WD to any destination.
The 6 Offroad multi-sparks below 3,000 RPM on V8's ensuring clean, crisp throttle response and complete fuel burn when crawling at low speeds. Above 3,000 RPM a powerful capacitive discharge spark keeps the fire lit until you let off the skinny pedal. A smooth, accurate rev-limiter will protect your engine from over-rev damage due to drivetrain failure or a slick spot on the trail.

An easy to read LED display on the face of the unit clearly displays the rev-limit RPM. The display, in conjunction with rotary dials, is used to set the rev-limit, cylinder select, and even a timing start retard for race engines. The handy display can also show a live tach reading and even battery voltage with the quick turn of a knob.

Specs:
Current Draw: 0.8 Amps per 1,000 RPM
Features: Start Retard
Primary Voltage: 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250
RPM Range: 12,000 RPM
Secondary Voltage: 45,000 Volts
Spark Energy: 135mJ w/ Blaster Coil / 150mJ w/ HVC Coil PN 8250
Spark Series Duration: 20° Crankshaft Rotation
Voltage Required: 6 to 18 Volts
Warranty: Limited 1 Year Warranty

Features:
MSD’s smoothest rev limiter yet! Easy on your engine
Fully potted design provides reliability even in high vibration and wet circumstances

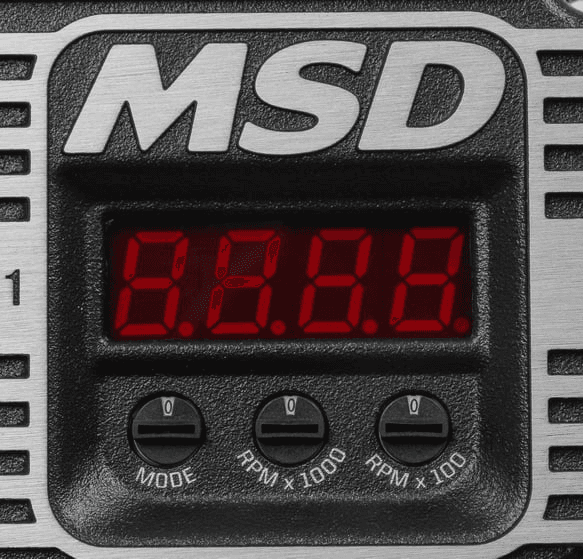

Large, easy to read LED display
Simple setup of features such as the rev limiter with three rotary dials on the face of the unit
Built-in Start Retard adjustable in 0⁰, 10⁰ or 20⁰ increments for quick, easy starts and extend starter life
LED displays rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
Full delivery of spark energy down to 6 volts battery supply
Highly efficient, low current draw for extended battery life
Rugged housing to stand up to demanding offroad and race conditions

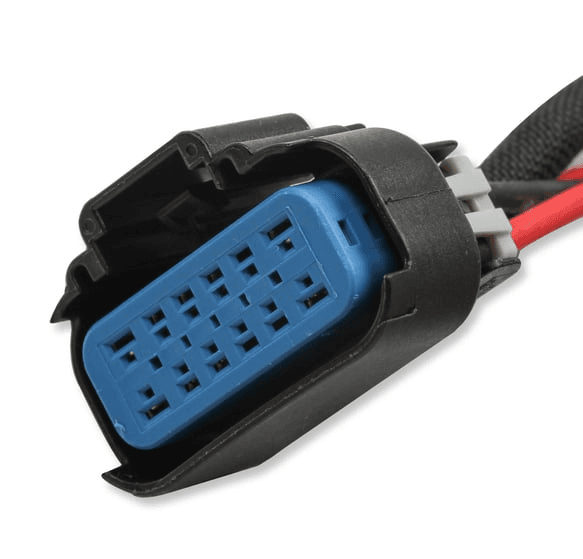

Single plug-in connector for clean wiring
Works on 4, 6 and 8 cylinder engines
Reverse polarity and overheat protection provide ultimate reliability

Emissions
This part is legal for use on Uncontrolled (Non-Emissions Controlled) Vehicles or Racing Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

1965 and older U.S. manufactured California Certified vehicles
1967 and older U.S. manufactured Federally Certified vehicles
1967 and older Foreign manufactured vehicle
Racing Vehicles are vehicles that are used exclusively for racing or other forms of competition that are not registered and that may never be used on the street.
