Specifications:
Construction: Cast
EGR Port: No
Engine: GM LT1
Finish: Satin
Flange Style: EFI

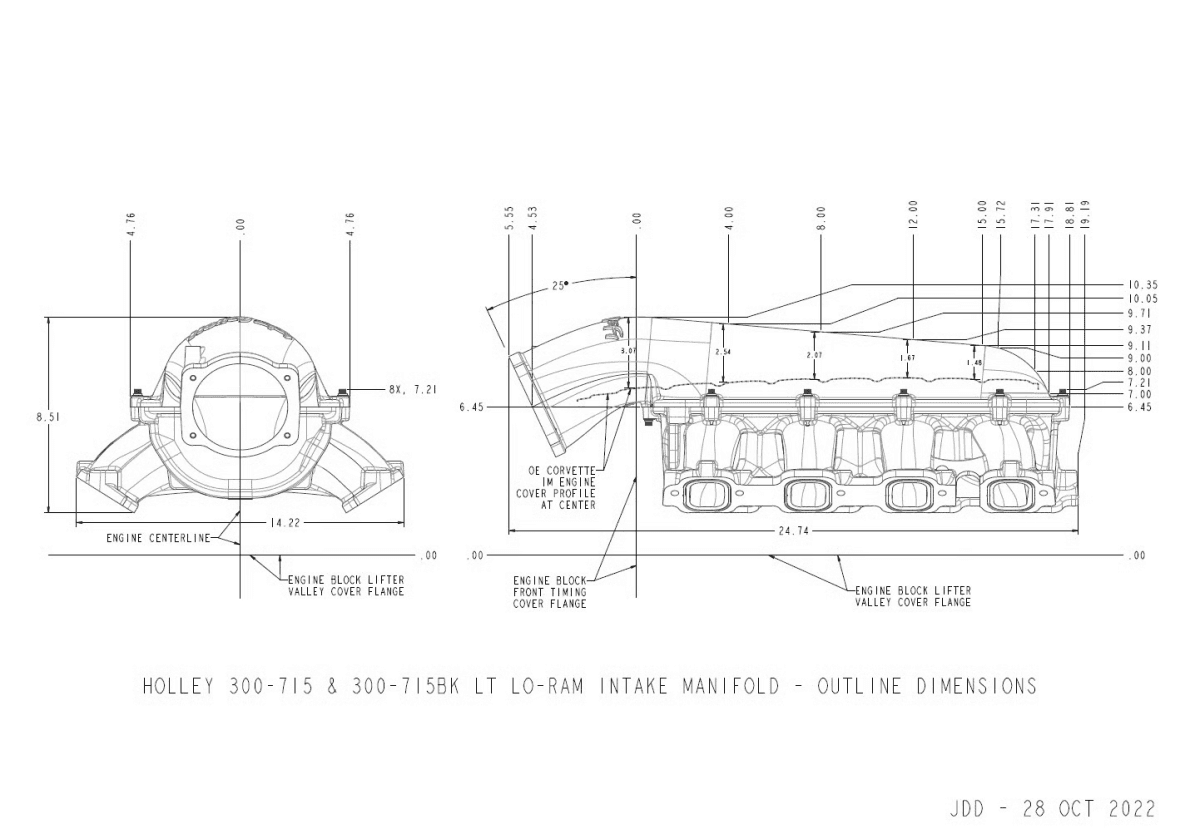

Front Maximum Height: 8.51 IN
Fuel Injectors Included: No
Fuel Rail(s) Included: No
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Injector Quantity: DI only.
Intake Port Gasket(s) Included: No
Material: Aluminum
Nitrous Bung(s) Included: No
Recommended Use: Supercharger or Turbo
Removable Runners: No
RPM Power Band: 3500-8000 RPM
Plane Type: Single Plane
Throttle Body Bore Diameter: 105 MM
Throttle Body Included: No
Warranty Manufacturer's: Limited 90 Day Warranty
Part Number: 300-715
Features:
Designed for GM Gen V engines equipped with GM LT type cylinder heads
105mm diameter throttle body opening accepts OEM 4-bolt LS/LT DBW or Holley LS/LT throttle bodies
Engineered for forced induction (supercharged or turbocharged) engine applications with peak power at 7,000-8,000 rpm depending on the application
Low-height top-feed plenum profile to fit under a stock or mildly modified hood
Modular design & top entry plenum flange allows the use of popular Holley Hi-Ram plenum tops as well as facilitating custom fabricated plenum tops. Base manifold, plenum tops, and fabrication flanges available as separate kits
Designed for the accommodation of plenum mounted air-to-water intercoolers for boosted applications
Kits with port injection provide high volume fuel rails with 3/4-16 O-ring ports (8 AN). Mounting hardware is included
3.18-inches taller than a factory LT1 manifold
