Specifications:
Construction: Cast
EGR Port: No
Engine: GM LS1/LS2/LS6
Finish: Black
Flange Style: EFI

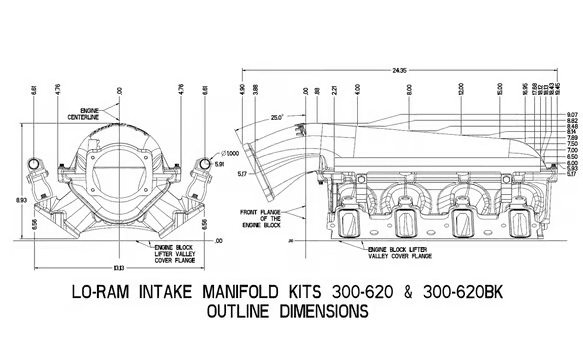

Front Height: 9.07" without Intercooler
Front Maximum Height: 9.07 IN
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Injector Quantity: 8 Injectors
Intake Port Gasket(s) Included: No
Material: Aluminum
Nitrous Bung(s) Included: No
Recommended Use: Supercharger or Turbo
Removable Runners: No
RPM Power Band: 3500-8000 RPM
Plane Type: Single Plane
Throttle Body Bore Diameter: 105 MM
Throttle Body Included: No
Warranty Manufacturer's: Limited 90 Day Warranty
Part Number: 300-620BK
Features:
Designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads
Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application.
Modular design allowing the use of the included plenum entry
Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration

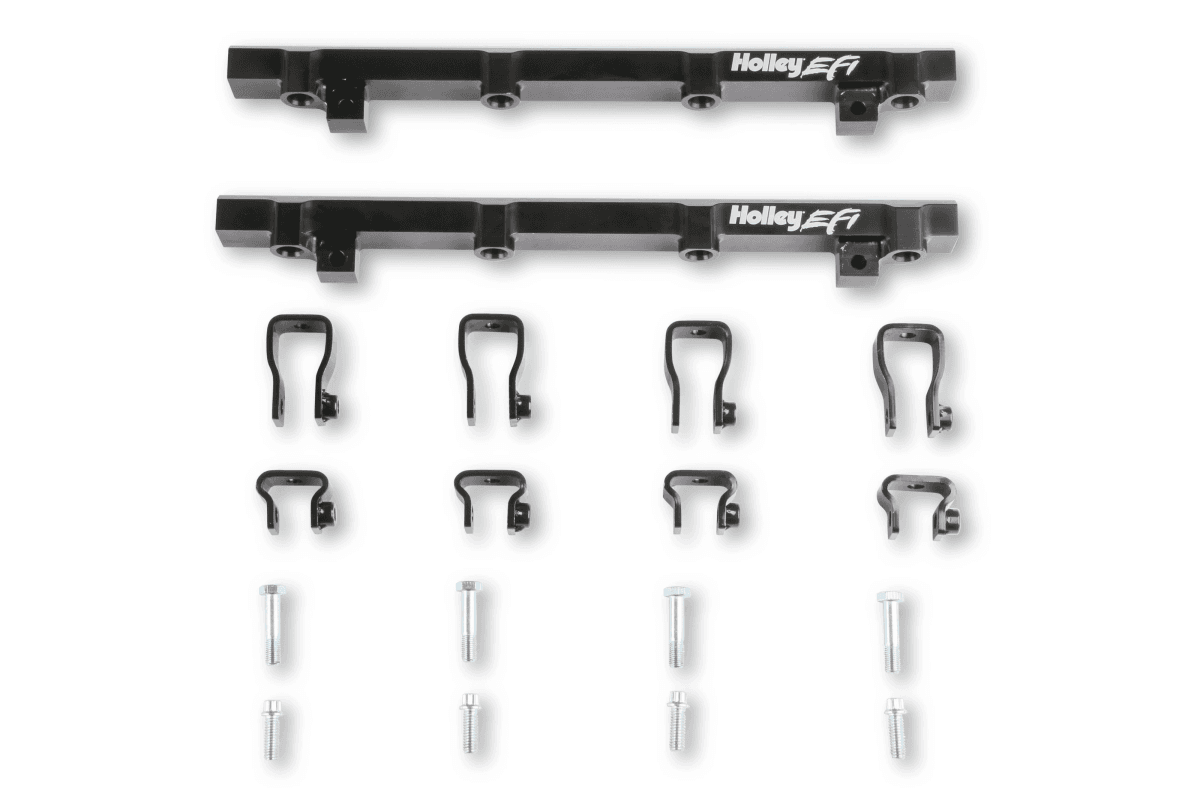

High volume fuel rails and mounting hardware included with ¾”-16 o-ring ports (8 AN)
