Specifications:
Construction: Cast
EGR Port: No
Engine: Ford SBF 289/302+
Finish: Satin
Flange Style: EFI
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Injector Quantity: 8 injectors
Intake Port Gasket(s) Included: No
Material: Aluminum
Nitrous Bung(s) Included: No
Recommended Use: Supercharger or Turbo
Removable Runners: No
Plane Type: Single Plane

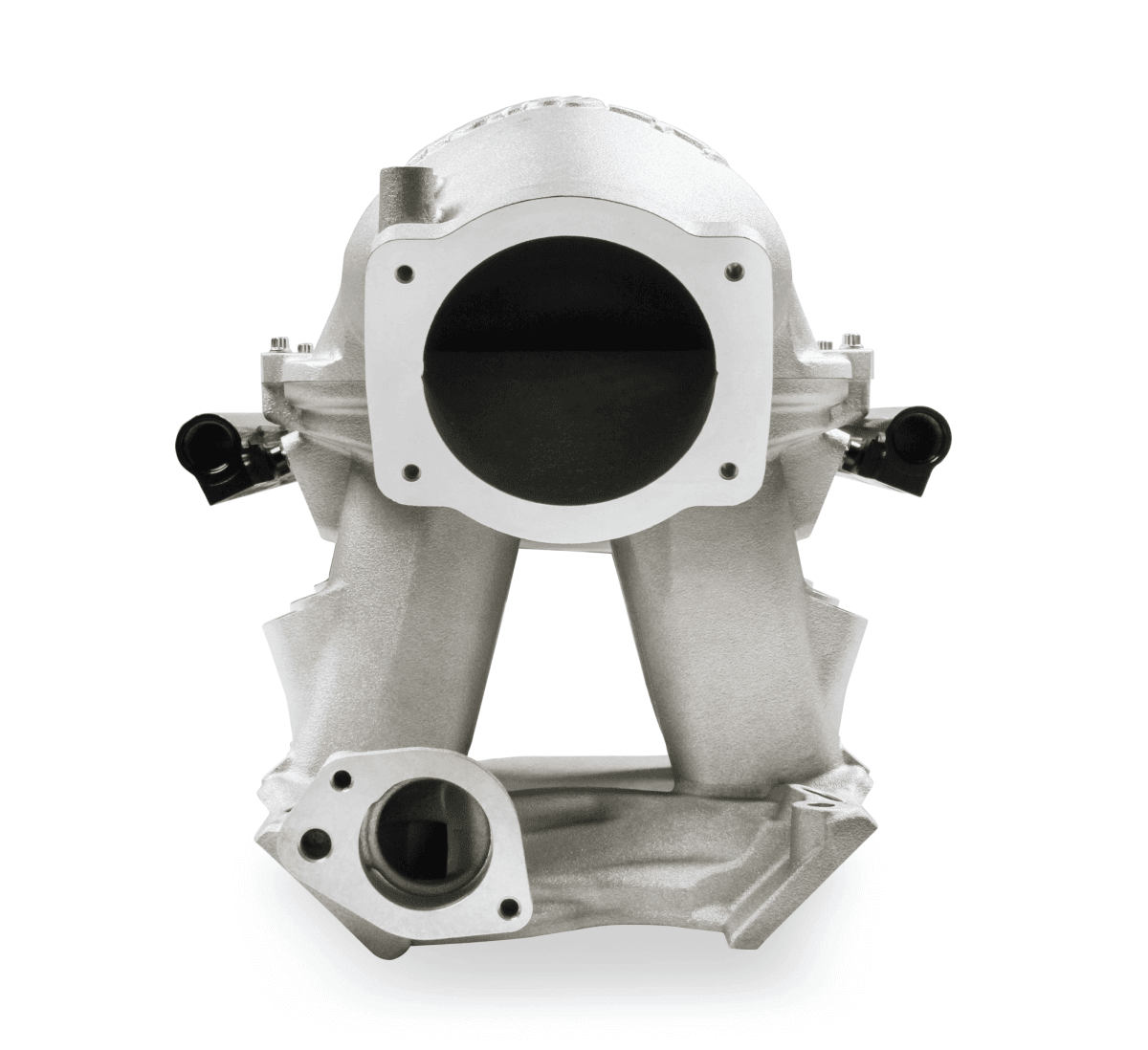

Throttle Body Bore Diameter: 105MM
Throttle Body Included: No
Warranty Manufacturer's: Limited 90 Day Warranty
Part Number: 300-273
Features:
EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
Plenum Top Gasket Type – 3/32” Round O-ring Cord

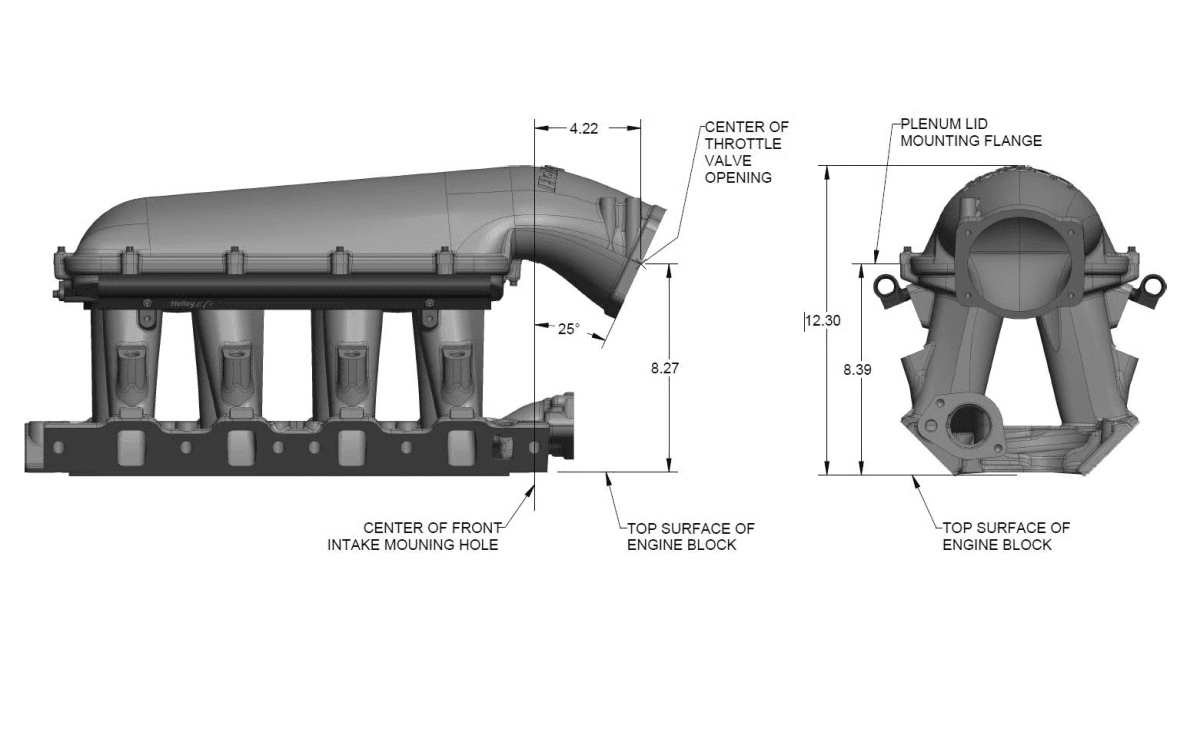

Manifold is designed for a 8.2" SBF deck height.
The 8.2 SBF manifold is available to work with 105MM throttle bodies
