Specifications:
Construction: Cast
EGR Port: No
Engine: GM SBC
Finish: Satin
Flange Style: EFI
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Injector Quantity: 8 injectors
Intake Port Gasket(s) Included: No
Material: Aluminum
Nitrous Bung(s) Included: No
Recommended Use: Supercharger or Turbo
Removable Runners: No
Plane Type: Single Plane
Throttle Body Bore Diameter: 105 MM
Throttle Body Included: No
Warranty Manufacturer's: Limited 90 Day Warranty
Part Number: 300-950
Features:

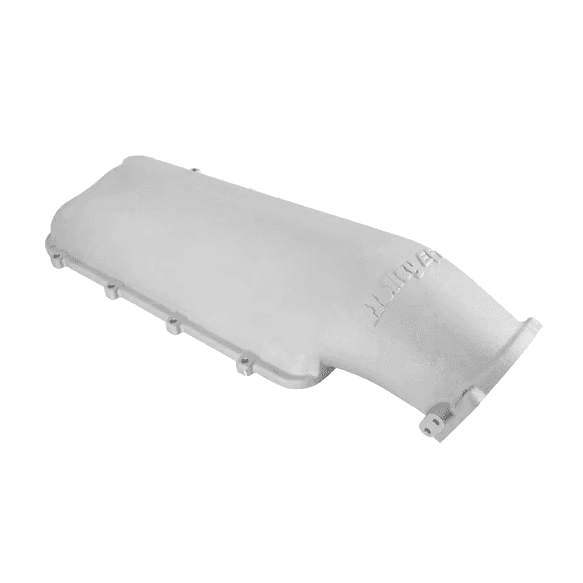

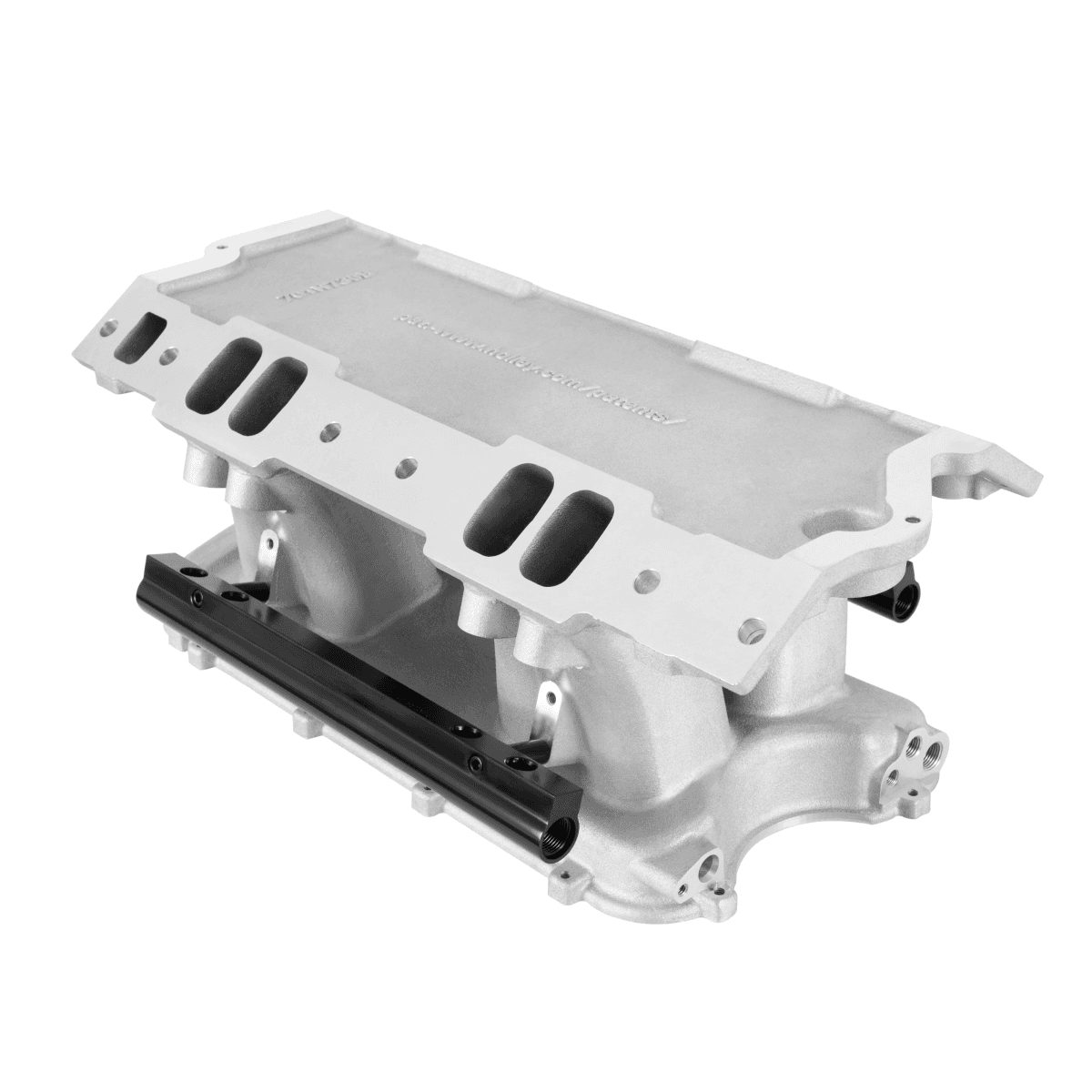

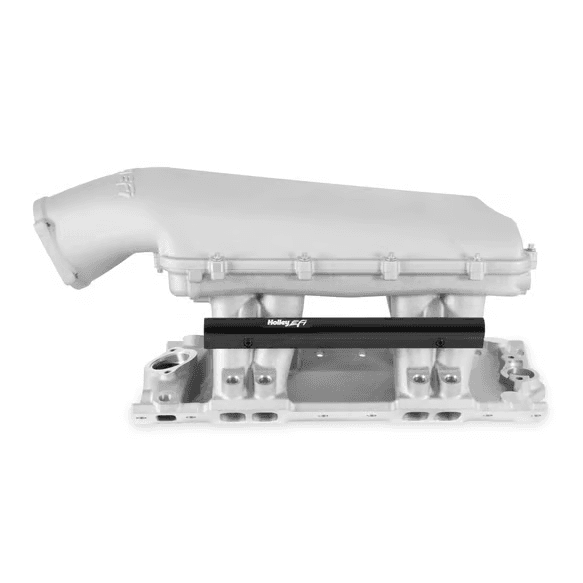

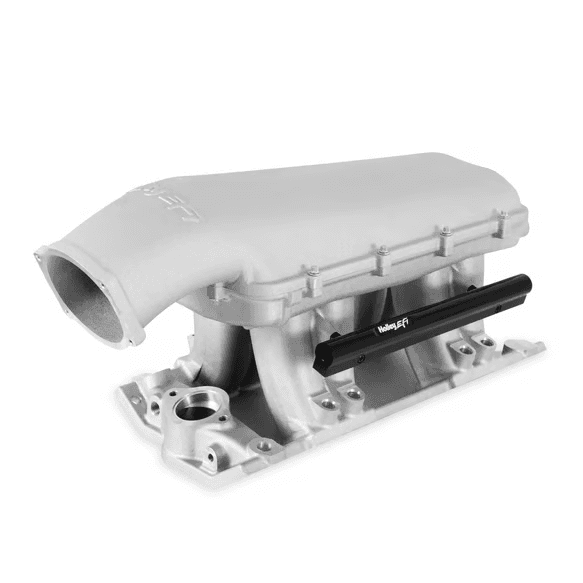

The Small Block Chevy Hi-Ram manifold is available in either a traditional Hi-Ram 105mm plenum layout or with a hood-height friendly 95mm front-feed plenum layout
Cost-effective alternative to fabricated sheet-metal or billet manifolds for high-performance applications where induction system height is not limited
Designed for 1955-86 265-400 Gen 1 Chevy engines fitted with cylinder heads having a standard intake manifold flange configuration. Not designed for raised intake port, 18 degree, or L31 Vortec type cylinder heads.
Uses drive by wire or cable actuated GM Gen IV LS 4-bolt throttle bodies
MAP sensor port is for a GM Gen IV LS MAP sensor, manifold also has provisions for (1) 1/8 NPT, (1) 1/4 NPT, (1) 3/8 NPT fittings to the plenum
The coolant outlet is a standard Small Block Chevy thermostat housing flange and (1) 1/2 NPT and (2) 3/8 NPT coolant ports are provided.
Power Band: 1500-8000 RPM

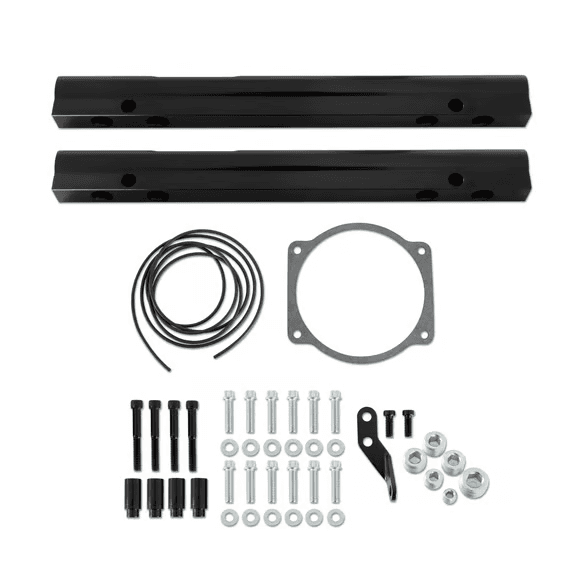

Black anodized EFI fuel rails are machined for -8AN O-ring fittings and come included with the EFI Hi-Ram kits.

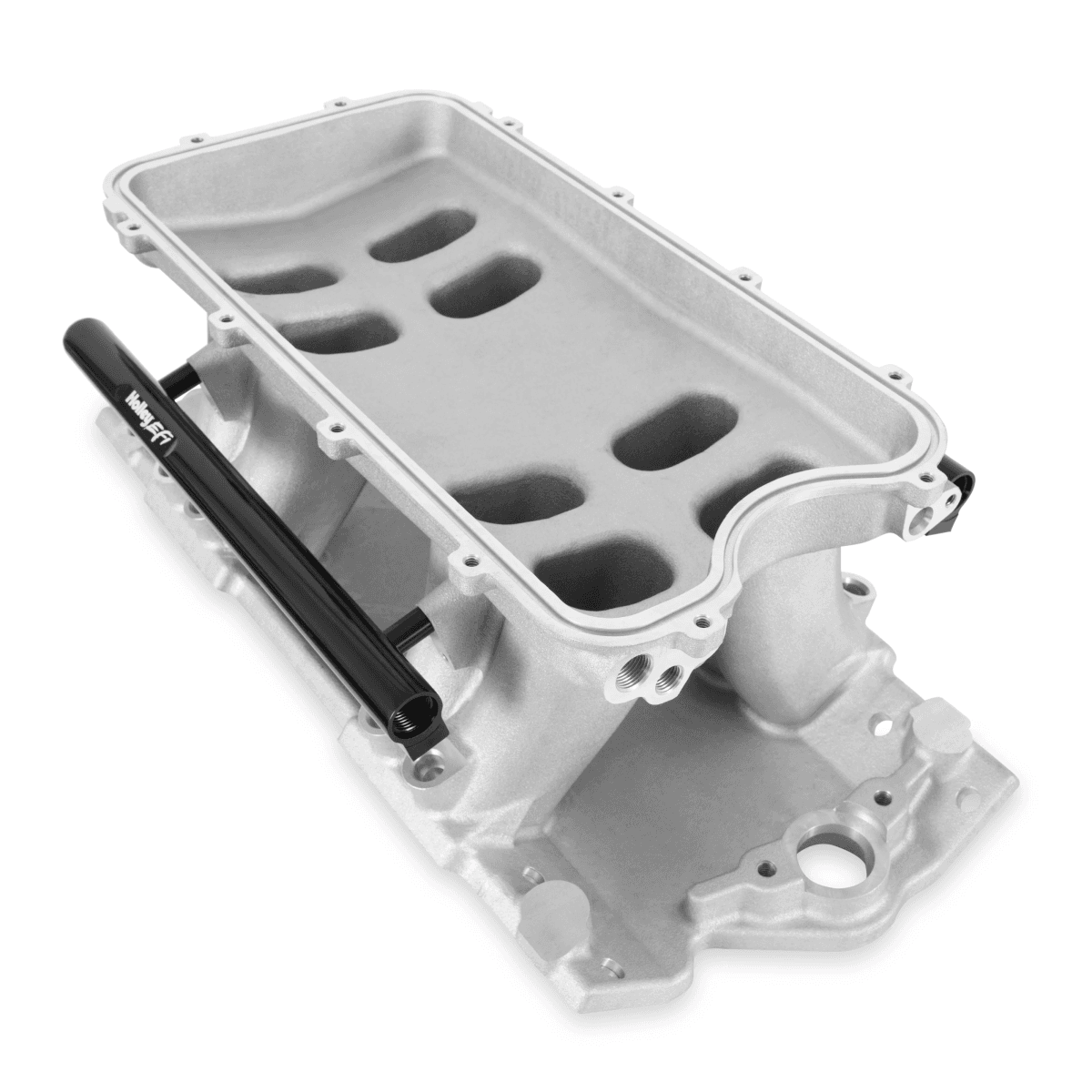

Plenum Top Gasket Type – 3/32” Round O-ring Cord
Cast 356-T6 Aluminum Construction, Natural, Satin As-Cast Aluminum Finish
Requires the use of early type GM or small cap MSD or Holley Distributors. Not compatible with HEI distributors

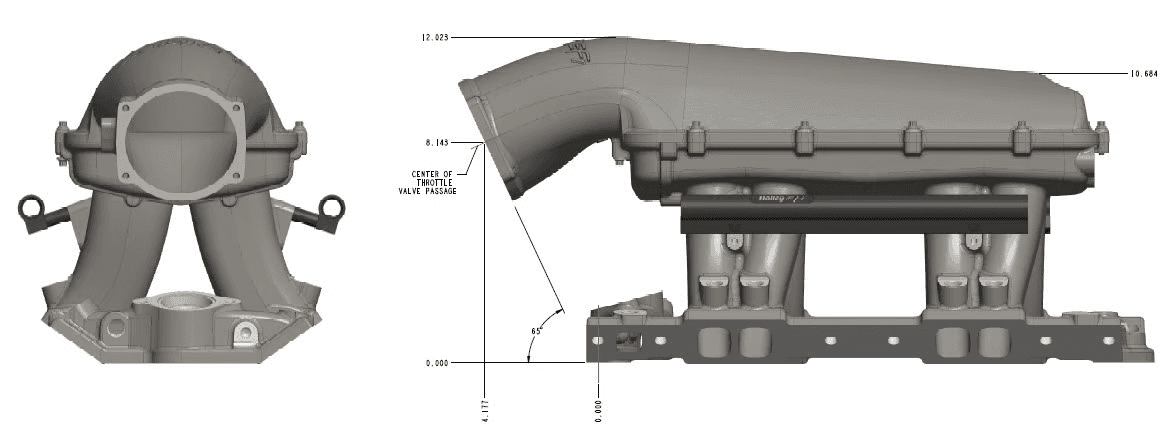

1.95” tall x 1.25” wide port flange openings, uses Mr. Gasket intake manifold gasket #5281
Throttle Cable Bracket is supplied in the kit
