Specifications:
Construction: Cast
EGR Port: No
Engine: Gen III Hemi
Finish: Satin
Flange Style: EFI
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Injector Quantity: 8 injectors
Intake Port Gasket(s) Included: No
Material: Aluminum
Nitrous Bung(s) Included: No
Recommended Use: Supercharger or Turbo
Removable Runners: No
Plane Type: Single Plane
Throttle Body Bore Diameter: 95MM
Throttle Body Included: No
Warranty Manufacturer's: Limited 90 Day Warranty
Part Number: 300-650
Features:

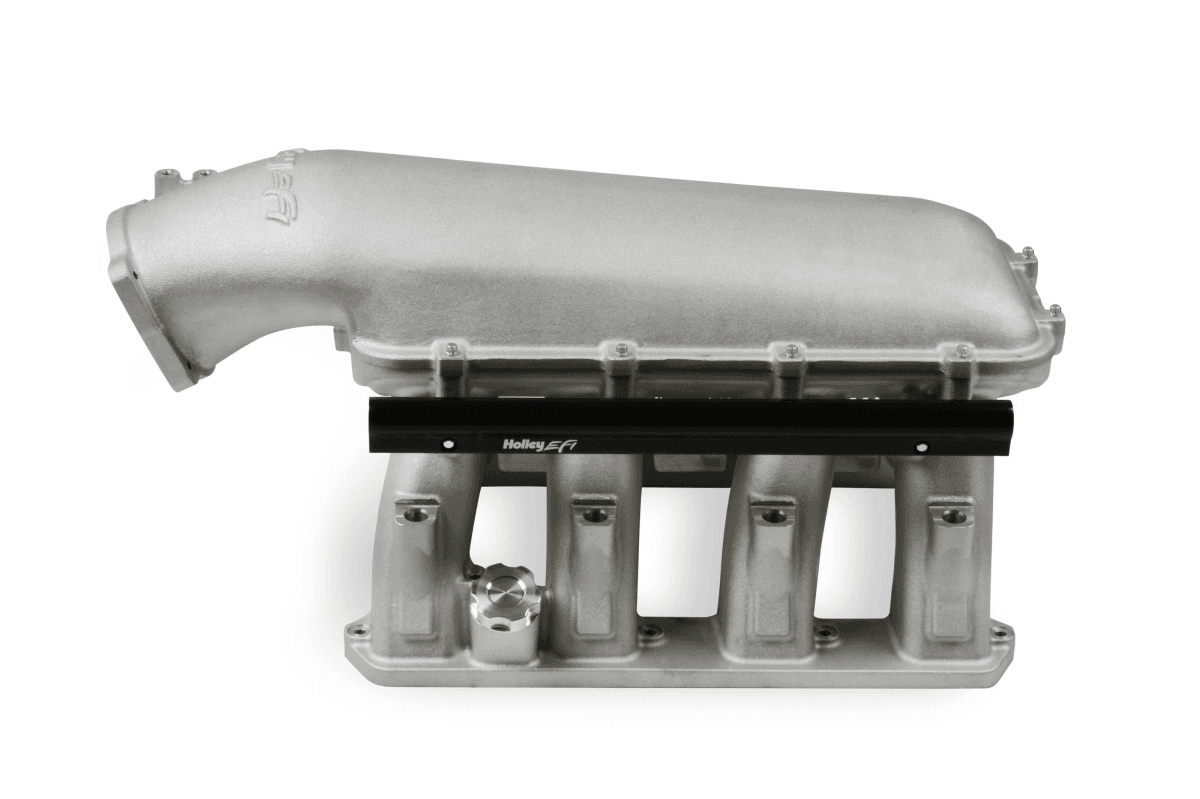

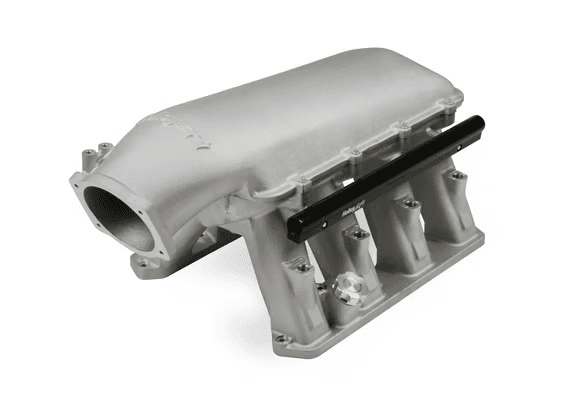

Add Even More Power to the Gen III Hemi Engine with a Holley Hi-Ram Intake Manifold
Fits Gen III Hemi Engines w/ Large Intake Ports (1.70” Height x 1.88” Wide) – fits 2009-up 5.7L, 2005-2010 6.1L, 2011-up 6.4L) ((Adapters required for 03-08 5.7L engines))
Cast Aluminum Construction w/ Natural Satin Finish
Runner Length and the Tapered Cross Section Designed to Perform Well for a Wide Range of Engine Configurations

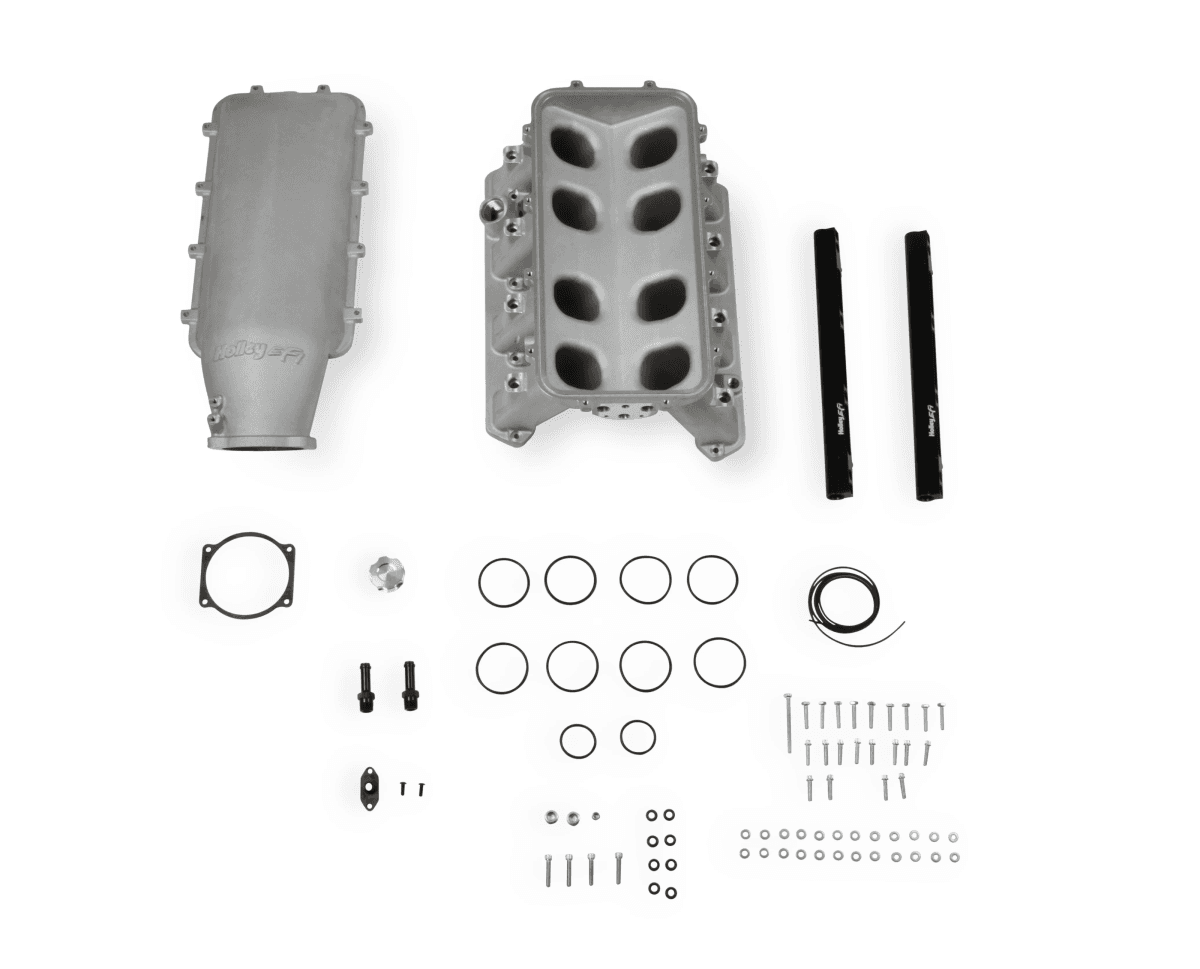

Includes EFI Fuel Rails w/ -8 AN O-Ring Fittings & Large Passages to Accommodate High Fuel Flow and Dampen Pressure Pulsations in the Fuel System
Works with Gen III Hemi Injectors & Bosch EV-1 Style Injectors
O-Ring Seal to Head – Large Retained O-rings Offer Superior Original Equipment (OE) Style Sealing & Are Easy to Replace
Billet Oil Fill Cap – Attractive Low Profile Design
Positive Crankcase Ventilation (PVC) Ports w/ Adapter Fittings

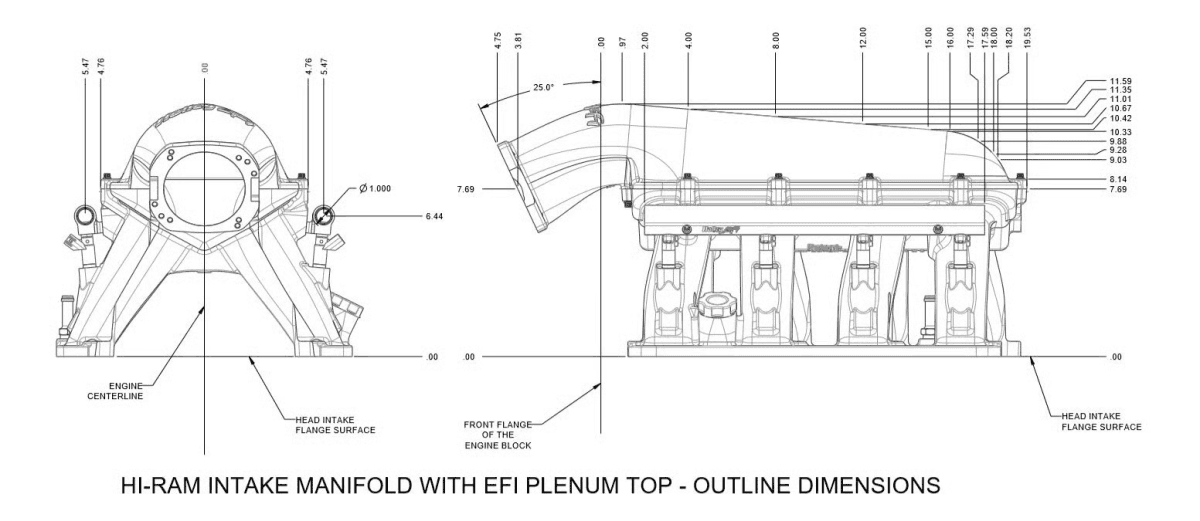

Overall Height: 11.59”
Port for OE Style Manifold Absolute Pressure (MAP) Sensor (1 or 2 Bar)
Cast-In Pads for Adding Nitrous Nozzles

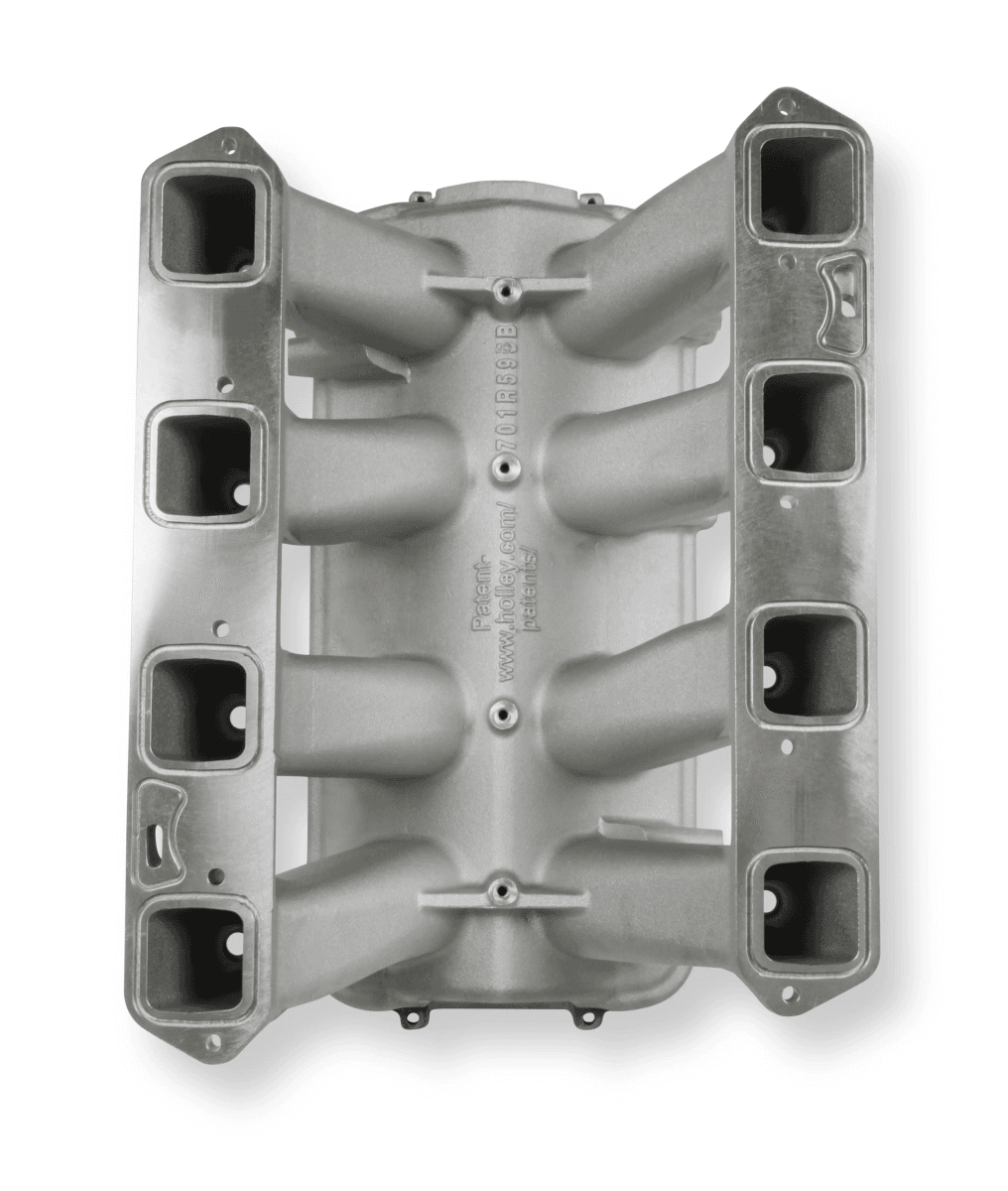

Manifold Base – Available Separately for Custom Induction Systems
