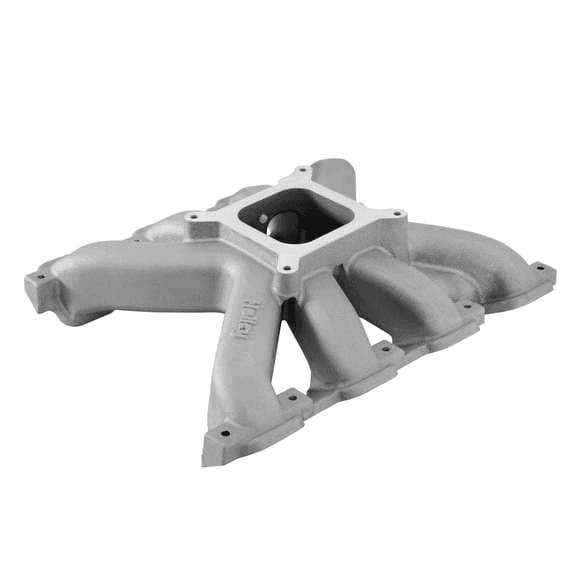

Fits most GM Gen V LT Engines with OE-type LT Cylinder Heads
Features:
2500-7000 RPM power band
4150 / 4160 Square bore flange
Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
Minimum carb flange height - fit in vehicles with minimum hood modifications
Provides classic engine bay look of carb style intake
Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS mild power adder applications
Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
Weight - 11.5 lbs.
Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange and bellhousing flange

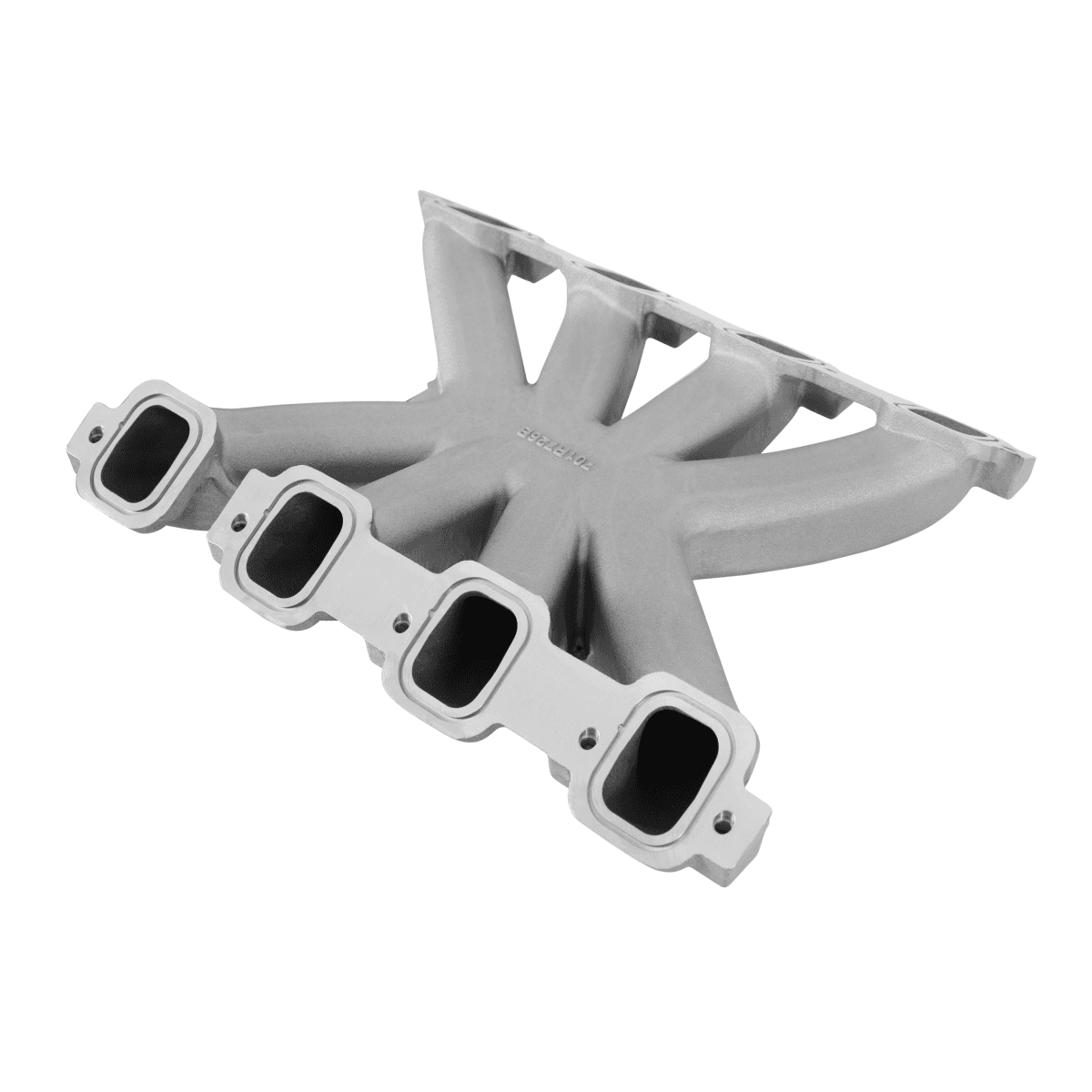

Port size - 2.33" height x 1.27" wide

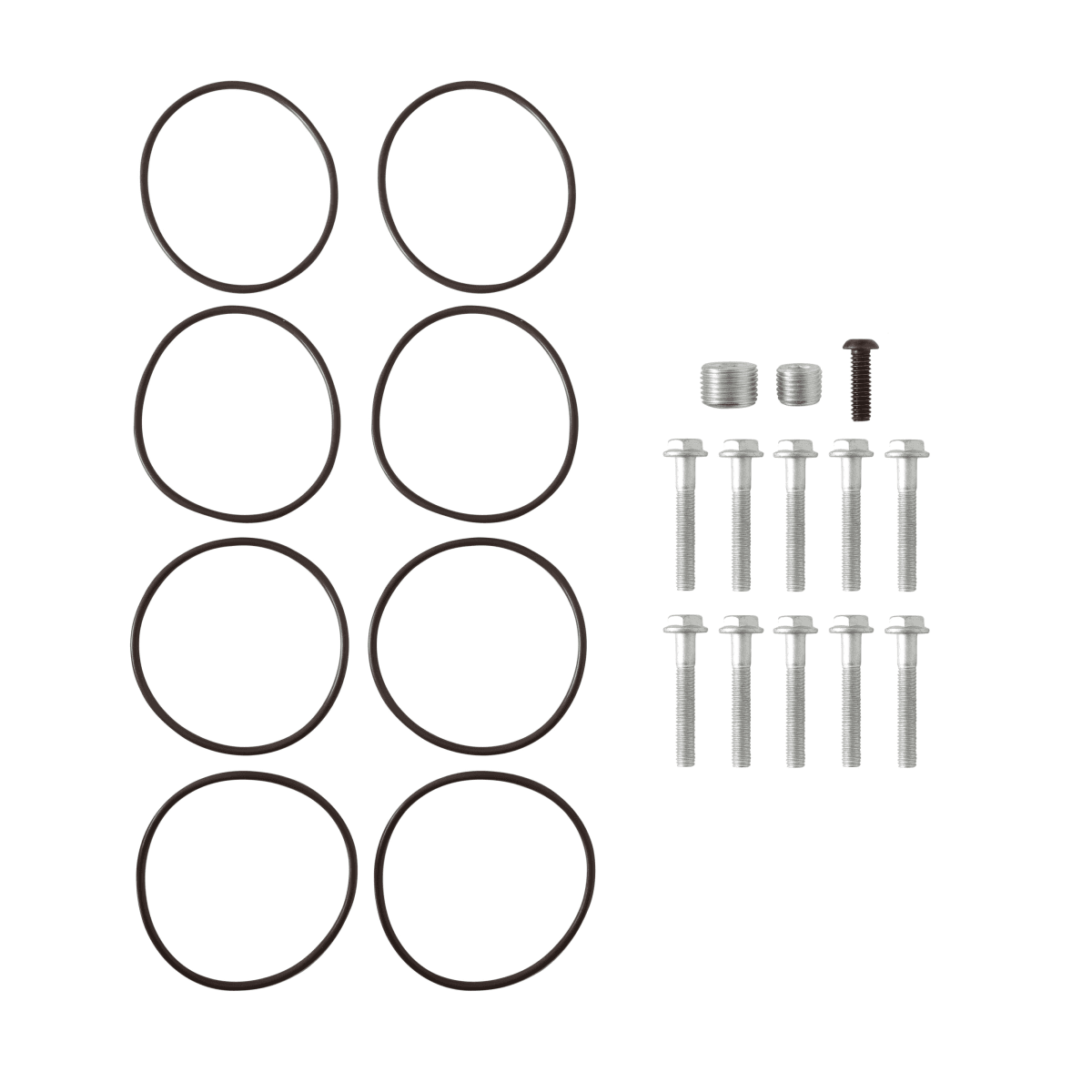

Includes FKM O-ring intake to cylinder head gaskets
Specs:
Construction: Cast
Finish: Satin
Flange Style: 4150
Front Height: 5.417 inch
Manifold Type: Single Plane
Rear Height: 5.417 inch
Recommended Use: Forced Induction
RPM Power Band: 2500-7000 RPM
Warranty Limited: 90 Day
Part Number: 300-940
