Specifications
Application: Universal
Depth: 1.25"
Height: 5.81"
Product Type: Digital Dashes
Screen Size: 12.3"
Screen Type: Capacitive Touch Screen
Width: 13.44"
Part Number: 553-116
Features:
Standalone digital dashes for installation in most any vehicle – no ECU or fuel injection required. As easy to install as traditional gauges!

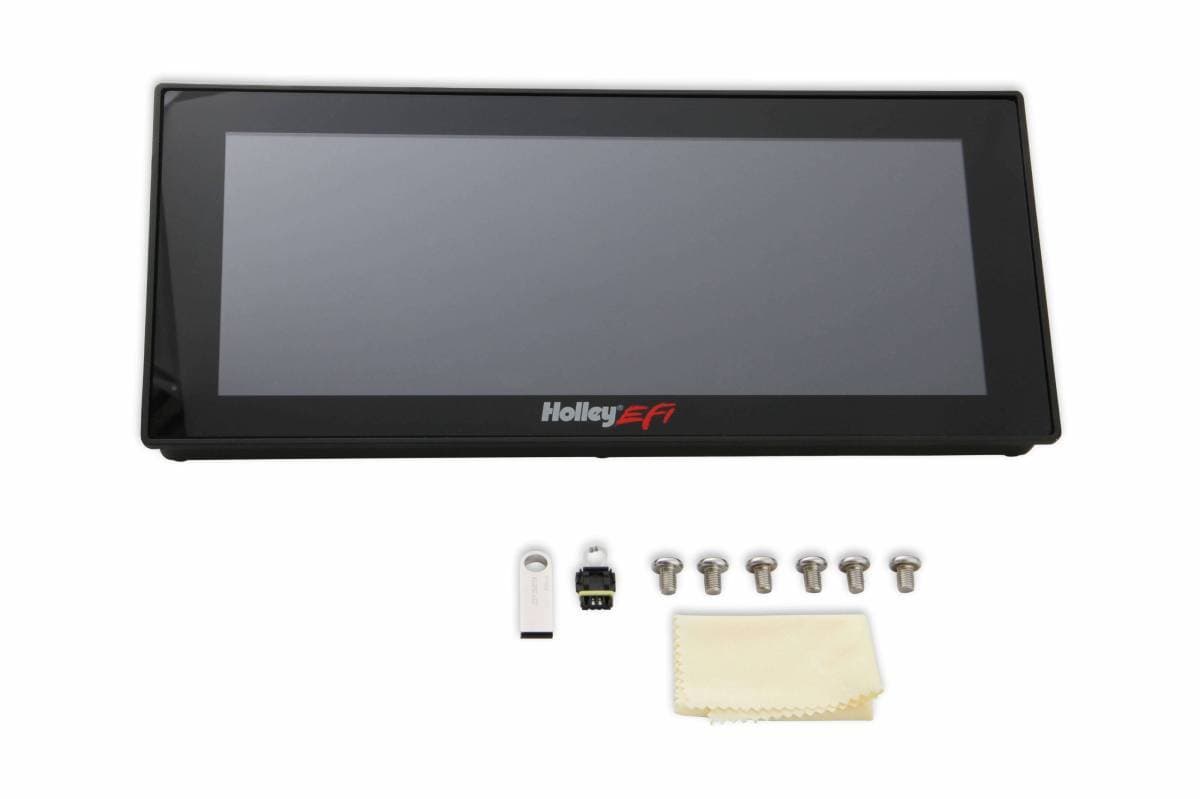

Surface or flush mounting, with high quality hardware included

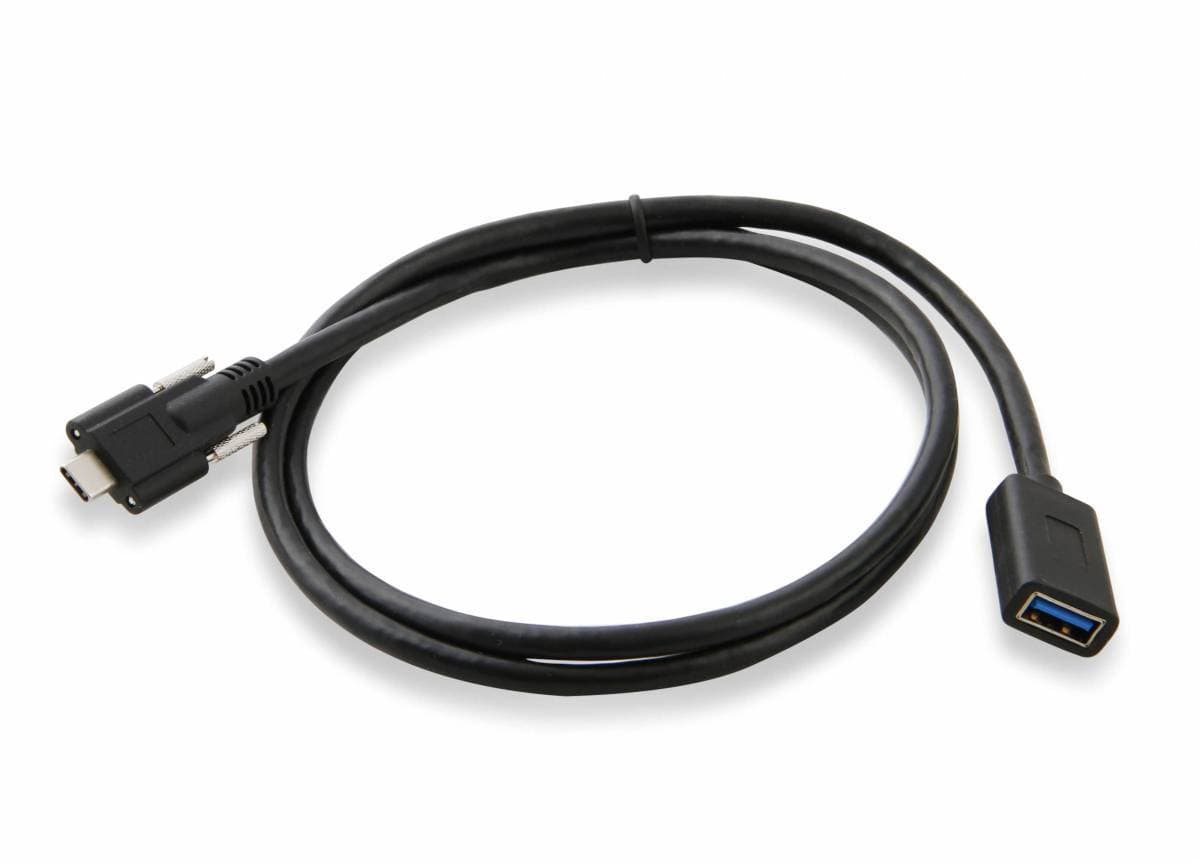

USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts

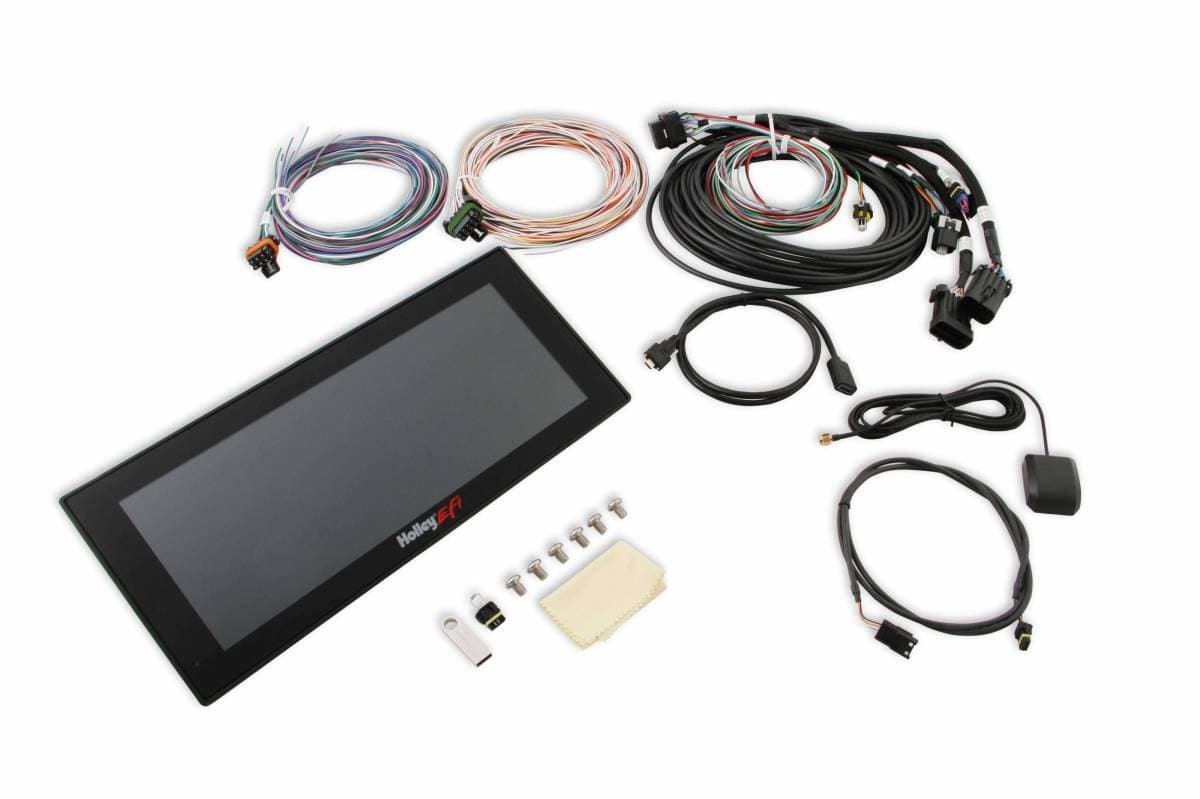

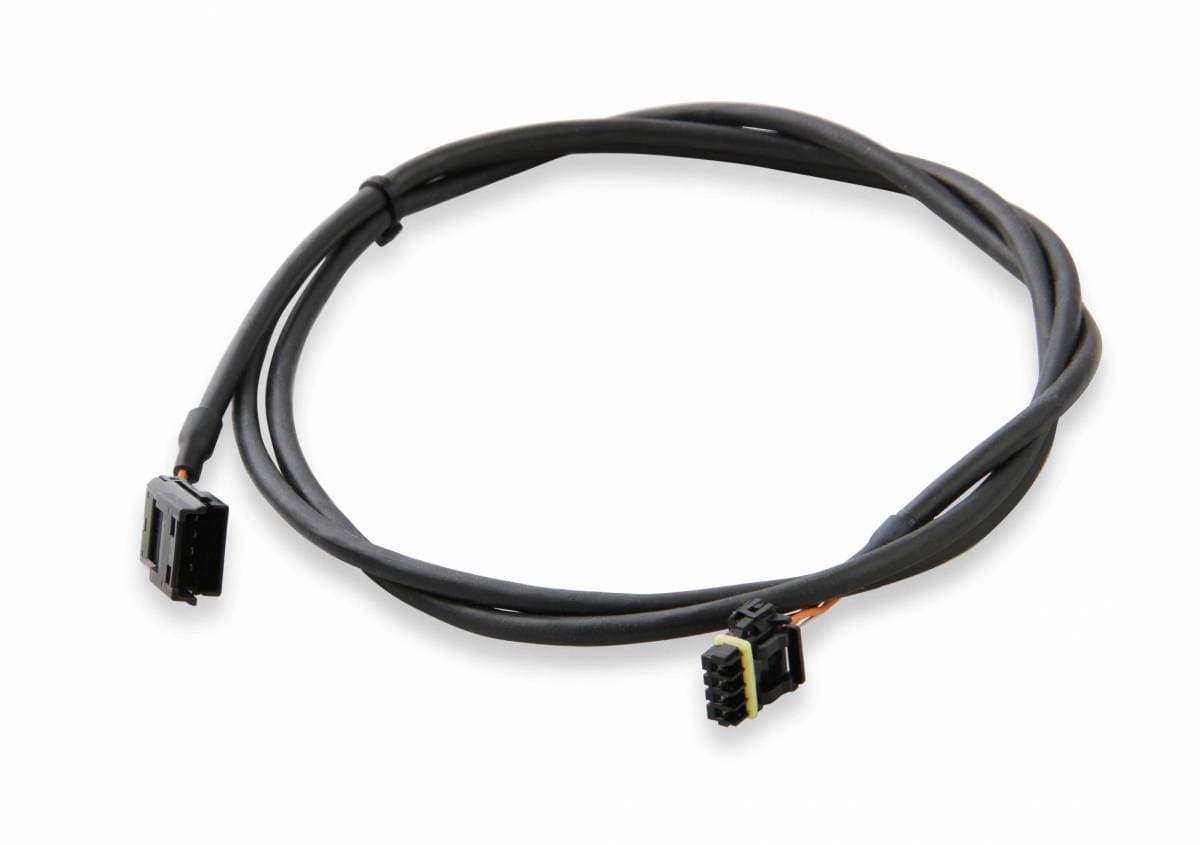

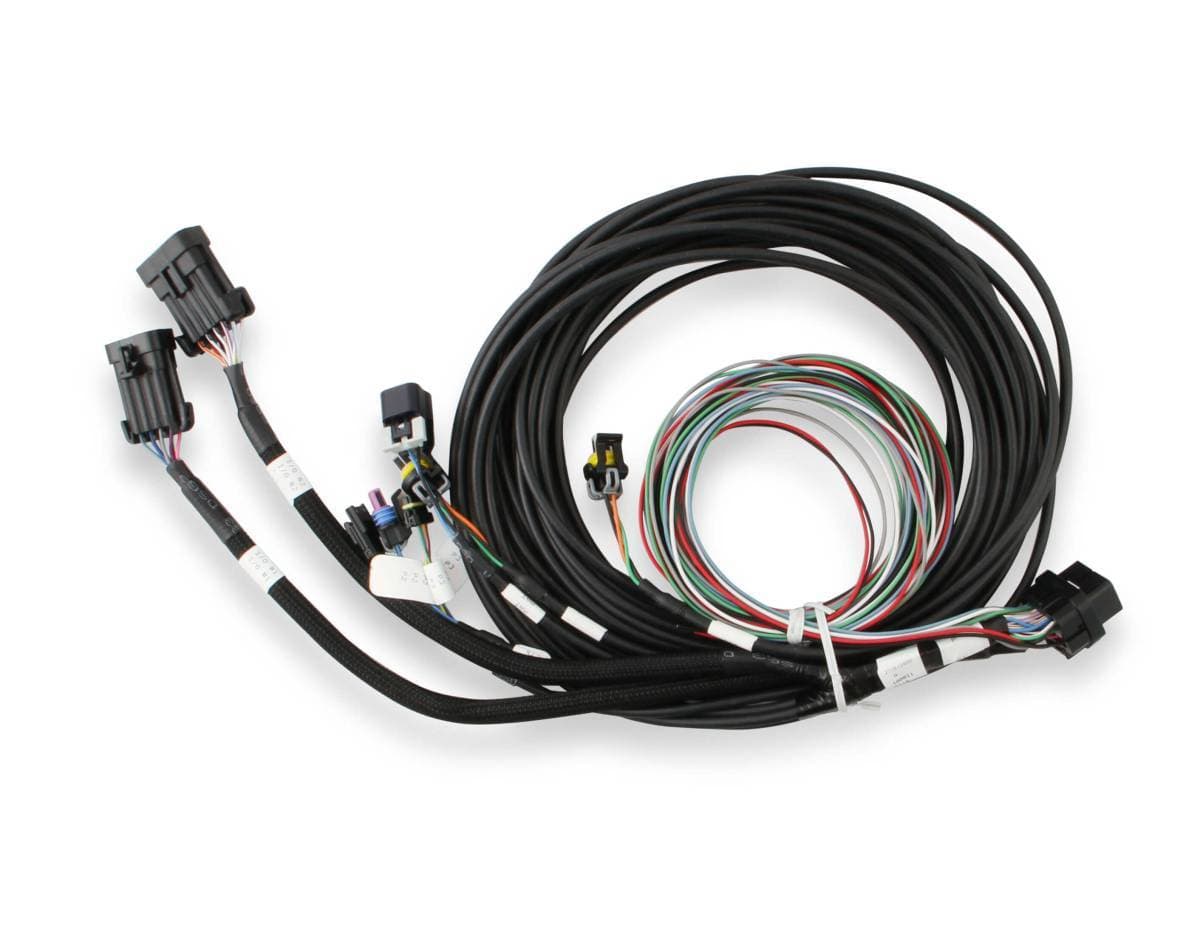

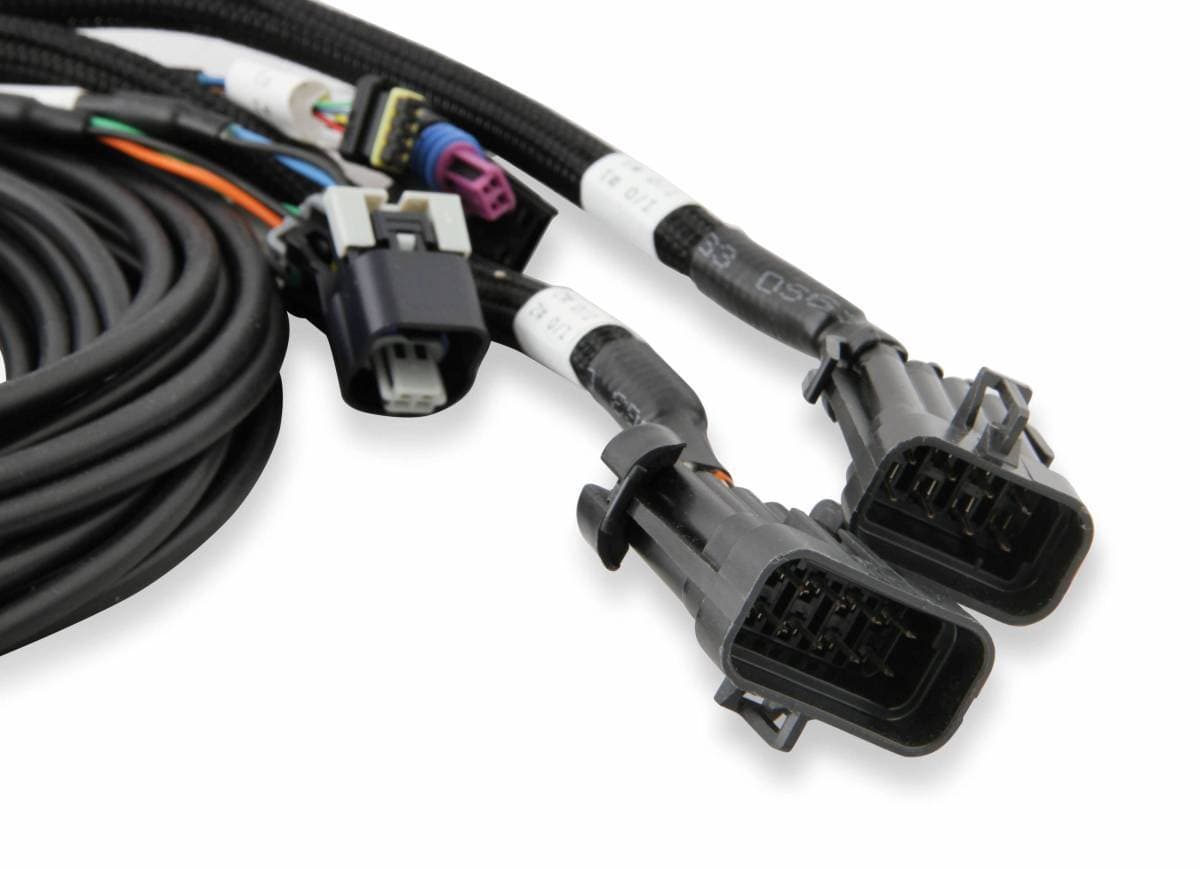

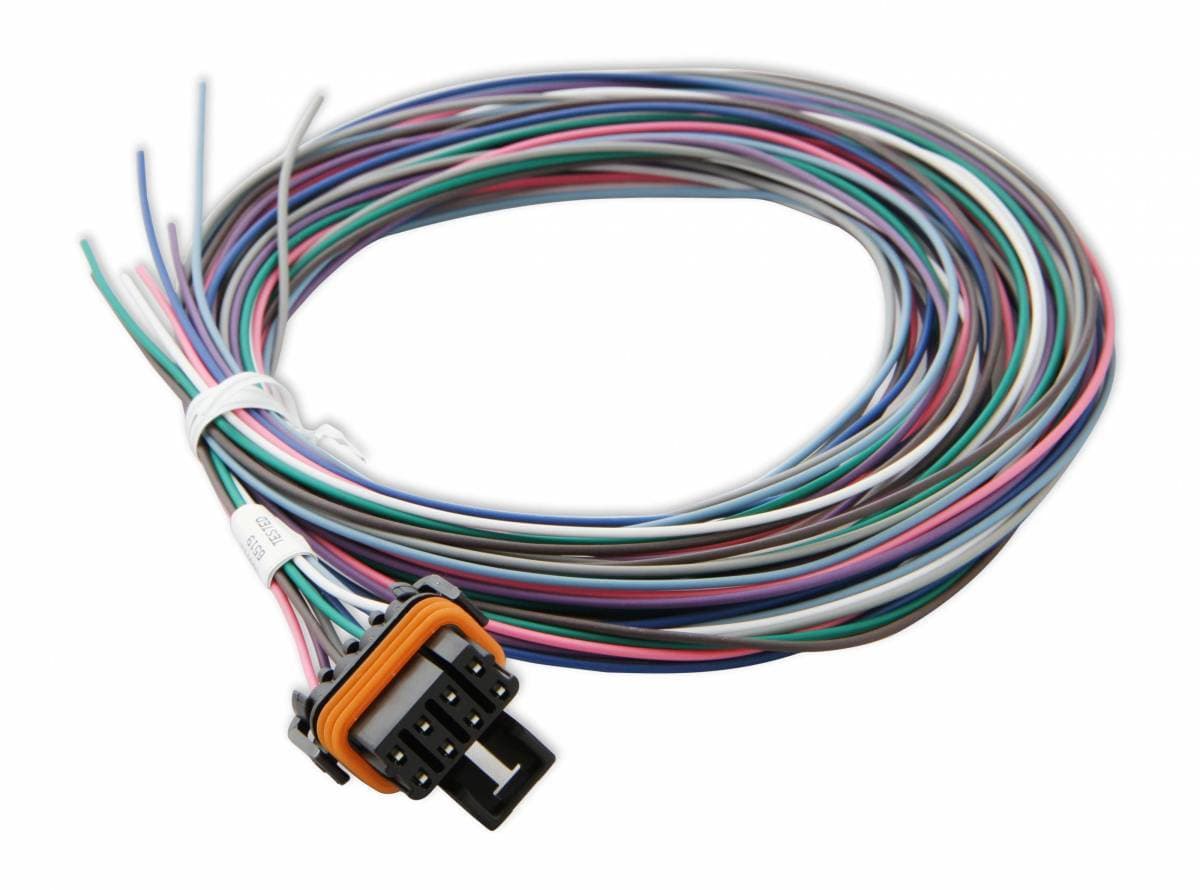

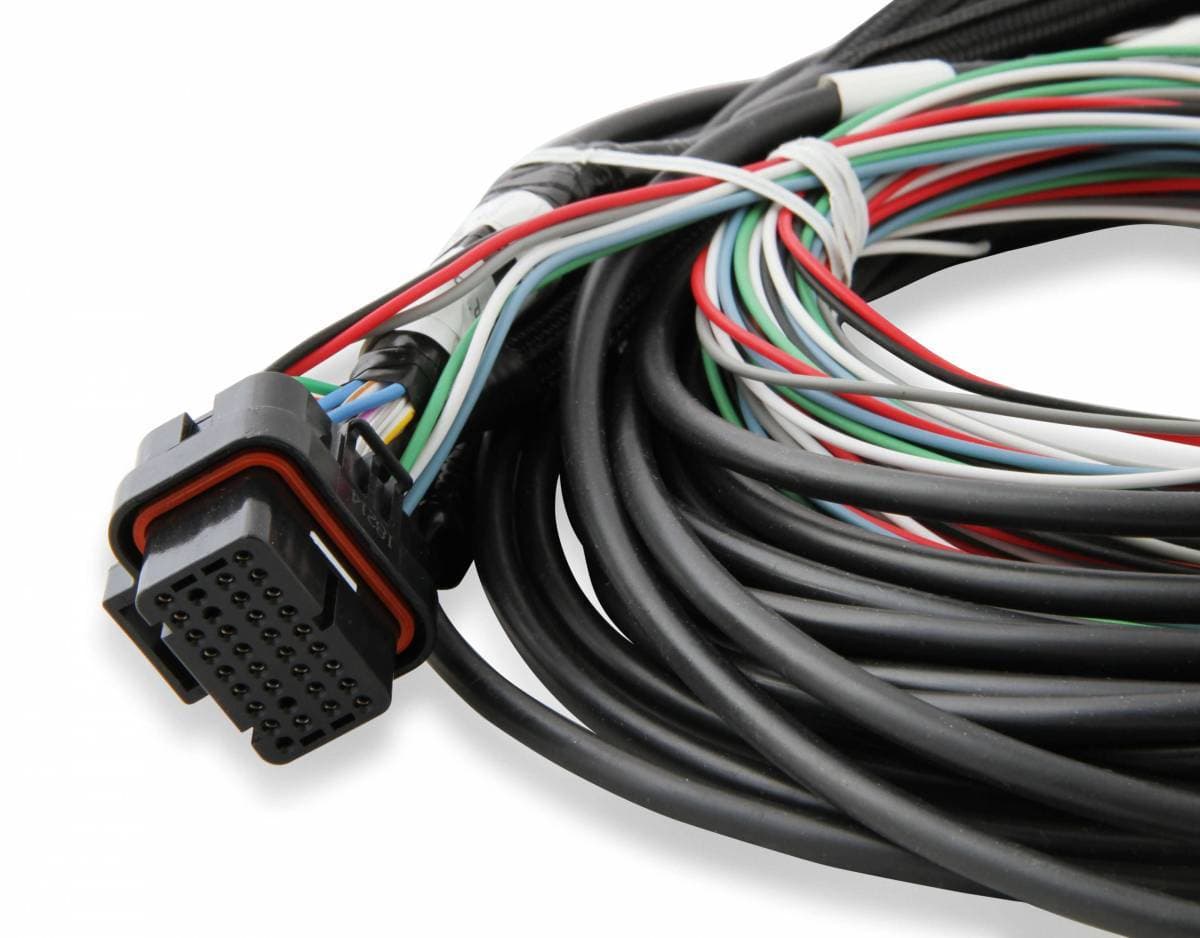

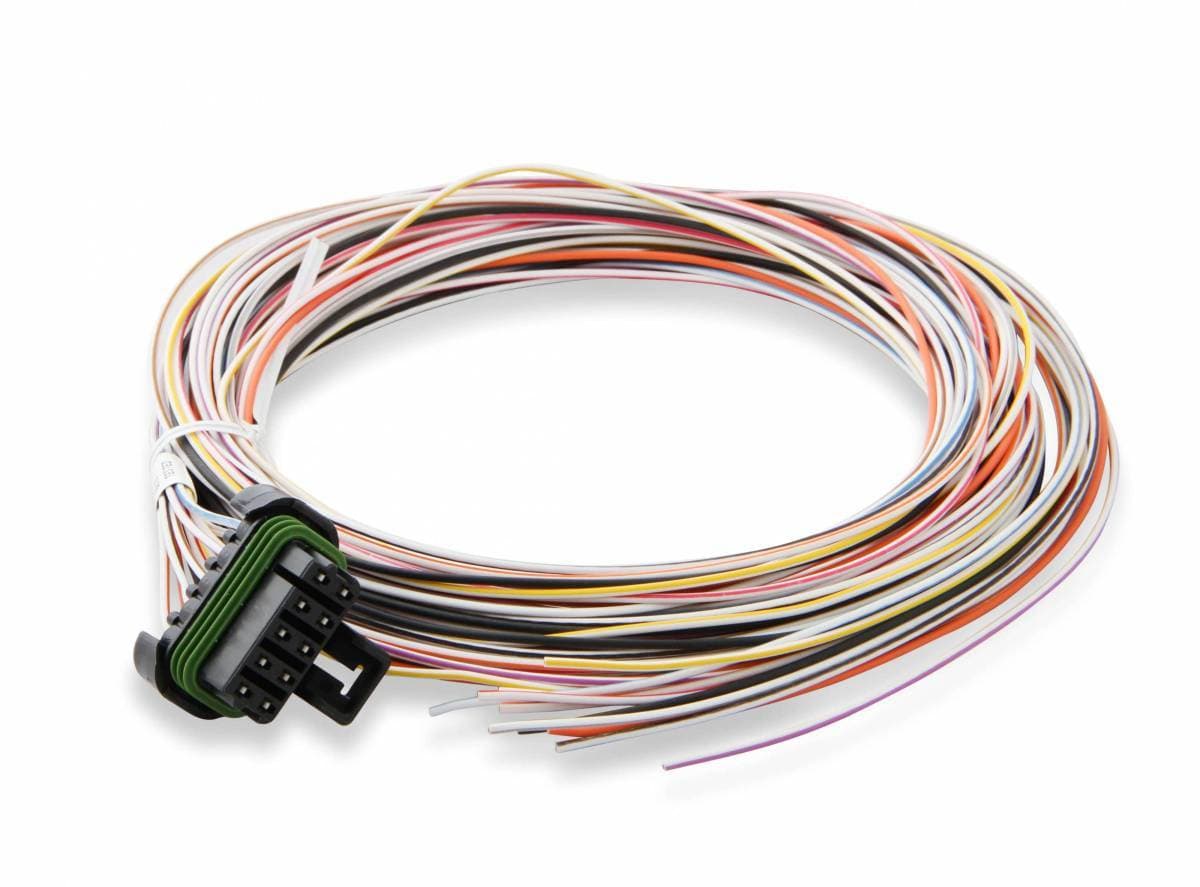

Includes harness/cables, mounting hardware, USB memory stick and CAN terminator

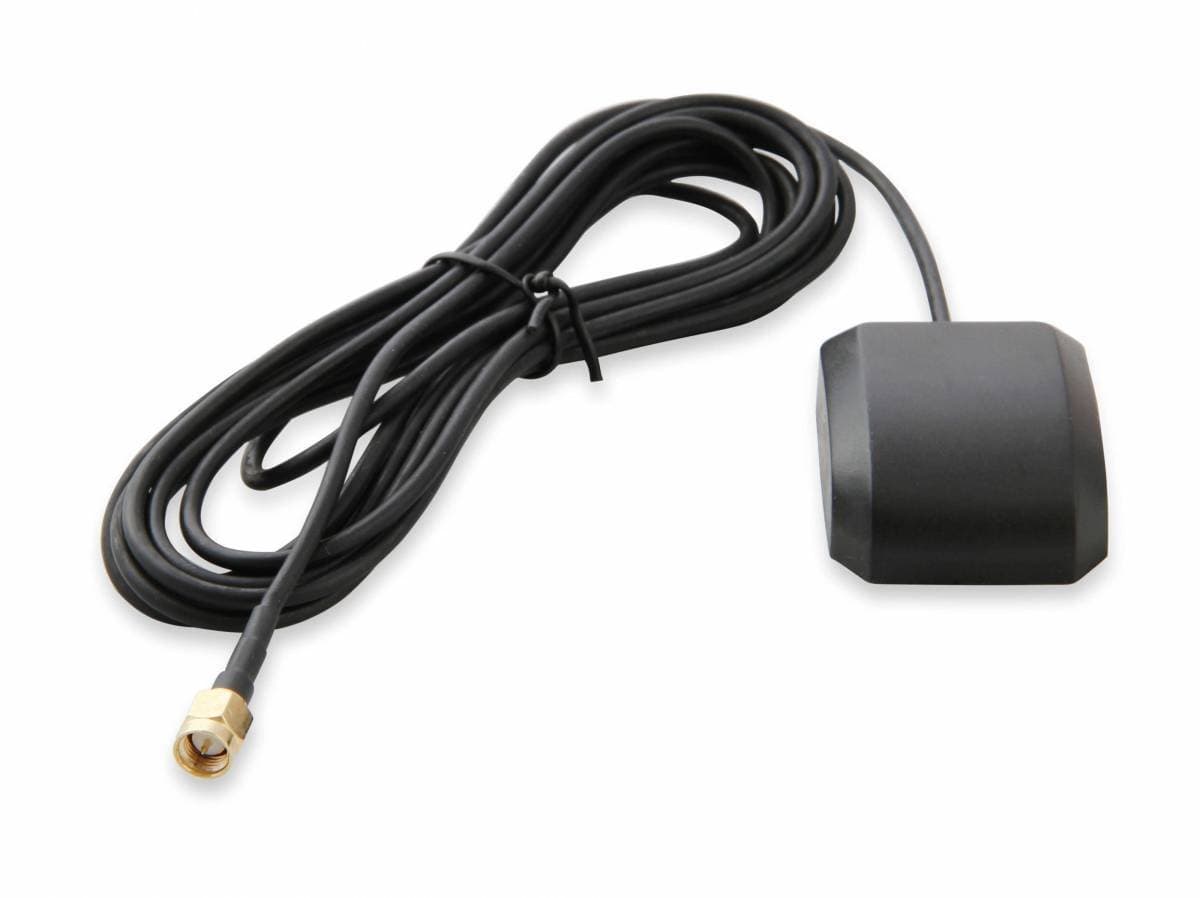

Includes GPS Antenna
Note*: Sensors are not included

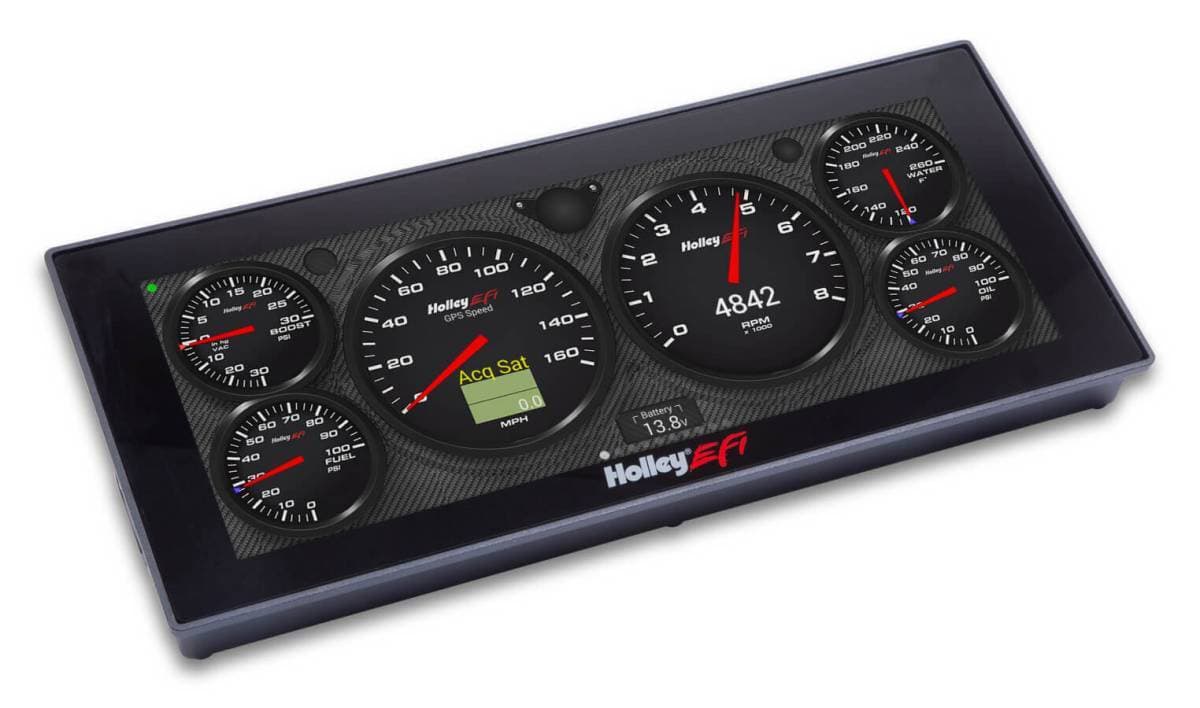

High resolution, state-of-the-art, multi-gauge touch-screen display with fully configurable layouts:
Full color, capacitive touch screen with auto dimming offers crystal clear data at your fingertips – day or night – no stylus needed
Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
Virtual switch panel eliminates the need for external toggle switches
16 default backgrounds skins pre-loaded with unlimited options for importing custom layouts
Built-in GPS with speed, odometer and trip odometer function (external antenna included)
Integrated 10-LED programmable shift light w/ 4-LED warning indicators for other sensor inputs. (6.86” dash only)
Rendered analog (dials / needles) and digital gauge styles available
Integrated datalogger

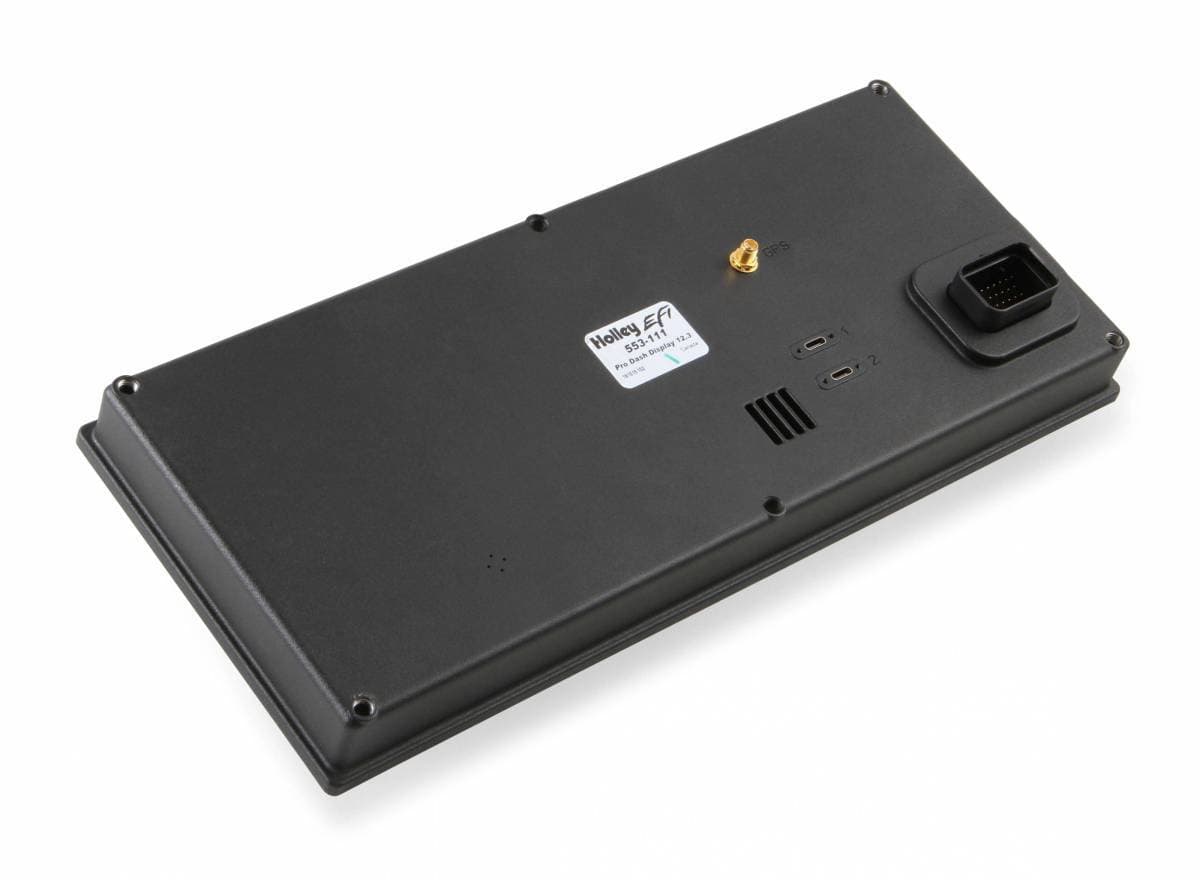

Rugged, water resistant case is constructed of cast aluminum for long life and durability
Plug and play features are pre-configured in the harness and include dash layouts/screens for:
Oil and fuel pressure, coolant and air temp (utilizes plug and play Holley sensors, not included)
Turn signals
High beam
Fuel level
Engine vacuum / boost
Additional input and output functionality:
13 multi-configurable inputs
4 ground switched outputs
Four speed channels (two dedicated) for RPM, driveshaft speed, or any other Hall effect speed input
User definable channel alarms and warnings
Communications / Harness:
4 Pin Wiring Harness contains Power, Ground and CANbus connections
Holley EFI CANbus connection for expanded capability with Holley EFI systems
Expandable storage via USB
Integrated Datalogger:
Internal Log Memory – 1 GB (expandable up to 32GB with addition of micro-SD card)
External Logging to USB Flash Drive is also available for easy file management
On-screen datalog playback allows you to review vital run information right on the dash
Full analysis via laptop is available.
Application Download: Holley Standalone Pro Dash Log Viewer
Fully Upgradeable:
Upgradable with future software enhancements
Can easily be converted for use with Holley EFI to monitor up to 238 real-time values such as RPM/TPS/Boost
Compatible with Holley EFI Plug and Play Programmable Shift Light - Part Number 553-107
