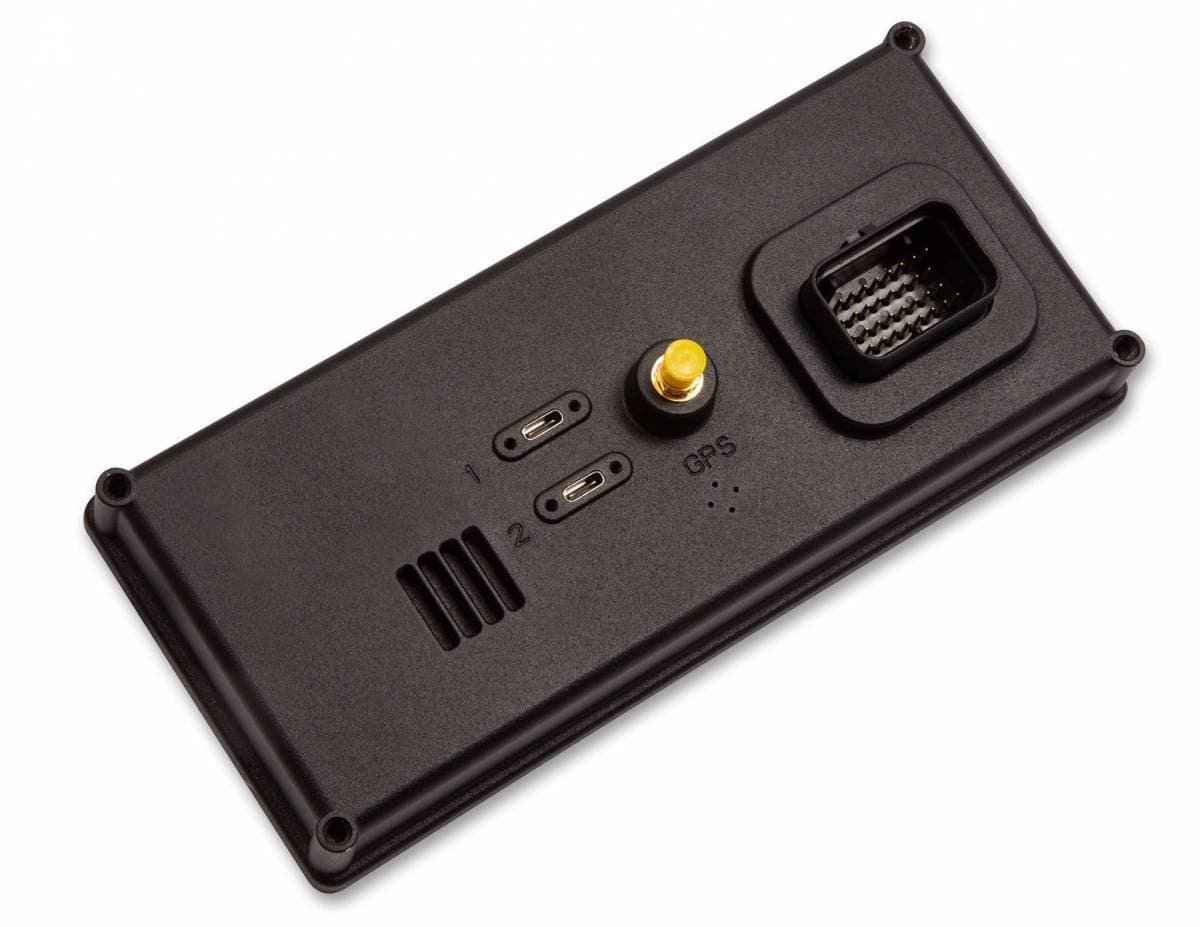

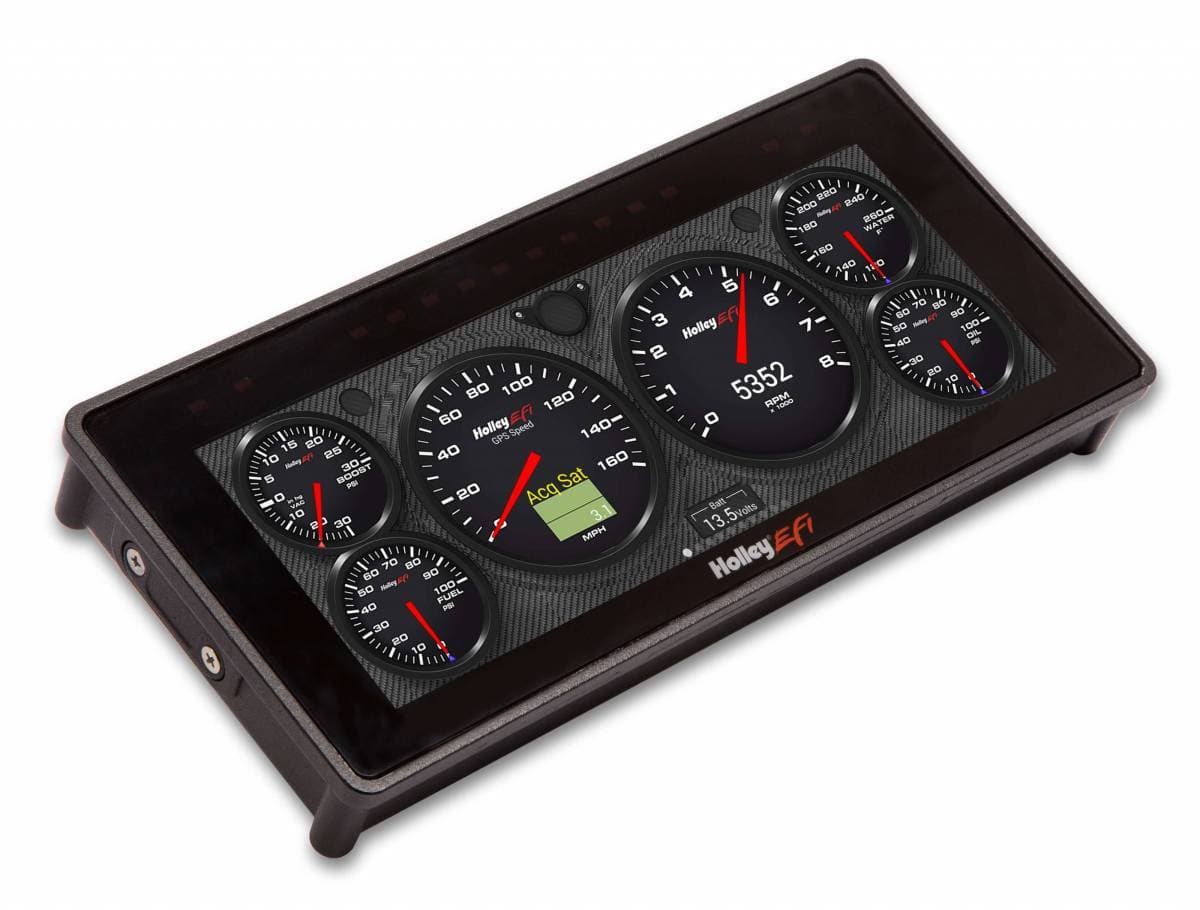

The Holley EFI 6.86" Pro Dash also features a plethora of Input and Outputs for expanded functionality of your Holley EFI installation. The included 34pin connector has 13 multi-configurable inputs for most Holley EFI sensors, such as pressure and temperature. Not using Holley EFI sensors? They still have you covered, these inputs are configurable, allowing you to utilize different sensor scaling calibrations! The Pro Dash also features two dedicated speed inputs, for RPM, Driveshaft speed, or any other Hall effect speed input. Need more outputs? The Pro Dash contains 4 ground switched outputs, that can be utilized with the switch panel feature to quickly turn on any of your auxiliary accessories, such as a master nitrous switch, or an electric water pump.
They have also integrated a 10-LED Programmable shift light into the bezel of the dash and added 4 optional LED's that can be programmed for virtually anything, such as fuel pressure or oil pressure warning indicators, or a target boost indicator, the options are almost endless.
Specifications
Depth: 1.25"
Height: 3.44"
Product Type: Digital Dashes
Screen Size: 6.86"
Screen Type: Capacitive Touch Screen
Width: 7.56"
Part Number: 553-112
Features:
Plug-and-play Display support for Dominator, HP, Terminator X & Sniper EFI
Integrated a 10-LED Programmable shiftlight w/ 4-LED warning indicators for other sensor inputs.
Capable of monitoring up to 238 real-time values such as RPM/TPS/Boost
10 default background skins pre-loaded with unlimited options for importing custom layouts
Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
Virtual switch panel eliminates the need for external toggle switches
Manual or auto-brightness features for easy viewing day or night
Built-in GPS with odometer function (Antenna included)
On-screen datalog playback features allows you to review vital run information
Expandable storage via USB
No stylus required, capacitive touch, just like your smart phone.
User definable channel alarms and warnings

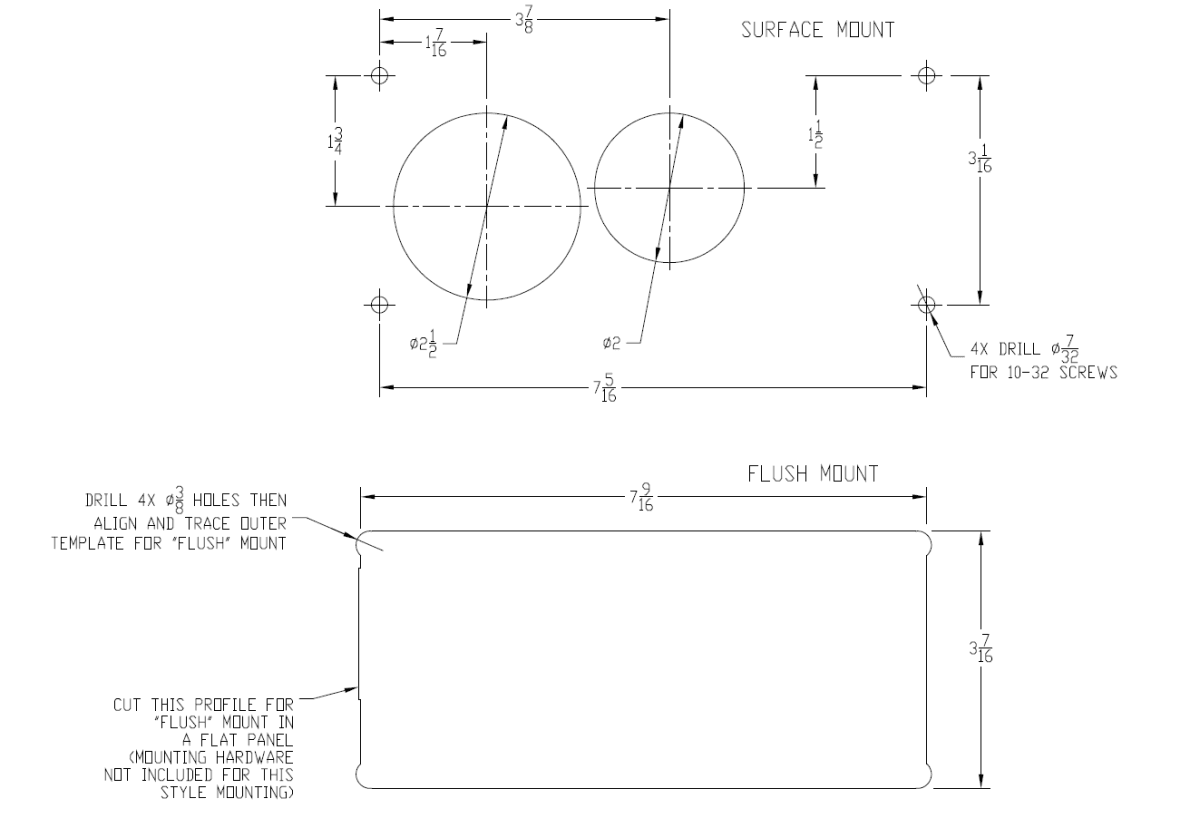

4x 10-32 mounting holes for surface or flush mounting, with high quality hardware included!
Includes everything needed for installation!
USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts
Includes 34 Pin Wiring Harness contains Power, Ground and CANbus connections
Input and output functionality for 13 multi-configurable inputs, and 4 ground switched outputs.
User defined alarms for any input
Upgradable with future software enhancements
Viewing area is 6.86" on the diagonal
Dash weight - 1.2 Lbs
Real-time ECU tuning - HP/Dominator ECUs only
Firmware Download: Pro Dash Firmware
