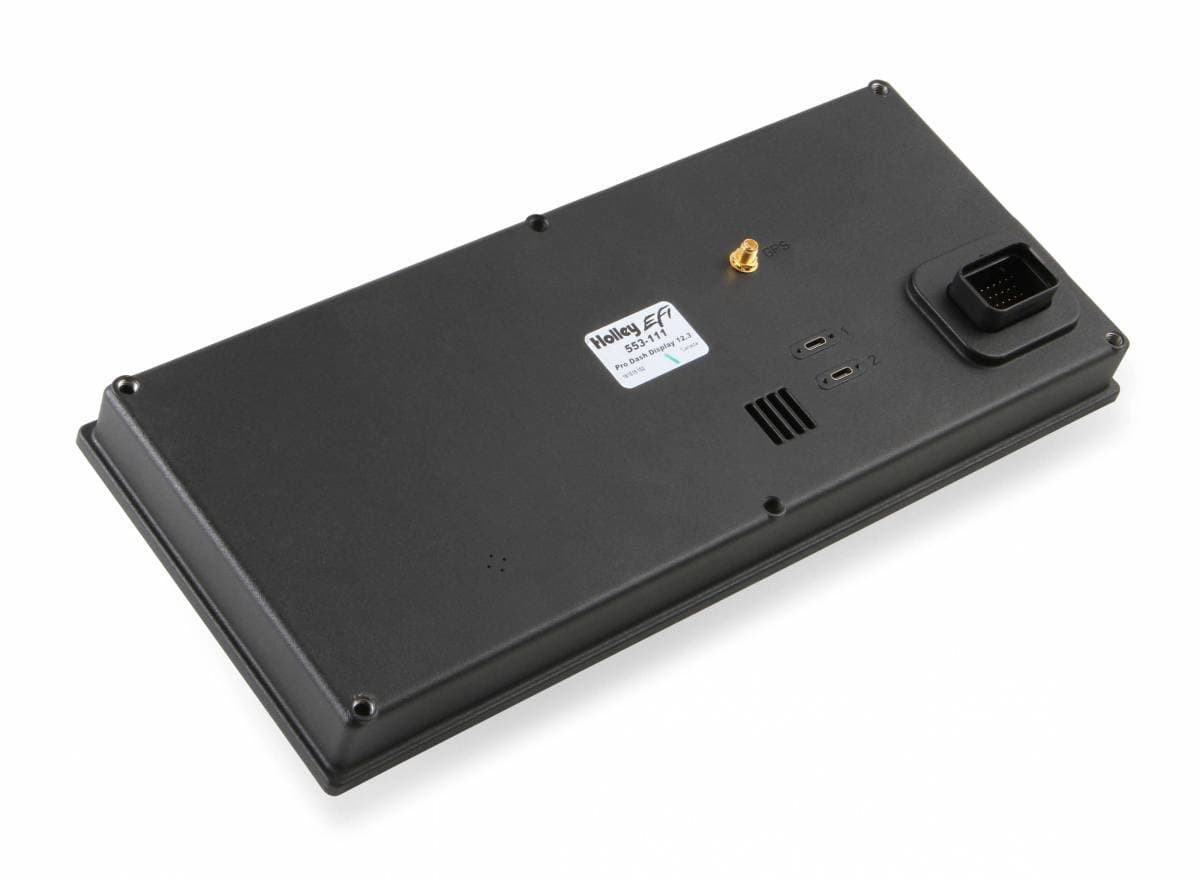

The Holley EFI 12.3" Pro Dash also features a plethora of Input and Outputs for expanded functionality of your Holley EFI installation. The included 34pin connector has 13 multi-configurable inputs for most Holley EFI sensors, such as pressure and temperature. Not using Holley EFI sensors? We still have you covered, these inputs are configurable, allowing you to utilize different sensor scaling calibrations! The Pro Dash also features two dedicated speed inputs, for RPM, Driveshaft speed, or any other Hall effect speed input. Need more outputs? The Pro Dash contains 4 ground switched outputs, that can be utilized with the switch panel feature to quickly turn on any of your auxiliary accessories, such as a master nitrous switch, or an electric water pump.
Specifications
Application: Universal
Depth: 1.25"
Height: 5.81"
Product Type: Digital Dashes
Screen Size: 12.3"
Screen Type: Capacitive Touch Screen
Width: 13.44"
Part Number: 553-116
Features:
Real-time ECU tuning, allows you to make quick tune changes, without needing to hook up a laptop!
Capable of monitoring up to 238 real-time values such as RPM/TPS/Boost
16 default background skins pre-loaded with unlimited options for importing custom layouts

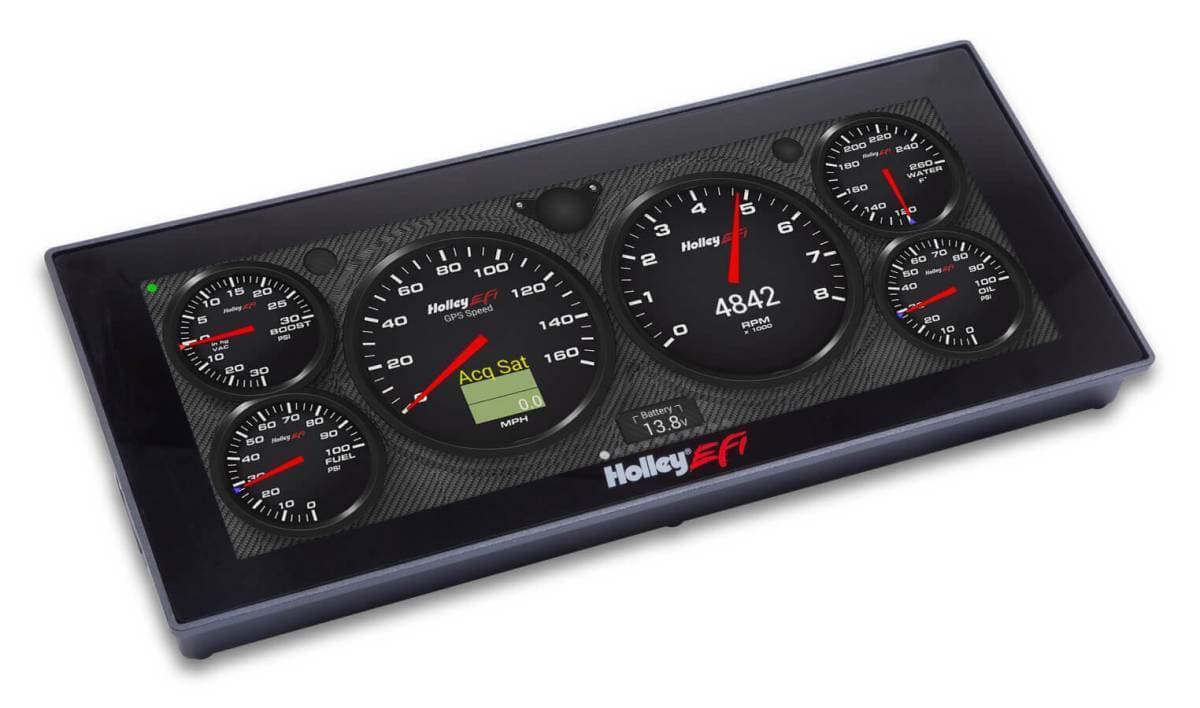

Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
Virtual switch panel eliminates the need for external toggle switches
Manual or auto-brightness features for easy viewing day or night
Built-in GPS with odometer function (Antenna included)
On-screen datalog playback features allows you to review vital run information
Expandable storage via USB
No stylus required, capacitive touch, just like your smart phone.
User definable channel alarms and warnings

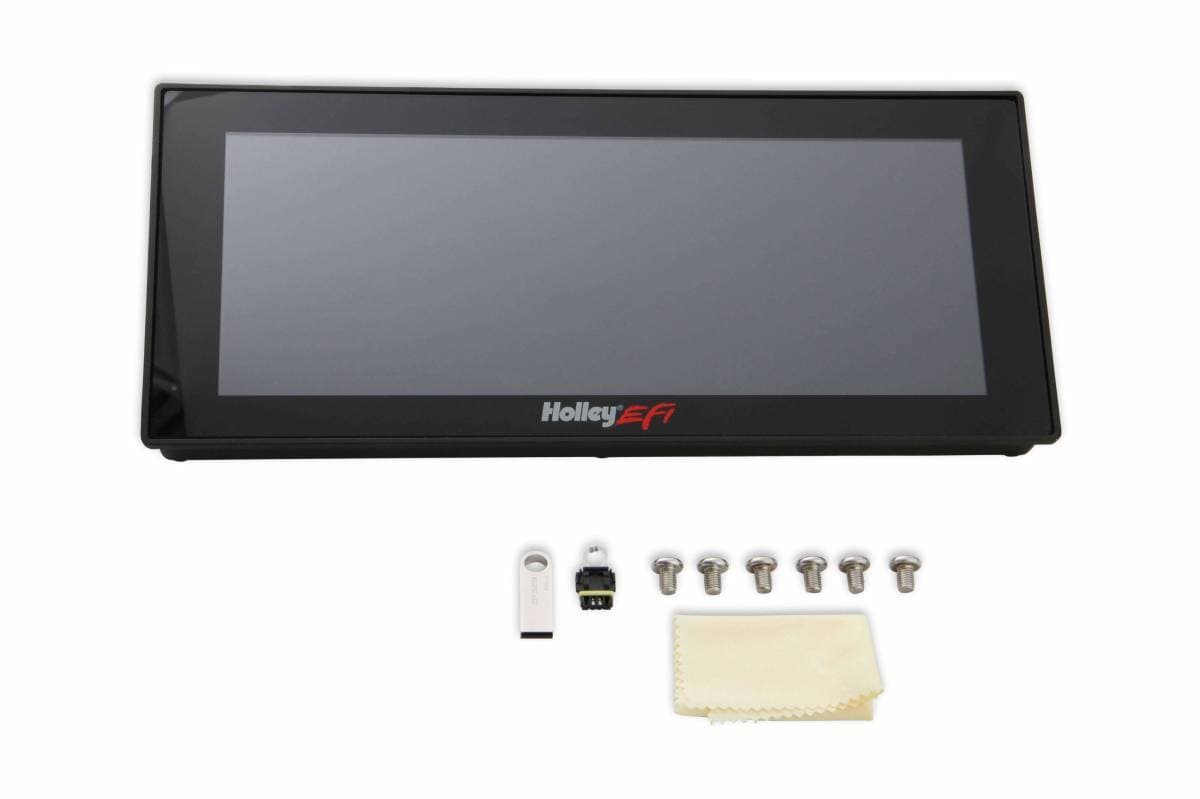

6x 1/4-28 mounting holes for surface or flush mounting, with high quality hardware included!

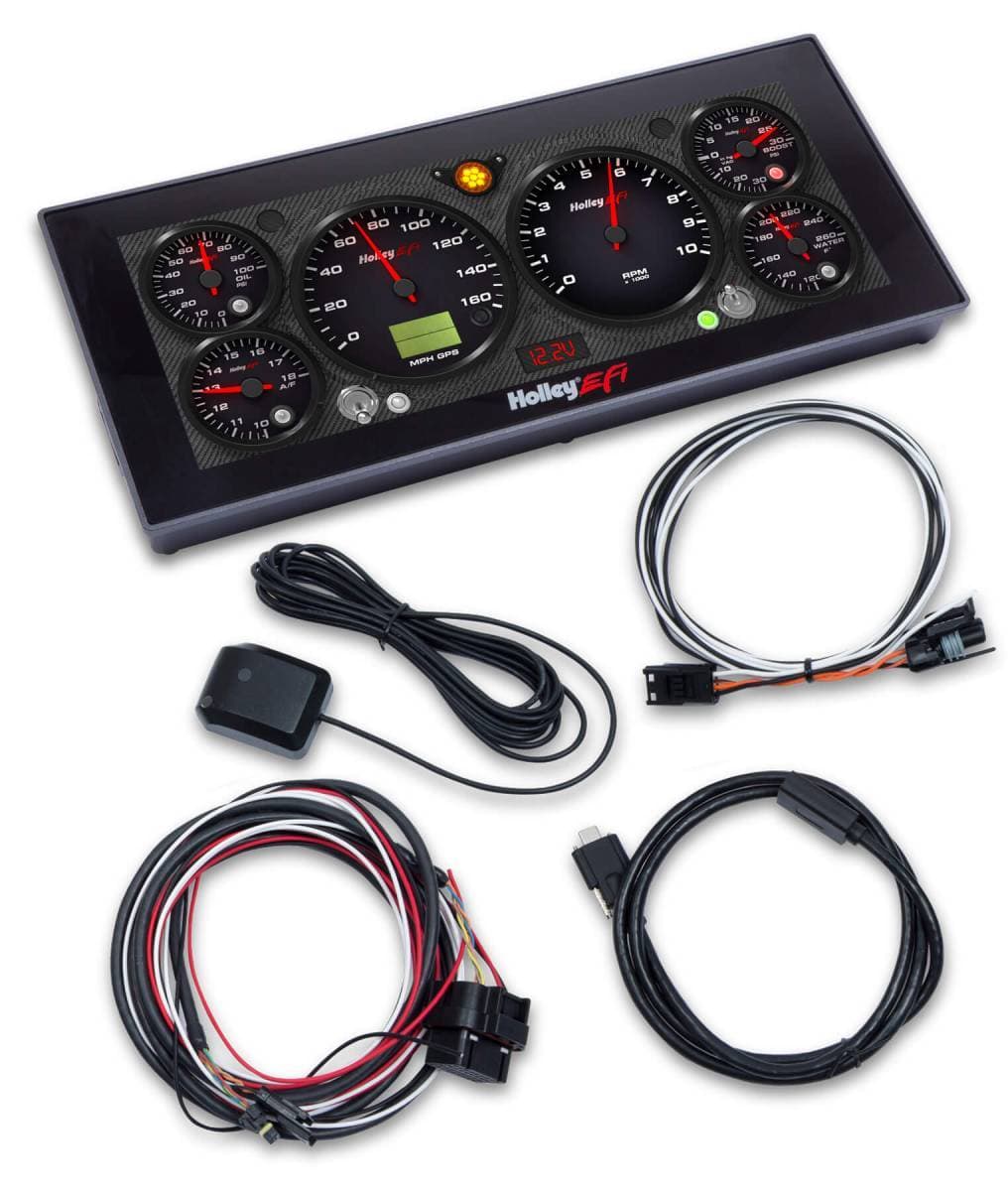

Includes everything needed for installation!
USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts
Includes 34 Pin Wiring Harness contains Power, Ground and CANbus connections
Input and output functionality for 13 multi-configurable inputs, and 4 ground switched outputs.
User defined alarms for any input
Upgradable with future software enhancements
Viewing area is 12.3" on the diagonal, 11.5" wide by 4.25" tall
Dash weight - 3.29lbs
Compatible with our Plug and Play Programmable Shift Light - Part Number 553-107
Firmware Download: V5 Firmware for 12.3" Pro Dash
