Specifications
Depth: 1"
Height: 4.625"
Screen Size: 7" Diagonal
Screen Type: Resistive touch screen
Width: 7.5"
Part Number: 553-106
Features:
Plug and play connection to all Holley EFI systems via CAN bus
Compact, customizable dash for use in a variety of motorsports applications

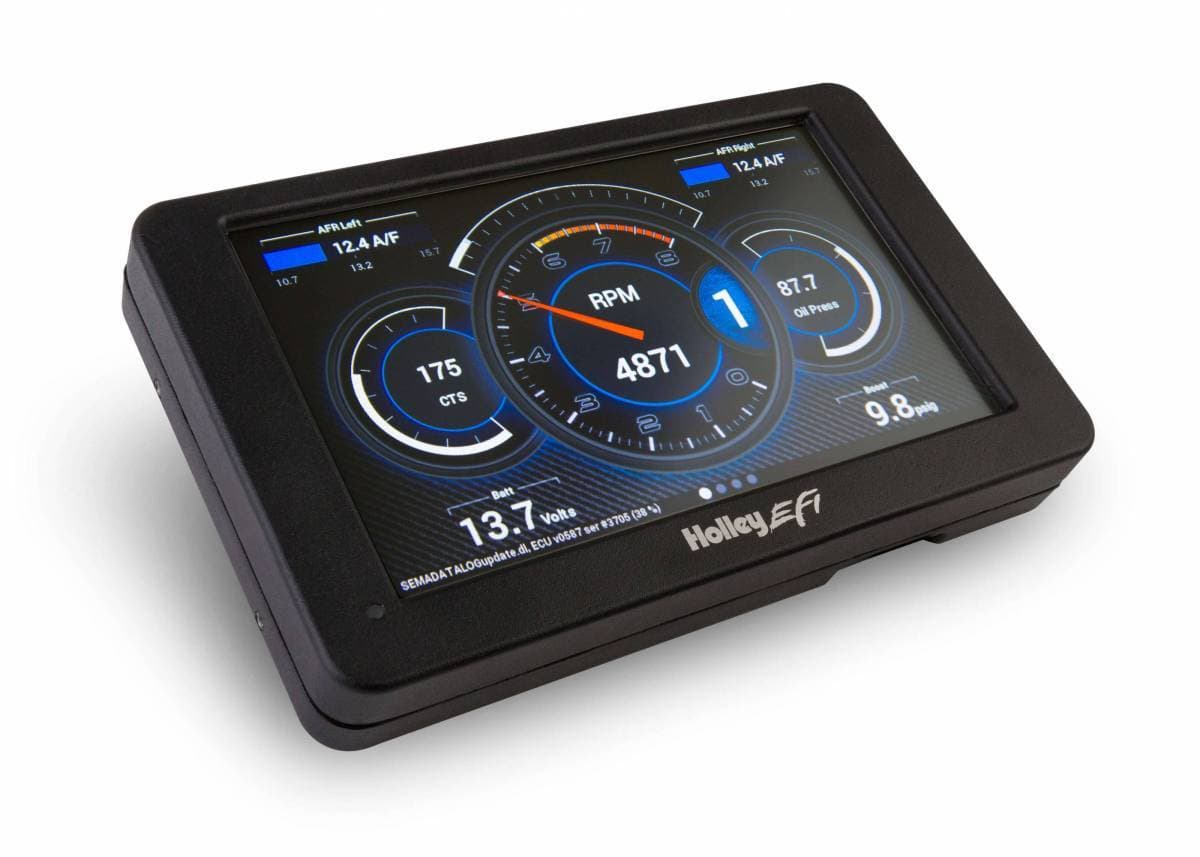

7" low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun
800x480 resolution with auto brightness
Operating voltage min 8V - 20V
Weather proof aluminum housing featuring flexible mounting options
Completely customizable display of all EFI parameters including every user configurable input and output available

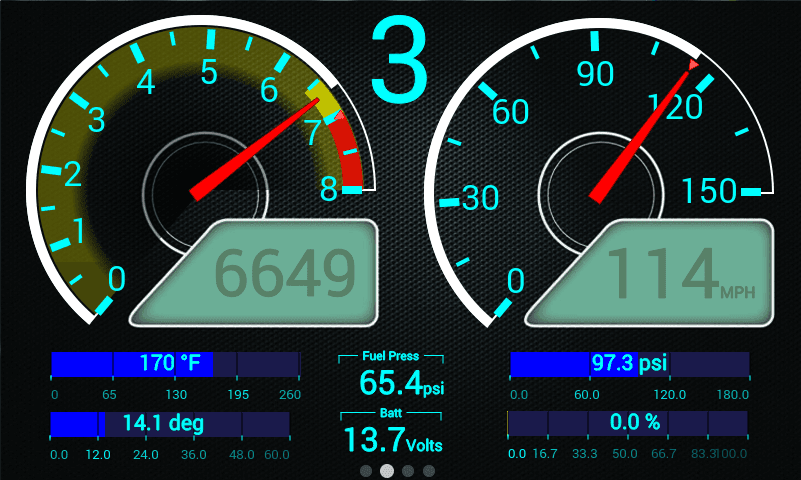

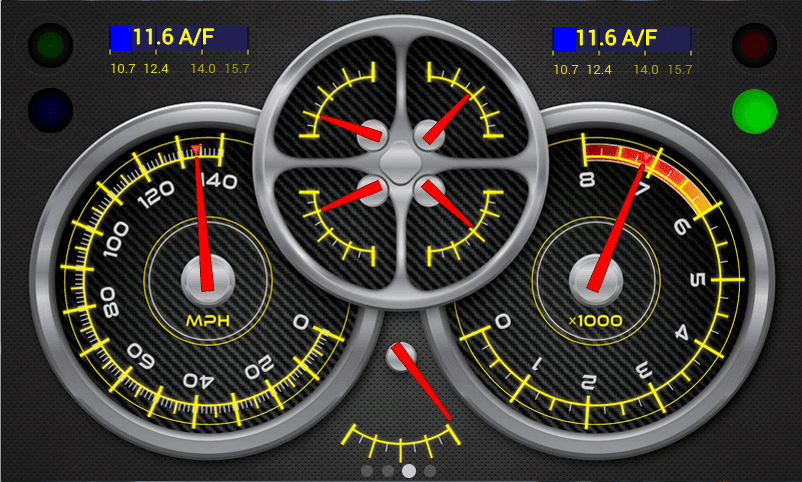

Multiple gauge and indicator types with limitless customization options
Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
Virtual Switch Panel (replaces the need for physical switches)
User defined alarms for any input

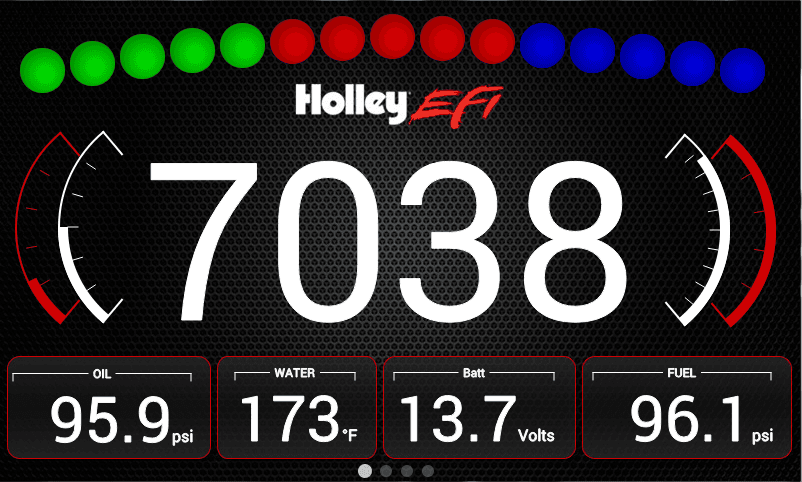

Configurable progressive shift lights and light bar
Control and on screen playback of EFI data logs
Download and save Holley EFI data logs to external USB memory stick
Expandable internal storage on micro SD card
Support for future USB devices
Upgradable with future software enhancements
Optional harness available to add physical inputs and outputs to the dash that can be used to perform multiple operations
Integrated 3 Axis Accelerometer
