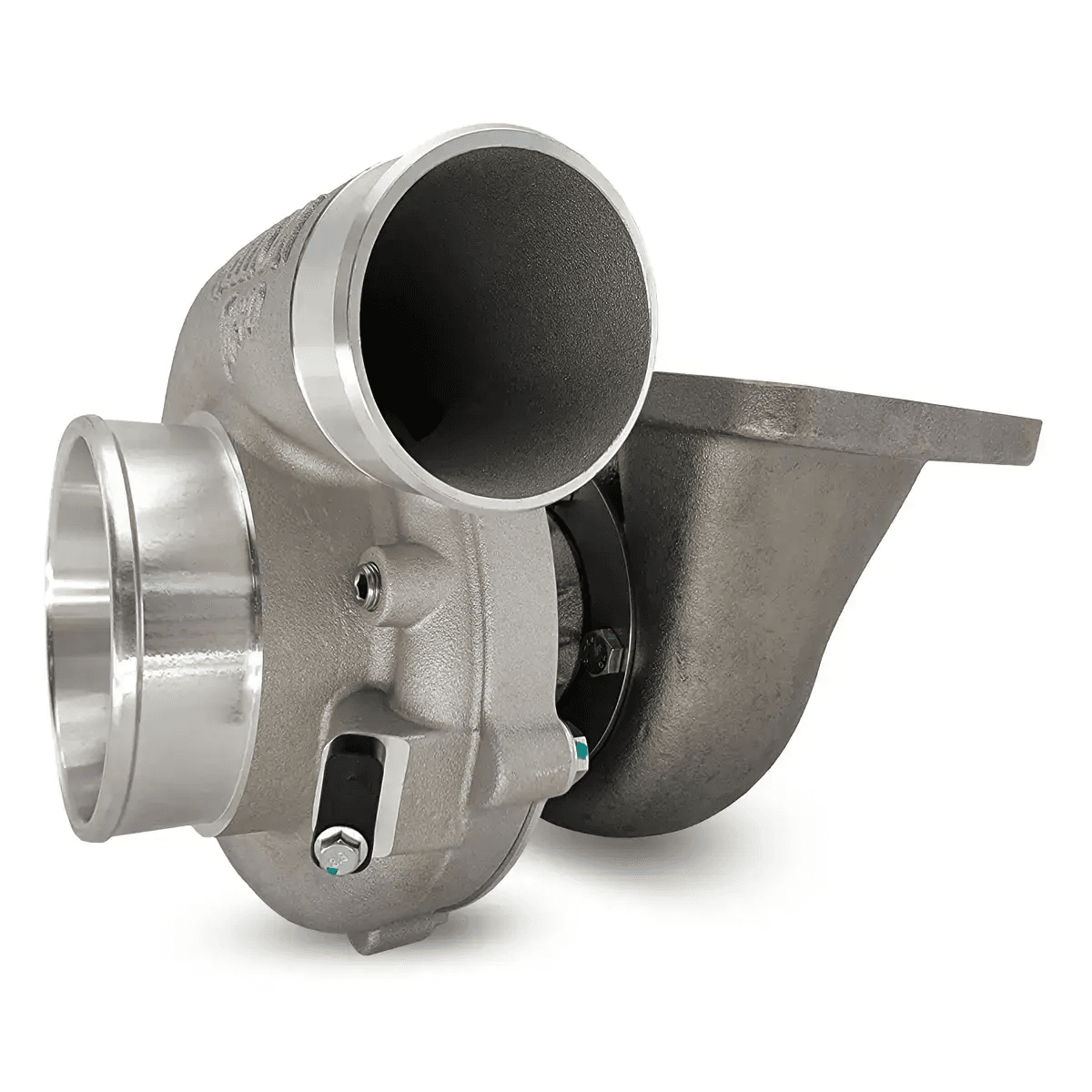

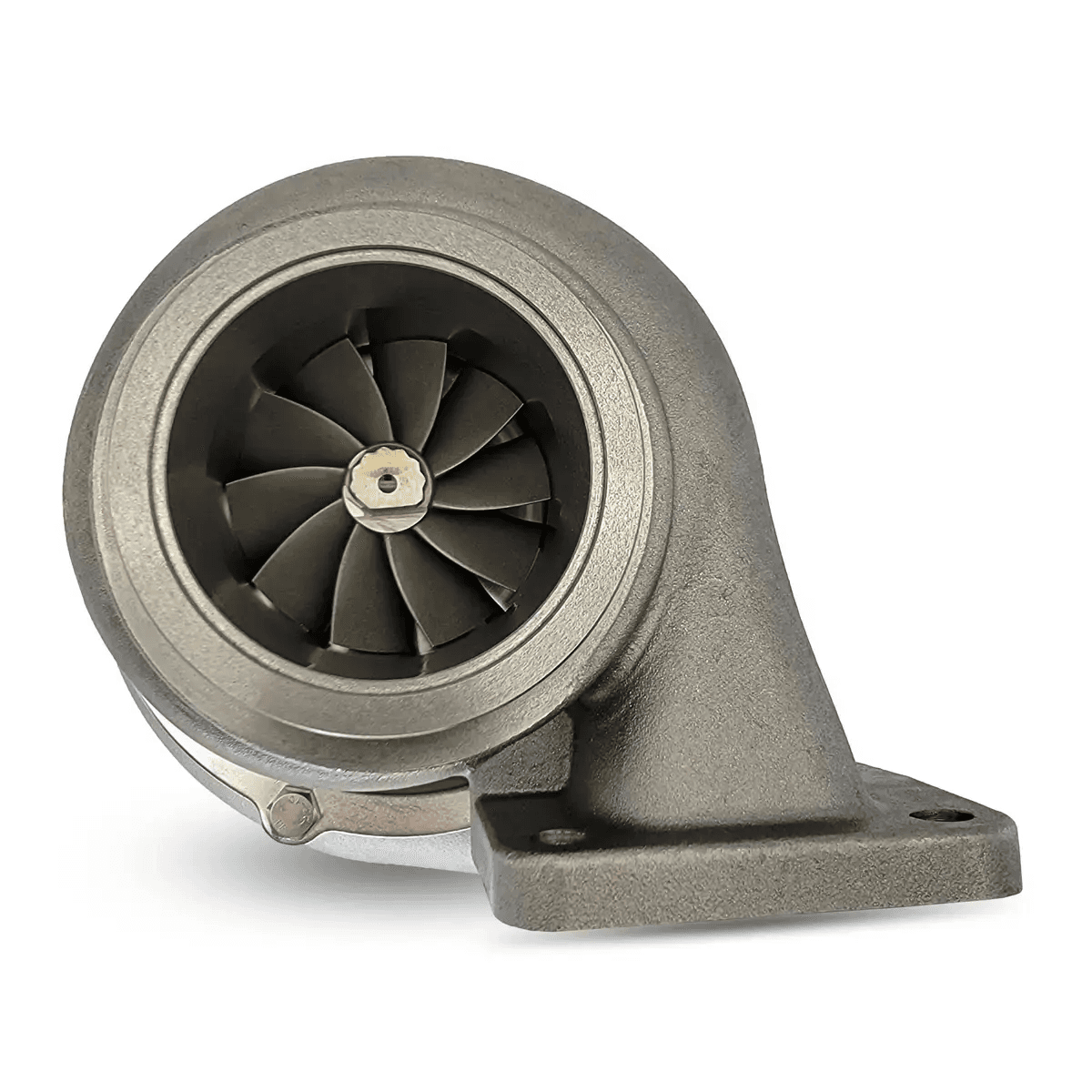

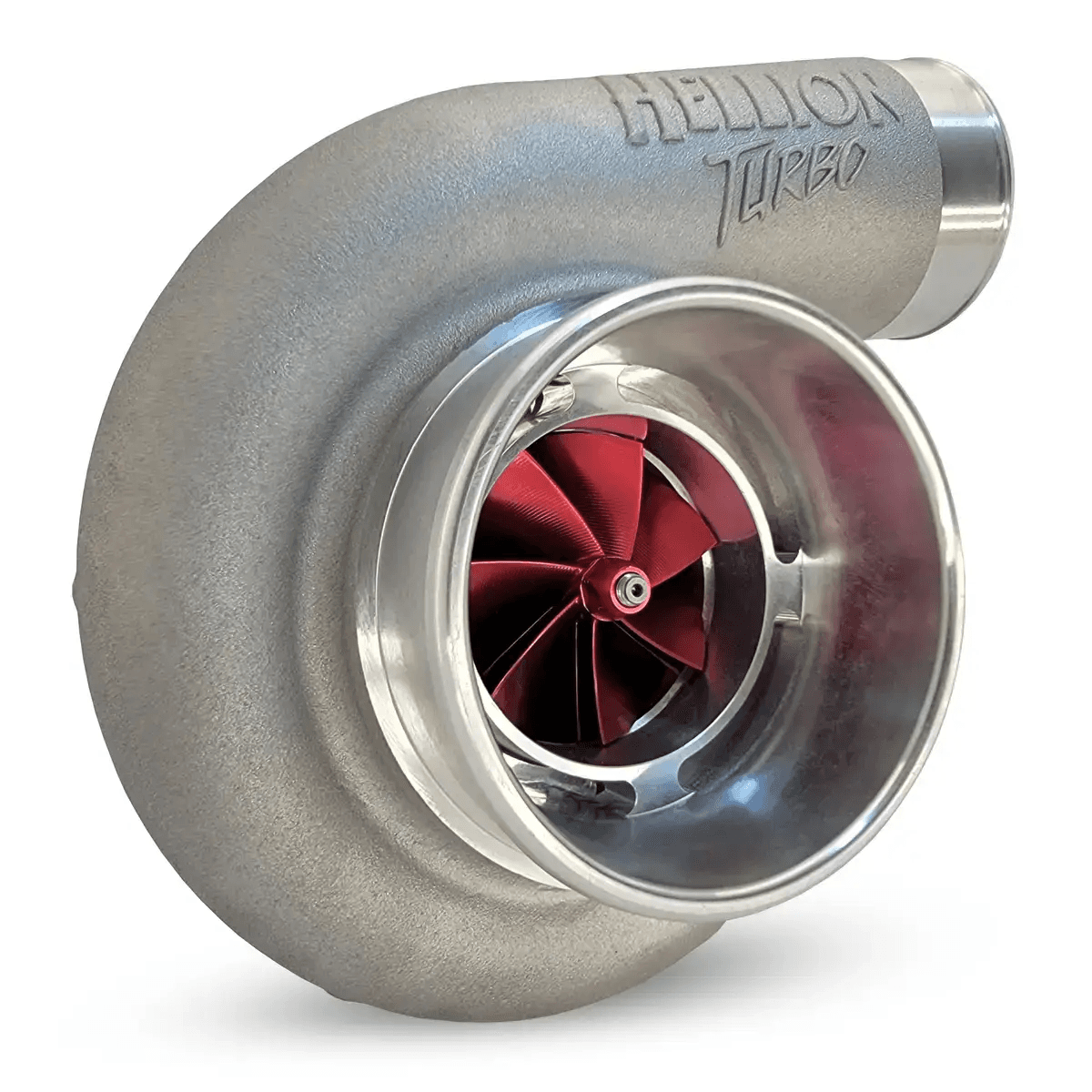

Hellion 64mm Universal R-Series 64/66B Turbocharger w/ Billet Compressor Wheel - T4 Inlet Flange (945 Max HP)

The Hellion 64/66R T4 turbo is the benchmark unit for our game changing turbo systems. These turbos feature a billet quick spool 64mm compressor wheel and dual ball bearing housing. The turbine has a 66mm exducer and uses a T4 4-bolt inlet and v-band outlet housing. This unit comes standard with a 2-year warranty.

Note: For those looking to run twin-turbos add 2 to cart.

There are many options available for Hellion Turbo kits. If you have any questions please email sales@TREperformance.com or call 760-586-5617.

Specifications:
Max HP: 945
Bearing Type: Ball
Compressor Inducer (MM): 64
Ported Shroud: Yes
Turbine Exducer (MM): 66
Turbine Inlet: T4
Turbine Outlet: V-Band
Turbine A/R: 0.81
Turbine Scroll: Single

Features:
Most advanced compressor wheel aerodynamics adding more blade swept area than other turbo of this size.
4” inlet and 2.5” outlet compressor cover is modernized, enlarged and streamlined to efficiently process the increased flow. Easily interchanged with other common turbos of this frame size – with increased performance.
Integrated speed sensor port.
Modernized, more robust dual ball bearing air cooled iron bearing housing with integral backplate to resist compressor back plate deflection under heavy loads.
Most advanced turbine wheel aerodynamics available.
Updated modern turbine wheel includes larger diameter dual turbine piston ring for improved oil and gas seal capability.
Incredibly strong shaft wheel weld joint for increased durability.
Improved housings to maximize the inlet and outlet exhaust flow.
4-bolt inlet / 3″ v-band outlet / .81 A/R single scroll cast iron T4 turbine housing.
