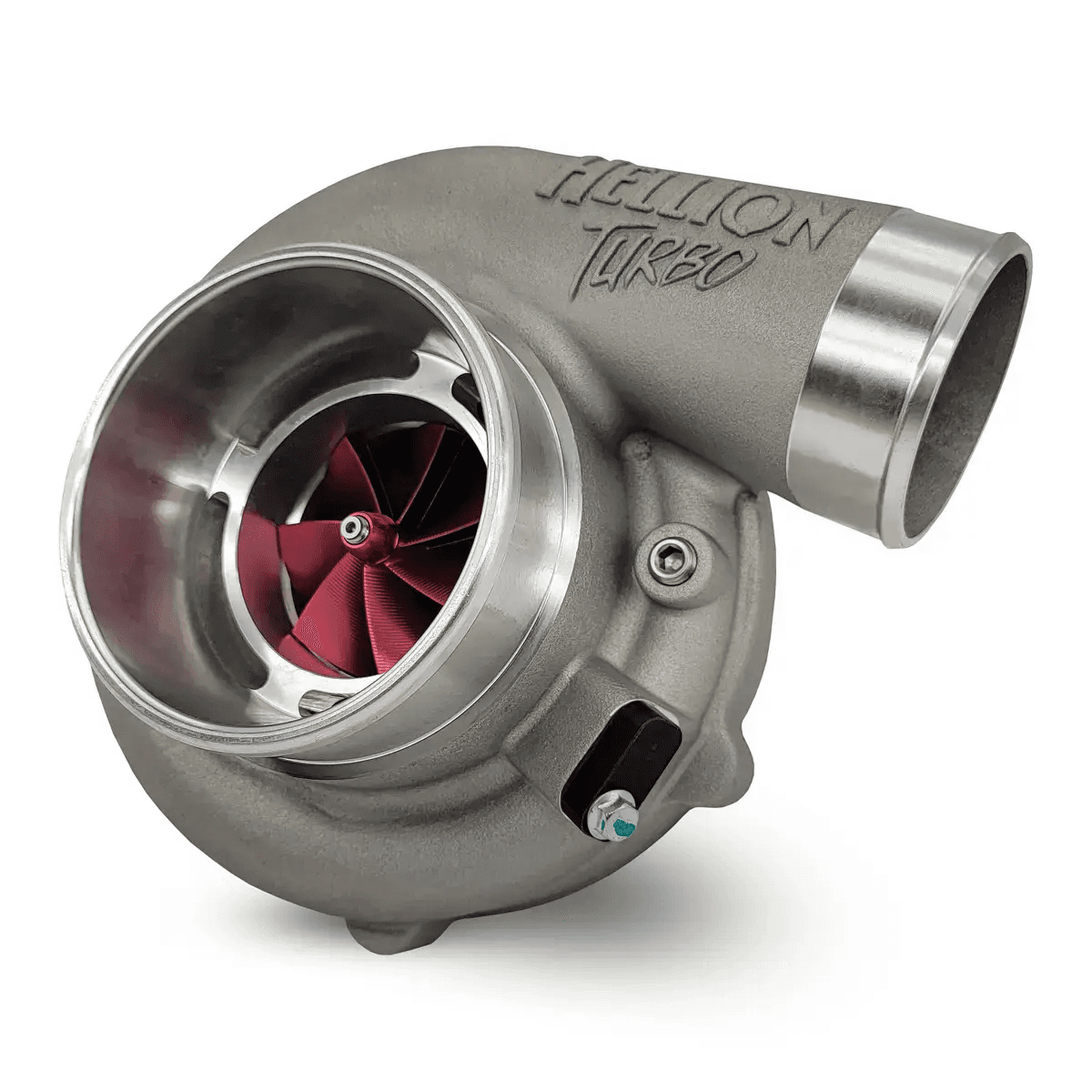

Hellion 62mm Universal R-Series 62/62R Turbocharger w/ Billet Compressor Wheel - V-Band Inlet Flange (815 Max HP)

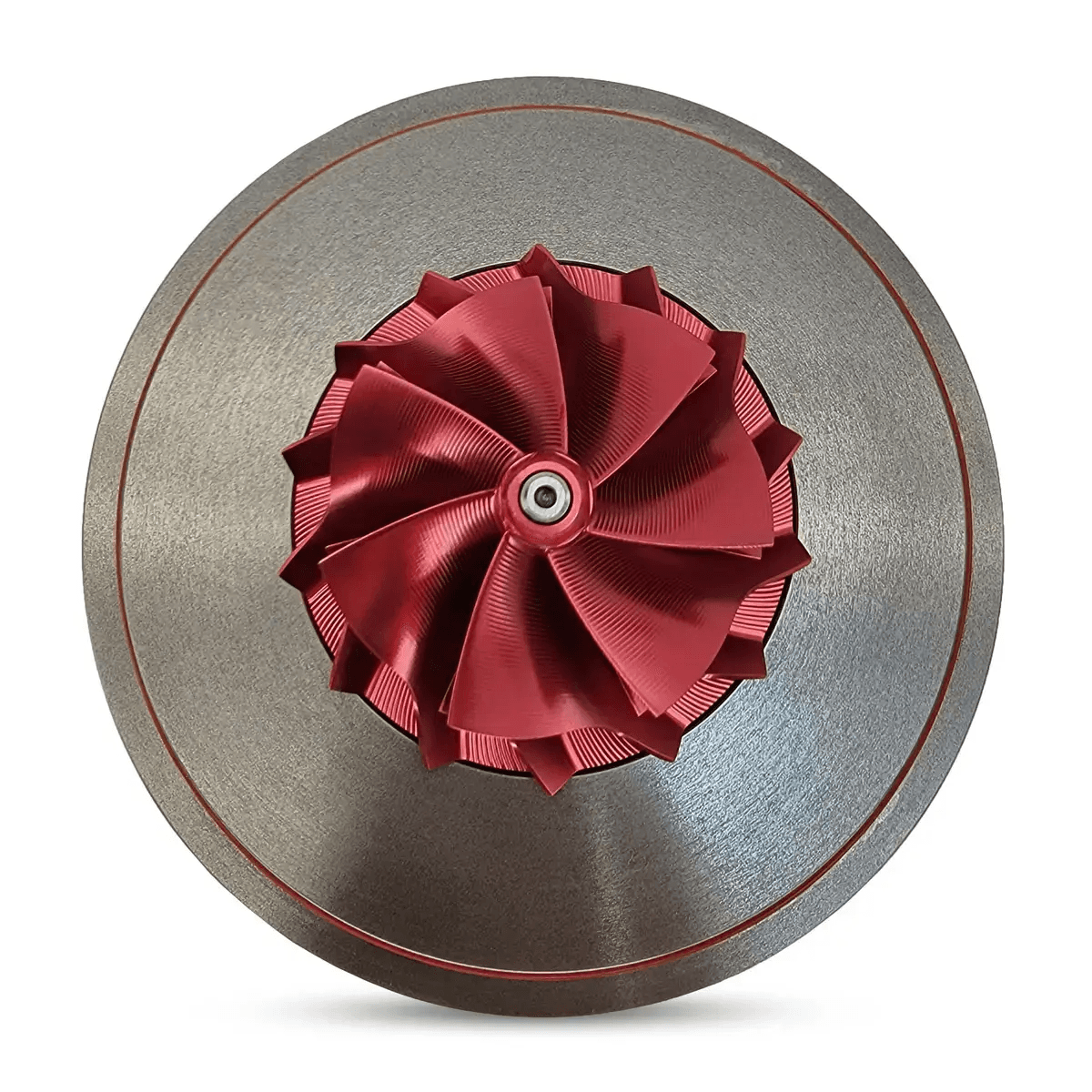

The Hellion 62/62B T4 turbo is the benchmark unit for our game changing turbo systems. These turbos feature a billet 11-blade 62mm compressor wheel and dual ball bearing housing. The turbine has a 62mm exducer and uses a T4 4-bolt inlet and 3″ v-band outlet housing. This unit comes standard with a 2-year warranty.

Note: For those looking to run twin-turbos add 2 to cart.

There are many options available for Hellion Turbo kits. If you have any questions please email sales@TREperformance.com or call 760-586-5617.

Specifications:
Max HP: 815
Bearing Type: Dual Ceramic Ball Bearings
Compressor Inducer (MM): 62
Ported Shroud: Yes
Turbine Exducer (MM): 62
Turbine Inlet: V-Band
Turbine Outlet: V-Band
Turbine Scroll: Single

Features:
Most advanced compressor wheel aerodynamics adding more blade swept area than other turbo of this size.
4” inlet and 2.5” outlet compressor cover is modernized, enlarged and streamlined to efficiently process the increased flow. Easily interchanged with other common turbos of this frame size – with increased performance.
Integrated speed sensor port.
Modernized, more robust dual ball bearing air cooled iron bearing housing with integral backplate to resist compressor back plate deflection under heavy loads.
Most advanced turbine wheel aerodynamics available.
Updated modern turbine wheel includes larger diameter dual turbine piston ring for improved oil and gas seal capability.
Incredibly strong shaft wheel weld joint for increased durability.
Improved housings to maximize the inlet and outlet exhaust flow.

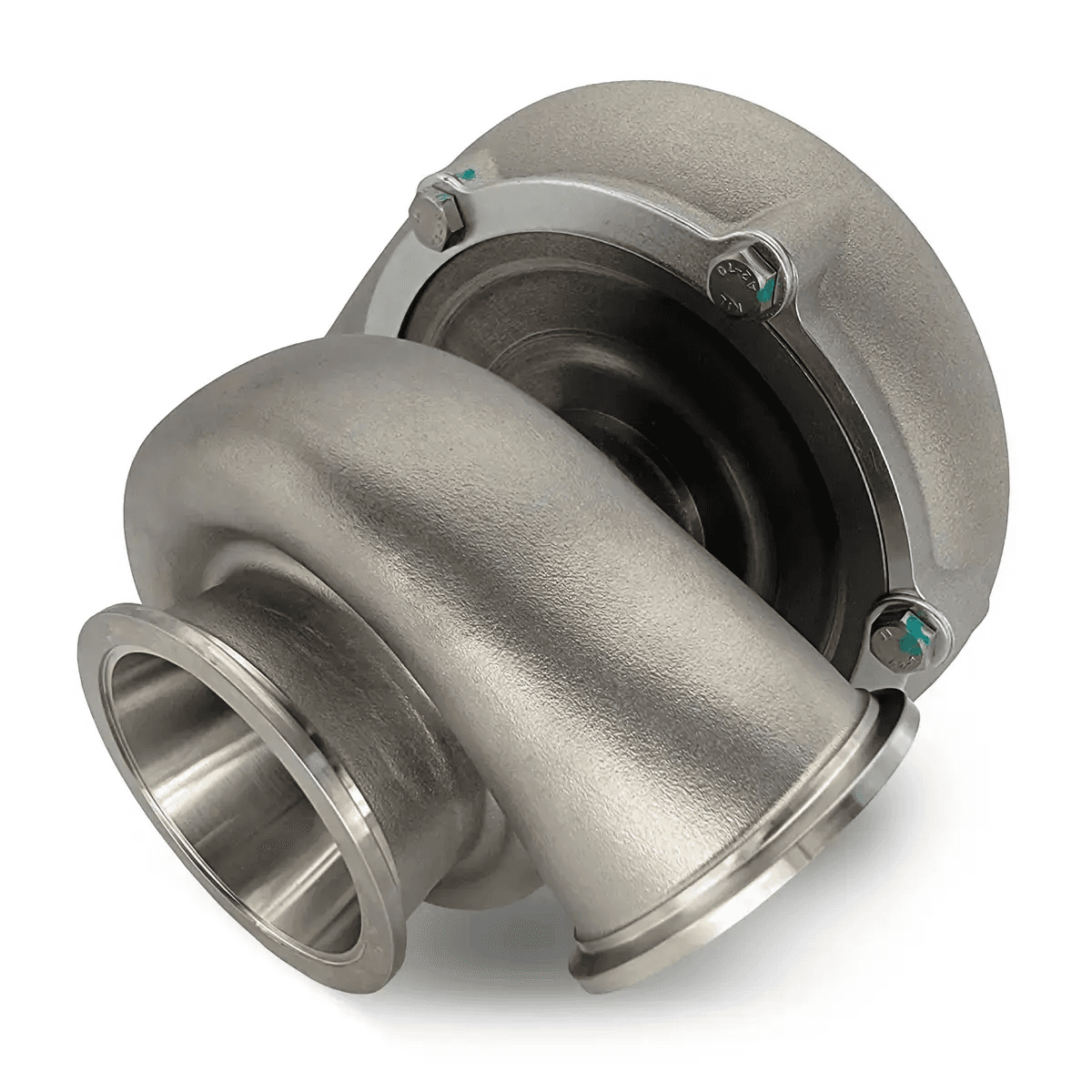

.82 A/R v-band inlet / 3″ v-band outlet single scroll turbine housing.
