Details:
Horsepower Gain: Depends on tuning - TVS2650 Supercharger is capable of producing 1100+ hp with further supporting modifications.
Featuring Eaton R2650 rotating group with 170 degree lobe helix angle for unrivaled thermal efficiency
Each supercharger comes prefilled with oil and is ran up to verify functionality before leaving the factory.
TVS2650 MK2 rotating group is proven to be 1200+ HP capable (Ported blower is capable of 1500+HP)
Utilising the latest in Eaton TVS technology with 170-degree twist lobes
25 percent more airflow at 18,000 RPM and 14 psi boost than R2300
High-efficiency water to air integrated intercooler system
Integrated by-pass for improved driveability
GM Factory and 102mm Aftermarket throttle body compatible

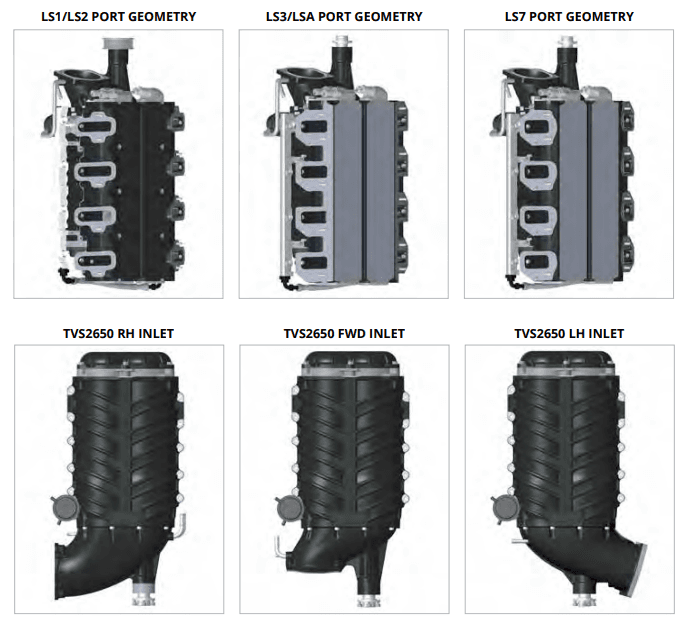

Manifold available in cathedral, rectangle or LS7 port geometry
Engine Fitment:
LS1/LS2 - Cathedral Port
LS3 - Rectangle Port
LS7 - Rectangle Port

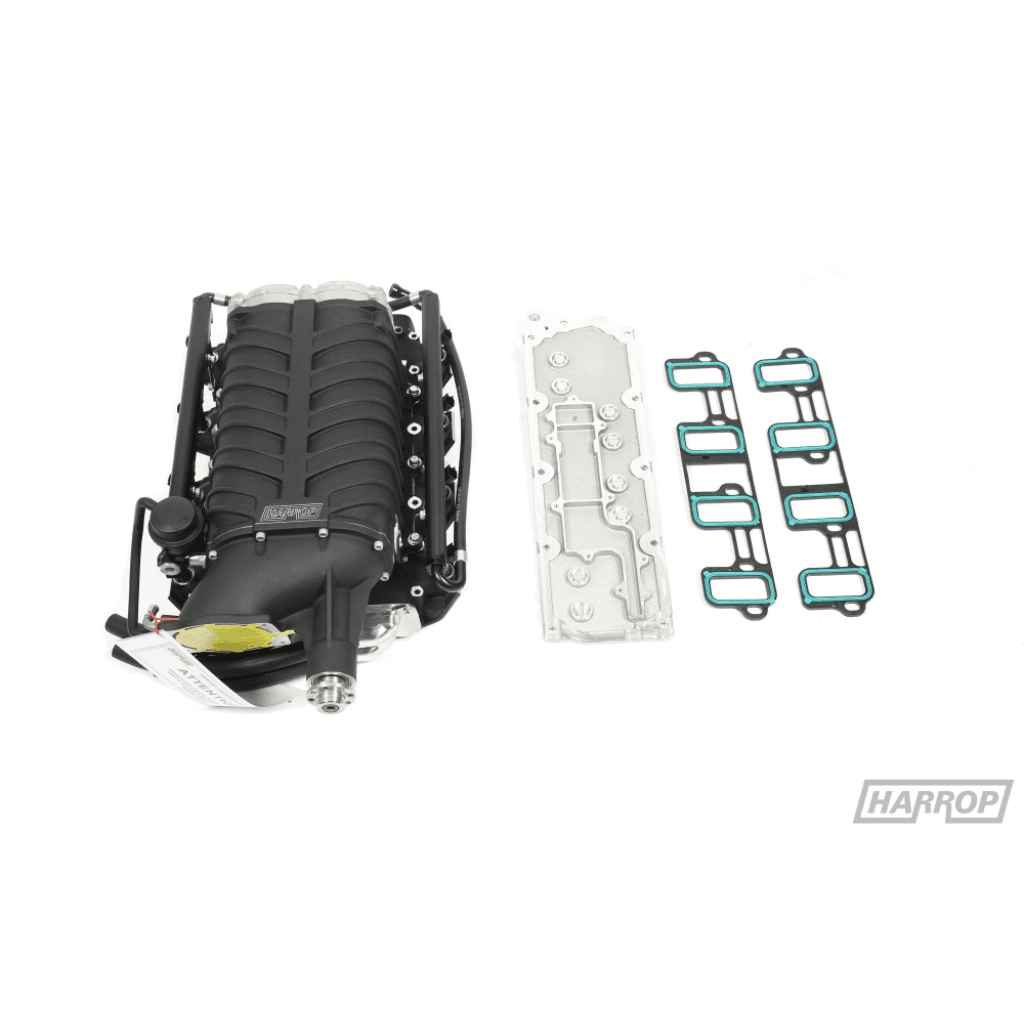

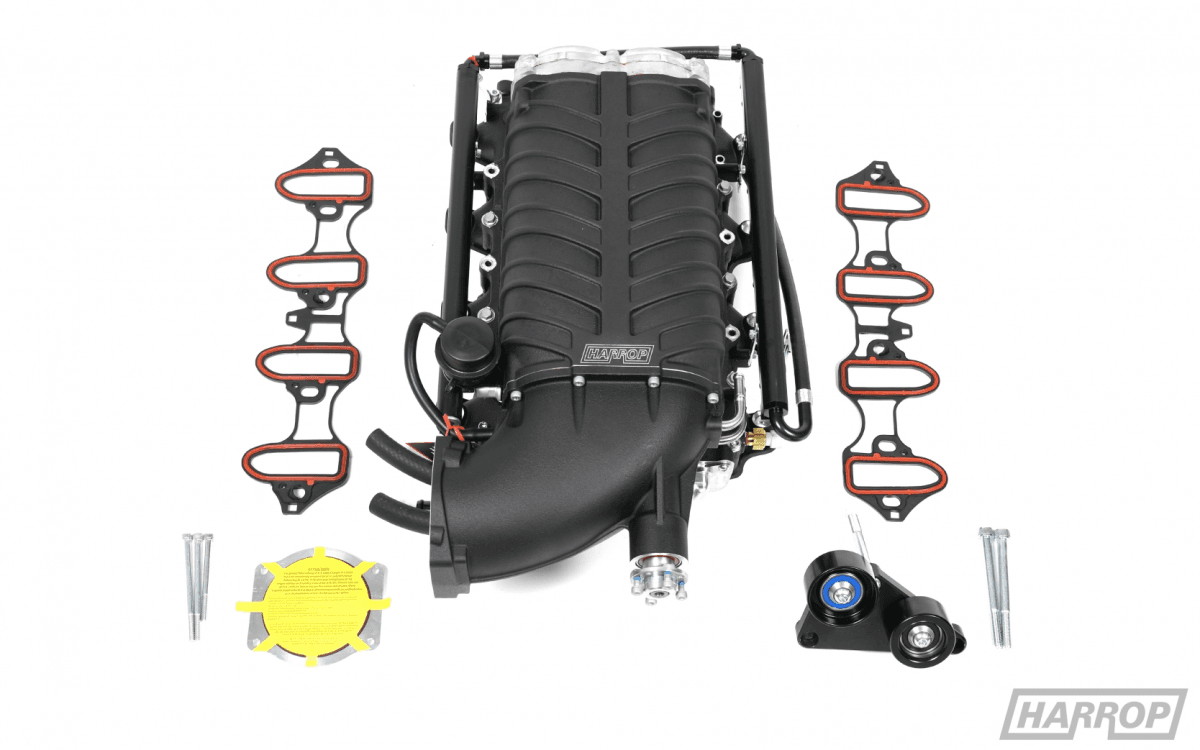

This System Includes:
High efficiency 2650 MK2 front drive front inlet supercharger
Cast inlet manifold including twin intercooler cores, fuel rails and IAT sensor
Valley plate, and bolts (if required)
Inlet manifold gaskets
Supercharger FEAD Idler - 6pk
Supercharger Pulley
This System Does Not Include:
Intake (CAI or OTR)
Throttle body
Patch looms/Harnesses
Injectors
Intercooler kit /front mount heat exchanger
Install kit including loom extensions, hoses and fittings
MAP sensor
See our 10PK & 12PK FEAD webpages for additional configuration options
