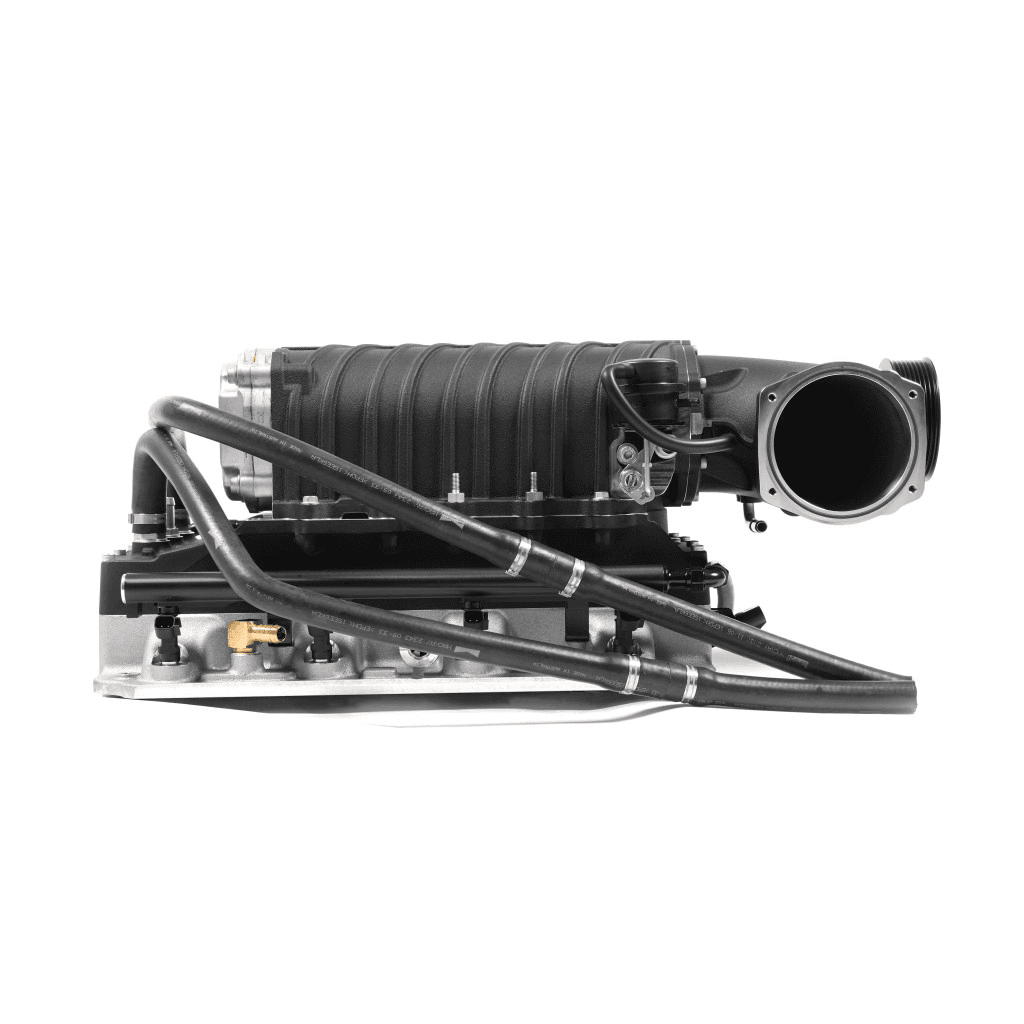

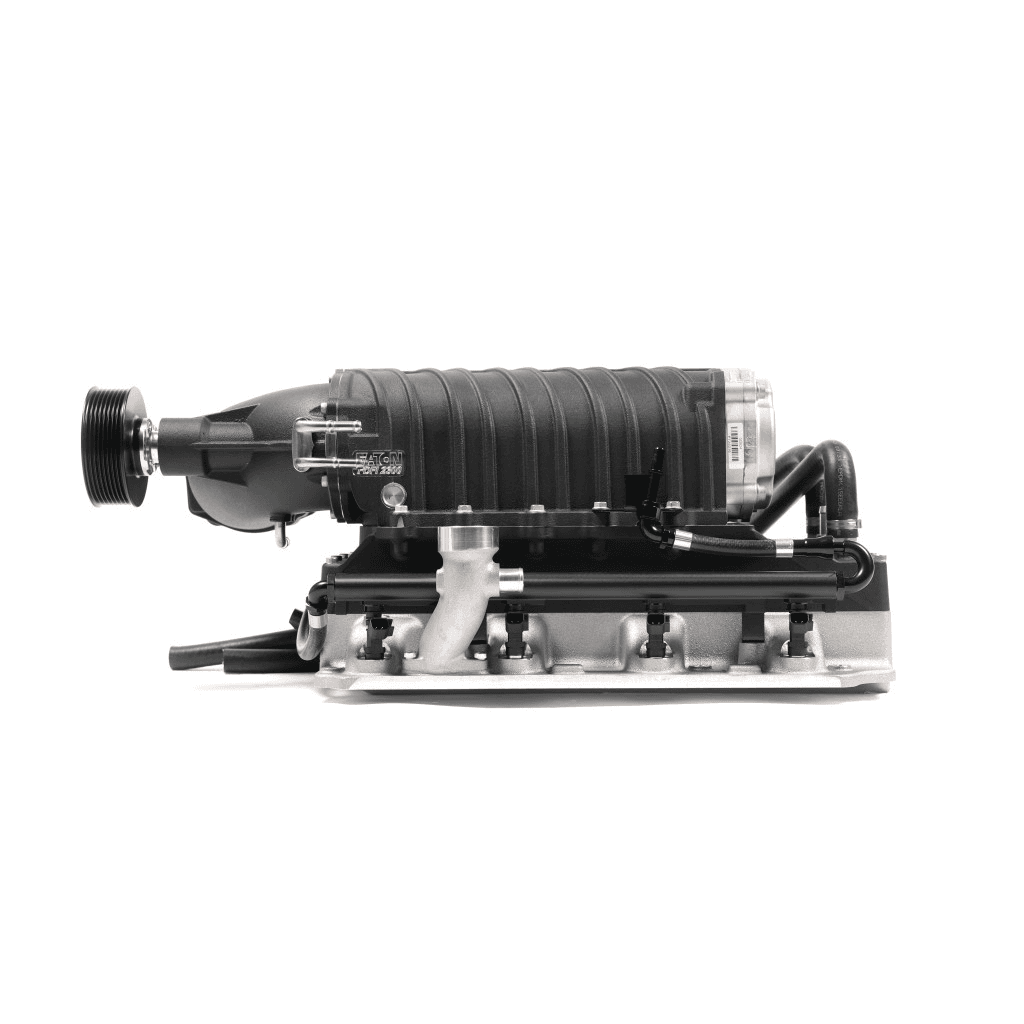

Harrop is proud to release the innovative TVS2300 Supercharger for 2019+ Ram 1500 eTorque 5.7L engines. The Harrop cast aluminum manifold assembly incorporates a large twin pass intercooler core that is located directly under the Supercharger discharge port to maximize Intercooler surface area. The unique intercooler system coupled with large front mount heat exchanger and high flow Bosch intercooler pump, provides greater thermal and volumetric efficiency to unleash the performance potential of the Hemi 5.7L E-Torque V8 engine both on-road and off. This is a tuner kit which will require a custom tune done locally after you install the kit.
Does not include PCM unlock, security bypass cable, tuning device or any tuning credits that are needed for installation. See PN: PCM-00-000.

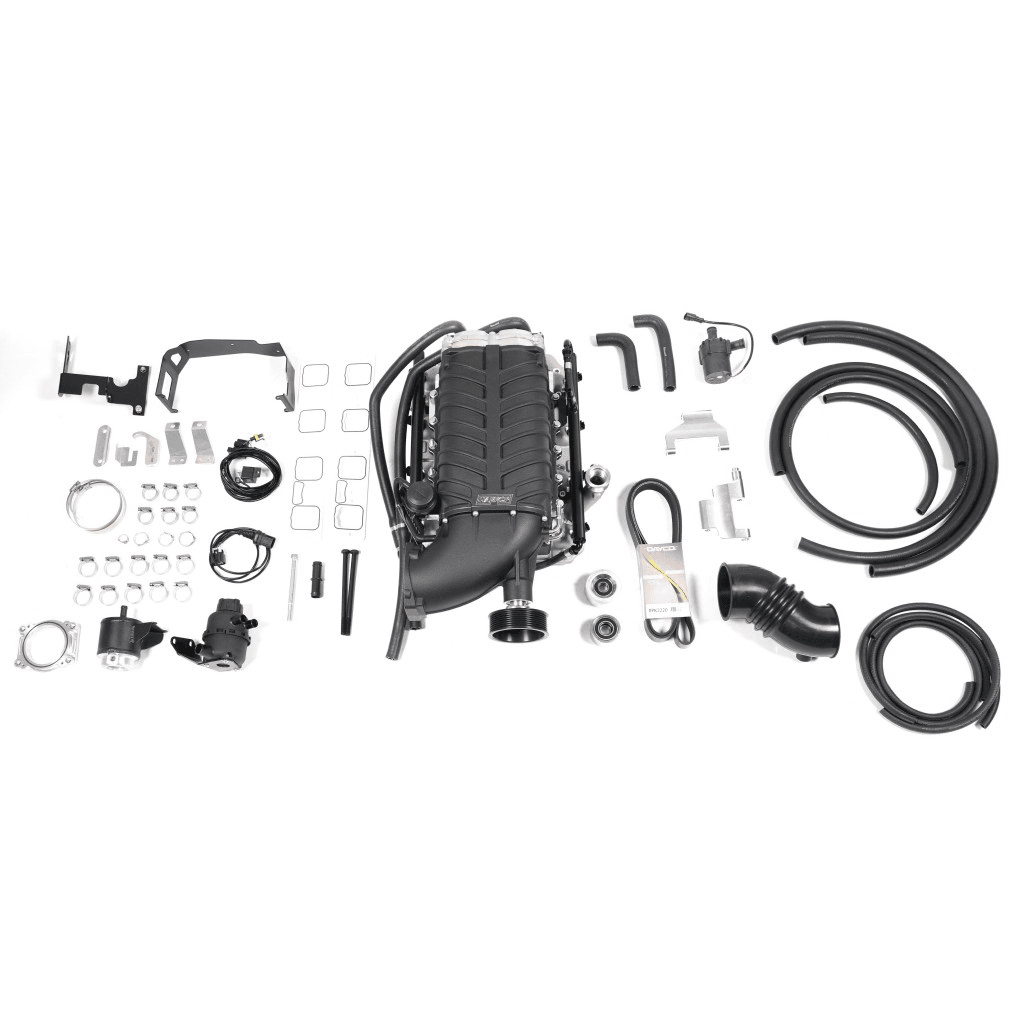

Note: This system only includes TVS2300 headunit, eTorque relocation brackets, 8-rib belt, Bosch 650cc high flow injectors, heat exchanger, intercooler pump and all wires and hardware needed for installation.
*Notice, this system has only been test fitted on rhd trucks, some small modifications may need to be done for lhd trucks.
Details:

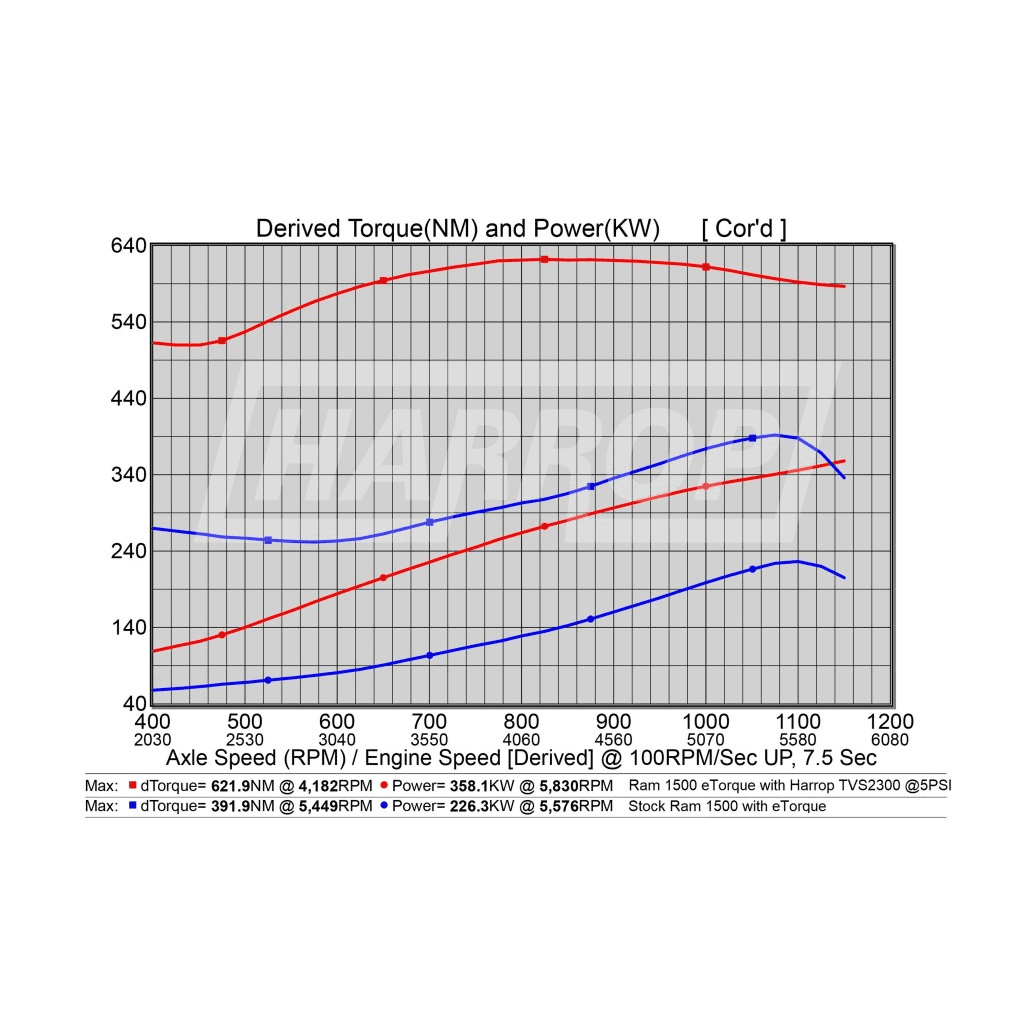

Horsepower Gain: Depends on tuning - TVS2300 Supercharger is capable of producing 1000+ hp with further supporting modifications.
Eaton TVS technology R2300 rotating group
Supercharger Pulley Size: 3.93" / 100MM (172+ HP gain with supplied pulley)
Fuel Pump Supplied?: Not Supplied
Fuel Injectors Supplied?: 650cc High Flow Injectors
Computer/Ignition Mods?: None Supplied
Front Drive/Front Inlet design for shorter less restrictive intake path to improve boost response
Latest high-density fin, extruded tube dual pass intercooler core ensures maximum thermal transfer
Interfaces with factory and aftermarket Airboxes, retains all factory ancillaries including A/C and E-Torque system
Huge Torque increase at low rpm is perfect for towing or off road driving
Designed & Manufactured by Harrop to OE levels of appearance and operation
