These supercharger kits are the most complete aside from tuning available. This includes all mounting brackets for the blower, pullies, belts, intercooler, all the tubing, piping, fittings and clamps and even oil for the self contained lubricating system. Require a custom tune done locally after you install the kit. The Harrop TVS2650 Supercharger is capable of producing 1100+ hp with further supporting modifications.
Details:
Horsepower Gain: Depends on tuning, Blower is capable of producing 1100+ hp with further supporting modifications.

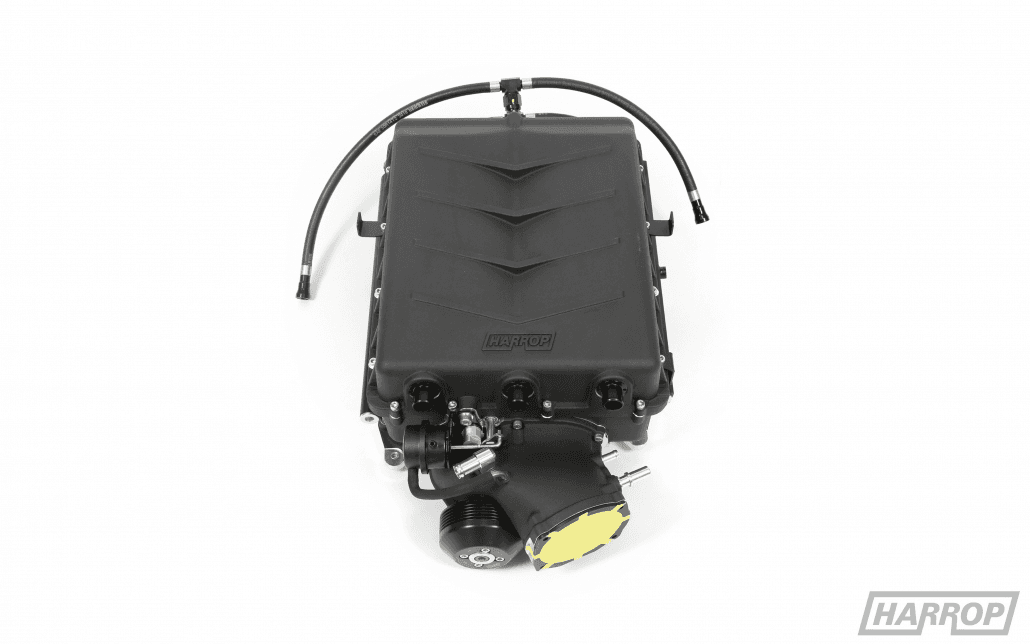

Harrop TVS2650 Headunit
Supercharger intake manifold including charge-air intercooler
Each supercharger comes prefilled with oil and is ran up to verify functionality before leaving the factory.
Fuel Pump Supplied: None Supplied
Fuel Injectors Supplied: None Supplied
Computer/Ignition Mods.: None Supplied
Designed using Eaton’s largest 2650 rotating group with 170 degree lobe helix angle for unrivalled thermal efficiency
Inverted supercharger design for increased intercooler area and maximum hood clearance
Front Drive/Front Inlet design for shorter less restrictive intake path
Latest high-density fin, extruded tube intercooler core ensures maximum thermal transfer
Dual pass charge air and coolant in intercooler core for increased thermal efficiency
New CAI Tube and Airbox design with larger MAF tube
Designed & Manufactured by Harrop to OE levels of appearance and operation

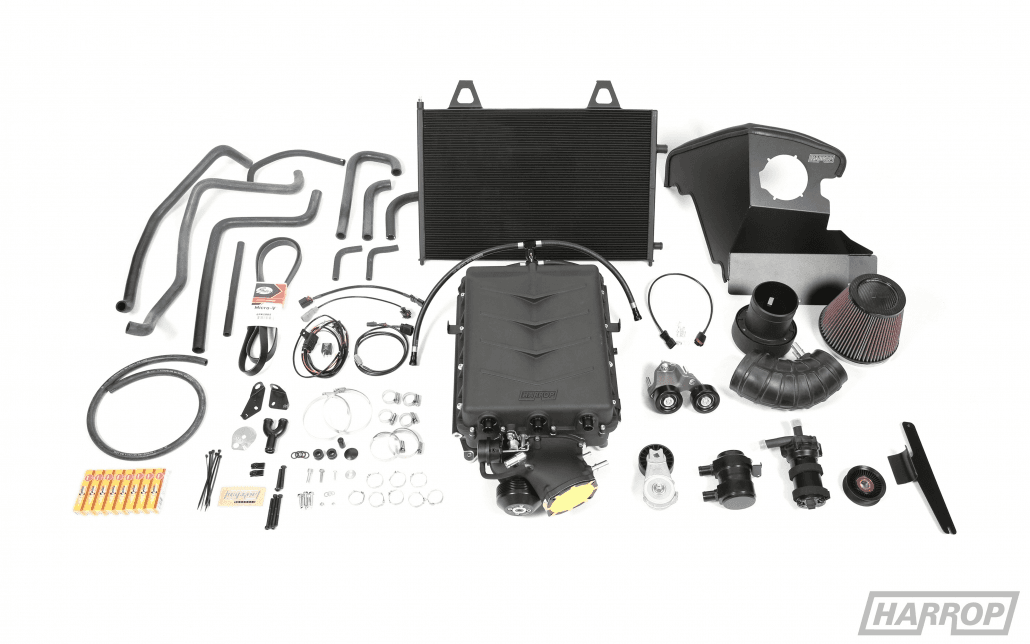

Key Details:
Harrop TVS2650 Supercharger head unit with integrated bypass valve and choice of drive pulley size
High flow cast aluminium intake manifold with anti-heat transfer insulation spacers
Industry leading charge air dual pass Intercooler cores featuring unique thermal sealing
Extruded aluminium fuel rails with high flow DW 1000cc injectors
High efficiency heat exchanger with maximum surface area and combined mounting brackets
Intercooler reservoir bottle and high volume electric water pump with wiring kit
Cold Air intake featuring oversize K&N filter and MAF tube for maximum filtration with minimum restriction
NGK high performance spark plugs
All associated fasteners, wiring looms, moulded hoses and fittings required
