The Harrop HTV (Harrop Twin Vortices) supercharger system is a Roots-type supercharger manufactured utilising the latest Eaton TVS ™ rotating assembly. Built for a variety of engine configurations and high performance applications they deliver more power and efficiency for uncompromising high performance driving. Requires a custom tune done locally after you install the kit.
The Harrop HTV supercharger's design features patented four-lobe rotors with high-flow inlet and outlet ports that greatly enhance thermal efficiency, delivering higher volumetric capacity, and enable higher operating speeds. The HTV supercharger is capable of running with a high efficiency across a very wide operating range. The four-lobe rotors feature 160-degree twists, the higher helix angle of the rotors coupled with redesigned inlet and outlet ports, improve the HTV's air-handling characteristics without increasing the overall size of the unit.
The new Harrop HTV sets a new standard of supercharger performance and reaffirms Harrop and Eaton's leadership in the performance automotive market.
Note: Customer must supply T-Map sensor PN: 65-0281002514
FG Falcons had a change to the water pump pulley diameter, change is from 130 to 140, any kits sold must have an earlier pulley fitted to ensure belt fits

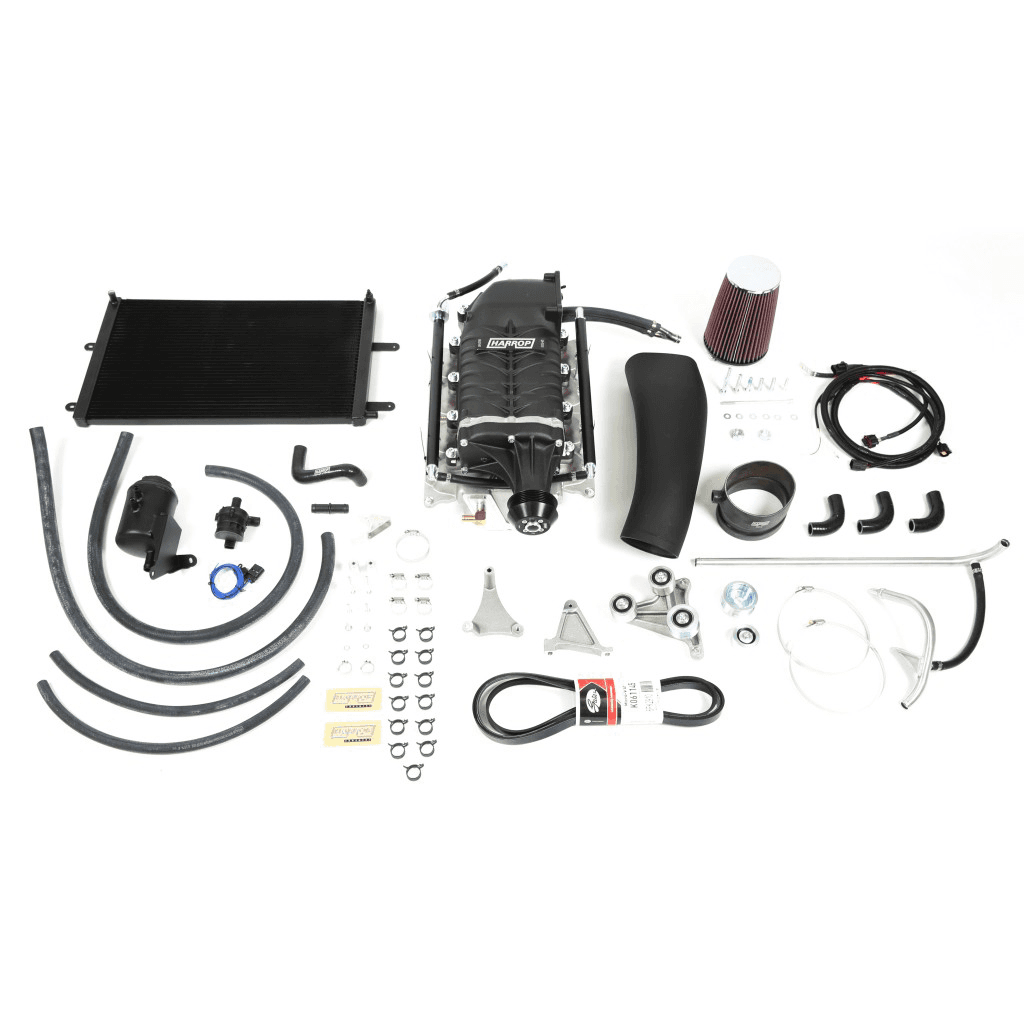

Details:
Horsepower Gain: Depends On Tuning, headunit capable of 800+HP
Harrop HTV2300 Headunit
Intercooled manifold and drive assembly
Throttle body adapter, Throttle body
Fuel Pump Supplied: None Supplied, but required
Fuel Injectors Supplied: Siemens 63lb Injectors Supplied
Computer/Ignition Mods.: None Supplied, recalibration required
Harrop TVS2300 FDRI Supercharger with LH inlet cover to suit 60mm Twin throttle body
6-Rib FEAD idler bracket, 6-Rib Supercharger drive belt
Plug-in wiring looms for intercooler pump, alternator relocation
Front-mount intercooler radiator, Electric Intercooler pump, Coolant reservoir and molded hoses
Retains all factory ancillaries including A/C, Electric engine fan, Power Steering, etc.
Comes with twin 60mm throttle body
Detailed installation instructions.
The average installation time for an experienced installer is 11-13 hours.
