GMC Sierra 1500 2014-2018 5.3L V8 Magnuson - TVS2650 Supercharger Intercooled Kit

This is a Magnuson Air-to-Water Intercooled Supercharger system with the all new TVS2650 head unit for the 2014-2018 GMC Sierra 1500 L83 5.3L V8 which will get you an 130 horsepower gain and a 140 lb-ft of torque gain at the rear wheel on just 7 psi of boost! This system is 100% complete, including tuning for all stock vehicles or those with a catback only, just bolt on and drive! If you have other modifications such as headers, midpipe, camshaft, etc. then customer must get additional dyno tuning done, See our remote tuning options here!



Note: The stock throttle body is not compatible with this kit. Installation will require the purchase of a stock 6.2L 90mm throttle body for stock applications.



*Notice, This system is 50-state legal CARB EO# D-488-67

There are many options available for Magnuson kits. If you have any questions please email sales@TREperformance.com or call 760-586-5617.

These supercharger kits are the most complete available, including everything needed for installation. This includes all mounting brackets for the blower, pullies, belts, intercooler, all the tubing, piping, fittings and clamps and even oil for the self contained lubricating system. You do not need to make any major modifications or purchase special tools or other parts. Many customers install in their garage or driveway over a weekend.

DETAILS:

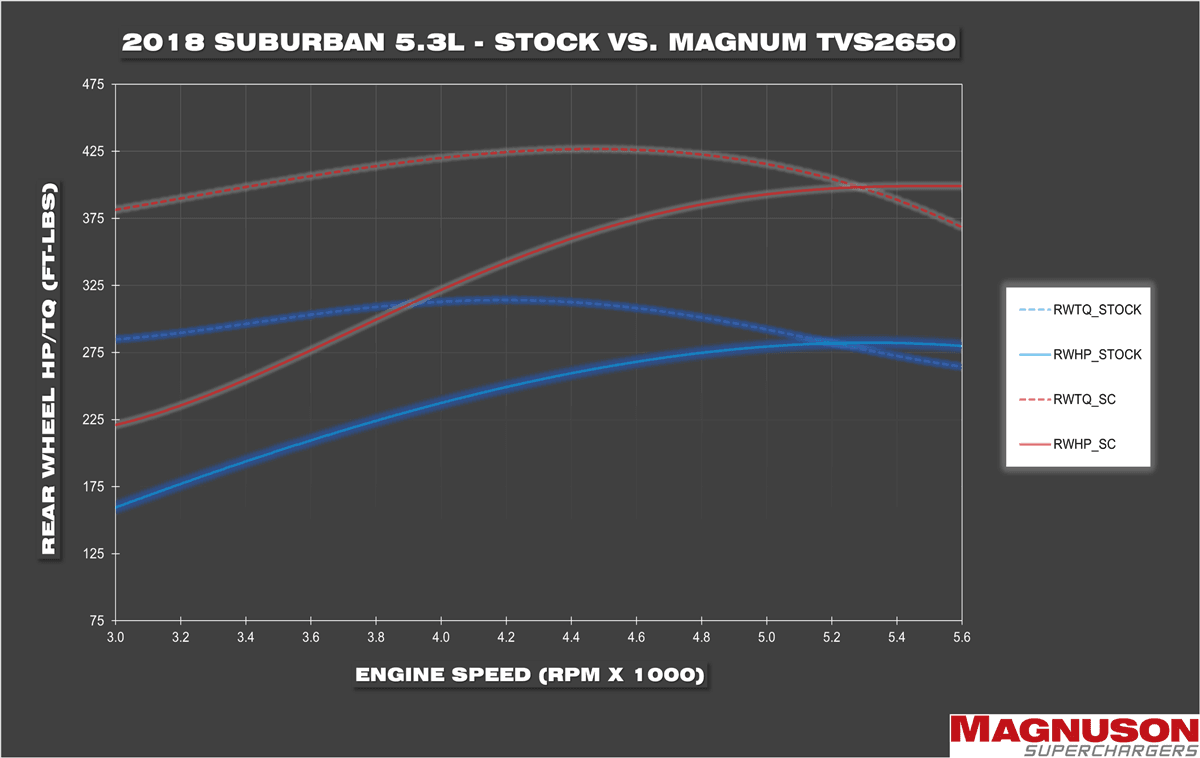

Horsepower gain: 130+ hp

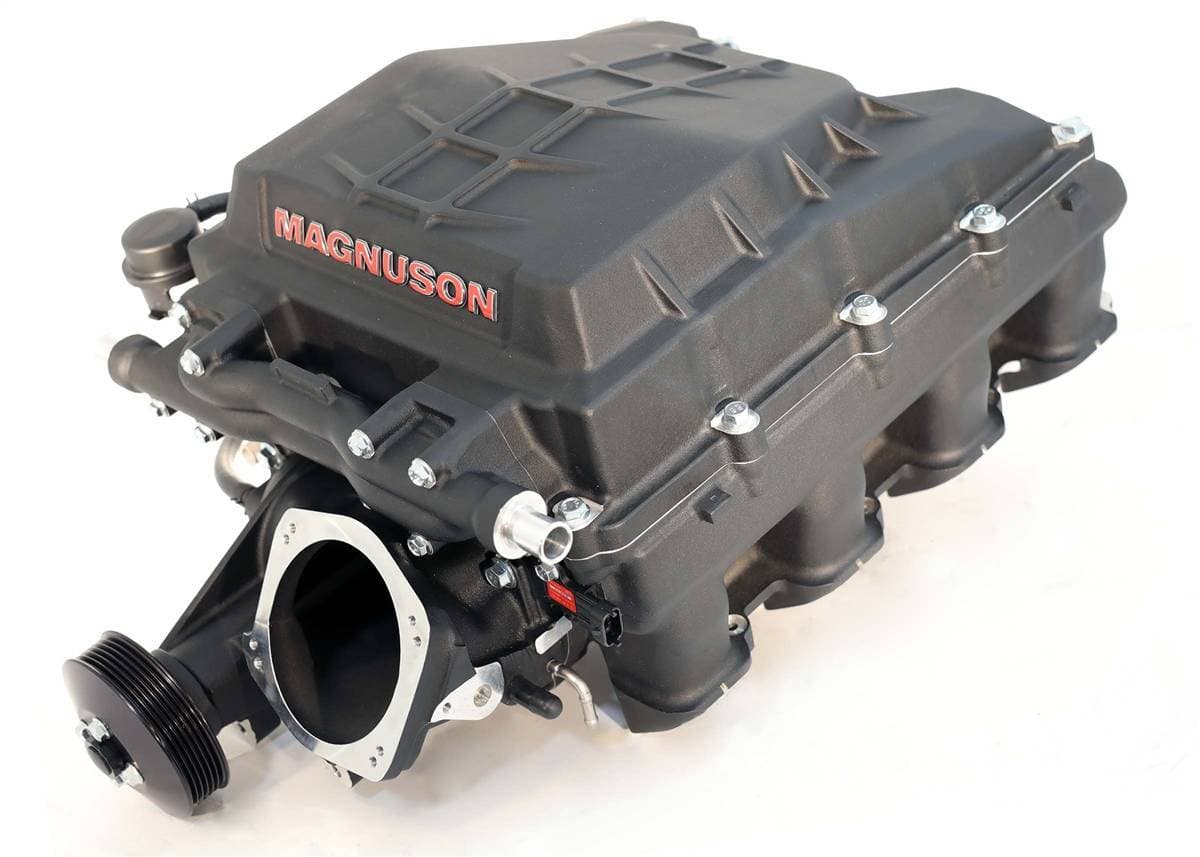

TVS2650 supercharger head unit, 7 psi
SC Drive System: Stock 6-Rib
Highly Effective Air-to-Water Intercooler
Fuel Pump Supplied: No, Not Required
Fuel Injectors Supplied: No, Not Required
Computer/Ignition Mods.: Handheld tuner included
Vacuum bypass system for instantaneous boost response, improved part-load fuel economy, and rapid supercharger cooldown.
Compatible with L86 stock 90mm TB, LT5 95mm TB, and up to a 103mm Nick Williams TB
Utilizes patented Dynamic Flow Tuning (DFT) inlet porting.
Utilizes the factory beltline; the Magnum Truck System doesn’t compromise belt wrap of any components while providing over 180 degrees of supercharger pulley belt wrap.
Unique housing, lid and intercooler geometry were optimized to distribute airflow evenly across the system
Highly efficient intercooler for maximum cooling to deliver consistent air charge temperatures in even the most challenging driving conditions including hot temperatures and towing
Proven maintenance-free supercharger technology. No added complexity of external supercharger oil cooler/heaters for extreme climates.
3-year/36,000-mile Powertrain Warranty
Designed to mount on GM L86 heads with OEM look, fit and finish
CARB EO Pending

TREperformance is an Authorized Priority Dealer of Magnuson.
Standard 3 Year / 36K Miles warranty direct from Magnuson
Custom made and shipped direct from Magnuson in 5-10 business days!
