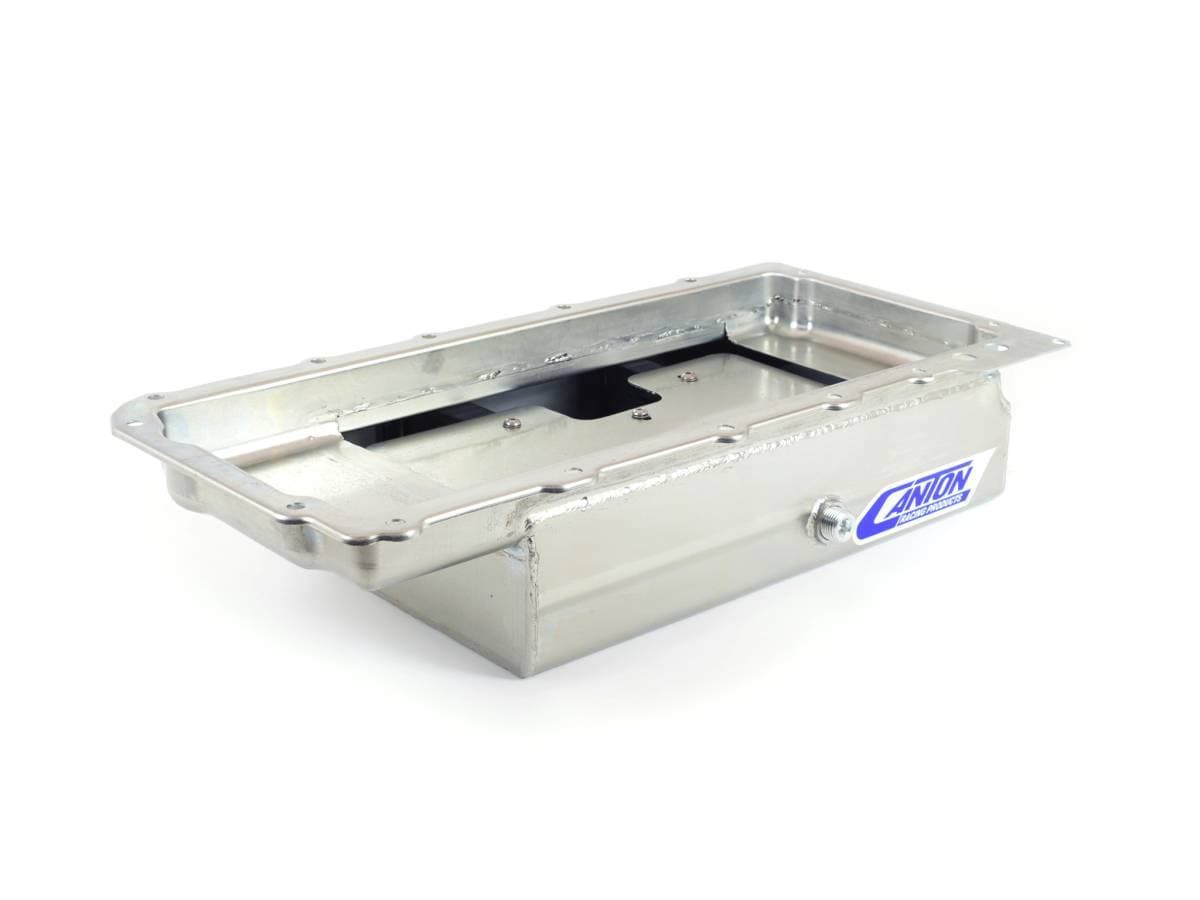

GM LS1 Open Chassis Steel Circle Track Rear Sump Canton Race Oil Pan

This circle track steel rear sump is designed for GM LS1 open chassis applications.

Note: This pan requires Canton 11-281 pickup, and LS1 Filter Adapter (#22-630 or #22-632) or Filter Mount (#22-631).

Features: GM LS1 Small Block Chevys, The pan is designed for circle track open chassis usage.

Style: Designed for GM LS1 Open Chassis, this pan is 4 3/4" deep so it fits well in a variety of chassis where low ground clearance is an issue.

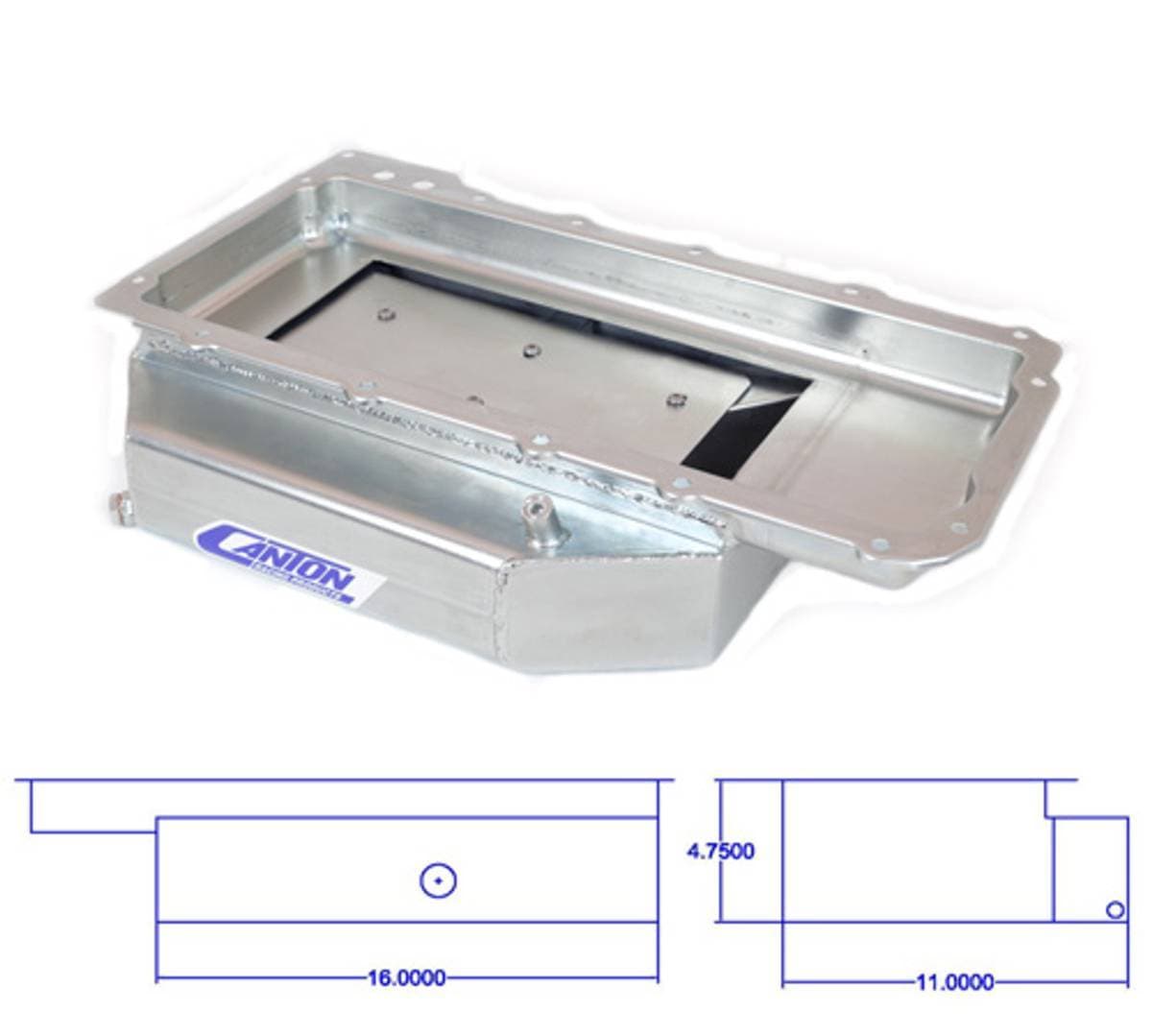

Size: 4 3/4" deep from the pan rail, 11" wide, 16" long and has a 7 quart system capacity.

Oil Pan Features:
7 qt System Capacity
4.25" Stroke Clearance

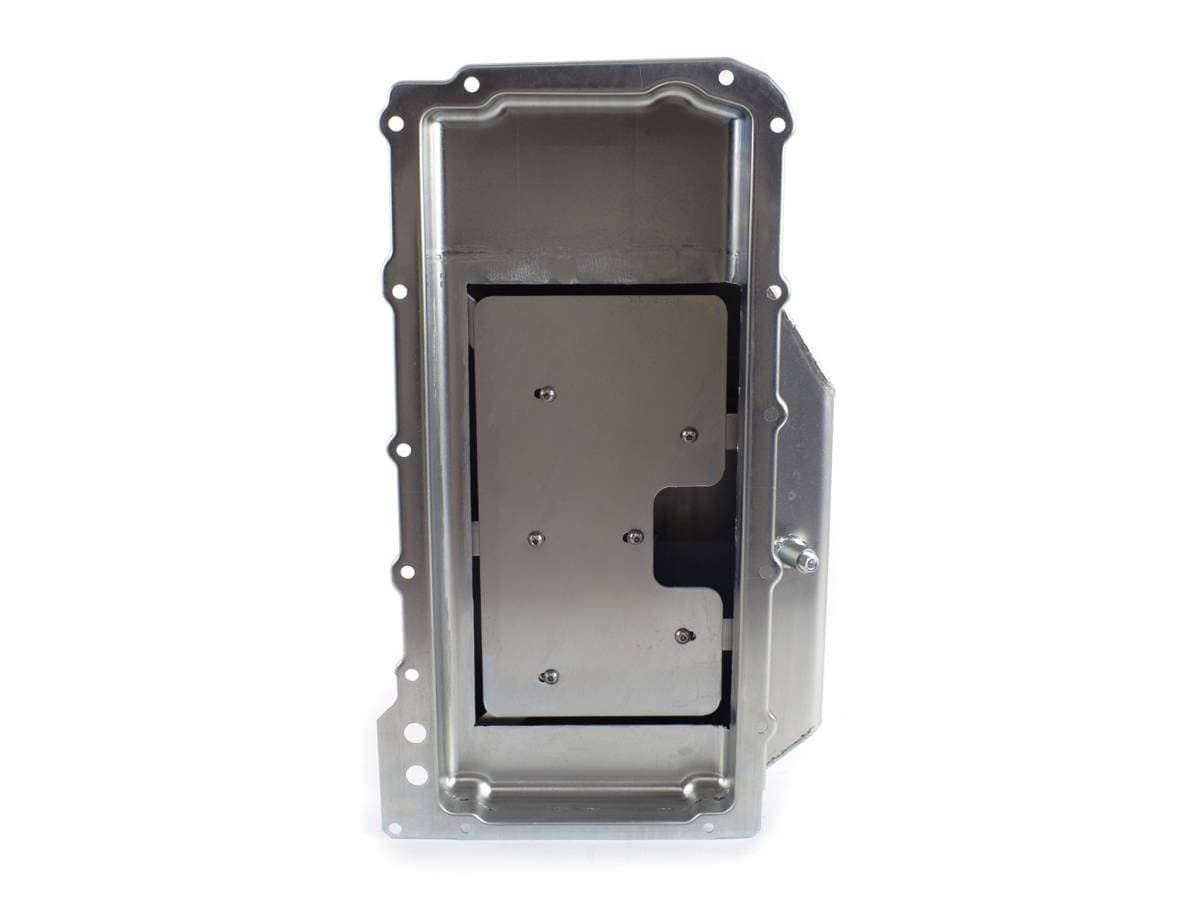

Circle Track Trap Door Baffle System
Bolt in Slosh Baffle
1/2" NPT Temperature Bung
Magnetic Drain Plug

Recommended Accessories:

PART #: 21-870 - LS flywheel cover
PART #: 22-302 - GM LS Oil Pan Stud Kit
PART #: 22-620 - Billet Aluminum Spin-on Filter Adapter

Gaskets:
PART #: Stock

Universal Dip Sticks:
PART #: 20-850 - Universal Dipstick Kit 1/4” N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
