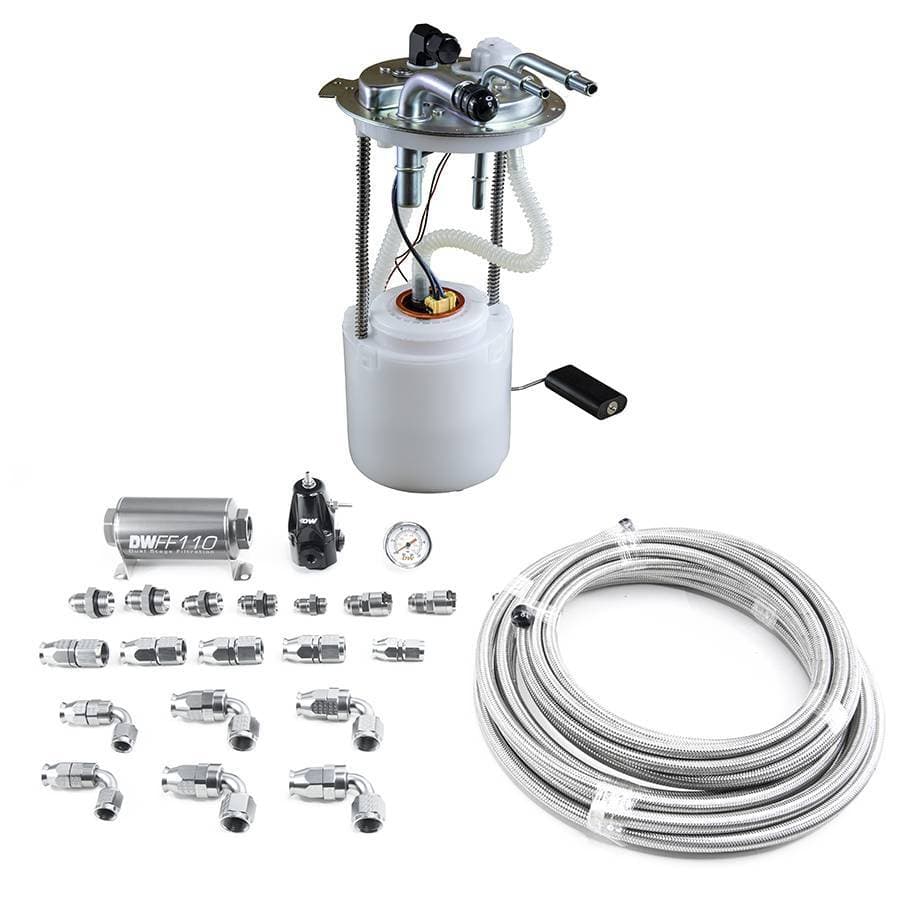

Included: (1) GM 2005-2019 SUV 400LPH DeatschWerks Fuel Pump Module Kit
Specifications
Wire Harness: 12ga Replacement Pigtail Included
Filtration: Integrated 100µ, External 10µ
Regulator: DWR1000c Black
AN Line: PTFE Return Plumbing Kit Included
Feed Line: Uses your OEM 3/8" Feed
Low Level Pickup: Return Fed Bucket
Fuel Compatibility: Gasoline and Ethanol
Rated Working Press: 3-8 BAR (43-116 psi)
Fuel Level Sender: Included
Fitment: 2005-2019 Avalanche 1500, Escalade/ESV/EXT, Sonora, Suburban 1500, Tahoe, Yukon
Yukon XL 1500, 4.8, 5.3, 6.0, and 6.2 Engines
*Does Not Fit 2009 Escalade 5.3 Flex
*Note: On some Installations, the clocking tab will need to be removed to install module in tank
*Module Testing Notes: All testing performed by DeatschWerks at 13.5v on calibrated equipment. In-module flow
rates are lower than pump alone due to parasitic losses of venturi system, check valves and plumbing.
